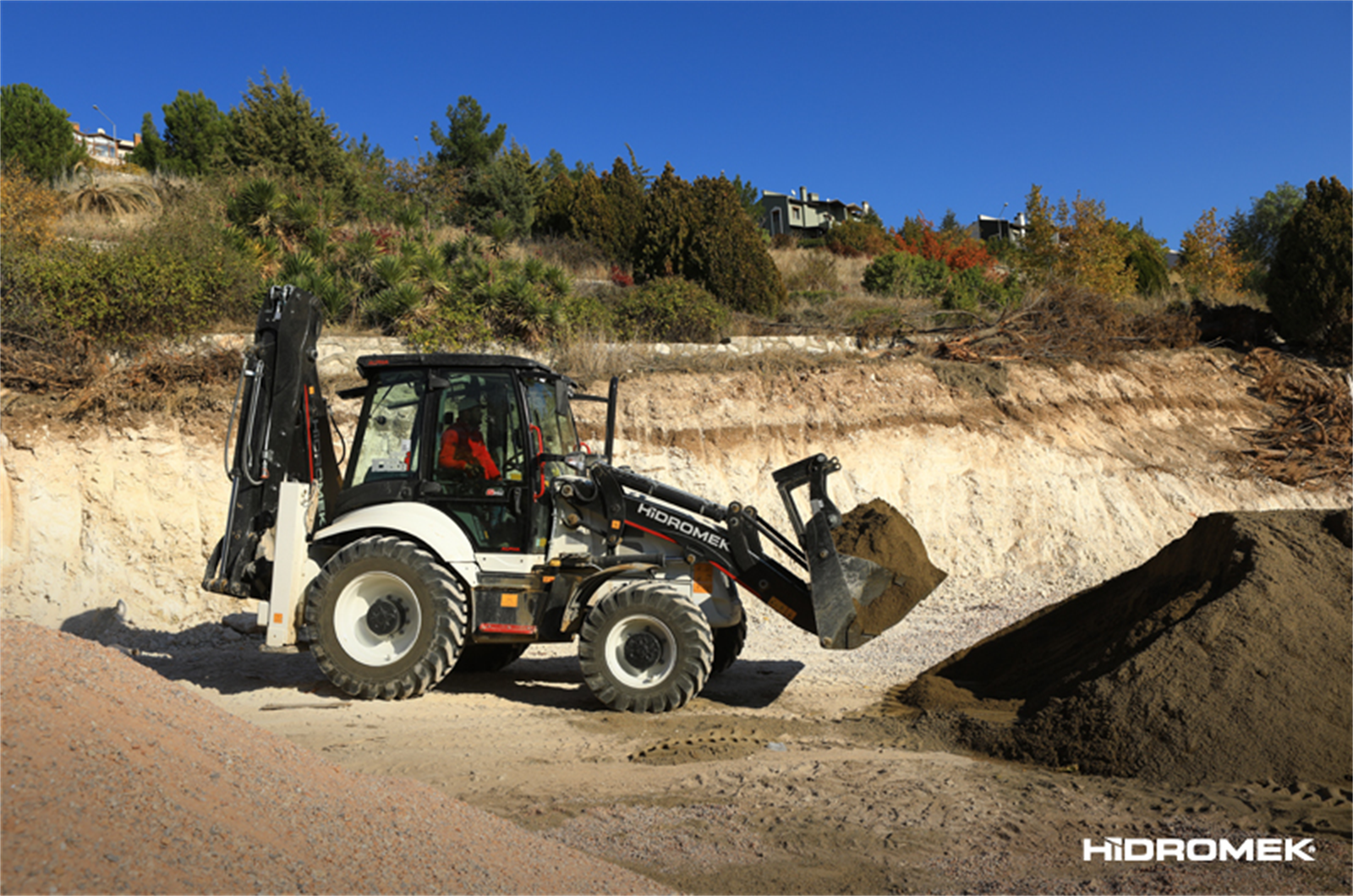

Hidromek HMK 62 SS Backhoe Loader (Hidromek HMK 62 SS)

Brand : Hidromek

Stock Amount : 1

Est. Delivery Time75 Days After Order

Shipment Place Turkiye

Payment Terms%30 On Order, %70 Before Shipment

Made InTürkiye

Minimum Order Quantity1 Pcs.

Warranty1 Years

Ask For Offer

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

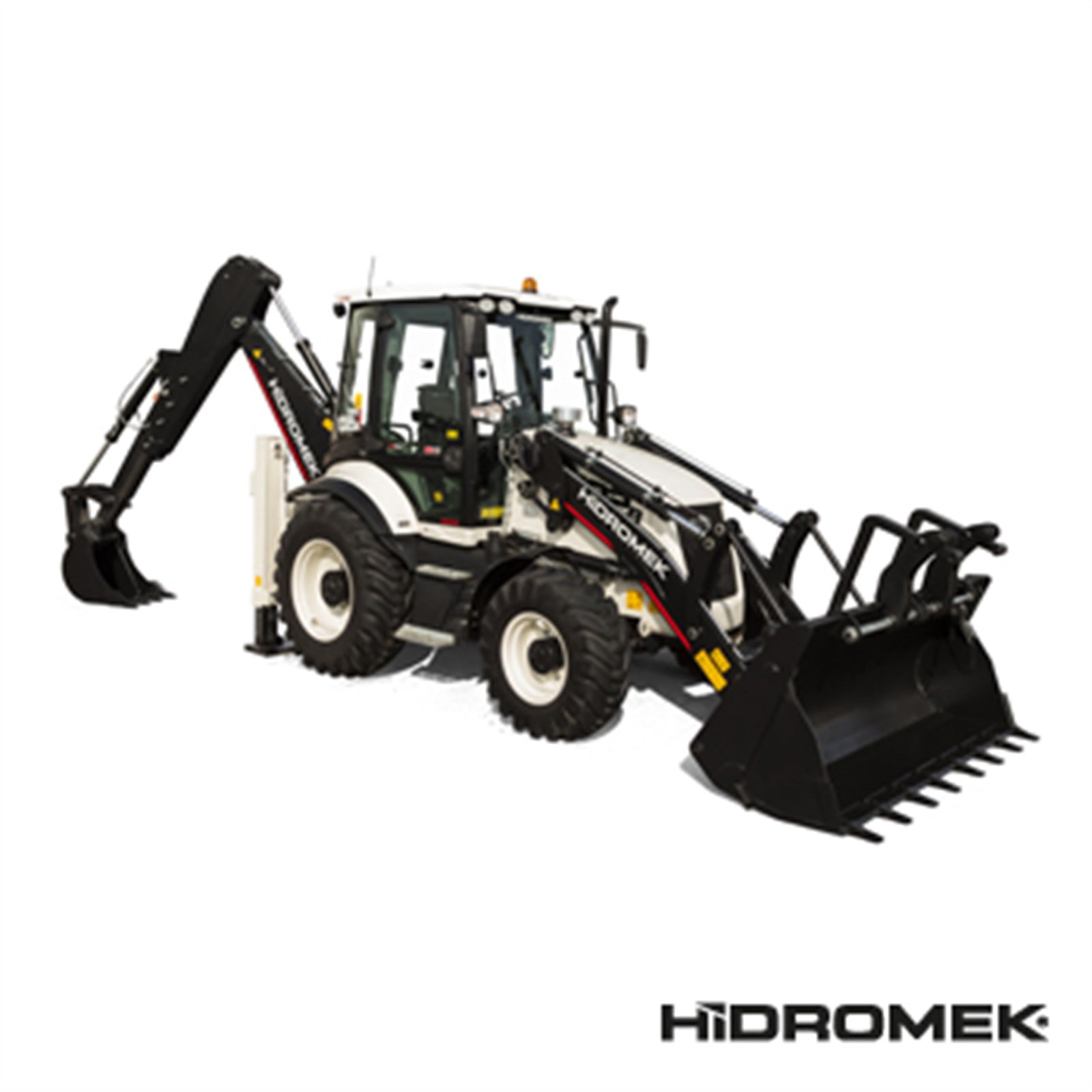

HMK 62 SS

Big solution in a compact machine…

The new member of backhoe loader family developed with over 35 year experience of HİDROMEK. The HMK 62 SS is designed to exceed customer expectations; High Performance, Versatility, Operational Comfort and Safety.

HİDROMEK HMK 62 SS provides customer with a compact but reliable and strong machine even in the toughest conditions and with long working hours.

You can execute all works requiring two different machines, a mini excavator and a mini loader, with a single machine. HMK 62 SS offers you eligible investment costs and the possibility of spending less time for more work.

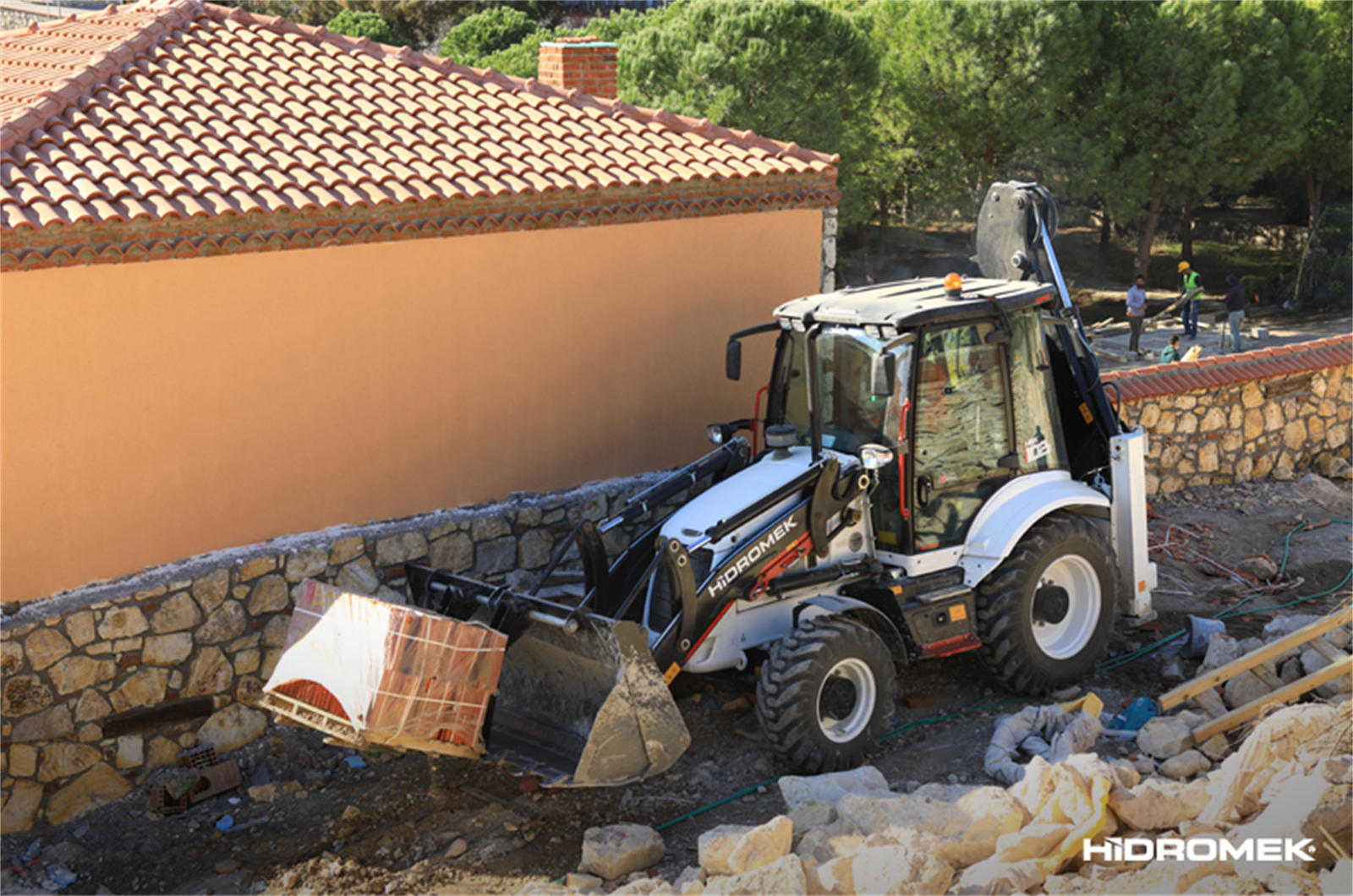

The compact size of the machine, ability to turn 360 degree on its own axis, banana boom of backhoe, standard additional auxiliary hydraulic lines make HMK 62 SS ideal for urban constructions and agricultural applications where the space is often limited.

Spacious and Comfortable

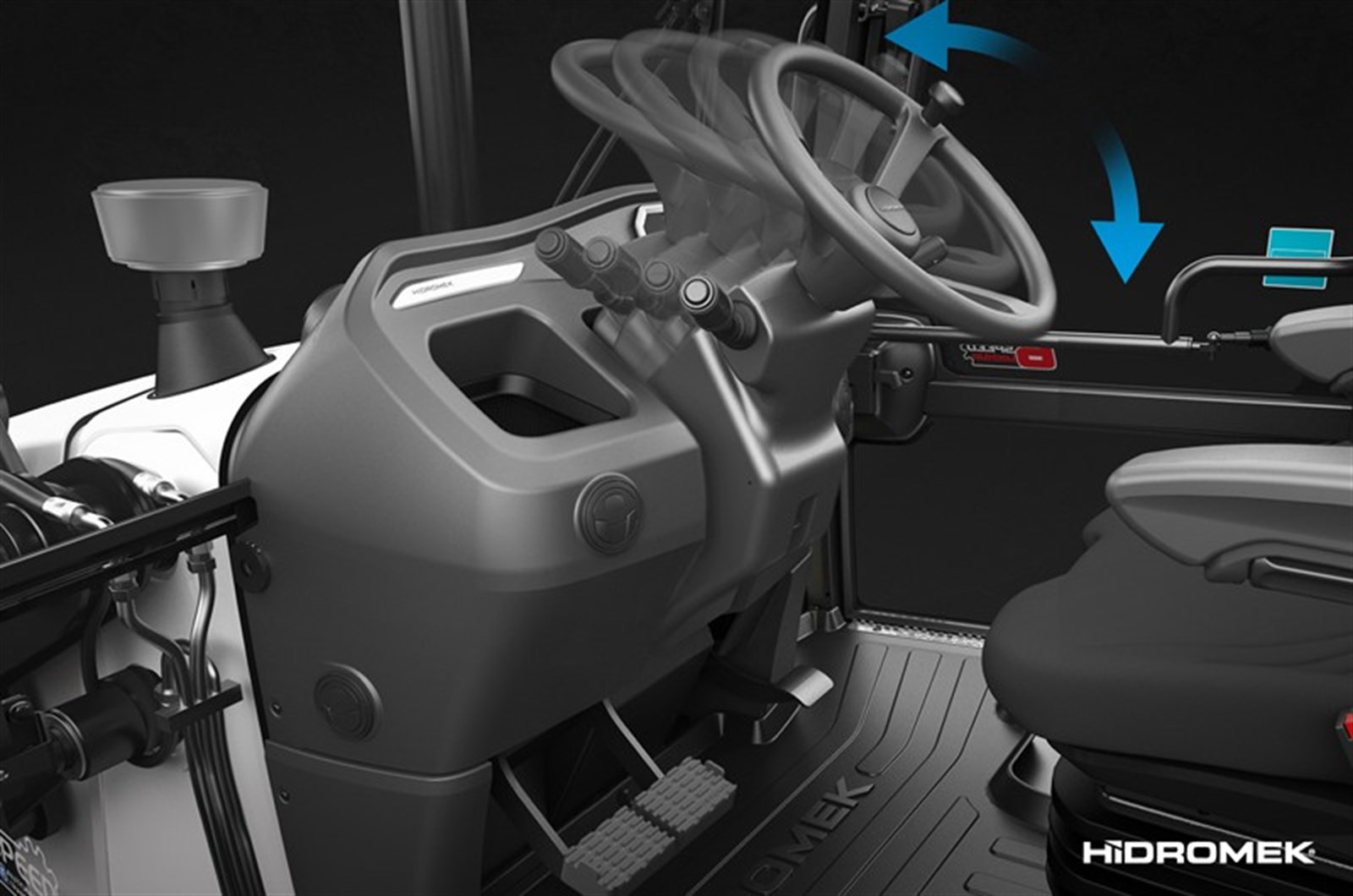

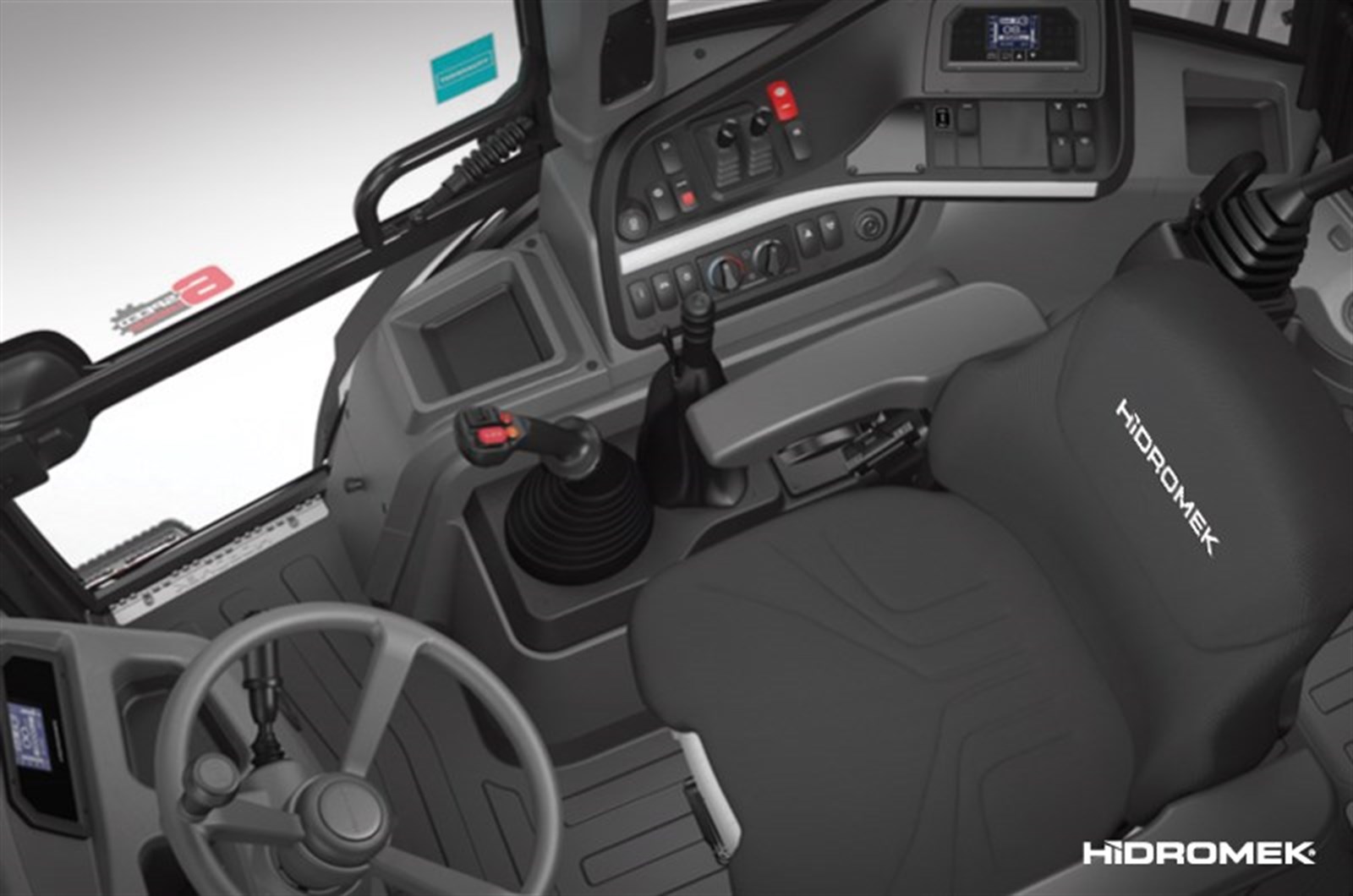

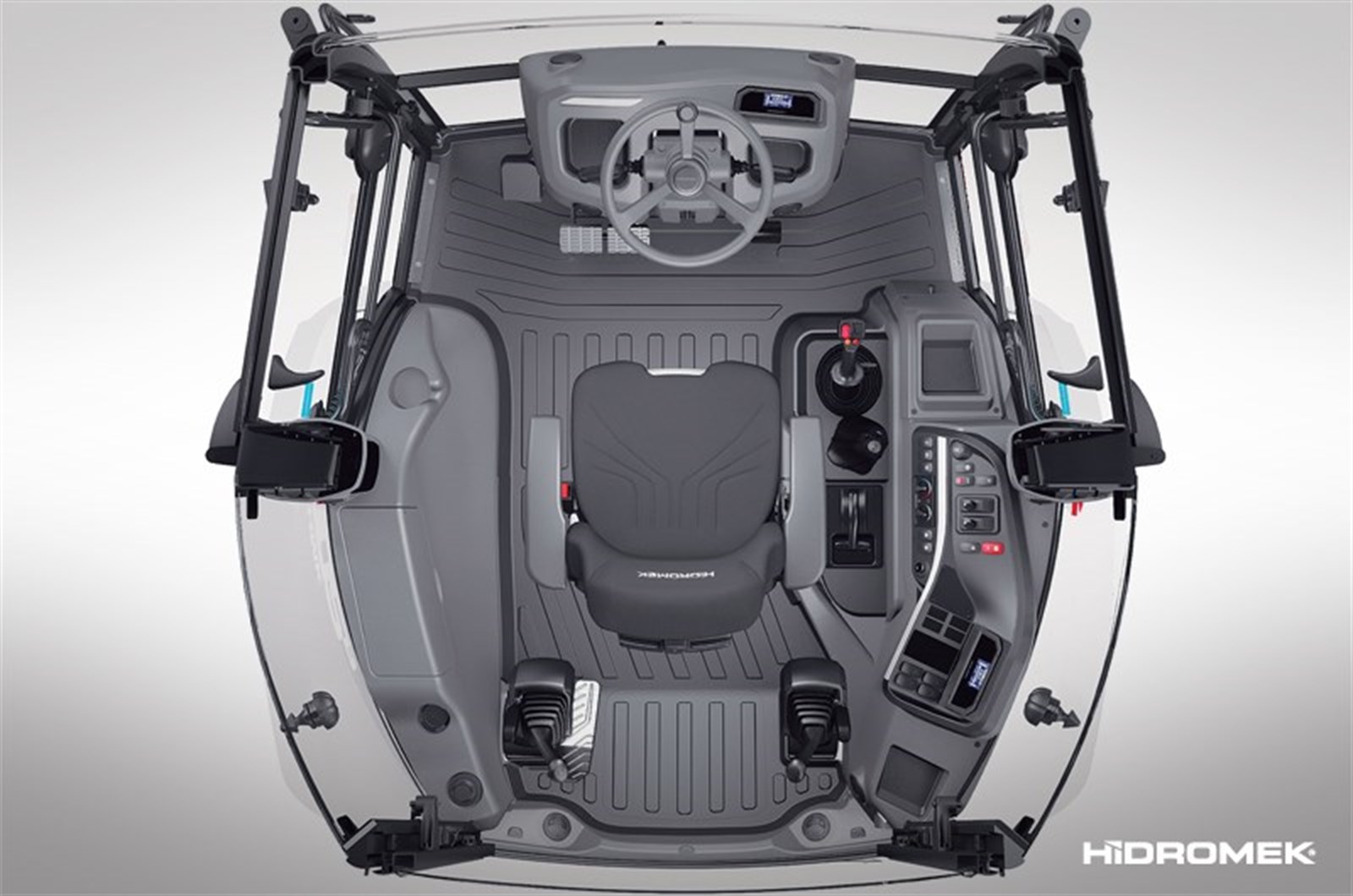

Cabin Interior

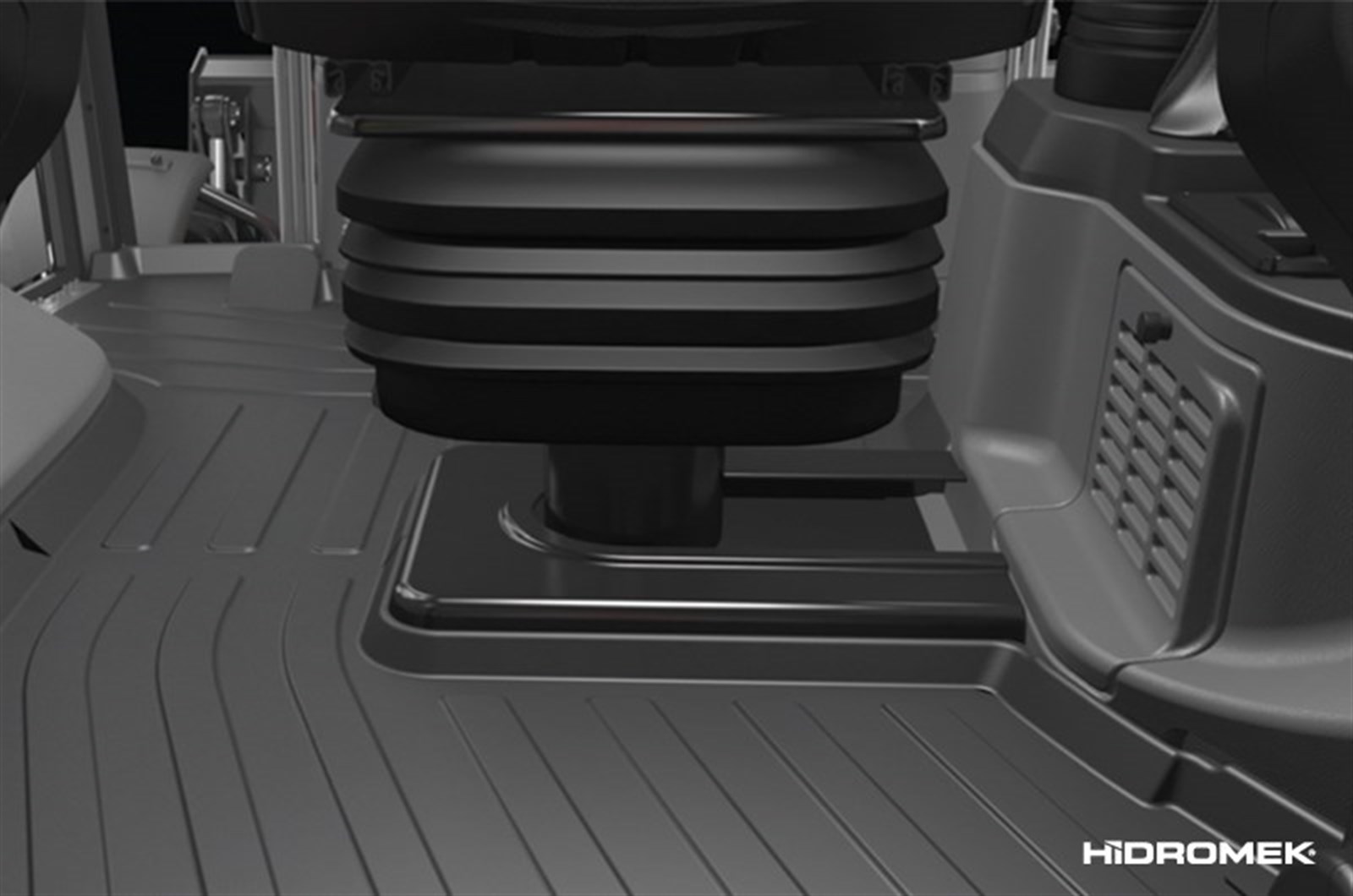

Ergonomic Operator Seat
Advanced Heating and Cooling System (A/C)

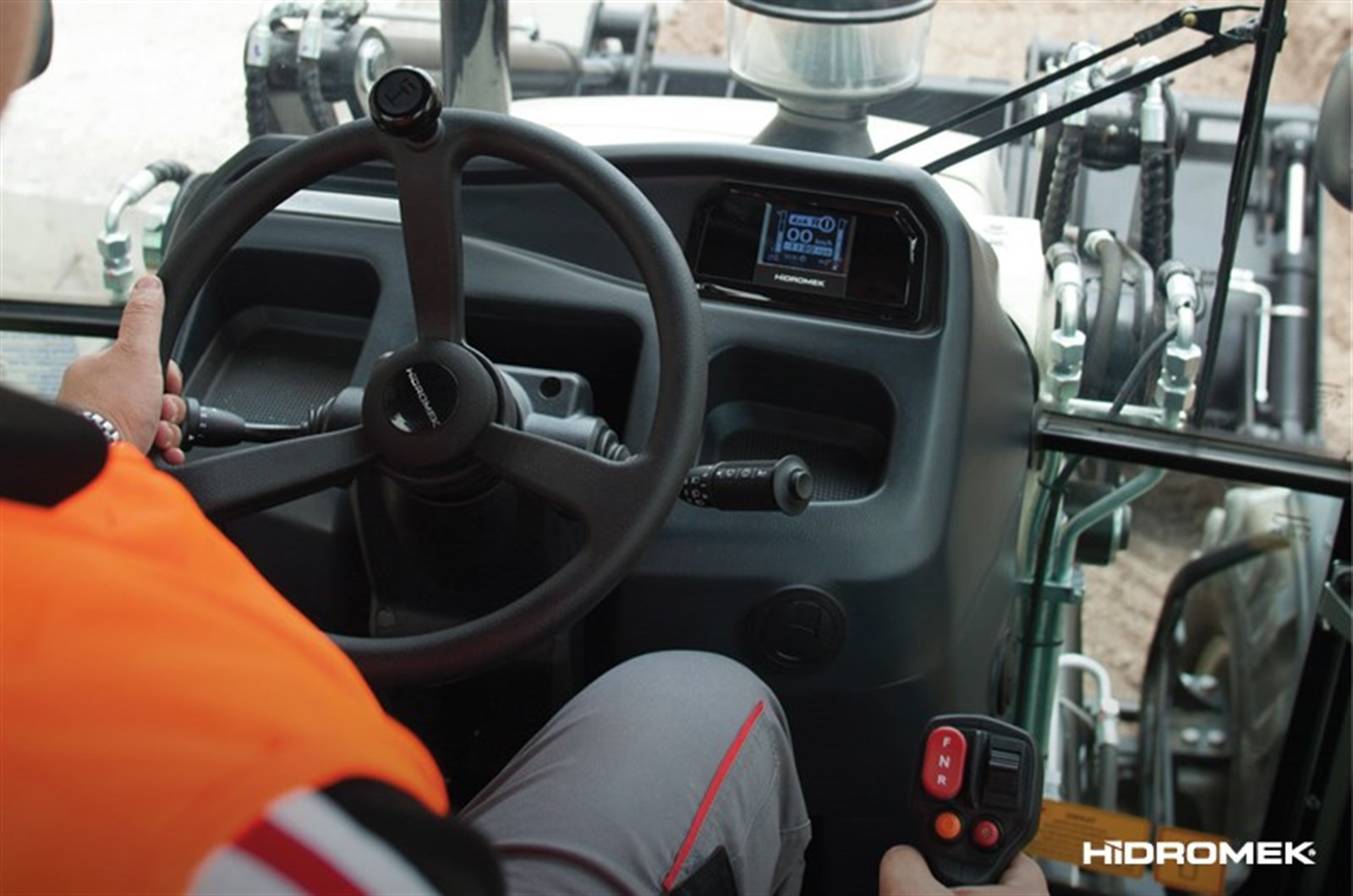

LCD Information Display

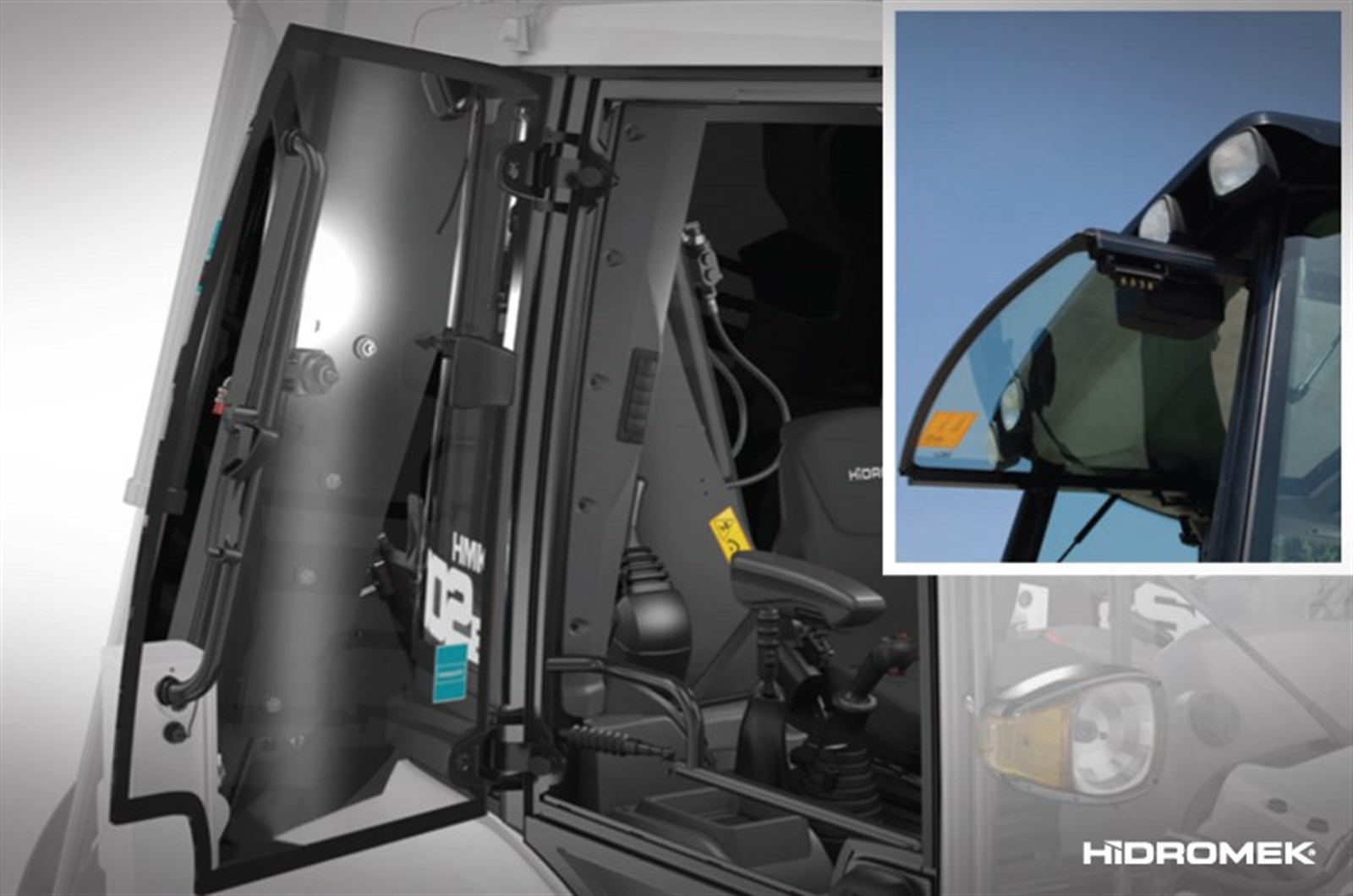

Monolithic Rear Window
Opening Side Window

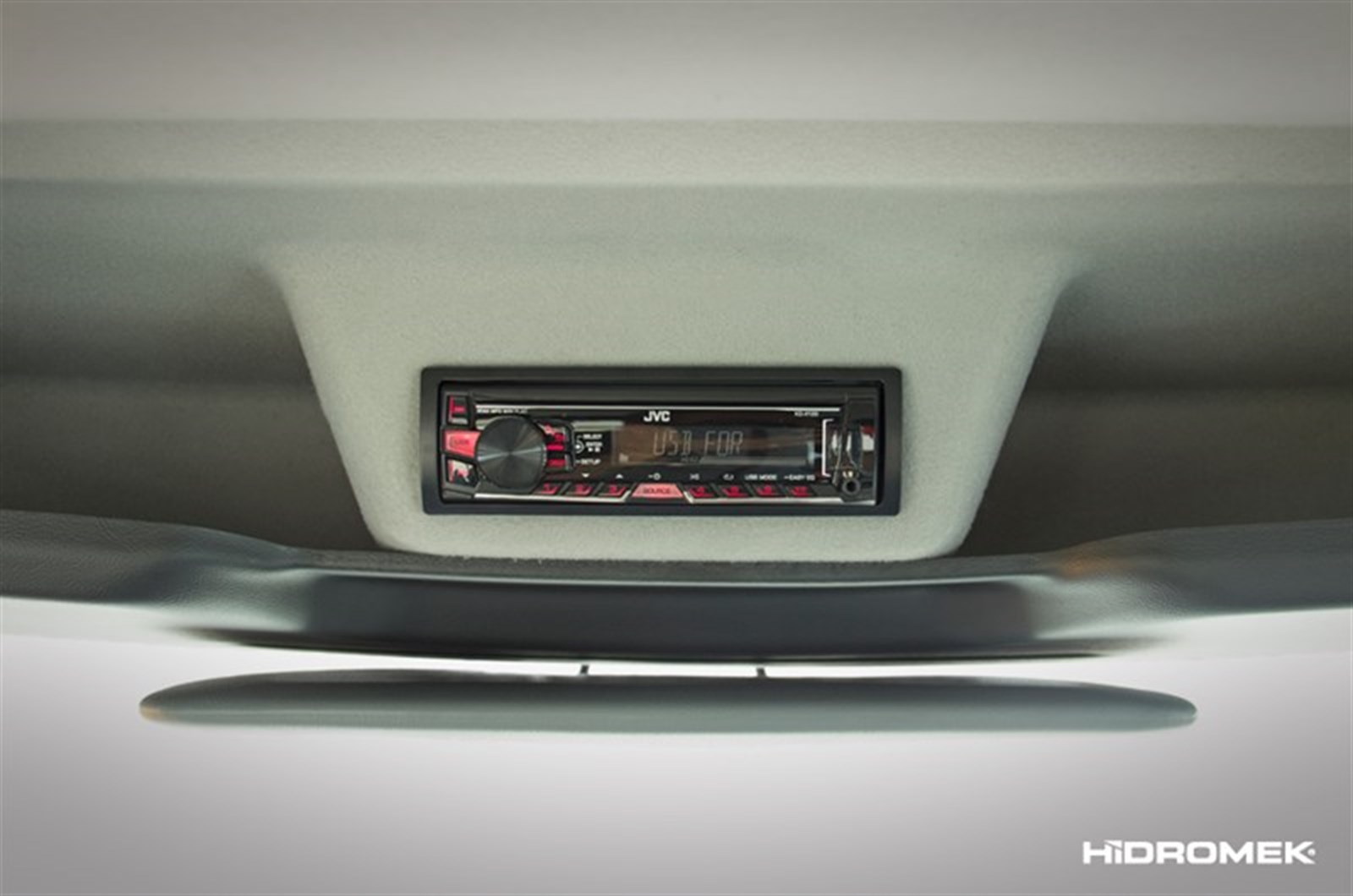

Radio and MP3 Player

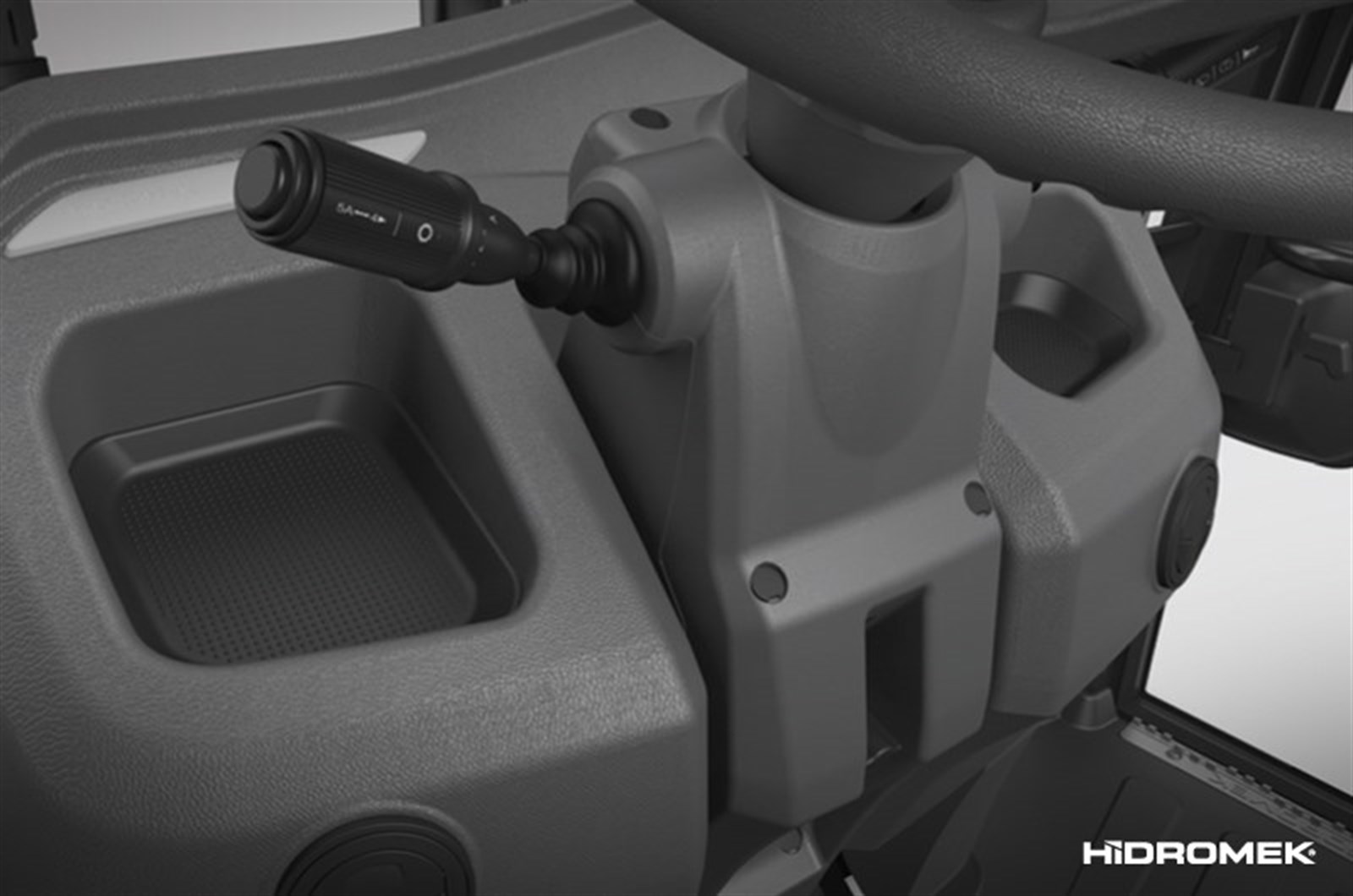

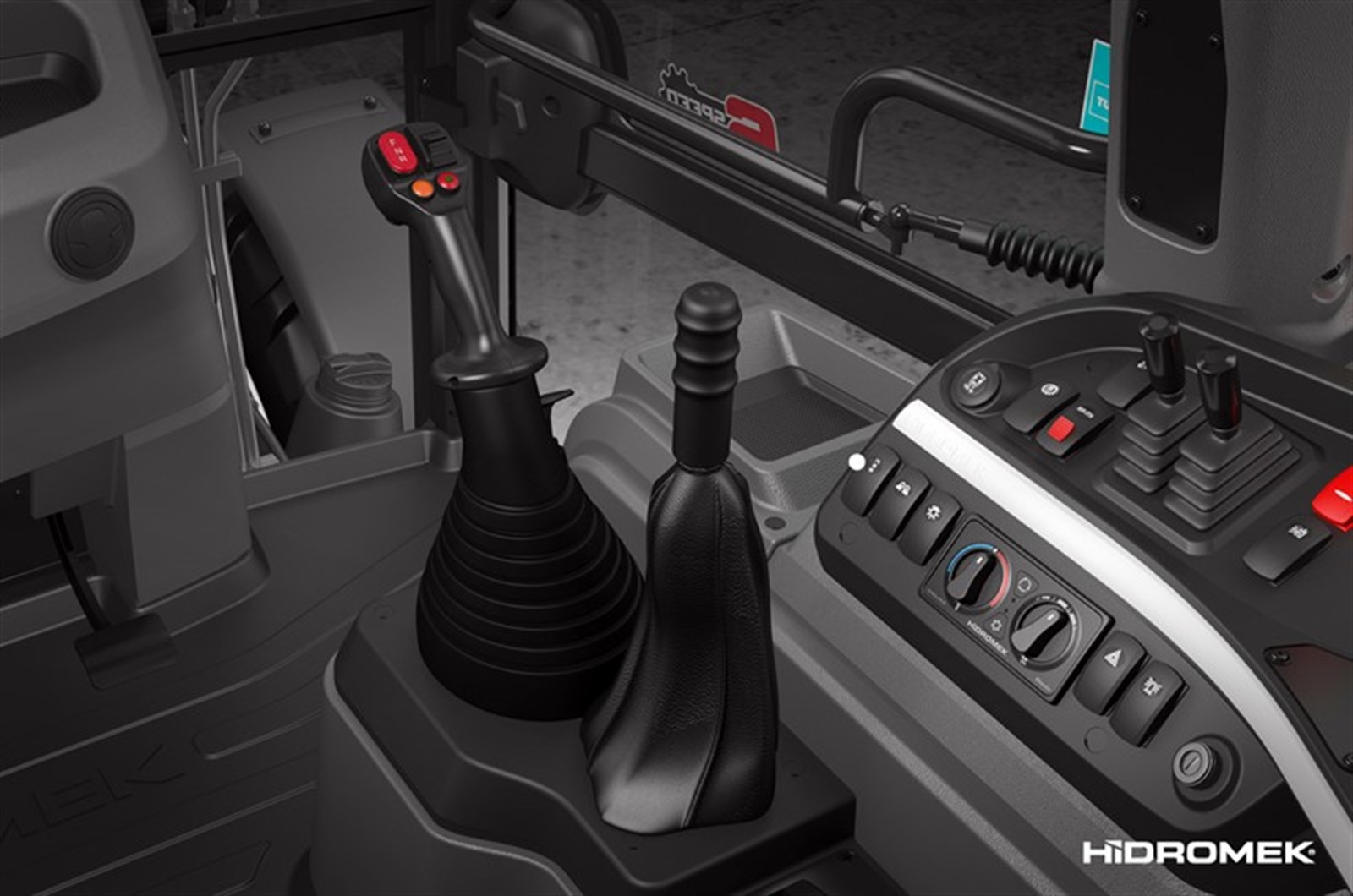

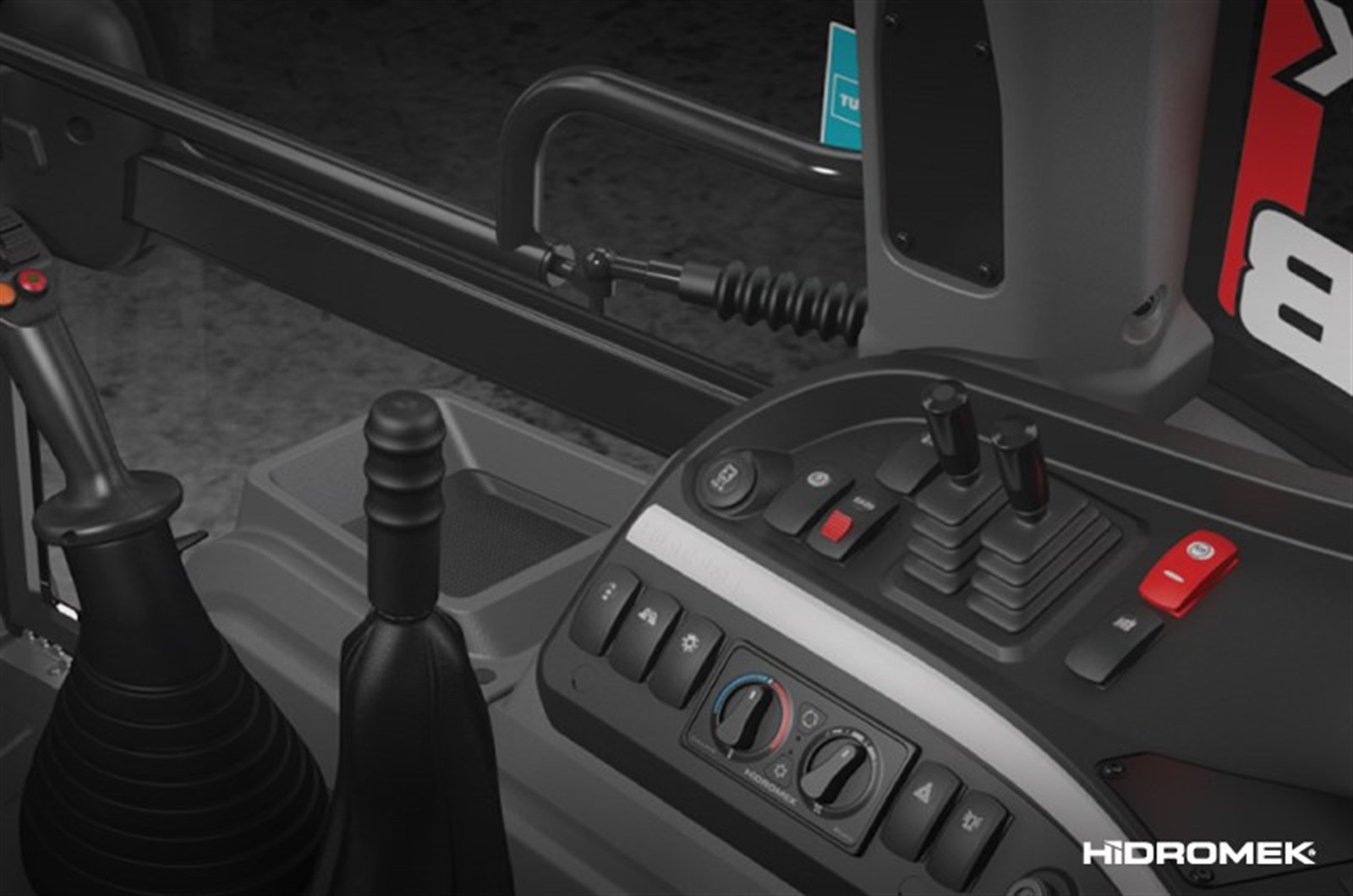

Ergonomic Joystick Controls
Doom Light
12 Volt Socket

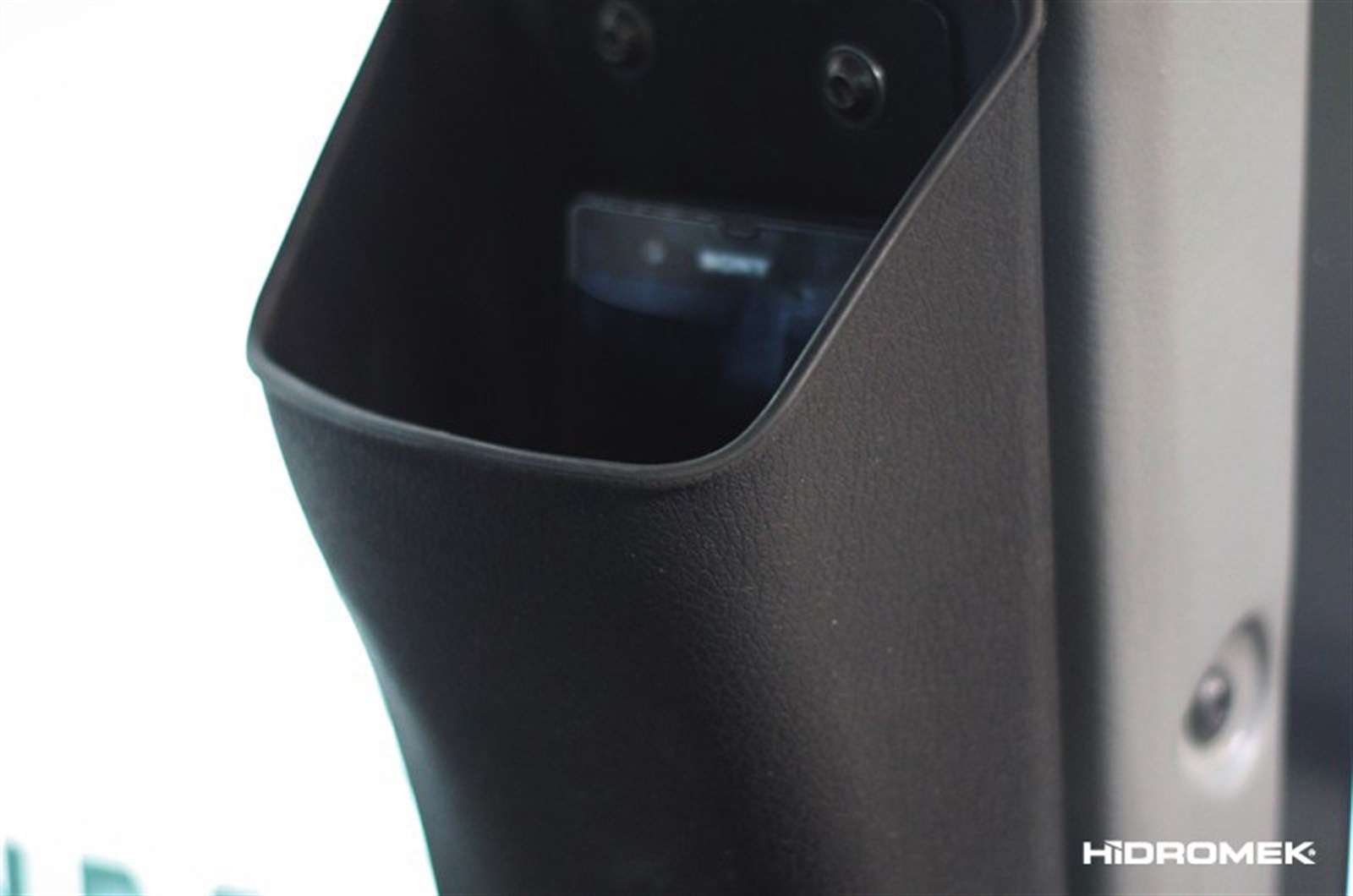

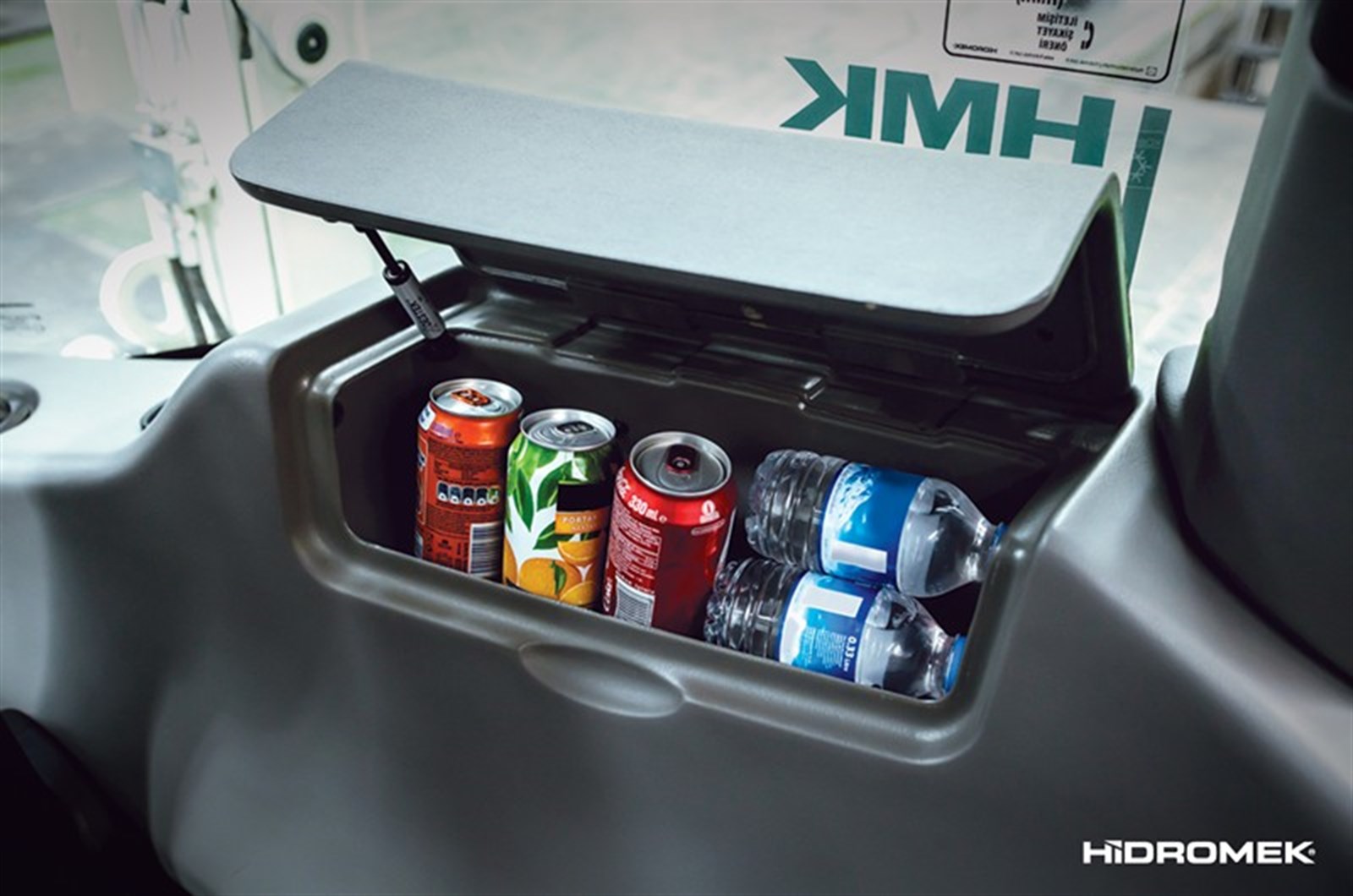

Personal Storage Areas
Floor Mat
Hand Throttle

POWERFUL ENGINE OUTSTANDING PERFORMANCE!

Engine

The heart of the HMK 62 SS power train is KUBOTA turbocharged diesel engine which is compatible with USA EPA Tier 4 and Stage III-A exhaust gas emission regulations. This extraordinary engine creates 59 HP power which is the best in its class. This power offers aggressive performance, fast cycle times and quick response which makes your life easier on working sites.

HIGH EFFICIENCY, SMART CHOICE.

Hydraulic System

Simple and reliable gear type hydraulic pump gives 61 lt per min hydraulic flow to the loader, backhoe and auxiliary hydraulic lines. High efficiency hydraulic oil cooler enables the HMK 62SS to work longer and harder in higher ambient temperatures.

Hydaux

Thanks to the HYDAUX System, it is not necessary to hold a button to send hydraulic oil continuously for various optional attachments located on the front.

Powertrain

Variable displacement axial piston pumps are driven by the engine and provide hydraulic flow to the drive motors. The drive motors transfer mechanical power to the wheels by high strength chains for each machine side.

Breaker Line
Double sided auxiliary hydraulic line for the breaker is a standard equipment for HMK 62 SS.

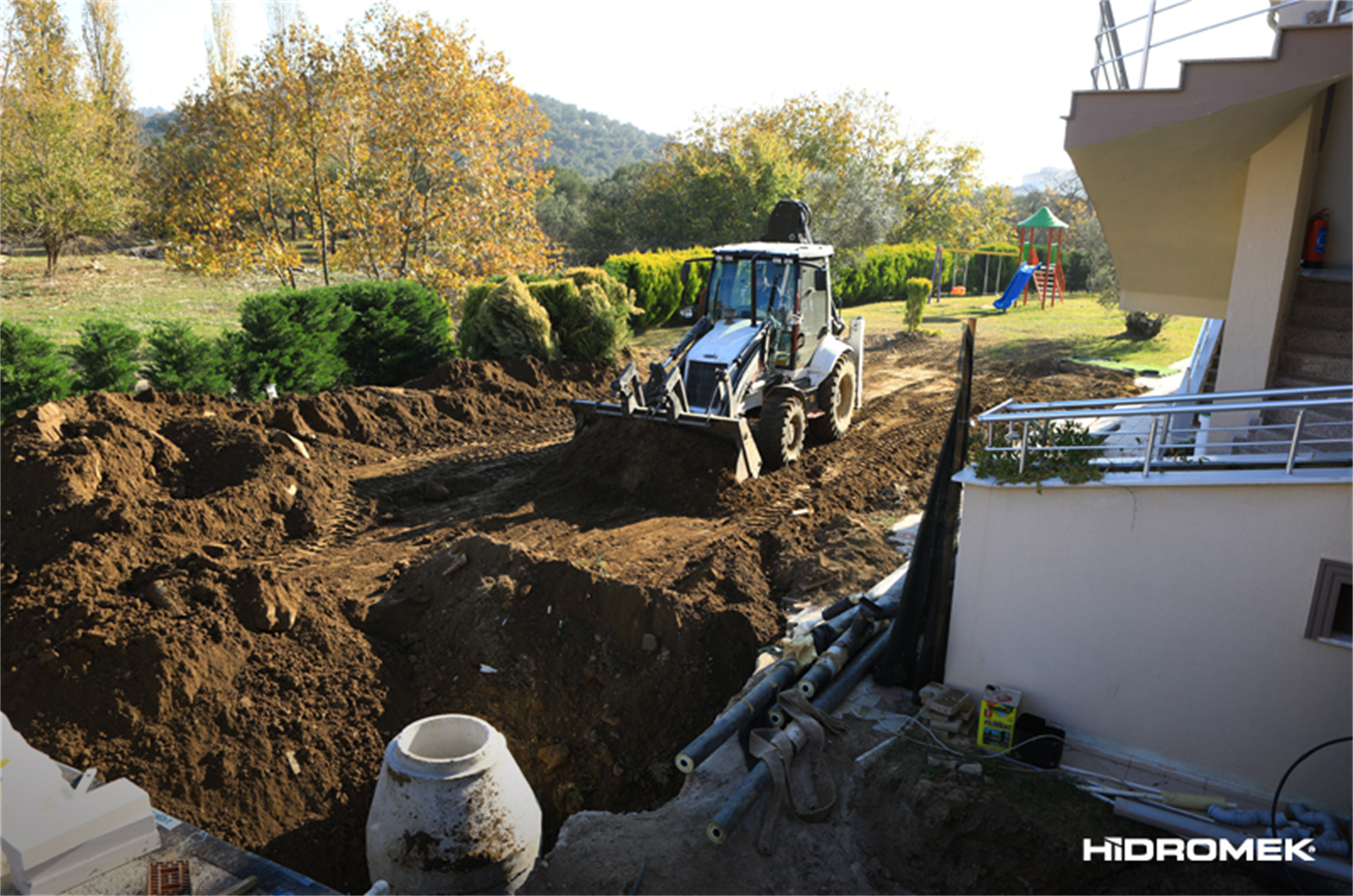

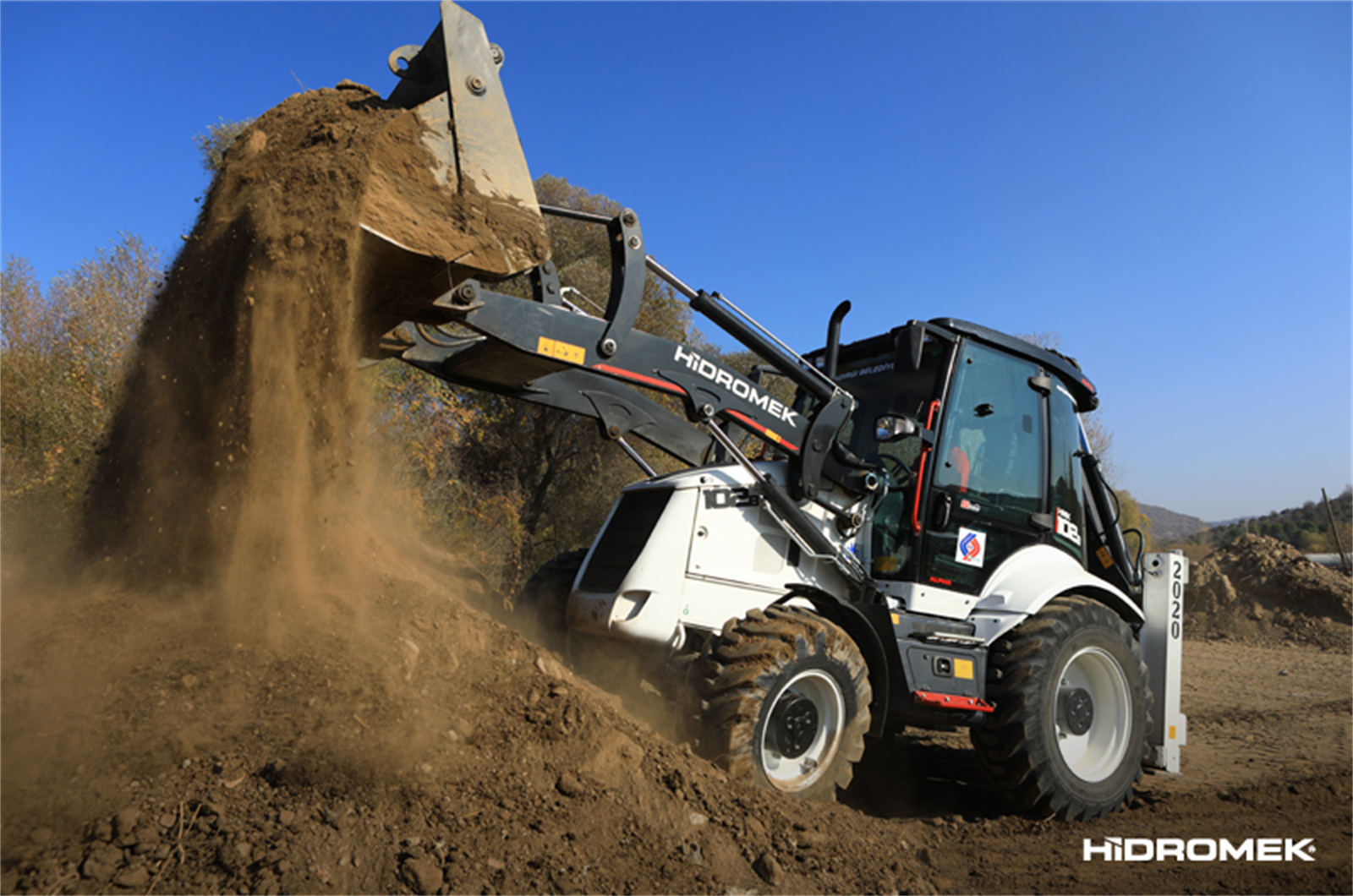

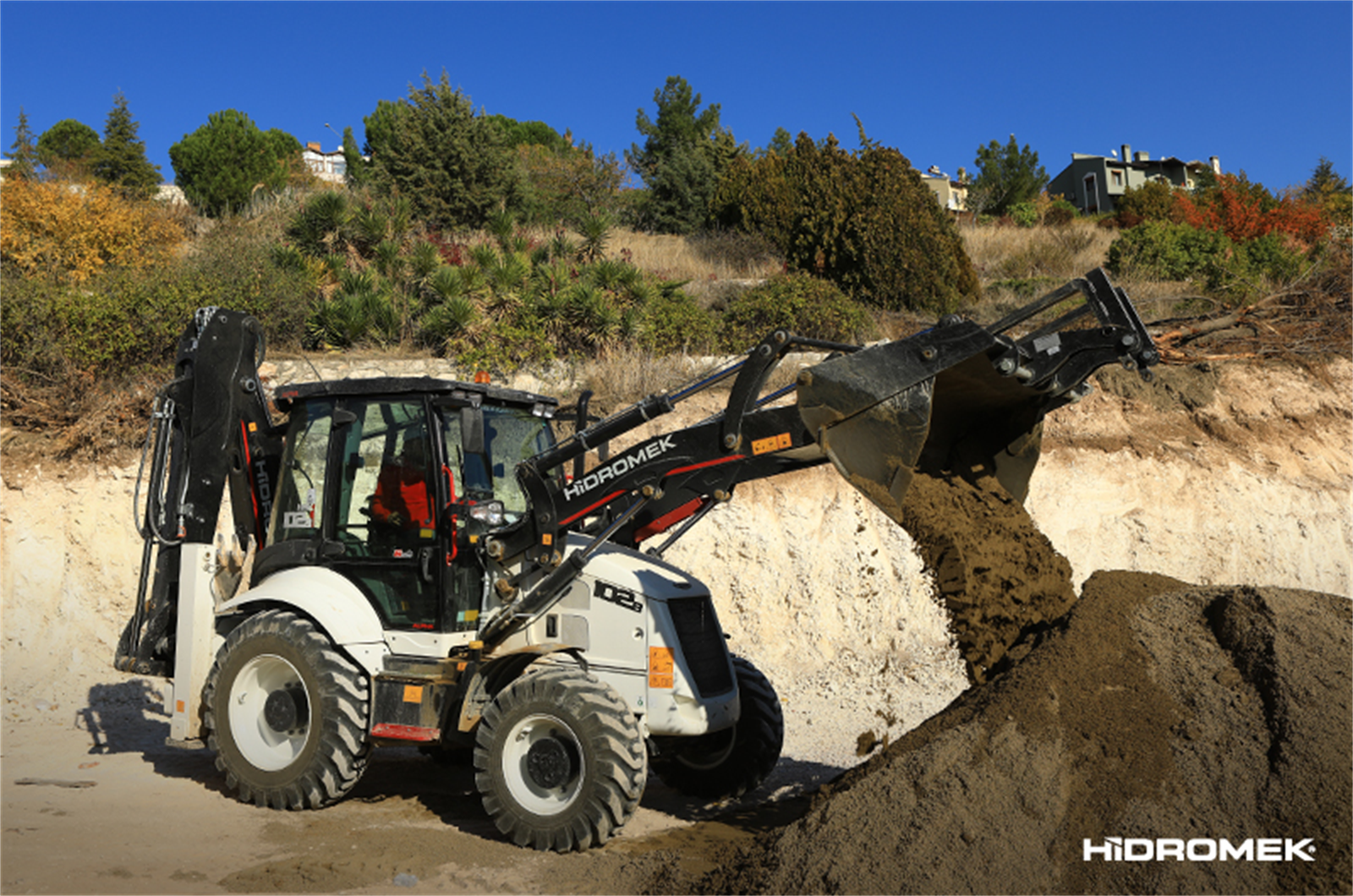

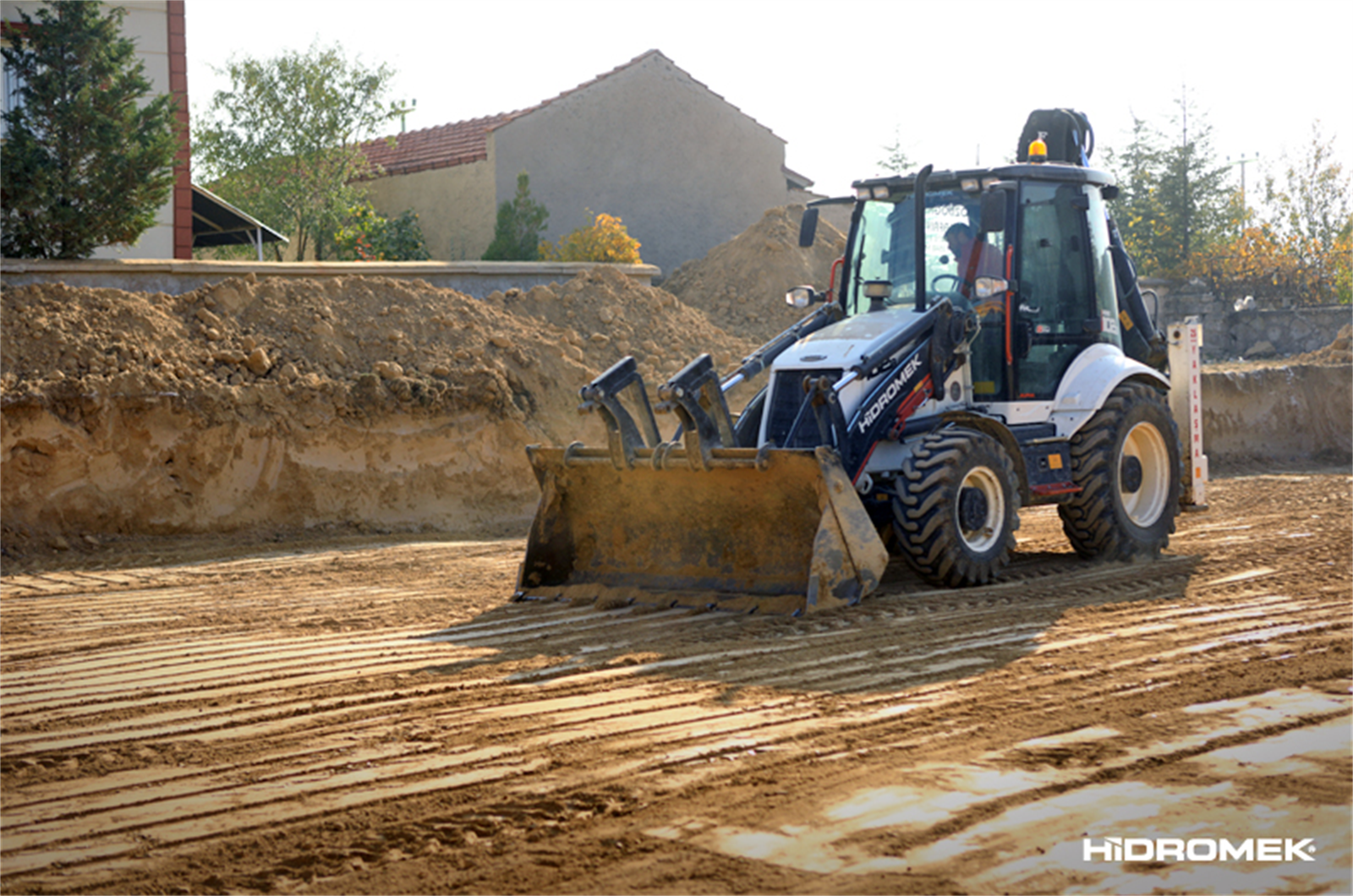

LOADER PERFORMANCE

One of the characteristics that makes HMK 62SS different is the superior performance of the front loader. Thanks to the bucket and arm breakout force of HMK 62 SS, the machine drives the load without being stressed. Also, the unique banana boom geometry make it easy to work in places where the space is often limited.

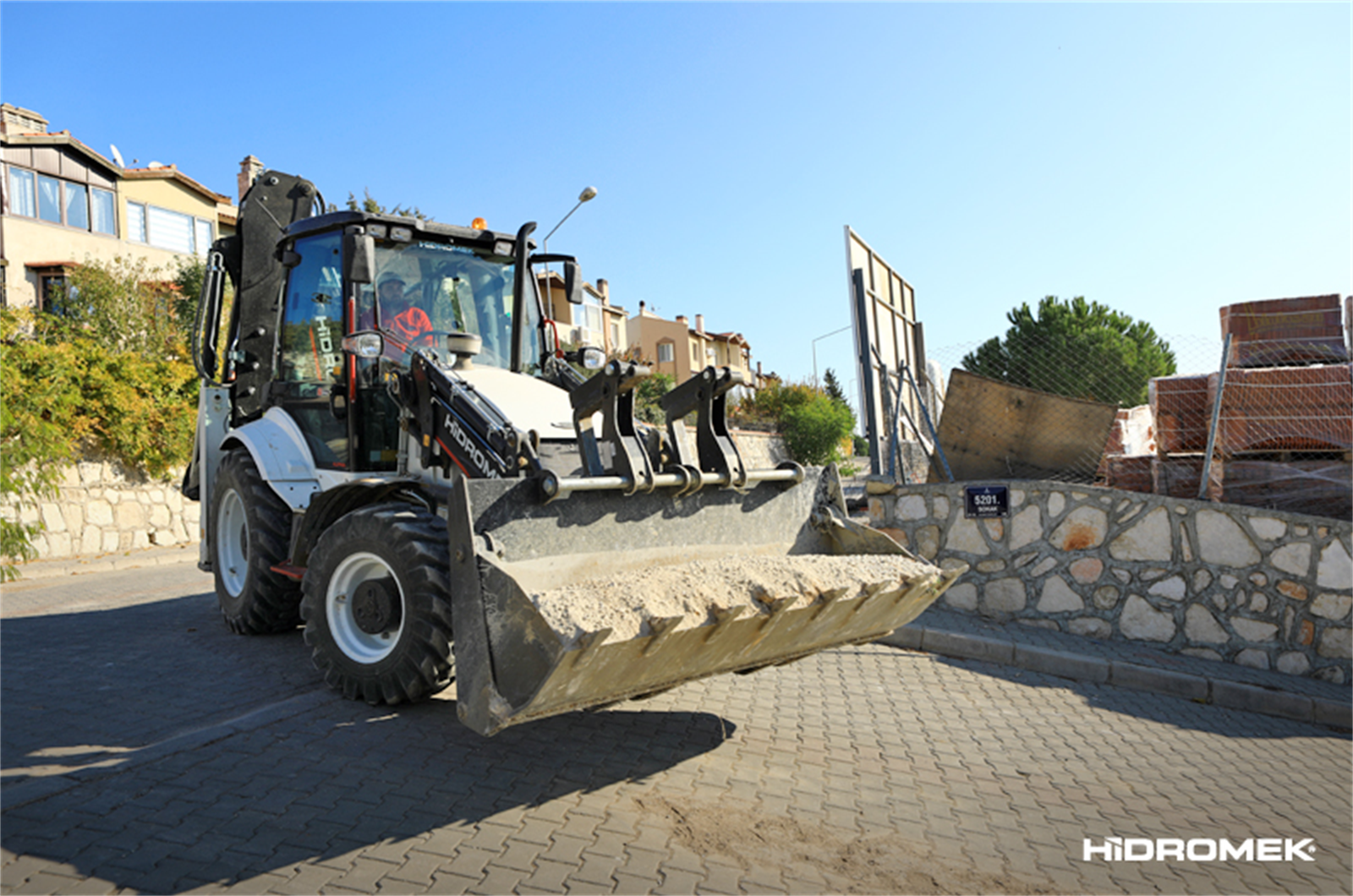

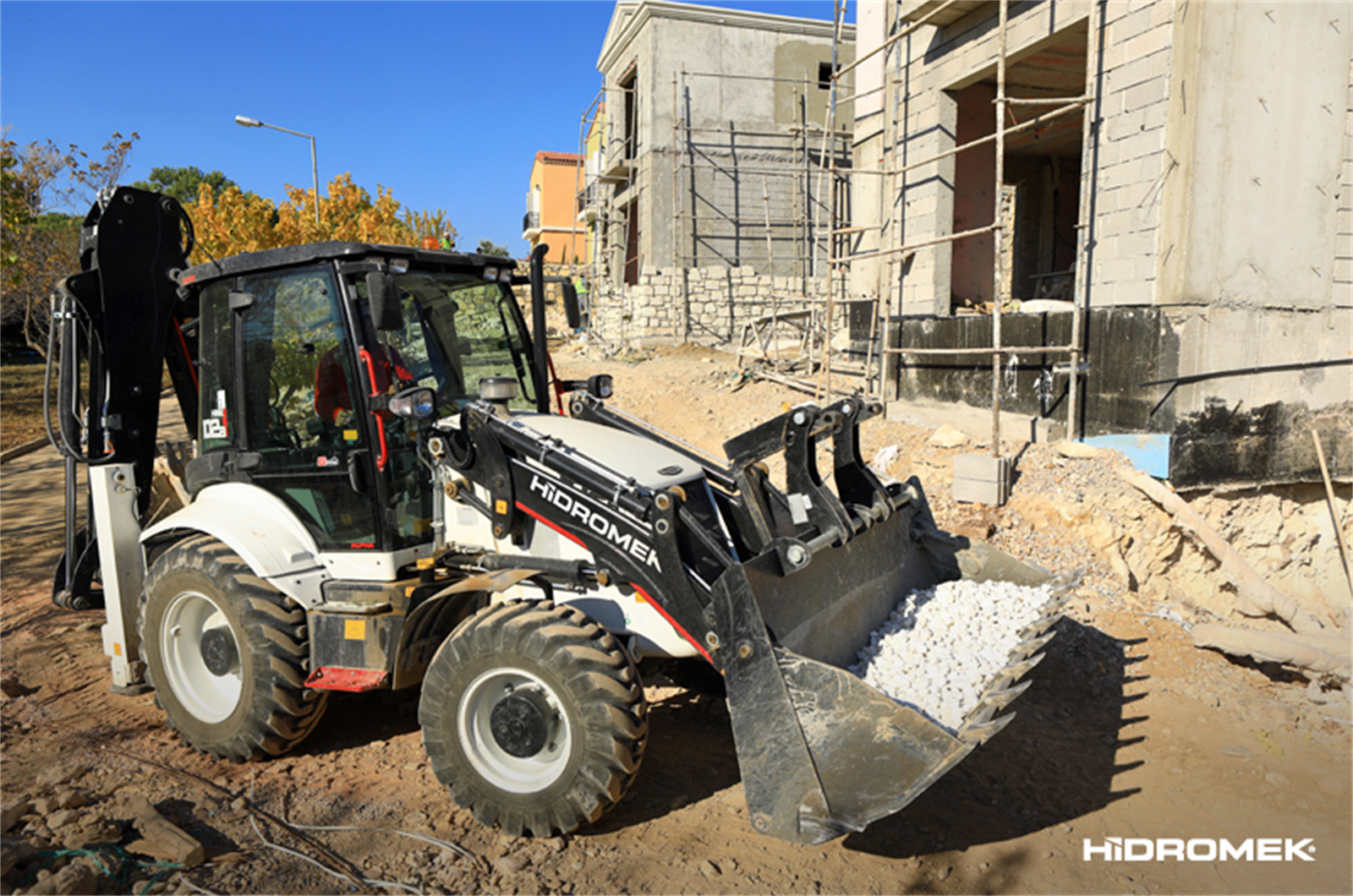

With high maneuverability and 4 wheel drive feature, HMK 62 SS guarantees high performance in urban areas.

6-in-1 loading bucket with 0,35 m3 capacity provides advanced level of loading performance. Thanks to the special bucket geometry that is designed carefully, effective use of bucket capacity is obtained.

Machine direction is controlled by the joystick located on the left side of the operator seat. Joystick located on the rigth side of the seat allows operator to execute loading works precisely.

As a standard equipment, quick coupler adaptors on the front boom shortens the attachment shifting time so that the machine can stay in work longer which raises the productivity.

Everything you expect from a mini loader and more...

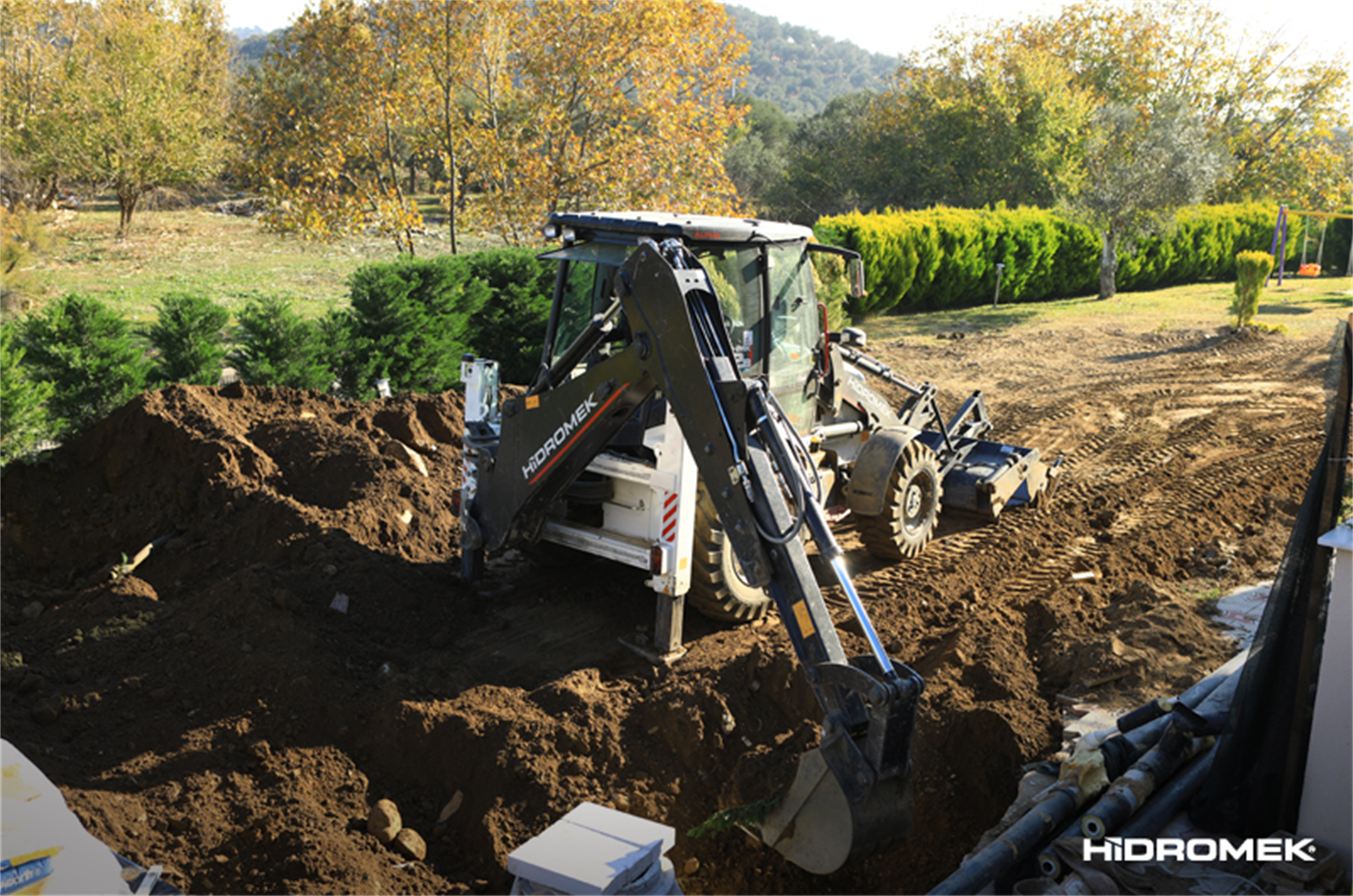

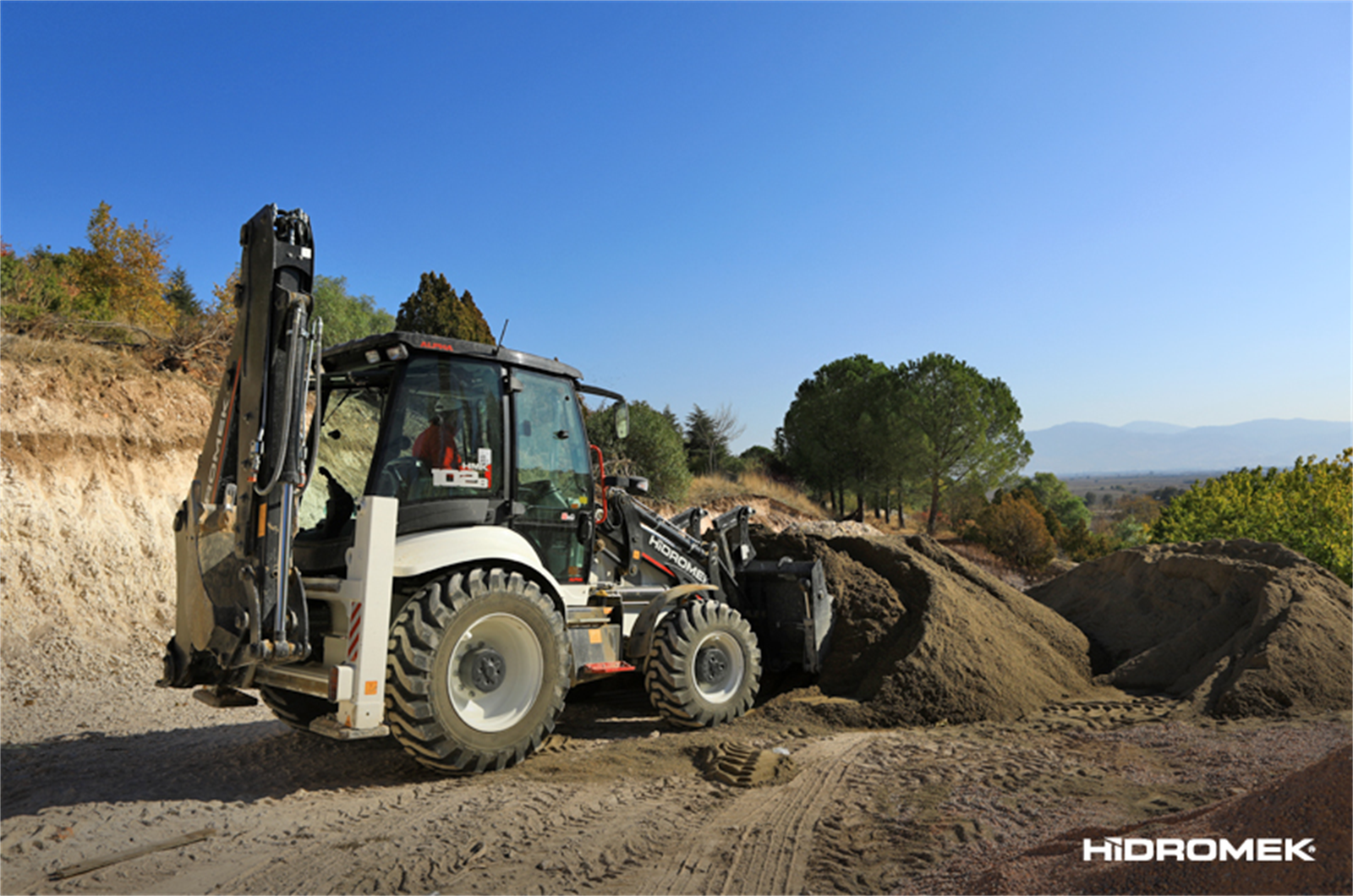

BACKHOE PERFORMANCE

HMK 62 SS excavation group designed to fit for all heavy working conditions in urban areas. It provides precise digging opportunity where the space is limited.

Simple and reliable gear type hydraulic pump provides maximum breakout force even at low rpms and it has maximum 61 lt/min oil flow.

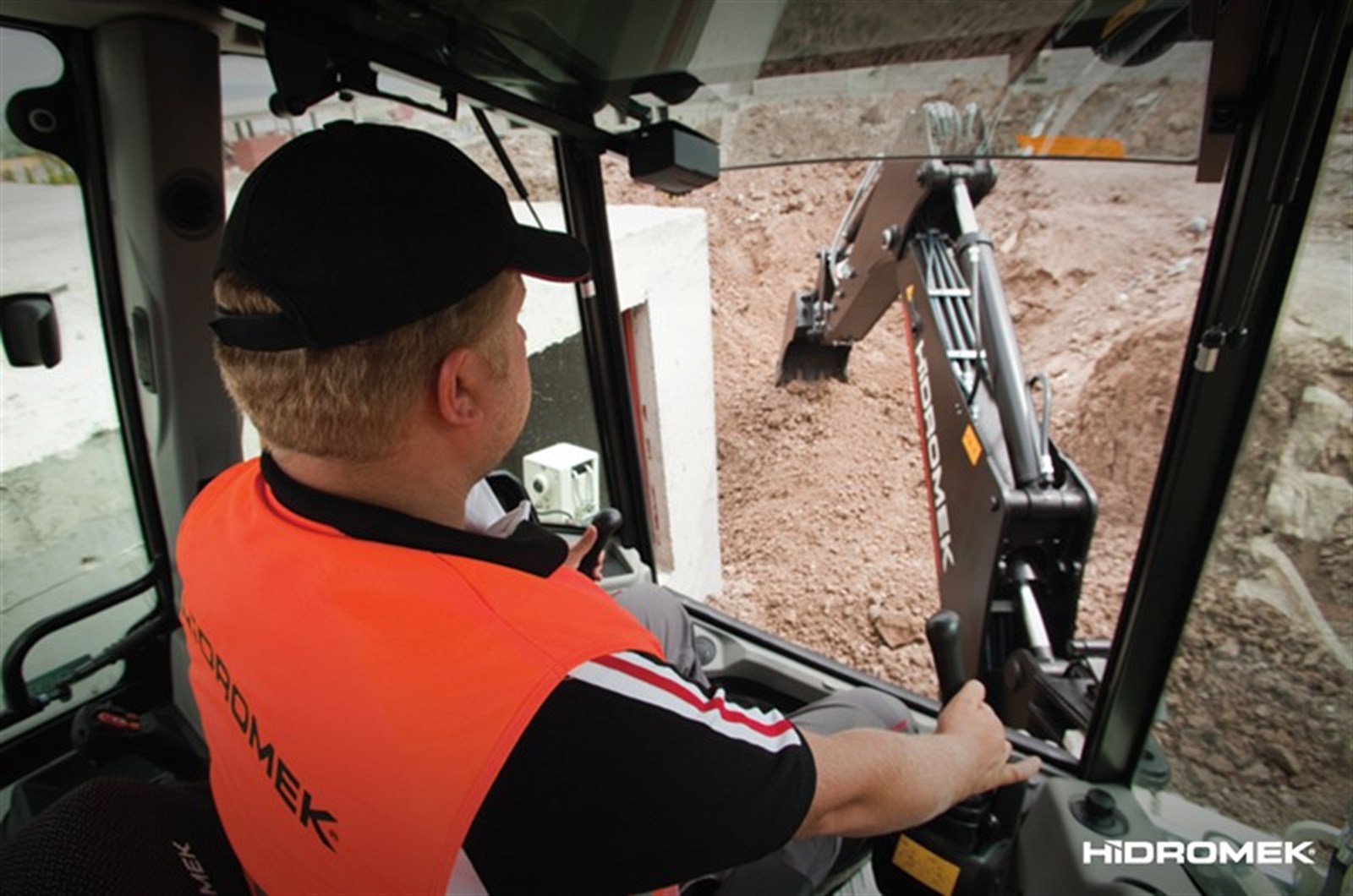

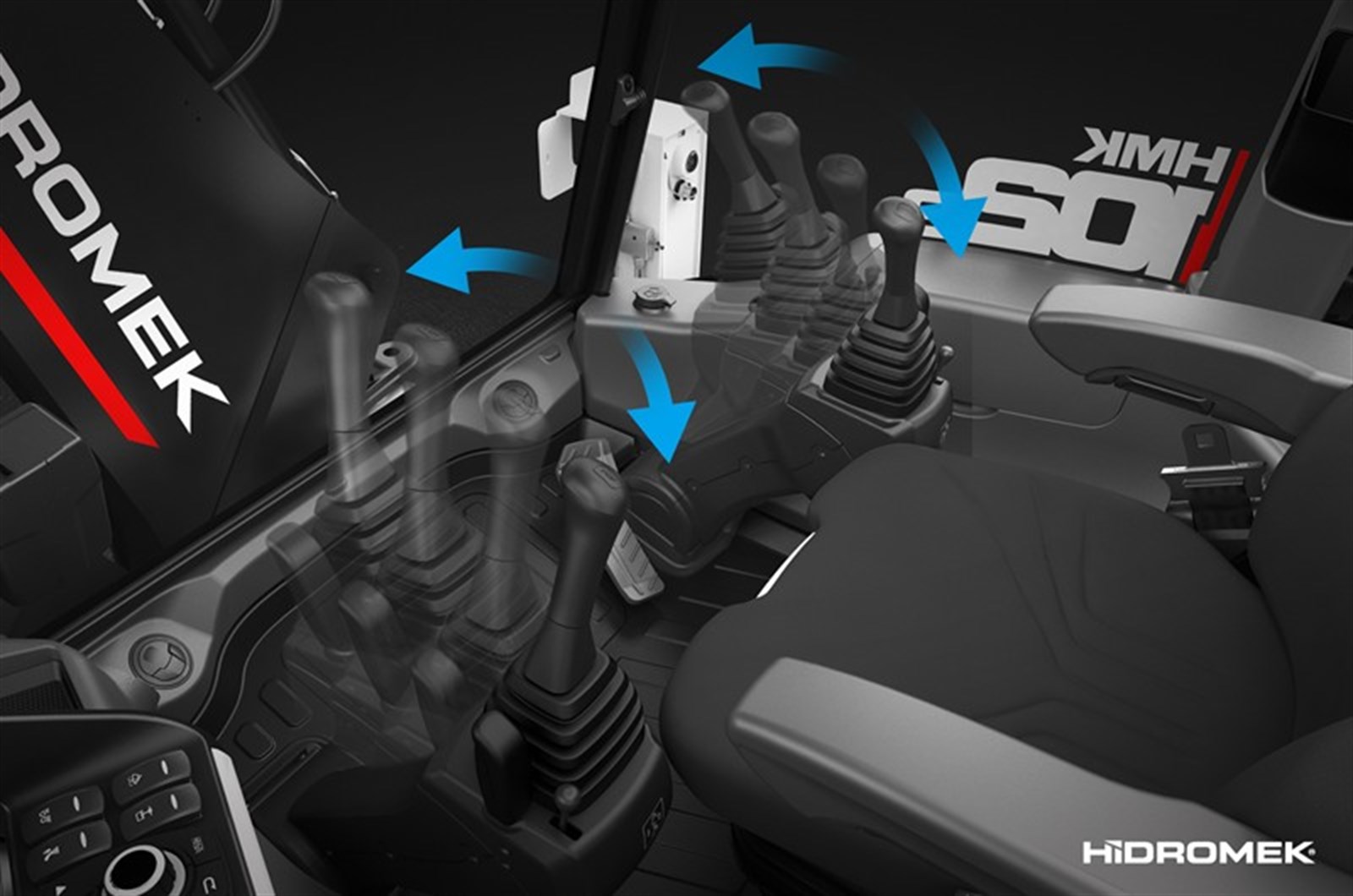

When the operator turns the seat to the digging position, the joysticks located on the seat shifts to control the excavator group which enables the operator to keep his optimum ergonomic posture.

Optional breaker and telescopic arm can be controlled by a button on the joystick.

The rear window can be easily opened monolithically and provides an excellent visibility for the operator. Thanks to the additional button on the side console, the operator can move the machine forward and reverse while in excavation position which increases the productivity.

All these fine details have been thought for you to work more productive and comfortable in urban areas.

ATTACHMENT FOR BACKHOE

Excavator Bucket, 320 mm

320 mm wide excavator bucket

Excavator Bucket, 420 mm

420 mm wide and 0.06 m³ capacity excavator bucket

Hydraulic Breaker

Pointed Atlas Copco hydraulic breaker. Atlas Copco Hydraulic Breaker has high impact power and high productivity.

ATTACHMENT FOR LOADER

Clam Shell Bucket

0.35 m³ capacity clam shell bucket

Leveling Bucket

1900 mm wide leveling bucket

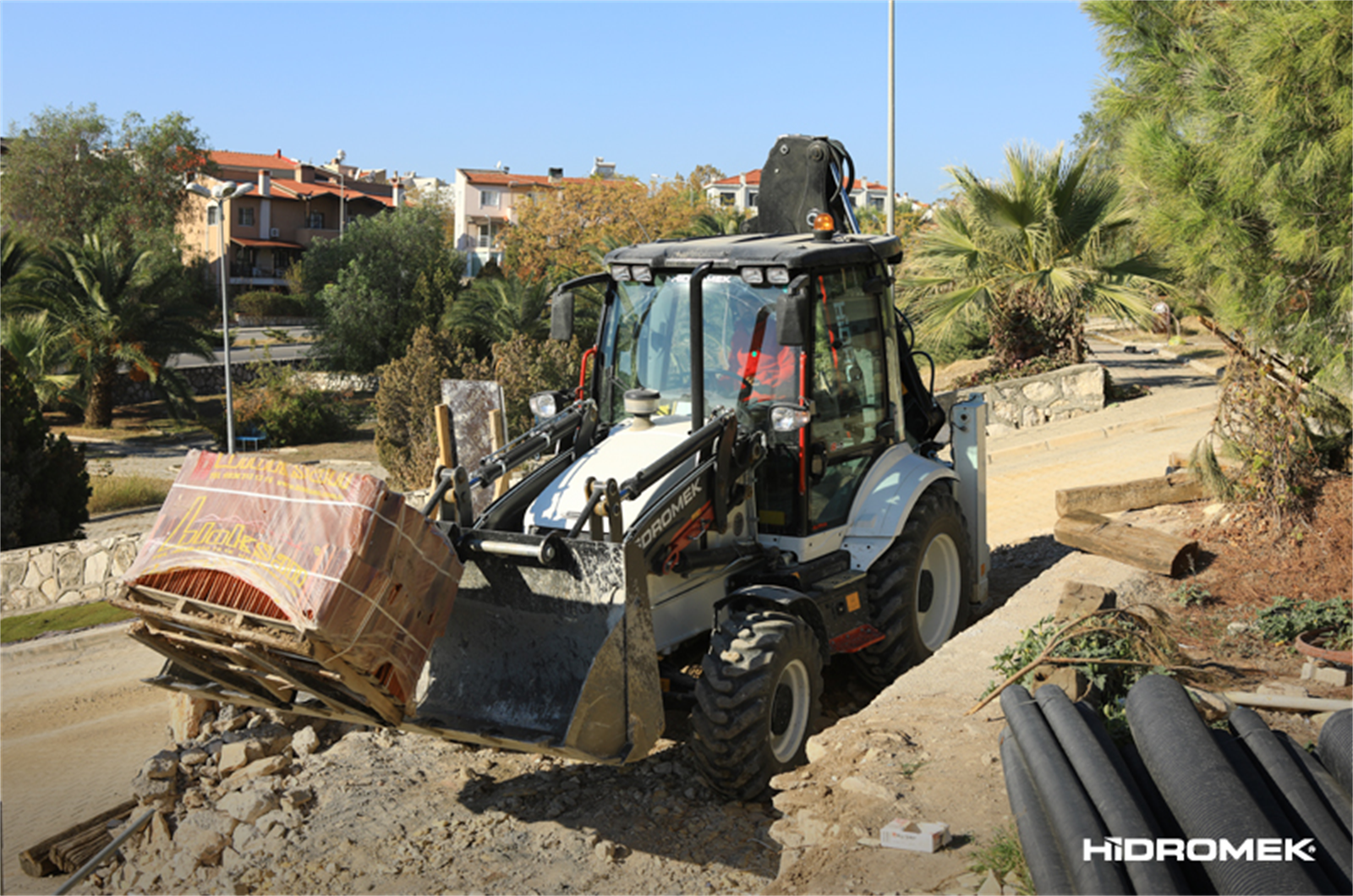

Forklift Attachment

Attachment dimensions 40x80x1050 mm

Engine
Brand	Kubota
Model	V2403-CR-T-EW03 Diesel Engine
Number of cylinders	4
Bore & Stroke	87 x 102.4 mm
Displacement	2434 c
Maximum Power	65.1 Hp @ 2700 rpm
Maximum Torque	199Nm @ 1600 rpm

Hydraulic System
Main Pump Flow Rate	60 L/min @ 3000 rpm
System Pressure	250 bar

Loader Performance
Multi Purpose Bucket Capacity	0.35 m³

Bucket Breakout Force	2883 kgf
Arm Breakout Force	2600 kgf

Digging Performance
Bucket Capacity	0.06 m³


Bucket Breakout Force	1985 kgf
Arm Breakout Force	1500 kgf

Operating Weight
Standard Machine	3.875 kg
