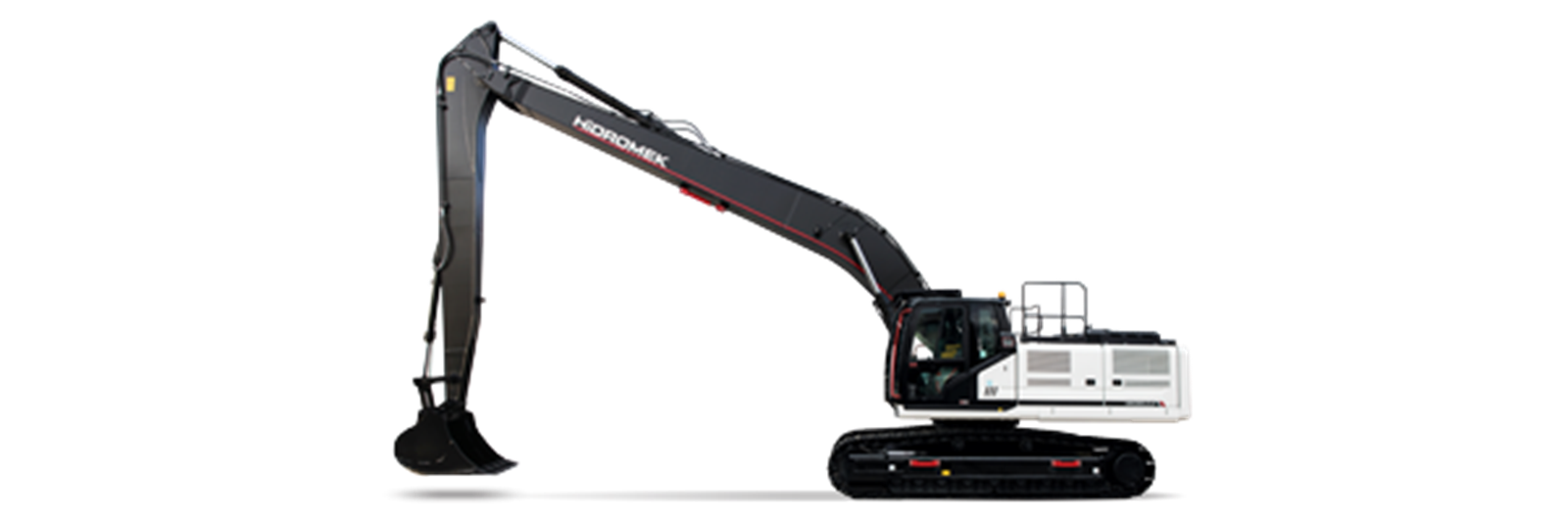

Hidromek HMK 390 LC LR Special Purpose Excavators (Hidromek HMK 390 LC LR)

HİDROMEK, which find solutions for different types of applications, satisfy the expectation of the clients on this segment with its speacial model HMK 390 LCLR designed  for ditch cleanings and sand quarries. H4 Series HMK 390 LCLR introduces innovations such as improved performance, ease of control and versatility. It allows the operator to have perfect command ability and reliability and ensures low fuel consumption, easy maintenance and operator comfort. Along with other pieces of equipment, it is the leader in its class.

Boom Dimension 10.000 mm
Arm Dimension 6.000 mm
 - Overall length 14.840 mm
 - Overall height of boom 3.370 mm
 - Overall Width 3.500 mm
 - Tumbler distance 4.240 mm
 - Rear end length 3.570 mm
 - Tail swing radius 3.590 mm
 - Counterweight clearance 1.250 mm
 - Crawler height 1.090 mm
 - Minimum ground clearance 505 mm
 - Track gauge 2.700 mm
 - Shoe width 800 mm
 - Crawler length 5.190 mm
 - Length on ground 6.790 mm
 - Cab height 3.190 mm
 - Upperstructure width 2.990 mm
 - Max. digging reach 17.010 mm
 - Max. digging reach on ground 16.870 mm
 - Max. digging depth 11.870 mm
 - Max. cutting height 15.610 mm
 - Max. dumping height 12.680 mm
 - Min. dumping height 3.790 mm
 - Max. vertical wall digging depth 11.280 mm
 - Min. front swing radius 5.510 mm
 - Maximum Digging Depth (2440 mm level) 11.770 mm
