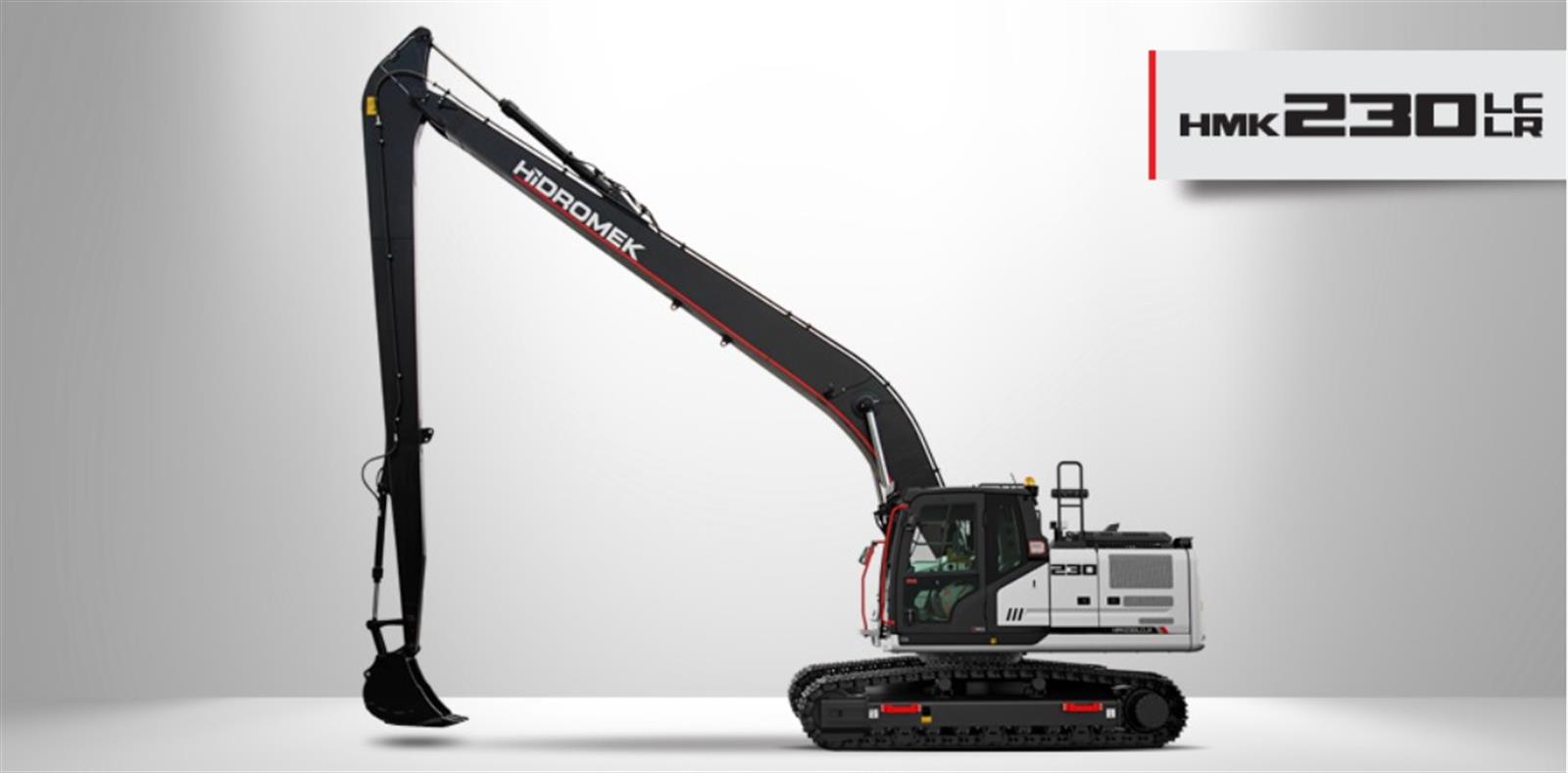

Hidromek HMK 230 LC LR Special Purpose Excavators (Hidromek HMK 230 LC LR)

Being produced with developed hydraulic system design, HİDROMEK’s new H4 Series excavators offer an outstanding performance by working faster, more productively and more efficiently. H4 Series excavators produce more work with less fuel; hence, they are more profitable for their users than ever.

Boom Dimension 8.500 mm
Arm Dimension 6.100 mm
- Overall Length 12.440 mm
- Boom (Shipping) Height 3.090 mm
- Lower Frame Width 3.090 mm
- Track Base Length 3.640 mm
- Counterweight Distance 2.810 mm
- Countweight Turning Radius 2.830 mm
- Upper Chasis to Ground Clearance 1.065 mm
- Crawler Height 935 mm
- Ground Clearance 465 mm
- Track Gauge 2.390 mm
- Shoe Width 700 mm
- Lower Chasis Length (from shoe) 4.460 mm
- Shipping Length 4.780 mm
- Cab Height 3.010 mm
- Upper Frame Width 2.740 mm
- Maximum Reach Distance 15.070 mm
- Maximum Reach at Ground Level 14.960 mm
- Maximum Digging Depth 11.450 mm
- Maximum Digging Height 13.120 mm
- Maximum Unloading Height 10.710 mm
- Minimum Unloading Height 2.320 mm
- Maximum Vertical Wall Digging Depth 10.930 mm
- Minimum Swing Radius 4.290 mm
- Maximum Digging Depth (2440 mm level) 11.320 mm
