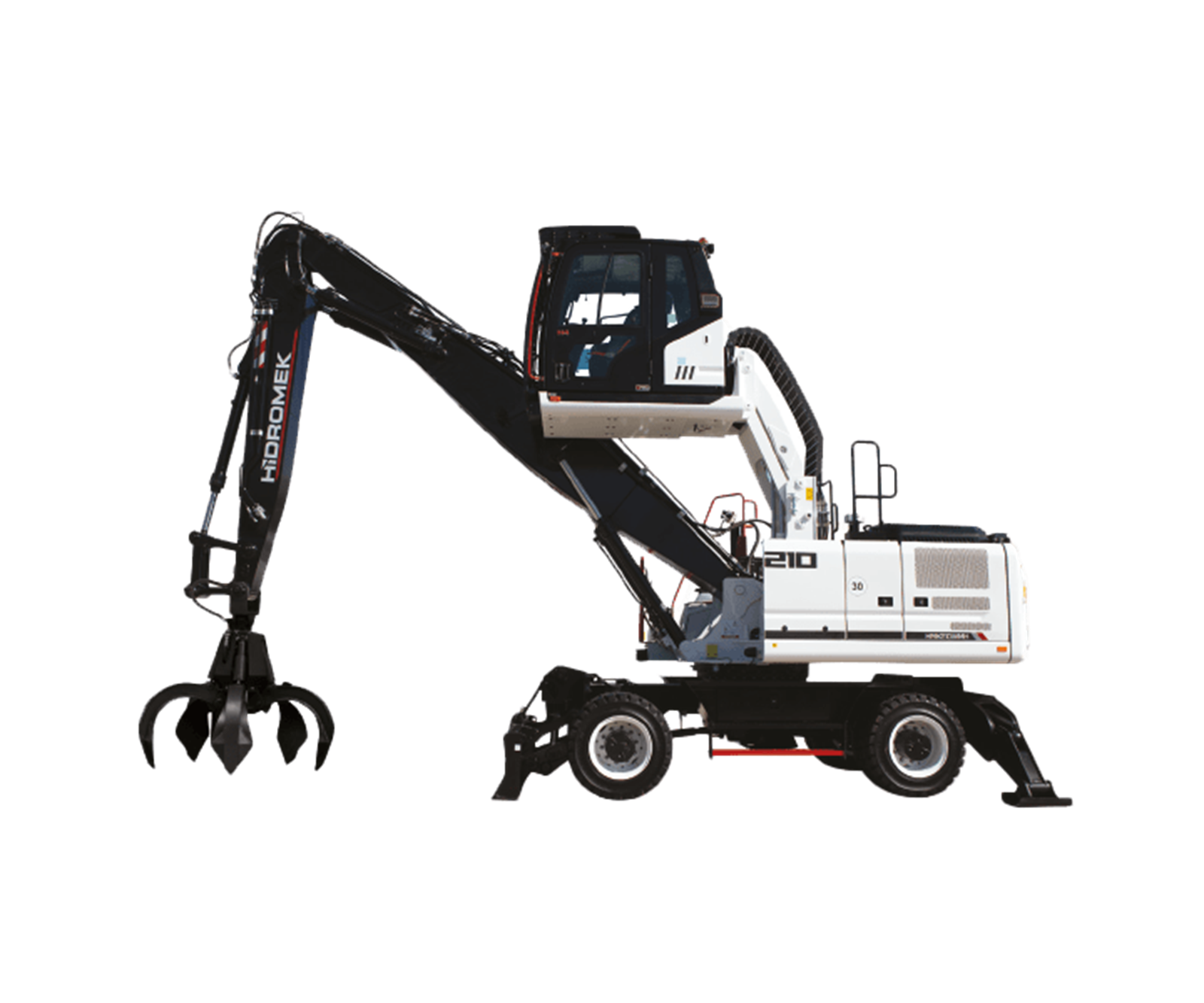

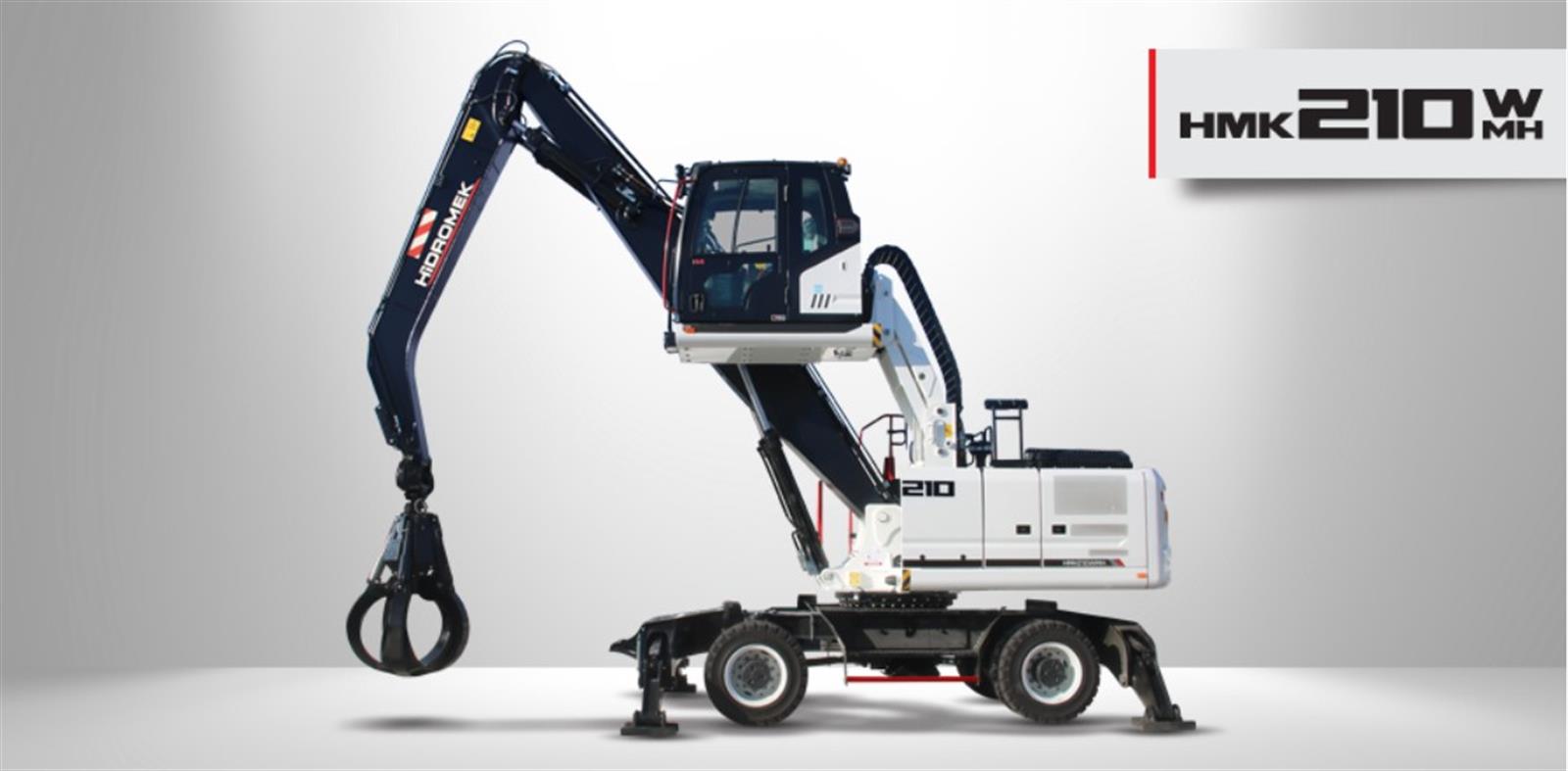

HIDROMEK, which find solutions for different types of applications, satisfy the expectation of the clients on this segment with its speacial model HMK 210 WMH designed for recycle, industrial and material handling facilities. H4 Series HMK 210 W MH introduces innovations such as improved performance, ease of control and versatility. It allows the operator to have perfect command ability and reliability and ensures low fuel consumption, easy maintenance and operator comfort. Along with other pieces of equipment, it is the leader in its class.
Boom Dimension (MH Boom) 6.600 mm Arm Dimension (Dropnose/MH Arm) 4.600 mm Axle Distance 2.850 mm Thread width 1.915 mm Rotation Axis – Front Axle Distance 1.500 mm Front Axle–Outrigger Max. Distance 1.550 mm Rotation Axis – Rear Axle Distance 1.350 mm Rear Axle - Outrigger Distance 1.200 mm Upper Chassis to GroundClearance 1.295 mm Counterweight Distance 2.855 mm Countweight Turning Radius 2.885 mm Upper Frame Width 2.500 mm Cab Height 3.230 mm Cab Rising Distance 2.400 mm Total Cab Height 5.640 mm Outrigger Ground Clearance 345 mm Ground Clearance 380 mm Tyre Width 2.540 mm Over width of O/R Retrack 2.500 mm Over width of O/R Extend 3.785 mm Outrigger Digging Depth 120 mm Outrigger Pin Distance (on ground) 3.450 mm Over Width OF O/R Extend (Below Ground) 3.630 mm Overall Length (Travel) 9.680 mm Overall Length / Transport 9.810 mm Boom Height /Travel 4.410 mm Boom Height / Transport 3.490 mm) Maximum Digging Reach 11.020 mm Maximum Digging Reach at Ground Level 10.810 mm Maximum Digging Depth 3.870 mm Maximum Digging Height 12.650 mm Grapple 2.350 mm
