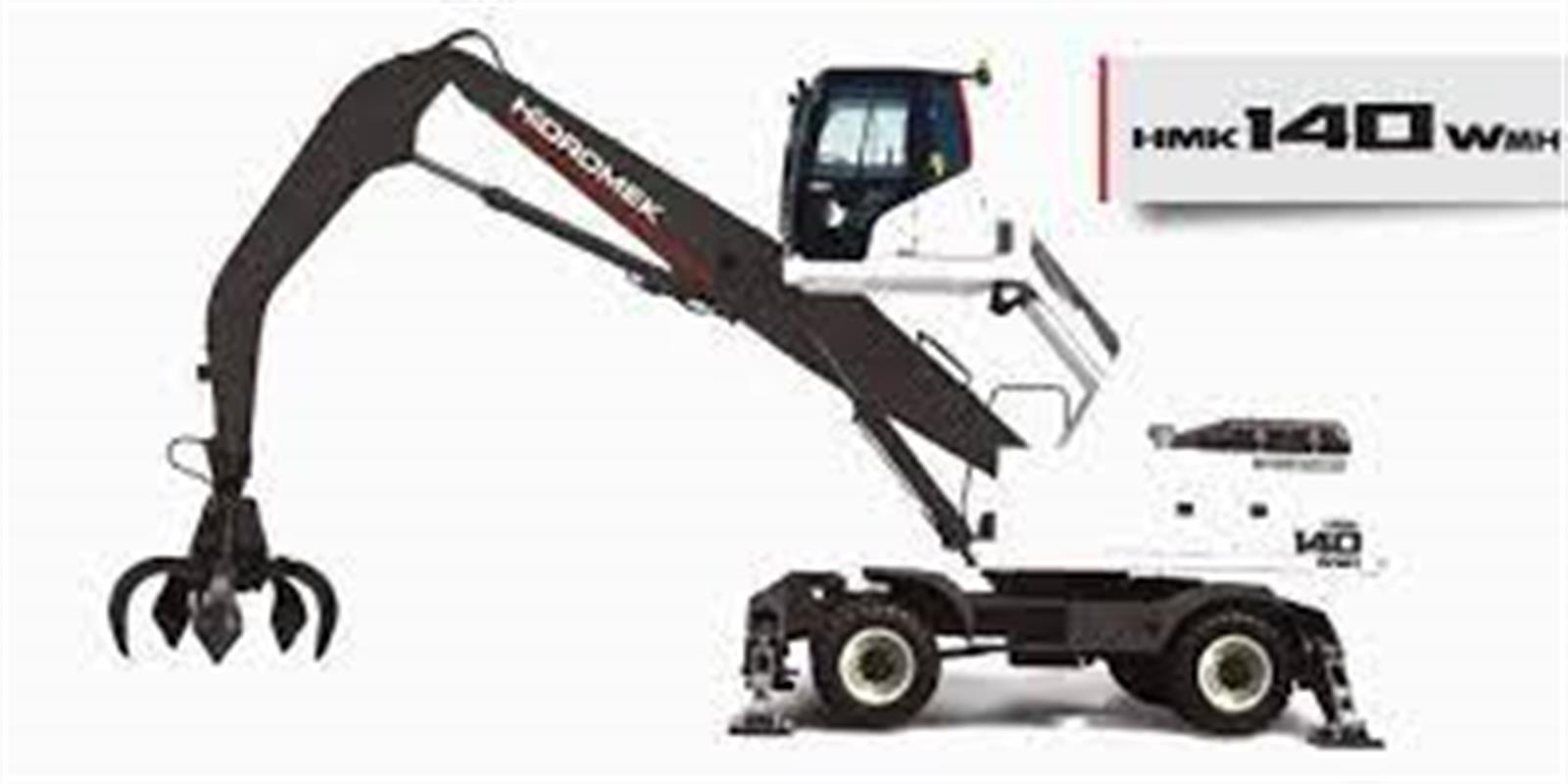

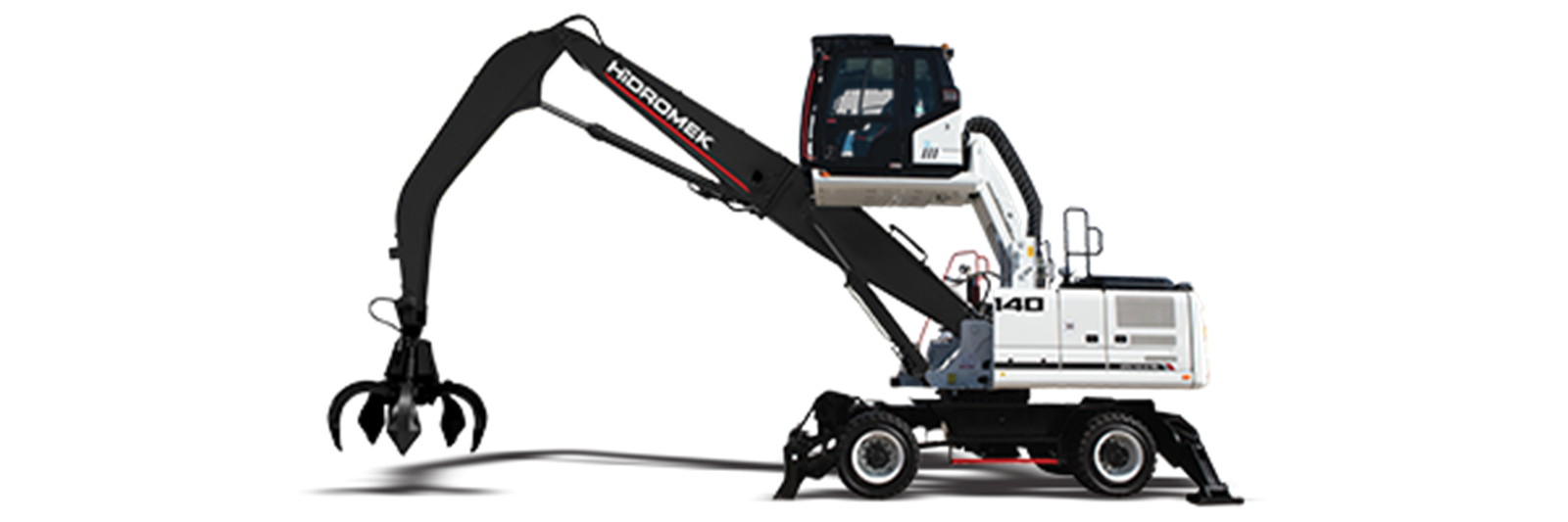

Hidromek HMK 140 W MH Special Purpose Excavators (Hidromek HMK 140 W MH)

HMK 140 W MH
HIDROMEK, which find solutions for different types of applications, satisfy the expectation of the clients in this segment with its special model HMK 140 WMH designed for recycling, industrial and material handling facilities. H4 Series HMK 210 W MH introduces innovations such as improved performance, ease of control and versatility. It allows the operator to have perfect command ability and reliability and ensures low fuel consumption, easy maintenance and operator comfort. Along with other pieces of equipment, it is the leader in its class.

- Axle Distance 2.600 mm
- Thread 1.944 mm C
- Rotation Axis – Front Axle Distance 1.500 mm
- Rotation Axis – Rear Axle Distance 1.100 mm
- Upper Chassis to Ground Clearance 1.295 mm
- Counterweight Distance 2.250 mm
- Countweight Turning Radius 2.340 mm
- Upper Frame Width 2.500 mm
- Cab Height 3.230 mm
- Cab Rising Distance 2.000 mm
- Total Cab Height 5.230 mm
- Outrigger Ground Clearance 360 mm
- Width at Tires 2.494 mm
- Outrigger Width (Overall) 3.620 mm
- Outrigger Digging Depth 125 mm
- Outrigger Pin Distance (on ground) 8.210 mm
- Over Width OF O/R Extend (Below Ground) 2.880 mm
- Maximum Digging Reach 9.140 mm
- Maximum Digging Reach at Ground Level 8.940 mm
- Maximum Digging Depth 3.260 mm
- Maximum Digging Height 10.500 mm
 - Grapple 1.500 mm
