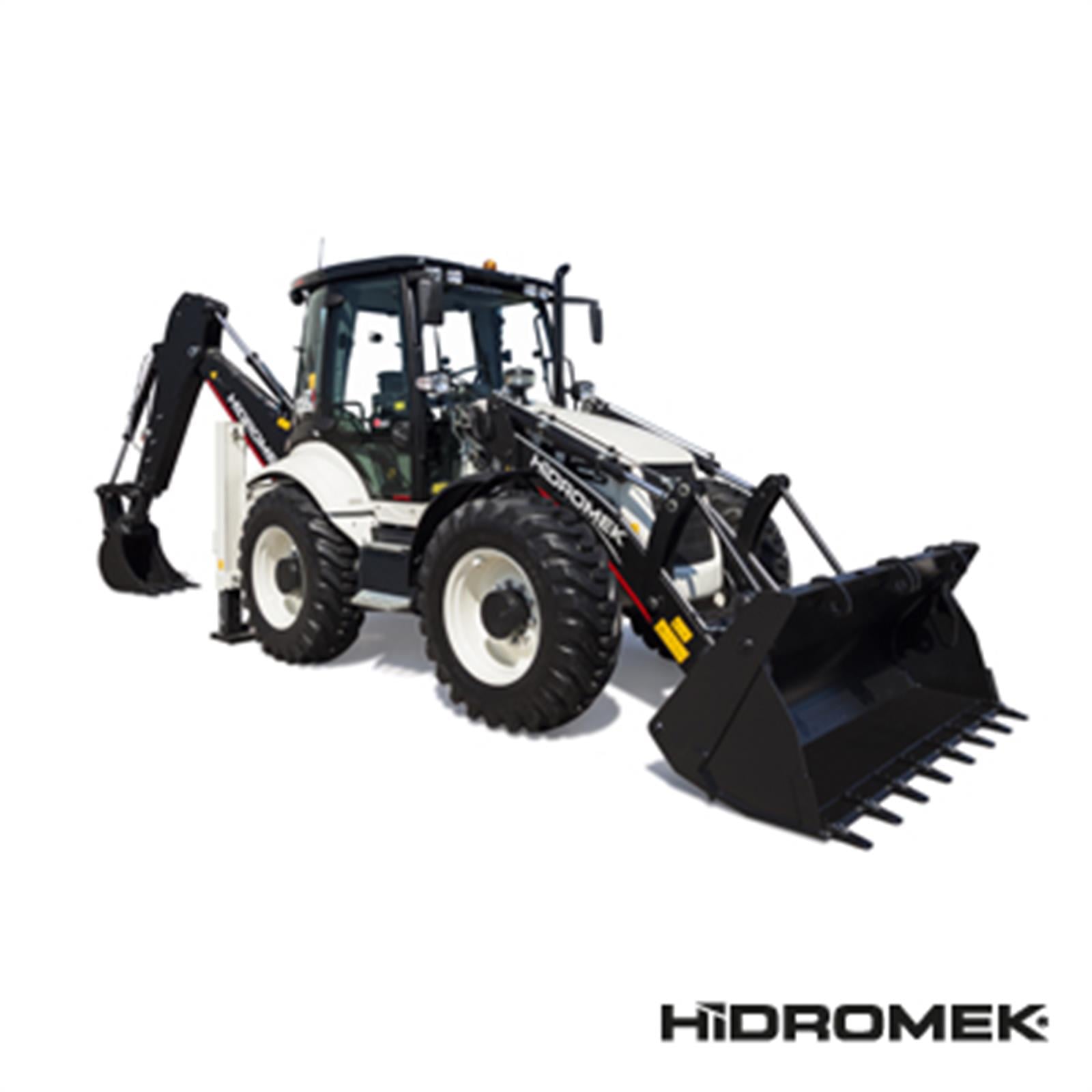

HMK 102S SUPRA

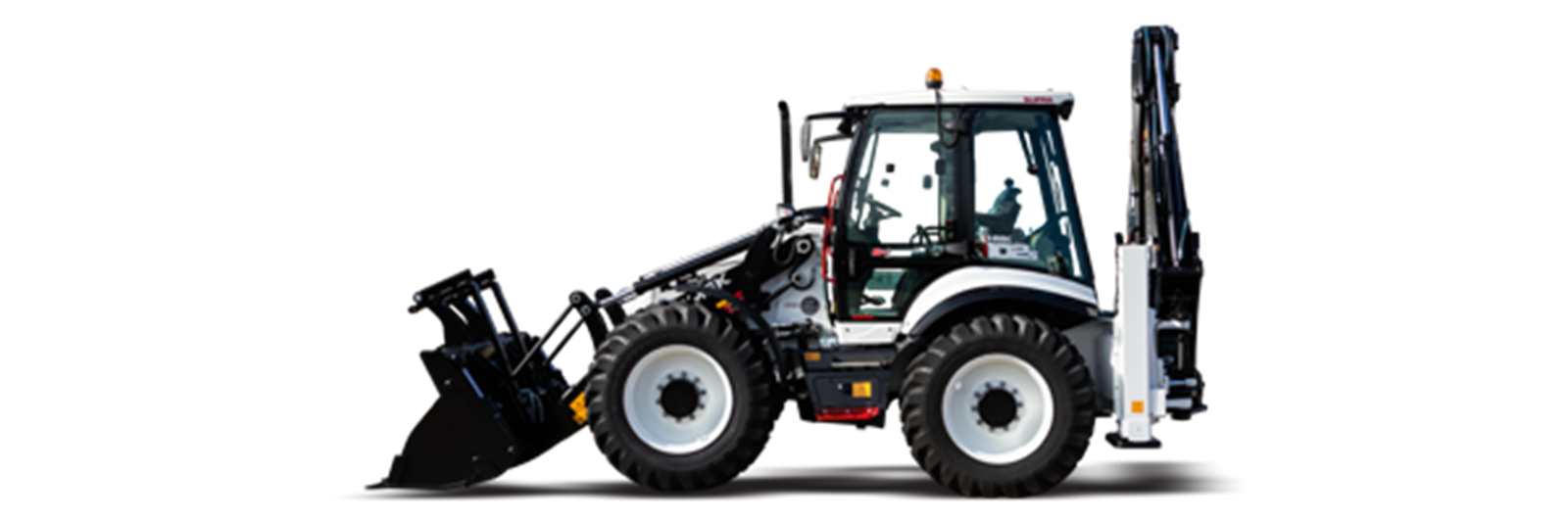

SUPRA SERIES MEET YOUR EXPECTATIONS

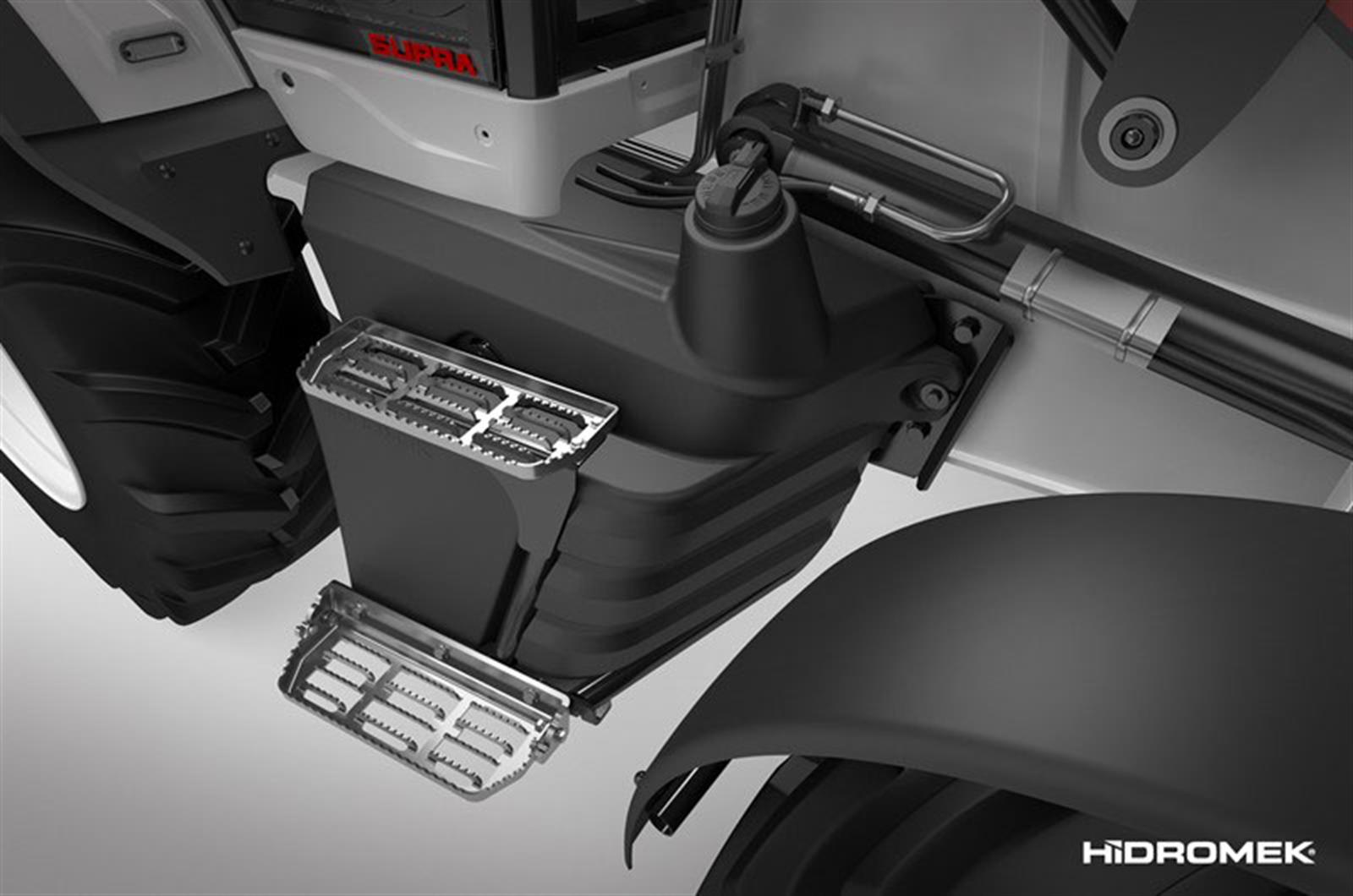

A machine that answers for every drop of fuel that you fill into your tank and provides the highest amount of work and excavation…

Comfort and performance under the toughest conditions…

High efficiency for the operator even in the longest working hours…

DESIGNED FOR INTENSE USE.

Excavation work on the toughest grounds, tons of sand, gravel, debris and long working hours…

Loading works, channel excavation or crushing works…

SUPRA Series backhoe loaders overcome every work that you encounter. They provide comfortable working environment and as easy use as possible in tough and long working hours for you.

With SUPRA Series, your machine stays on work longer and spends less time for maintenance and repair, thus you increase efficiency.

*Specifications and equipment may vary depending on packages.

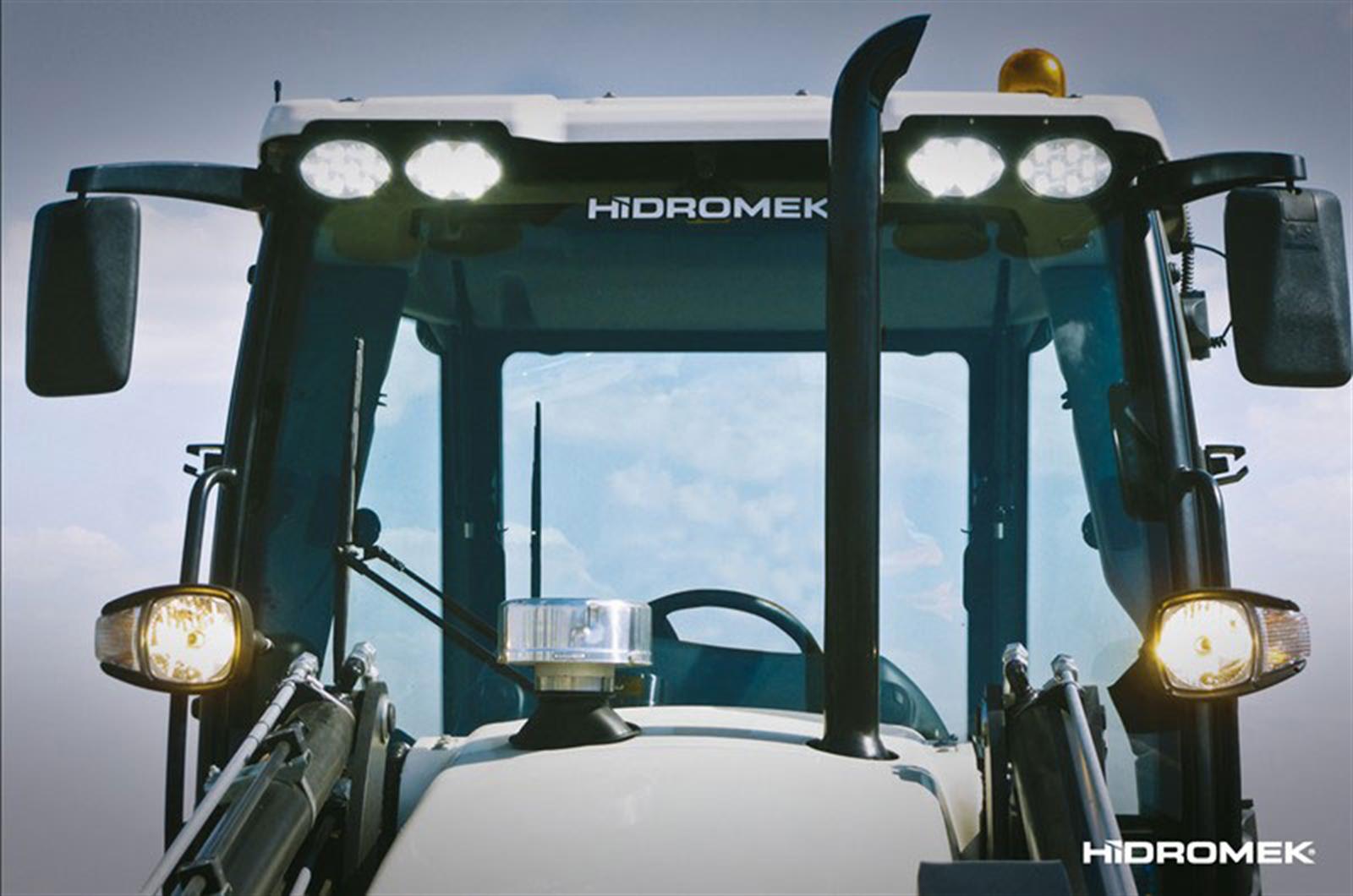

MORE SPACIOUS, MORE COMFORTABLE…

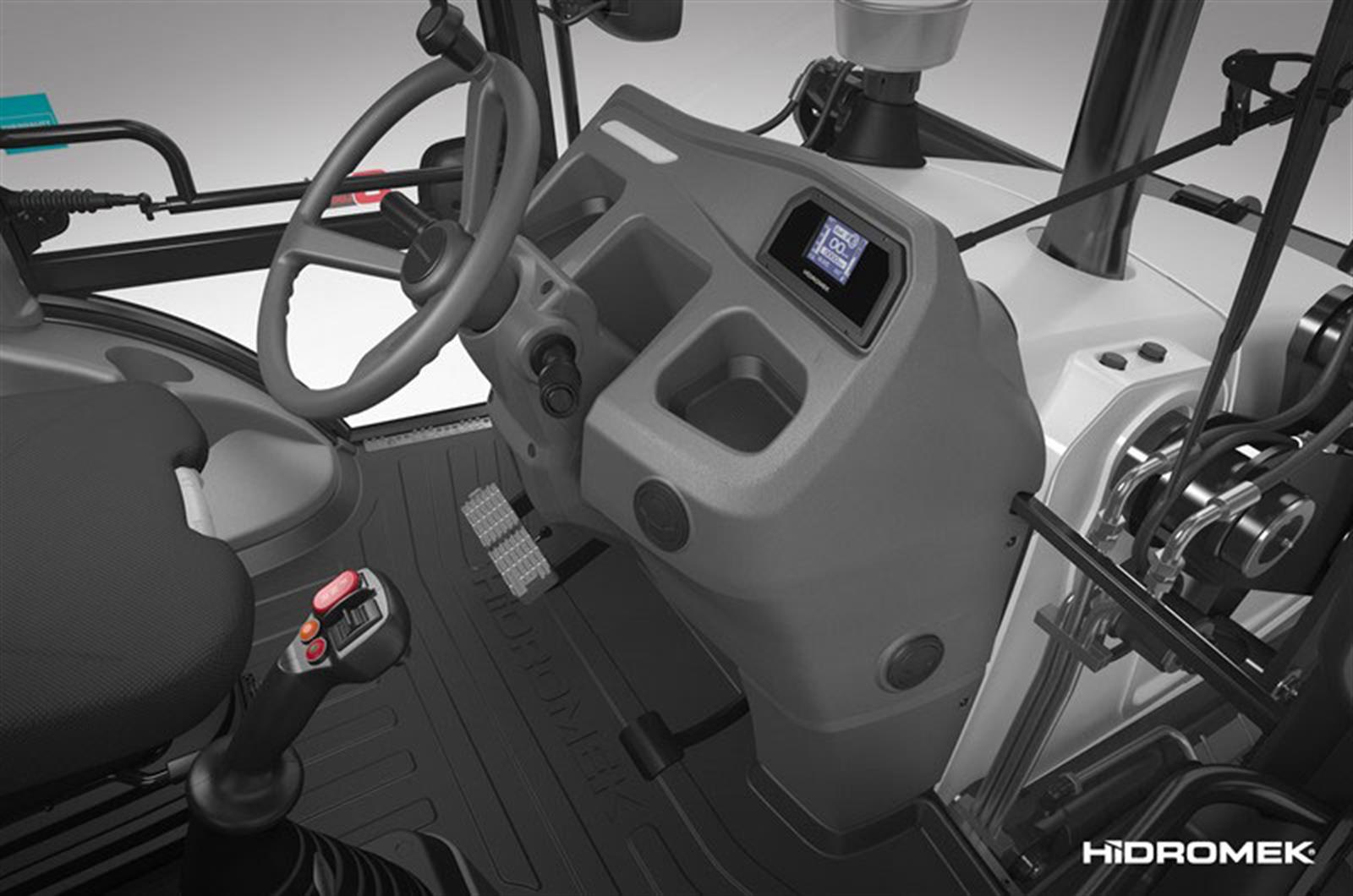

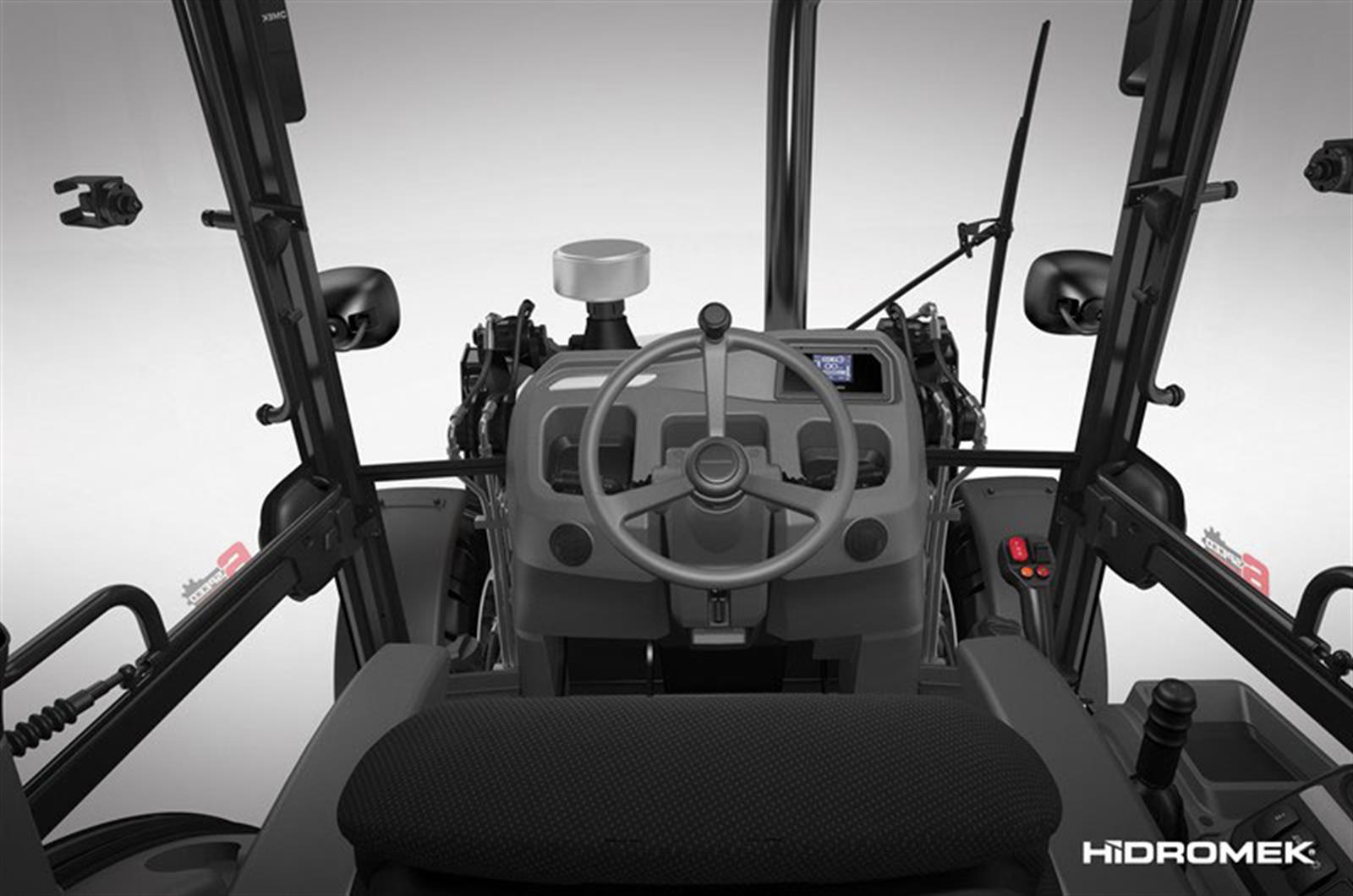

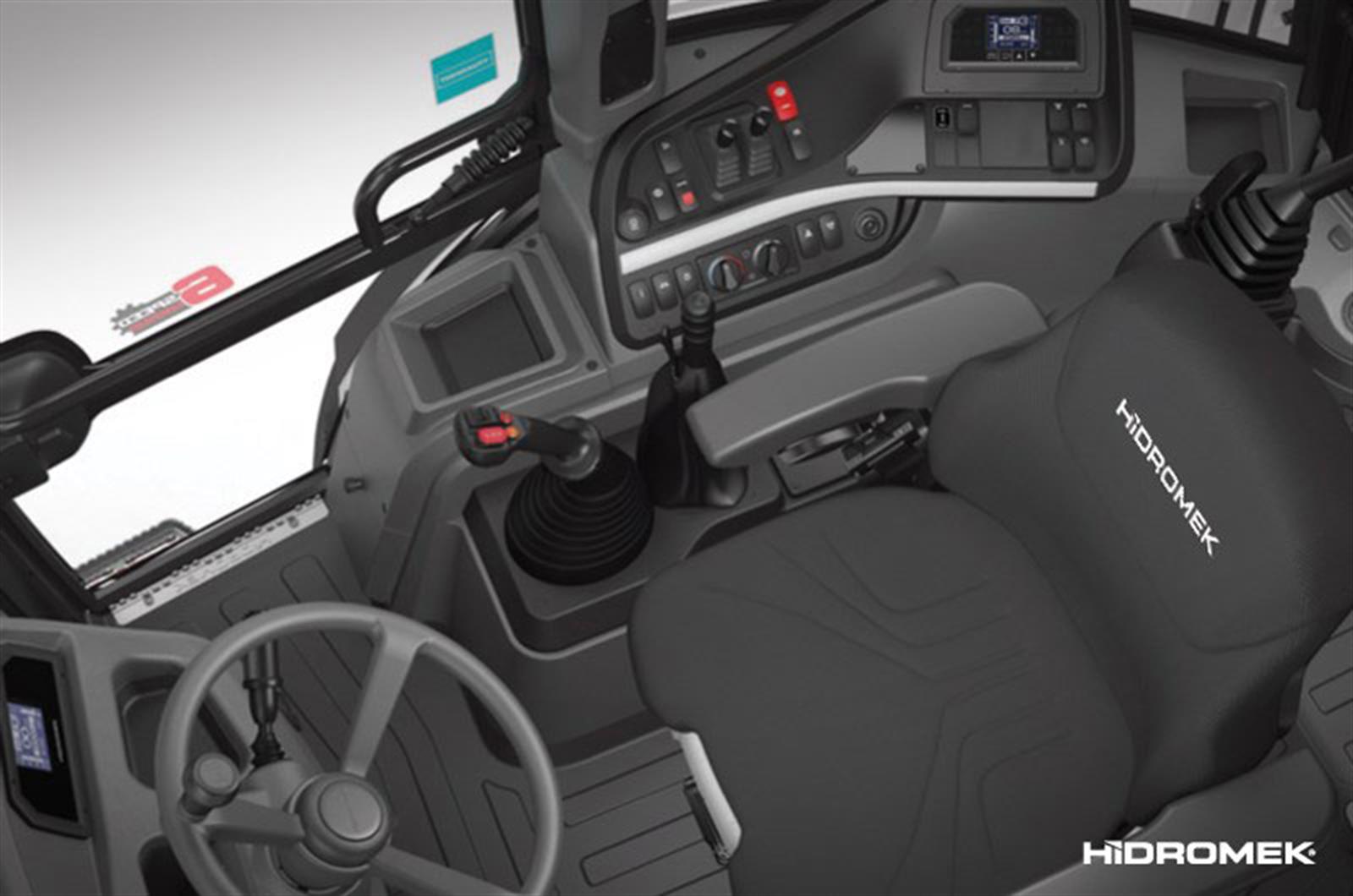

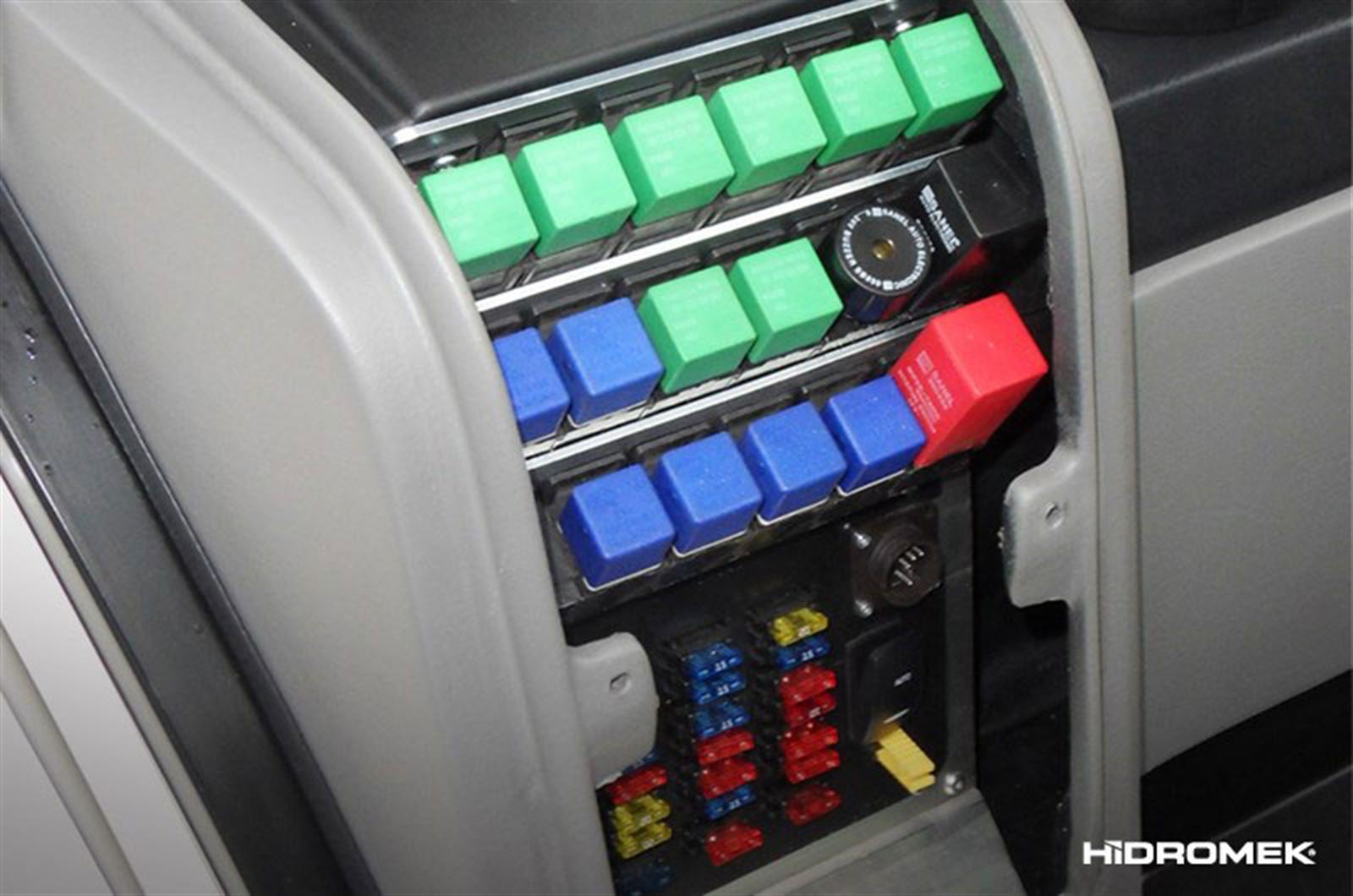

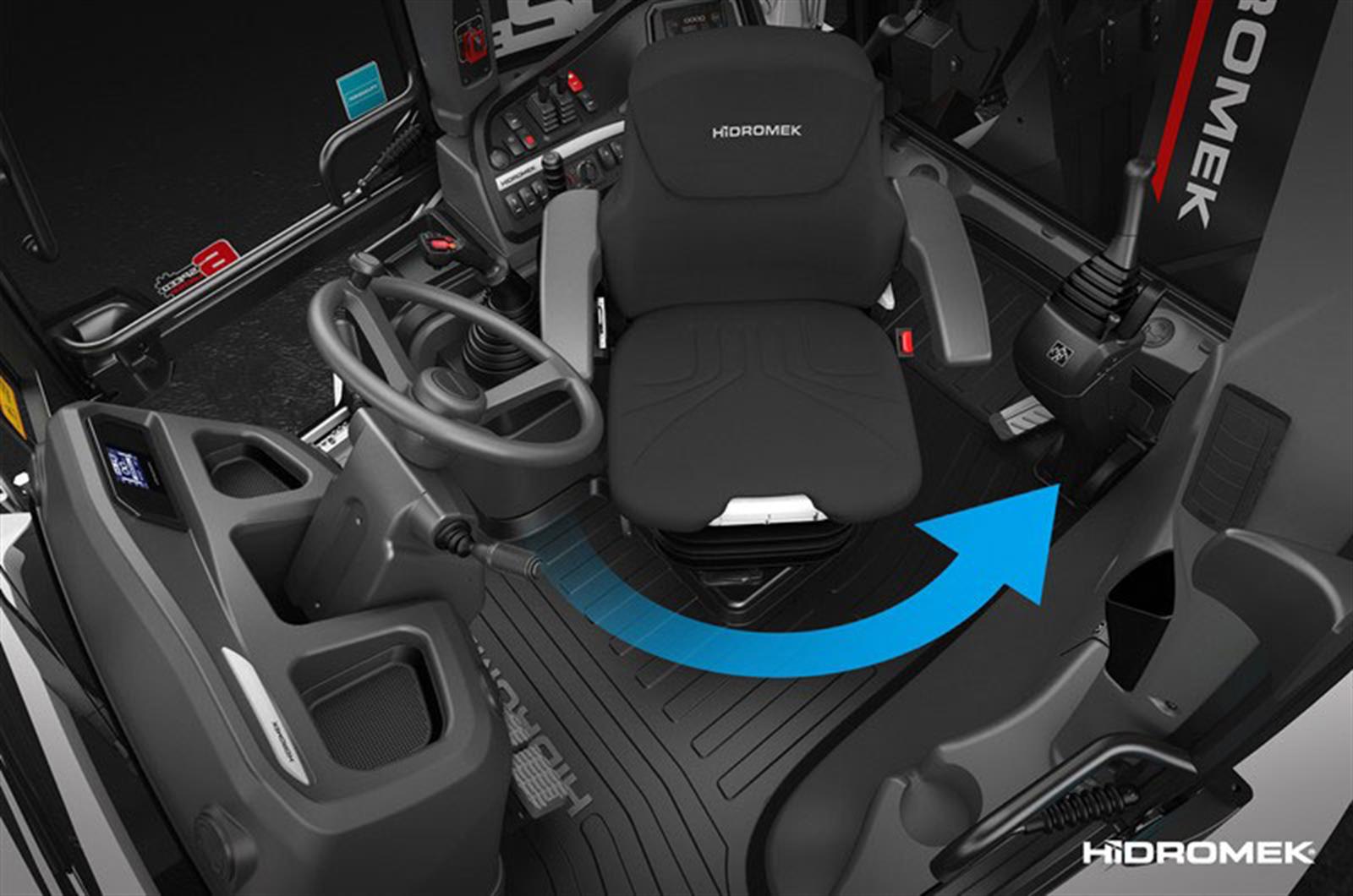

CABIN INTERIOR

• Opera Control System

• Air Suspension Seat

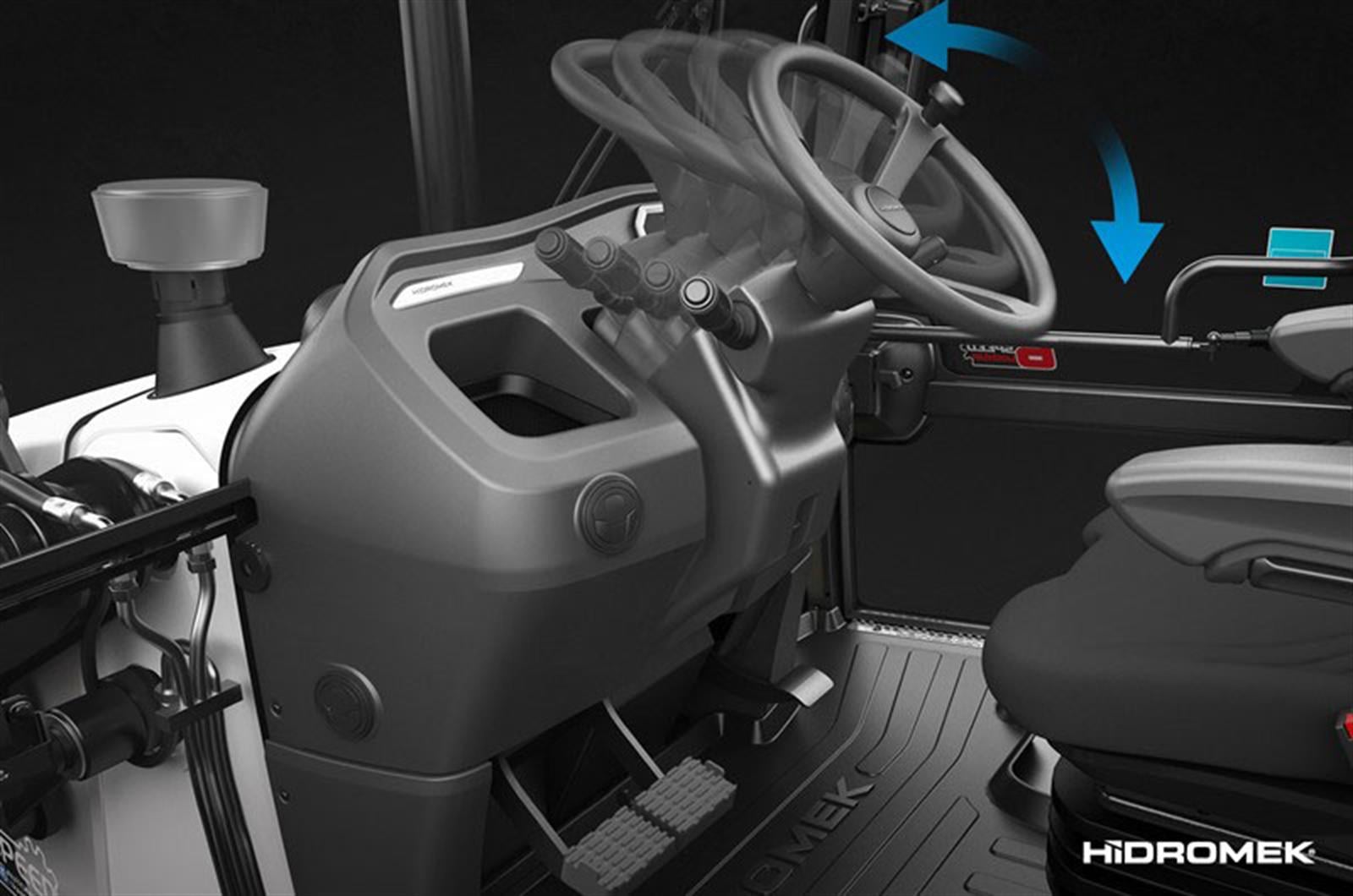

• Adjustable Steering Wheel

• Pool Type Mats

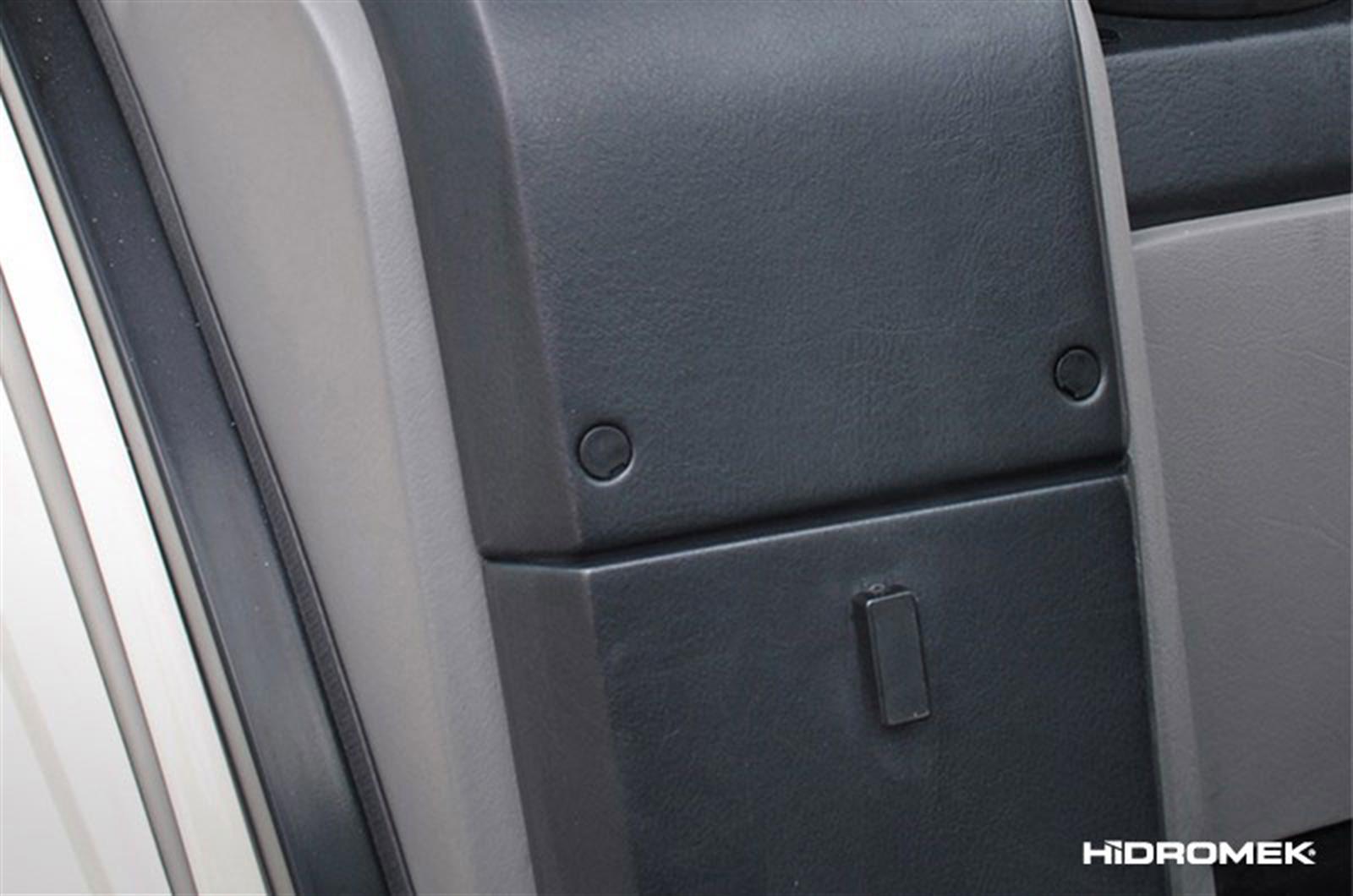

• Detachable Lids

• Cool-Box

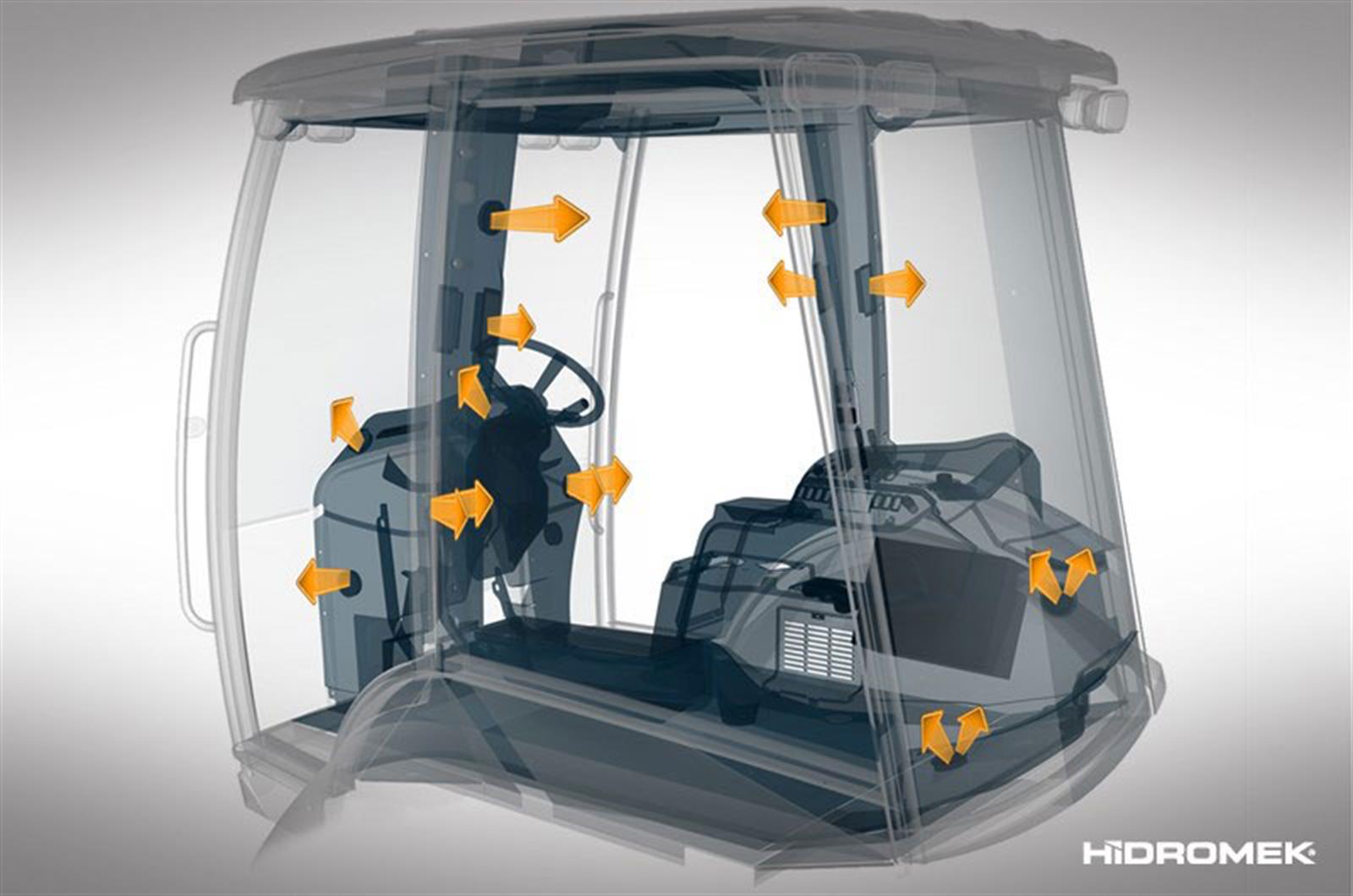

• Advanced Heating and Cooling System (A/C)

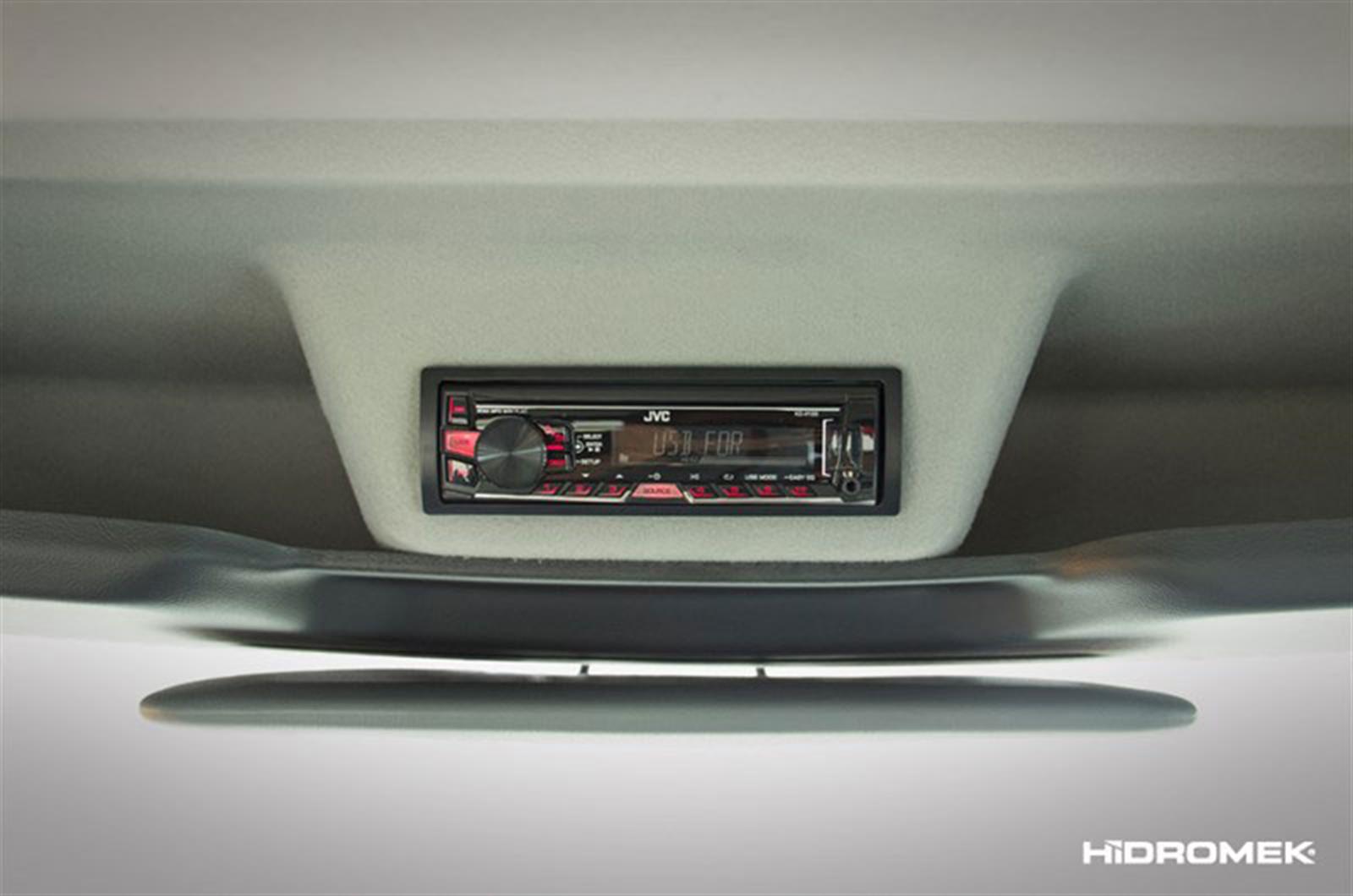

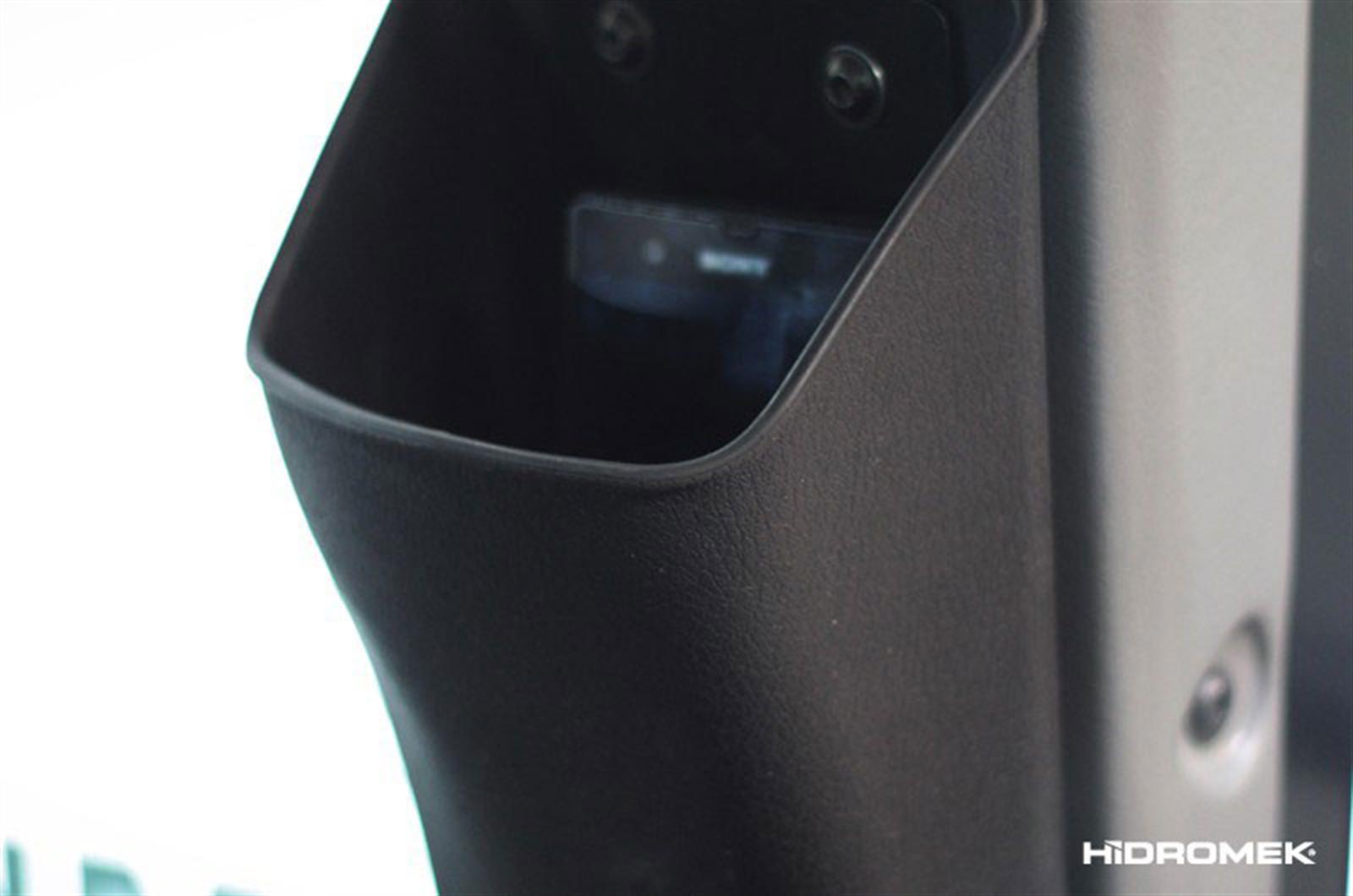

• Roof Shelf

• Ergonomic and Aesthetic Crusher Pedal

• Monolithic Rear Window

• Hydraulic Boom Lock

• Cabin Construction with FOPS and ROPS Certificate

Engine

The SUPRA Series engine is one of the most economical and durable in its class. The turbocharged, 4.400 cm³ engine maintains high torque even at low rpms.

6-Forward 3-Reverse Fully-Automatic Transmission

6-forward 3-reverse fully automatic transmission used in the SUPRA Series allows smooth driving.

The optional torque convertor lock (lock-up) provides fuel economy which is automatically engaged

in the 5th and 6th gear.

MSS (Motion Stabilizer System)

The optional MSS (Motion Stabilizer System) works as a shock absorber on the loader lift cylinders. By damping the shock that occurs when a full loader bucket is used on rough terrain, it provides a comfortable ride that is not only smooth but also fast as well.

Heavy-Duty Type Axles
Heavy-Duty Type Axles have been used in the SUPRA Series in scope of both load carriage and durability.

HIGH EFFICIENCY, SMART CHOICE!

Load Sensitive Piston Type Hydraulic Pump / Flowshare

The optional piston type hydraulic pump provides load sensitive hydraulic power as much as the operator needs with precise control independently from the amount of the load and engine rpm. It works with efficiency up to %95.

The optional FLOWSHARING valves provides excellent hydraulic control independently from the amount of the load and operator’s skills for various field works such as pipe lying and channel trenching.

It allows simultaneous boom, arm and bucket motions even in the low rpms and provides the opportunity of working in noise restricted areas such as hospital, school and city center.

Flow Charging Valves

As an optional equipment, flow charging valves with extra regeneration feature applied on the boom and arm lines provide more efficient hydraulic power and prevent cavitation.

LSD: Limited-Slip Differential and Differential Lock

The highest traction force is provided with LSD (limited slip differential) acting on front axle and

differential lock on rear axle to prevent skidding on stone gravel, mud or icy surfaces. Thus, period of

tire replacement, work cycle and fuel efficiency have been improved.

Dual LCD Display

In conventional backhoe loader cabins, while the operator is controlling the machine in the loading and excavation position, he has to turn his head by 90° to the right and left side in order to check the gauges.

In SUPRA Series, operator may easily check gauges through LCD screen put on the front and rear area while he is sitting in the loading and excavation position. Thus, the operator may easily check the gauges without taking his eyes off the driving direction. This working position allows operator to work for longer periods without suffering from neck and back aches.

LEAVE TOUGH WORKS TO SUPRA!

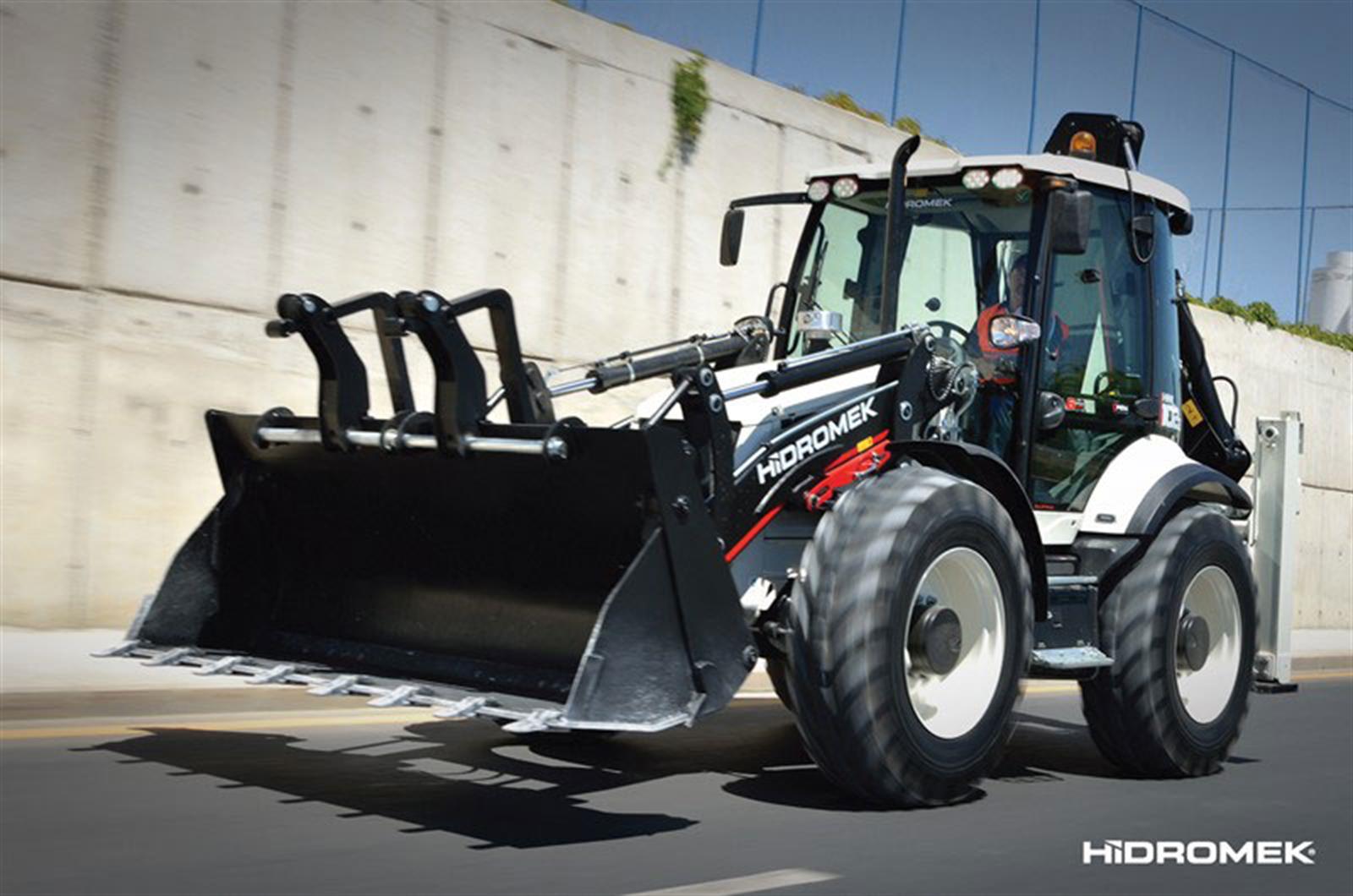

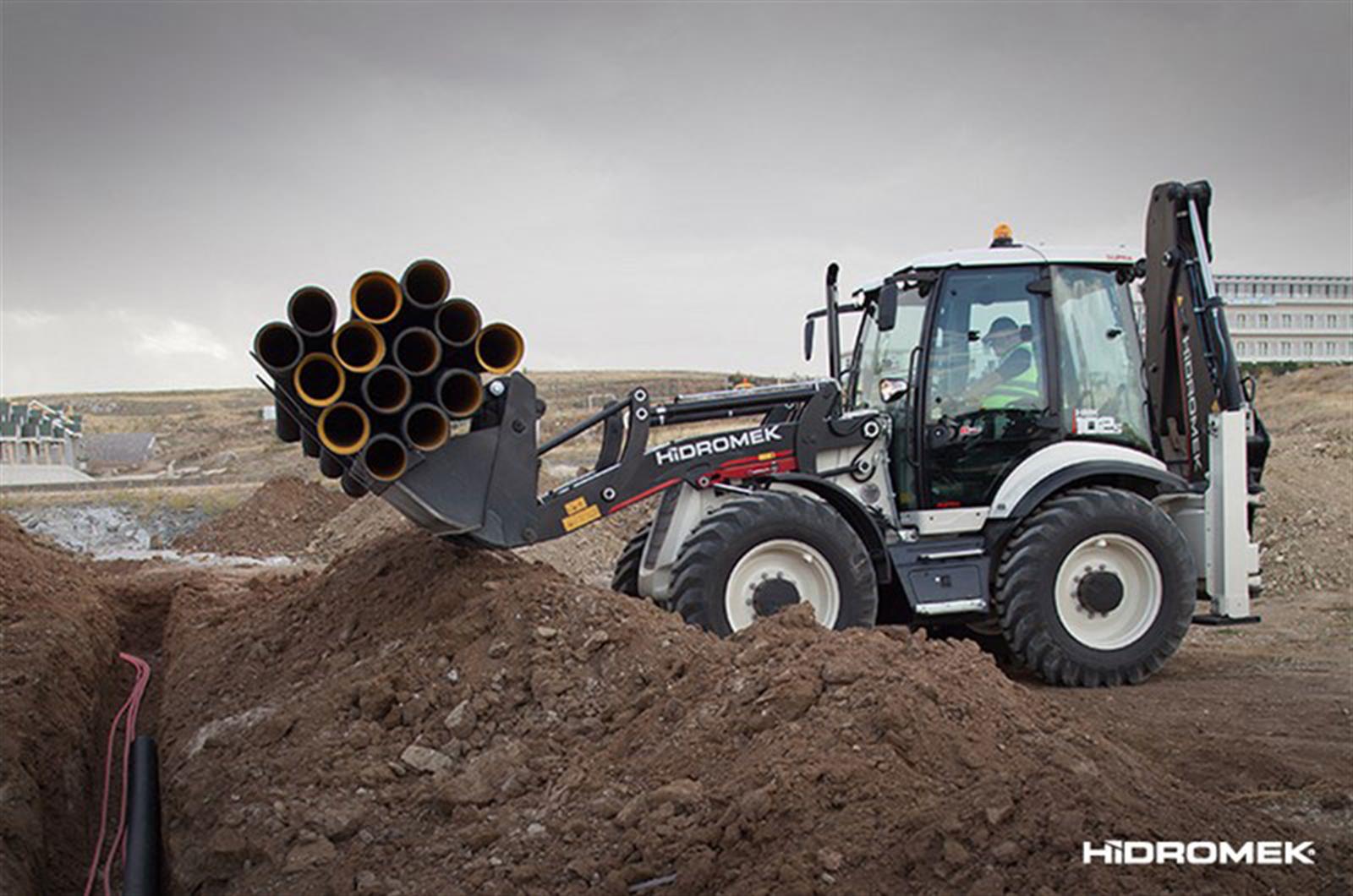

SUPRA Series for the toughest working conditions

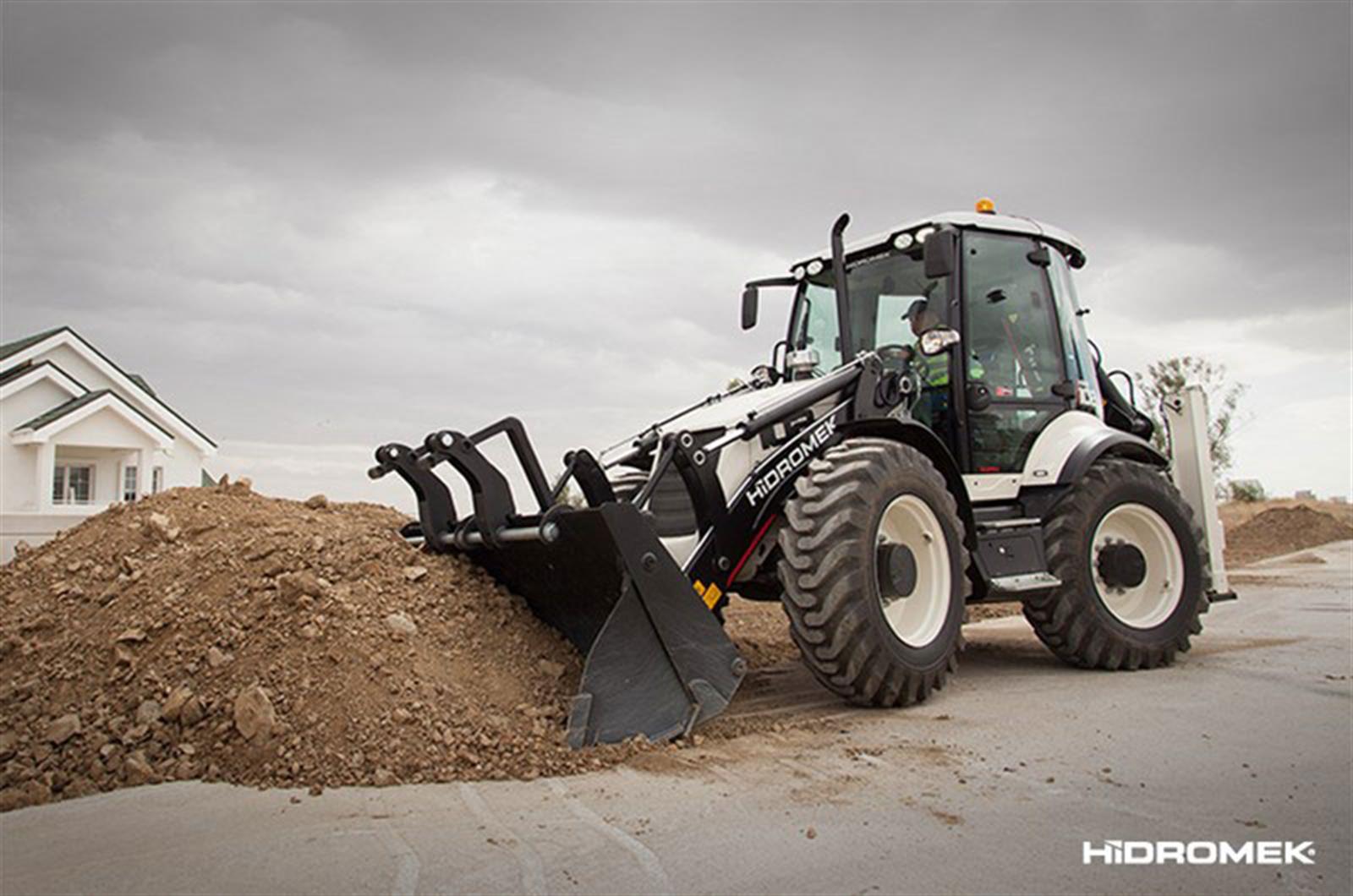

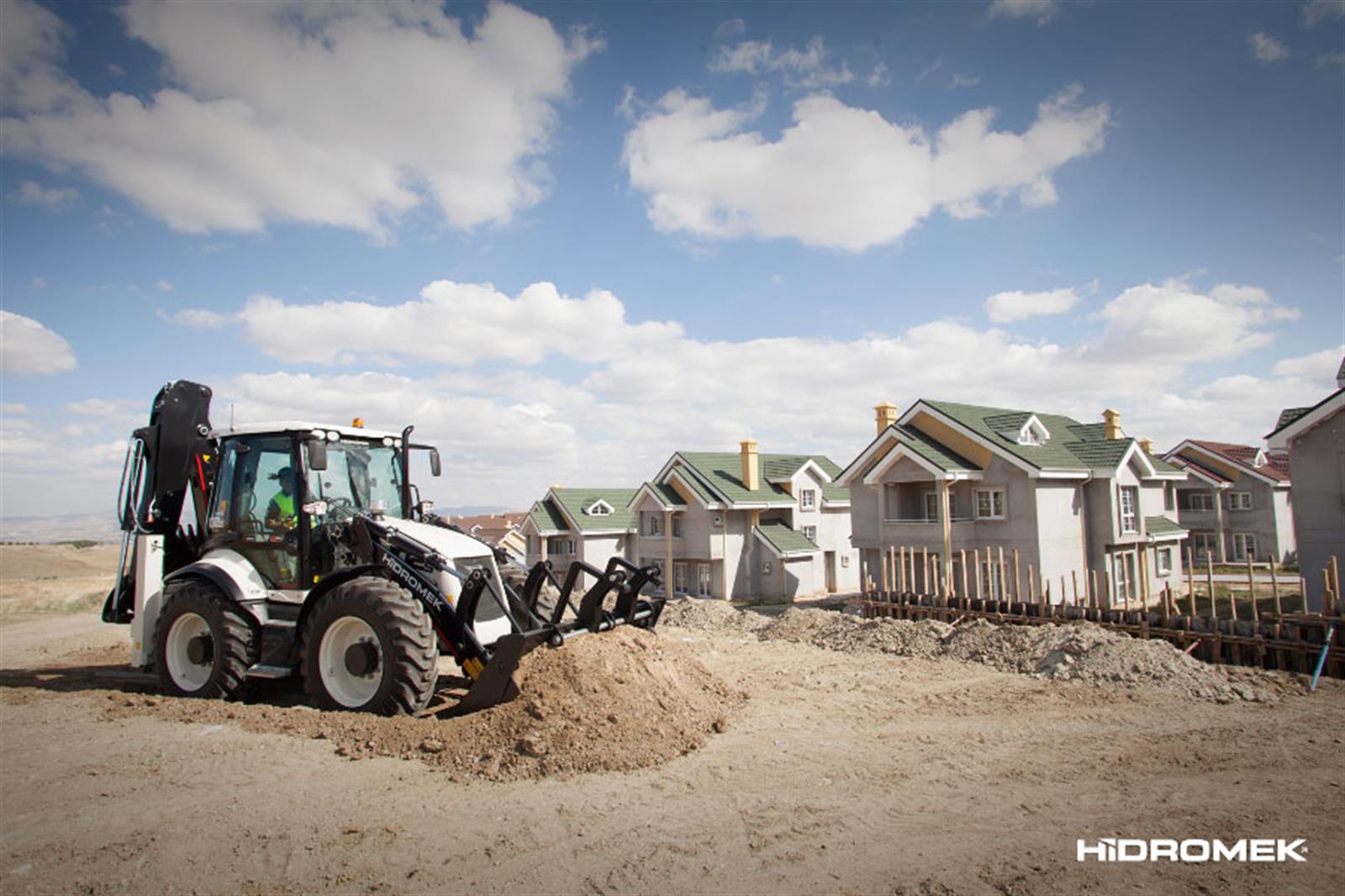

One of the characteristics that makes the SUPRA Series different is the superior performance of front loader. Thanks to the bucket and arm breakout force of SUPRA Series, the machine drive the load without being stressed. Boom construction intended for heavy conditions has been designed for durability for long years. 6-in-1 loading bucket (1,1 m³ in B Series – 1,2 m³ in S Series) provides advanced level of loading performance.. Thanks to the bucket geometry that is designed carefully, effective use of bucket capacity is obtained. Settling blade that has been fixed with bolted system may be used double-sided by easy exchange by the operator and without the need of service. Hinged joint on the cylinders of claw opening and closing prevents damages on the cylinders when lateral loads are exposed to during driving the loads. Thanks to the proportional control button on the front control lever, easy use is provided to the operator, claw speed and angle can easily be adjusted.

TIPSHIFT (Forward-Reverse Direction Control)

Forward-reverse direction control on front loader control lever TIPSHIFT

allows operator to make quicker manoeuvre during

loading operation. It is provided so that the operator can make

these controls easily and concentrate on loading process better.

In conventional loading works and manoeuvrability in limited spaces, the operator apply both loader and forward-reverse commands from a single point without losing steering wheel handling by using the TIPSHIFT button.

It provides occupational safety and comfort that operator uses it without breaking the contact with steering wheel and loader controller.

All these fine details and innovations have been thought for you to make saving on time and operation costs.

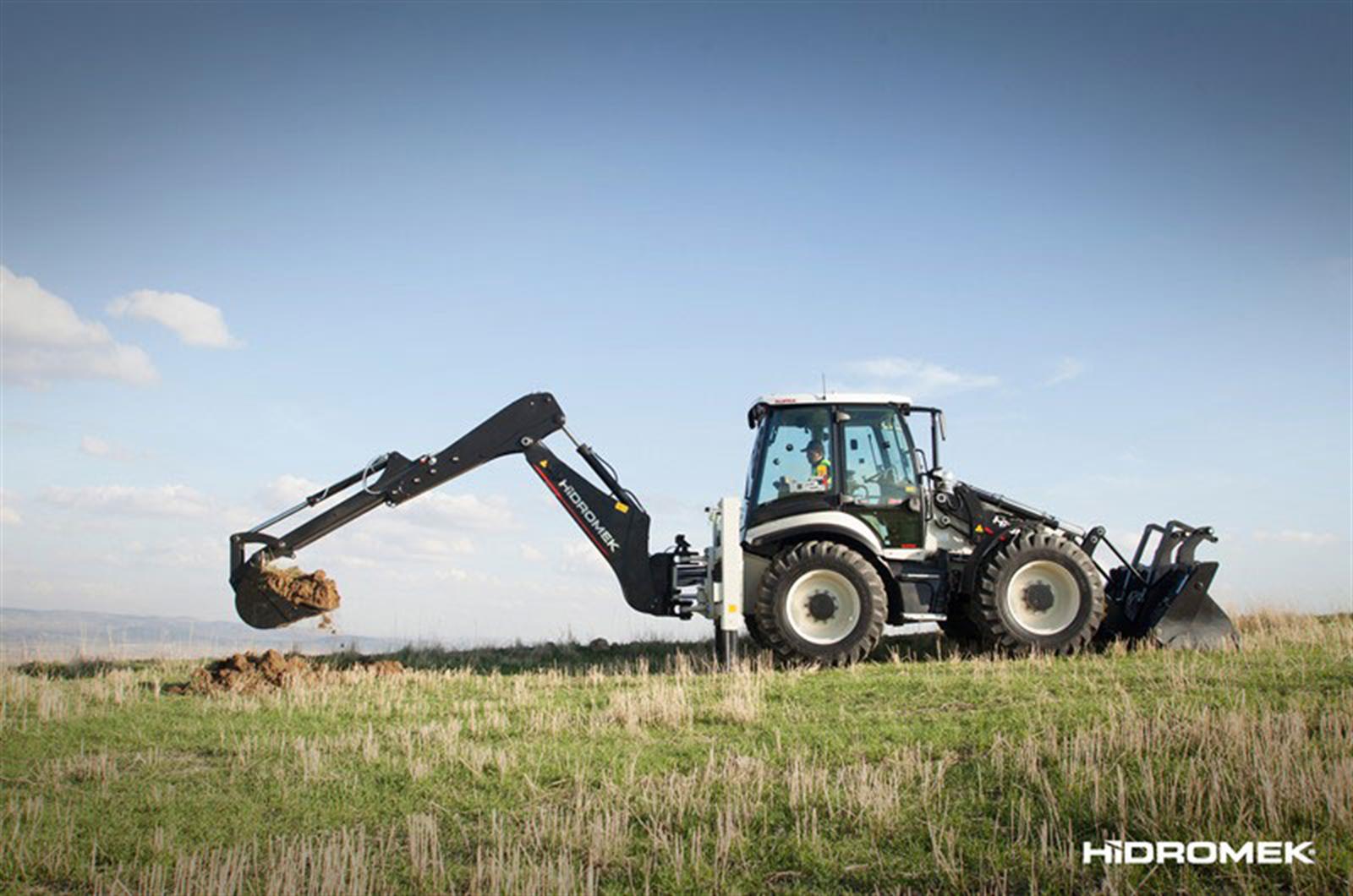

Excavation, Removal or Crushing Works…

SUPRA Series excavator group provided and designed for tough

geographical and heavy working conditions increases the

productivity with its solid construction and optional efficient

hydraulic system that provides maximum breakout force even in

the low rpms and that has maximum 163 lt. /min oil flow.

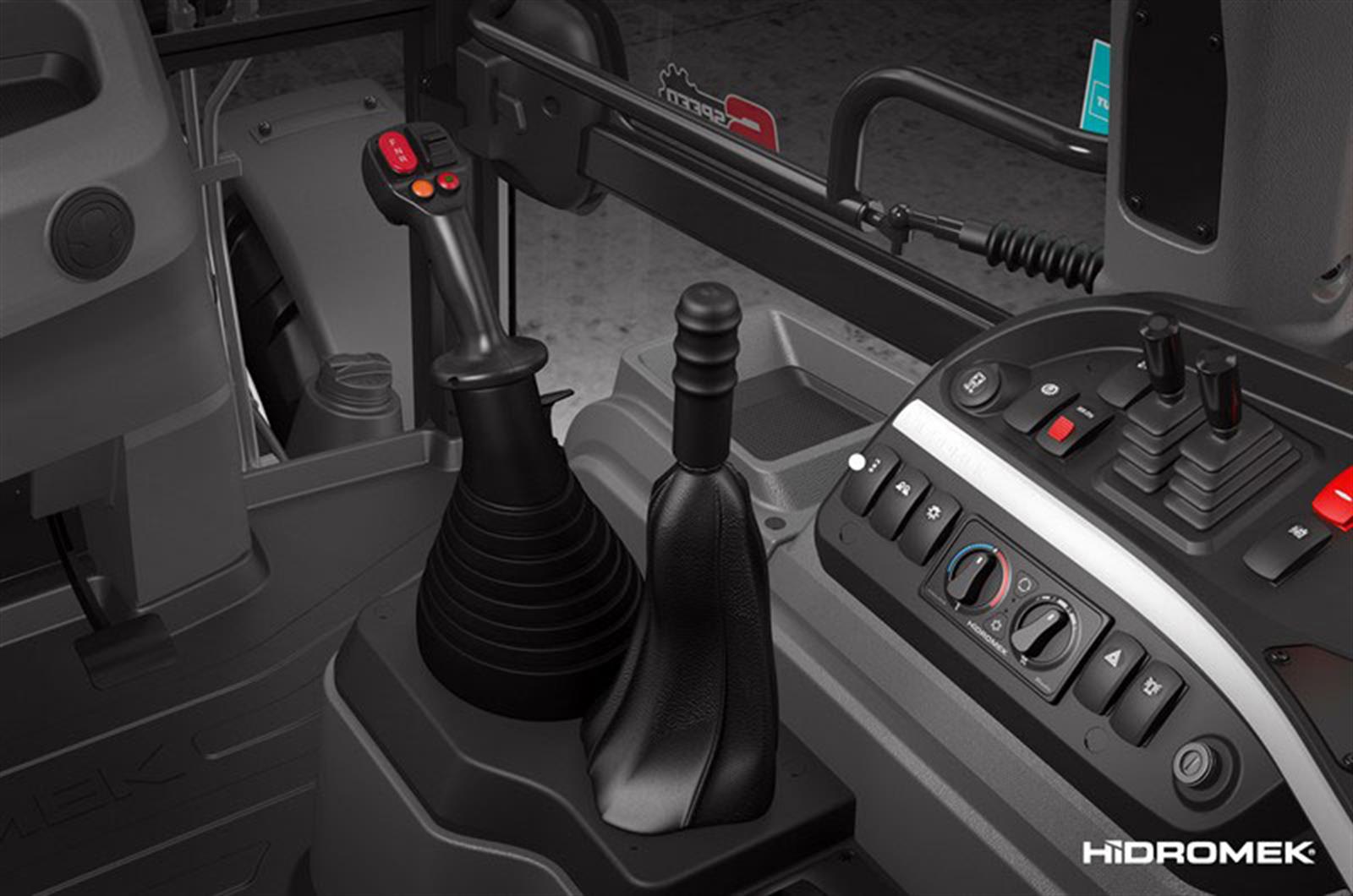

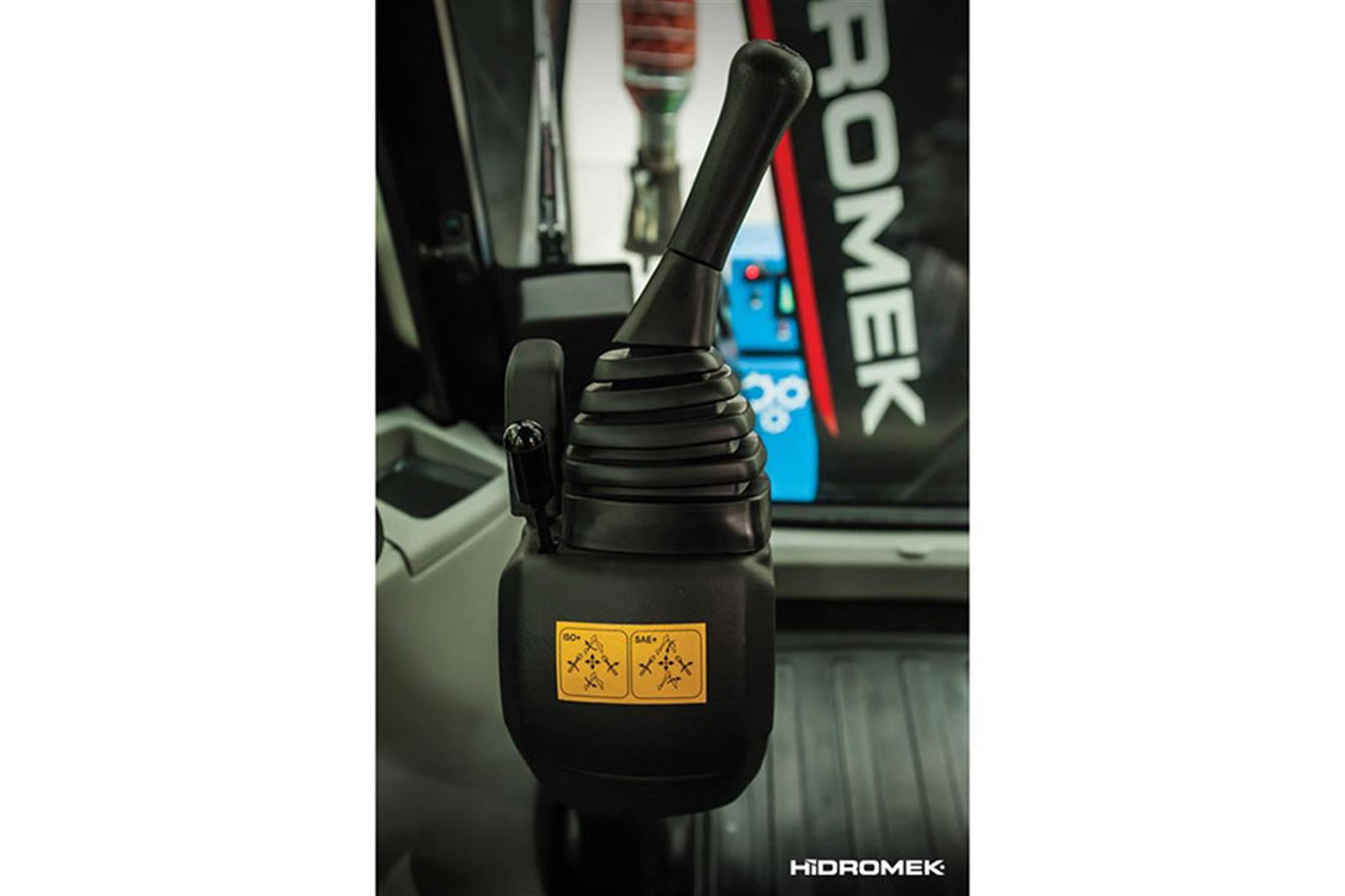

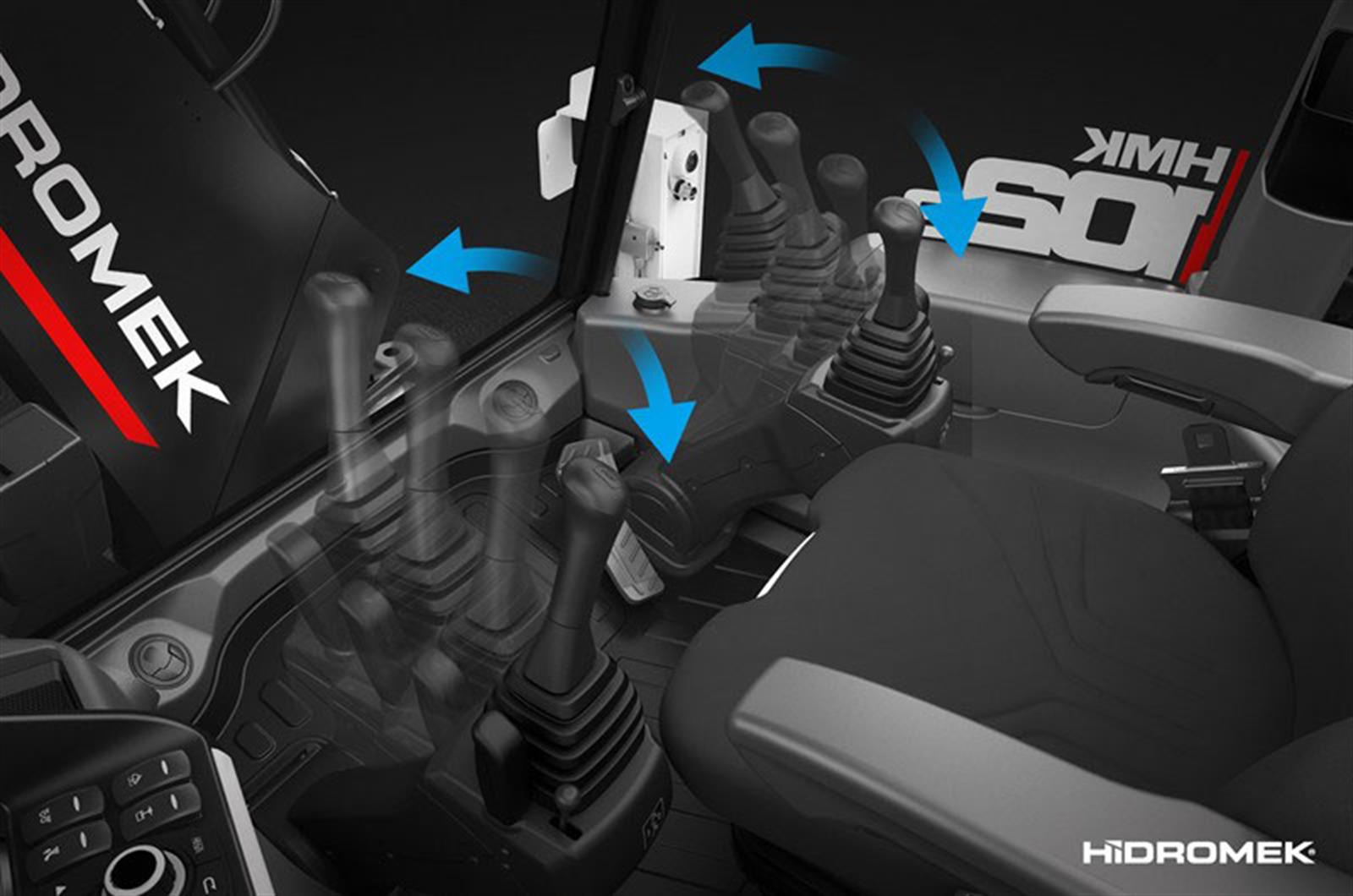

Rear joysticks that are optional in SUPRA models allow for easy

control in the works such as lifting and lowering that require

precision for operators. Joystick consoles that may be adjusted

independently from each other provide ergonomic working

environment.

Long hours of excavation works become pleasure with SUPR

A Series that has wide visibility and ergonomic working

environment.

SUPRA Series that has excellent weight distribution and wide

stabilizers provides safer excavation opportunity in sloppy lands.

Additional hydraulic line that is maintained as standard kit for

hydraulic braker and attachment use does not prevent visibility

during excavation and is not damaged in deep excavations.

Cushioning system in the excavation cylinder softens the

movements at the ends of strokes, absorbs the impacts and

prolongs the machine life.

Telescopic arm that has digging depth up to 5.80 m. provides an

advantage in deep excavations and the works that require long

reach.

What can be more enjoyable than a work running without any problem?

ATTACHMENT FOR BACKHOE

Quick Coupler

Provides to change buckets and attachments hydraulically. Provides less effort and less time for the operator to change buckets and attachments. Increase productivity.

Hydraulic Breaker

Daemo Hydraulic breakers have high impact forces for material penetration and fracture. Provide high productivity.

Low maintanance and revision costs thanks to simplified hydraulic circuit, reduced part number.

Auger

Two hydromotor flowrate option 202 cm³/rev and 132 cm³/rev 4 different diameter option 230mm, 350mm, 490mm and 610 mm

Orange Peel Grapples

Hydraulic rotation and no-rotation models are available.

0.234 m³ capacity.

Ditch Maintenance Bucket

Drenaige holes reduce weight of the load by charging water inside the bucket.

1500mm Bucket weight

0.2 m³ Bucket capacity

Tilting Grading Bucket

Hydraulically operated grading bucket allows the bucket to turn 91 degree leftside and rightside.

0,227 m³ Bucket Capacity

Dedicated Buckets

Dedicated buckets are available in a variety of widths (350mm, 400mm, 500mm, 600mm, 700mm, 800mm and 900mm) Thick cutting edges and side plates offer superior durability.

Taper Ditch Buckets

45 Degree taper angle 0.148 m³ Bucket capacity

Concrete Bucket

Easy loading and spreading on concrete works thanks to its own geometry

0,273 m³ Bucket capacity

Ripper

Replaceable tip for even longer service life

ATTACHMENT FOR LOADER

Quick Coupler

Provides to change buckets and attachments hydraulically.

Provides less effort and less time for the operatör to change buckets and attachments. Increase productivity.

Pallet Forks Kit For Loader Bucket

The Bucket mounted forks allow pallets handling without damage to the material on the pallets

1050mm Forks length

General Purpose Bucket

Designed for maximum durability

1.1 m³ Bucket capacity

Multi Purpose Bucket For Quick Coupler

Suitable with quick coupler.

1.1 m³ Bucket capacity

Fork Mounted Quick Coupler

Forks without bucket provides easier and faster usage.

More visibility and easy working according to the bucket mounted Forks

Auger For Front Bucket

Two hydromotor flowrate option 202 cm³/rev and 132 cm³/rev

4 different diameter option 230mm, 350mm, 490mm and 610 mm

2 Axis Snowblade

2800mm Blade width

70 degree horizontal movement

25 degree vertical movement

Snowblade

2800mm Blade width

22.5 degree vertical movement

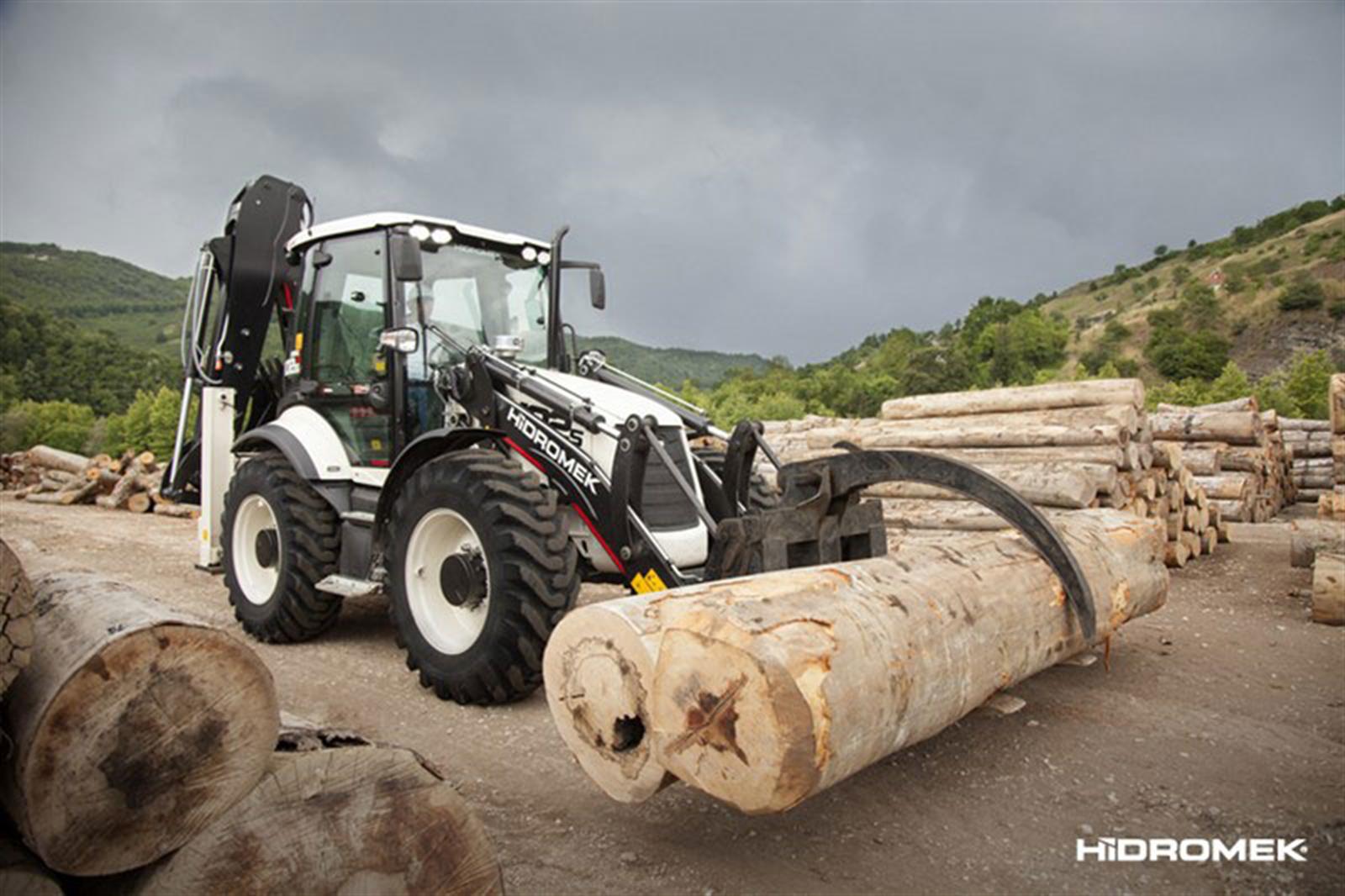

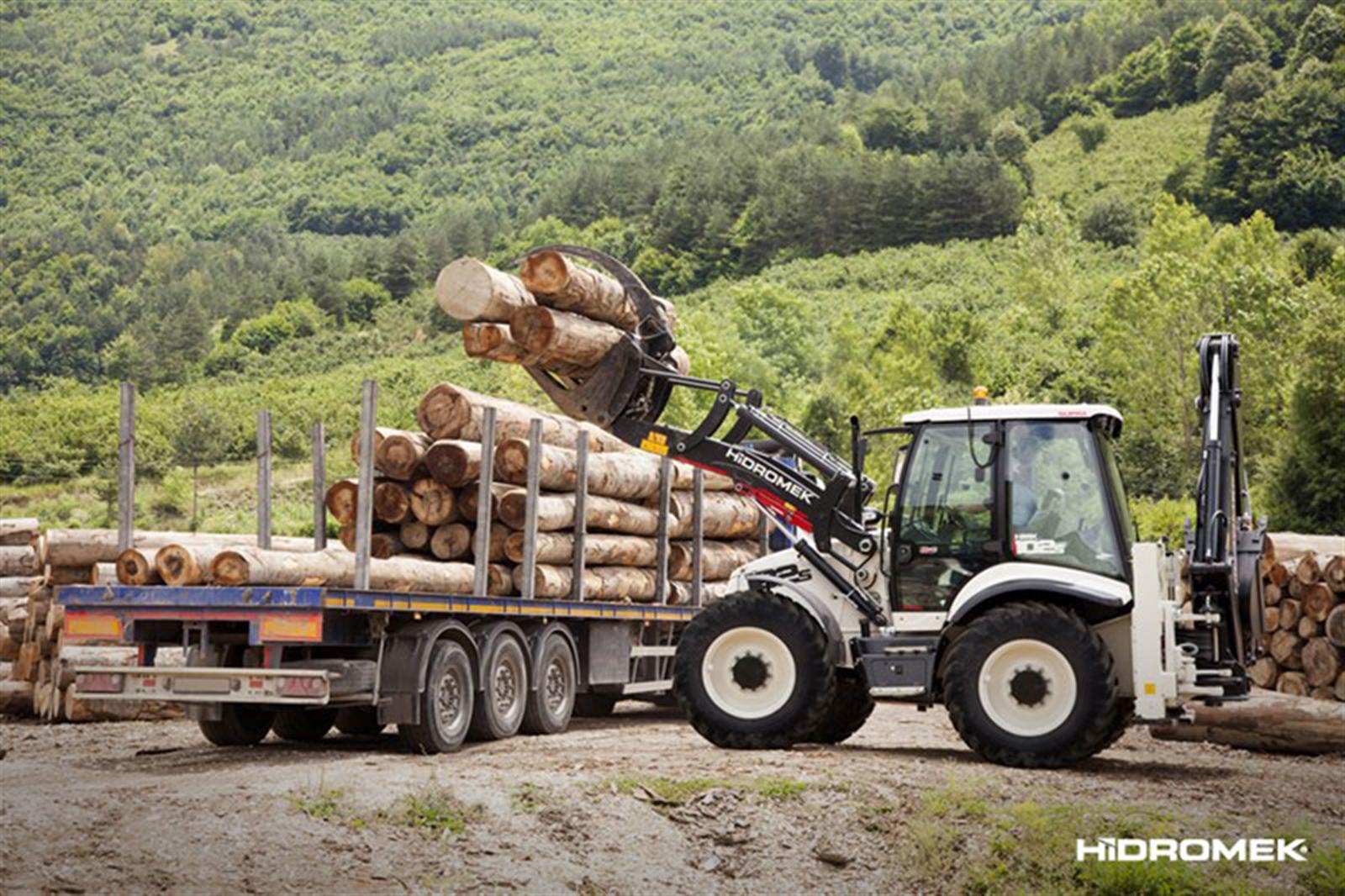

Timber Grapple

Minimum timber radius 200mm

3 Teeth Timber Grapple

Minimum timber radius 200mm

5 Teeth Timber Grapple

2 teeth on the top, 3 teeth at the bottom of grapple

Timber Grapple

Minimum timber radius 200mm

Engine
Brand	Perkins
Model	1204F-E44TAN Diesel Engine
Number of cylinders	4
Bora x Stroke	105 x 127 mm
Displecement	4400 cc
Maximum Power	99.8 Hp @ 2200 rpm
Maximum Torque	450 Nm @ 1400 rpm

Hydraulic System
Type	Closed Center System


Pump Flow Rate	163 lt
System Pressure	250 bar

Transmission
Type	Autoshift
Torque Convertor Lock (Lock-Up)	Available
Number of Gear	6 forward - 3 reverse
Stall Ratio	2.38:1

Driving Speeds
1st Gear	6 km/h
2nd Gear	9 km/h
3rd Gear	12 km/h
4rd Gear	20 km/h
5th Gear	28 km/h
6th Gear	40 km/h

Loader Performance
6-in-1 Bucket Capacity	1.2 m³

Max. bucket breakout force	8270 kgf
Max. loading arm breakout force	7427 kgf
Lifting Capacity to Max. Height	3687 kgf

Digging Performance
Bucket Capacity	0.18 m³
Max. bucket breakout force	7021 kgf
Max. dipper breakout force	3161 kgf

Filling Capacities
Engine Oil Pump	8.8 lt
Engine Cooling System	22 lt
Fuel Tank	150 lt
Hydraulic Oil Tank	70 lt

Operating Weight
Standard Machine	9580 kg
