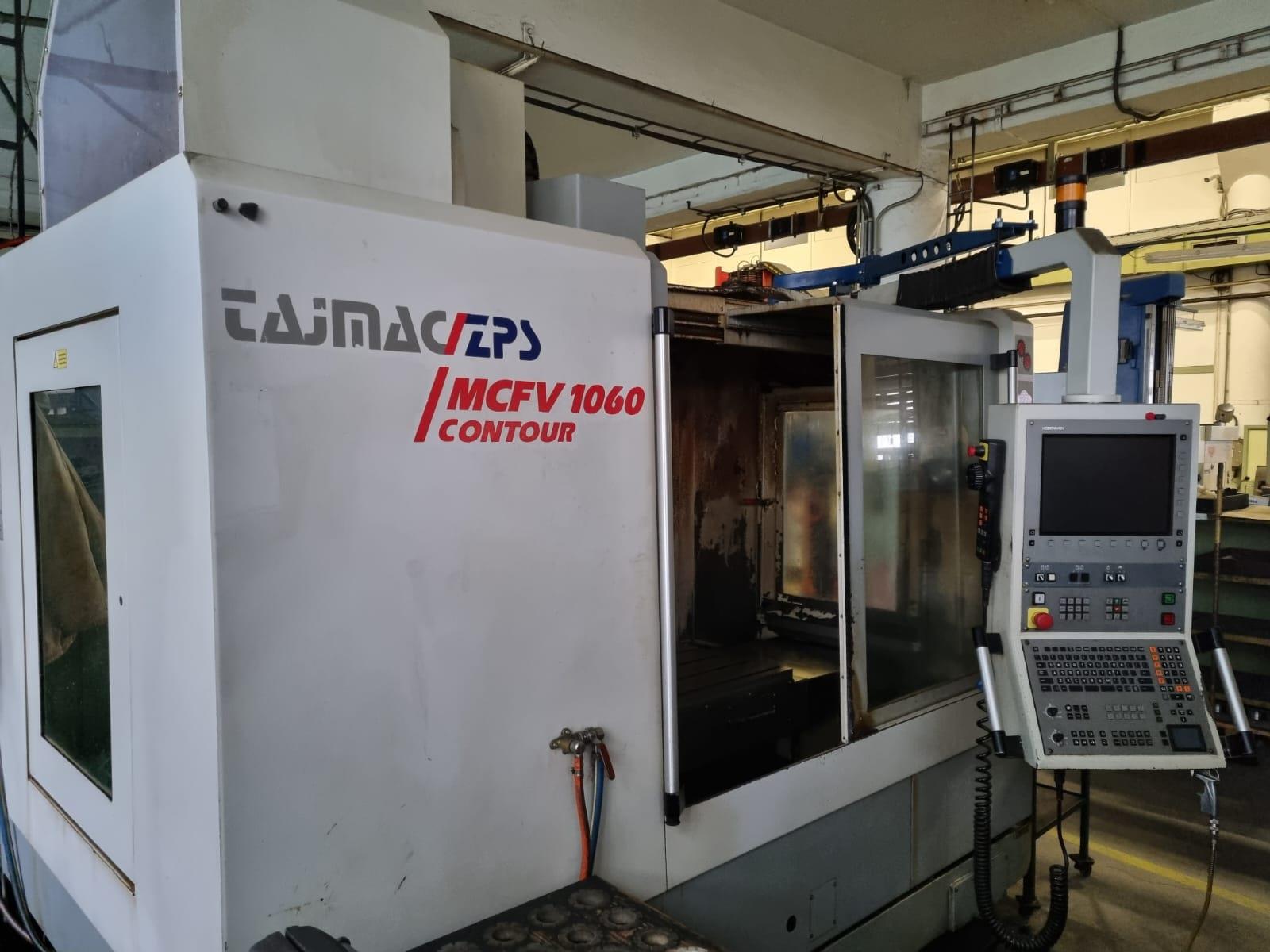

ZPS MCFV 1060 Machining center - vertical (ZPS MCFV 1060 Machining center - vertical)

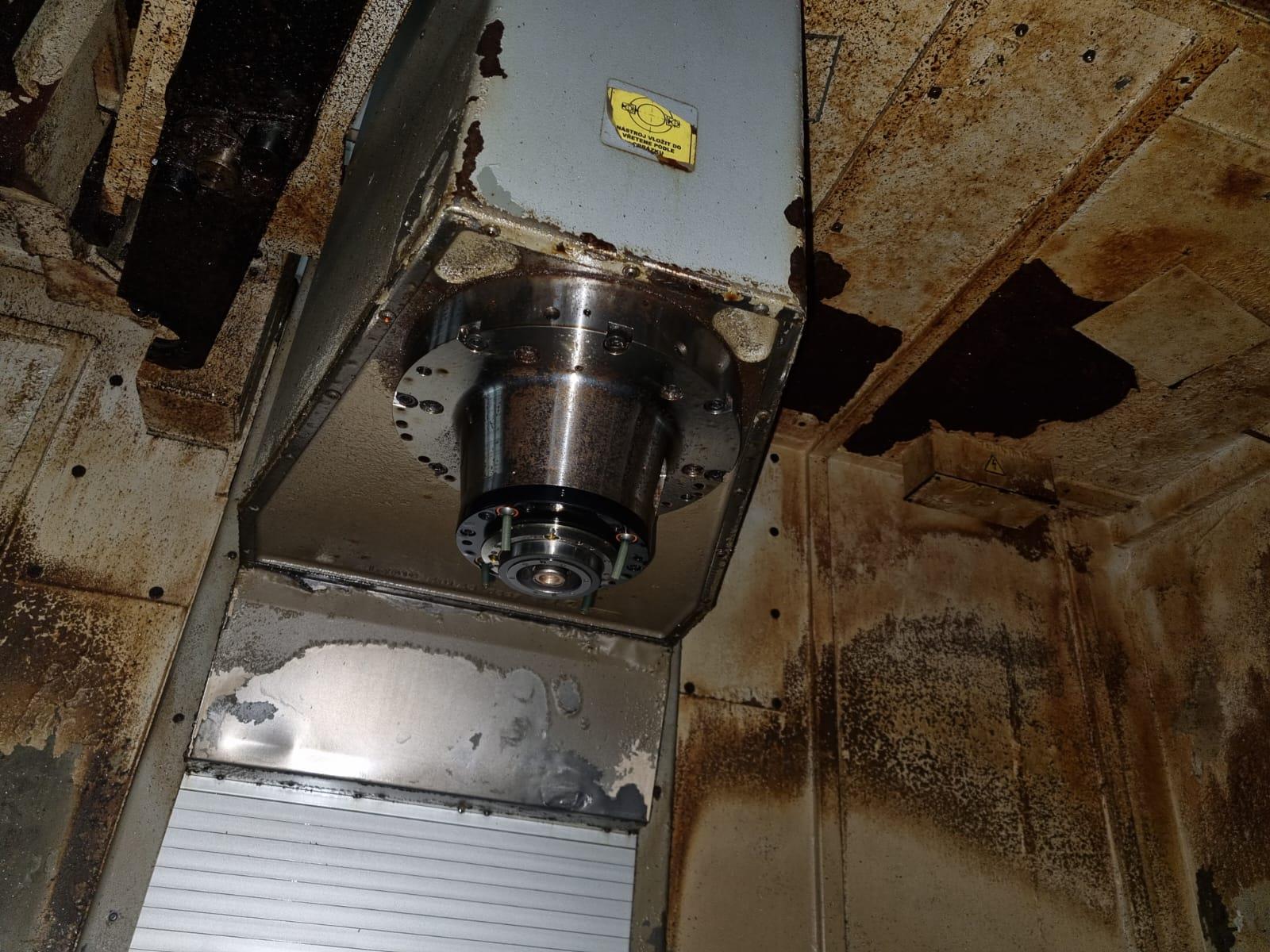

The machine is in good technical condition, new spindle. Heidenhain 530 control system.

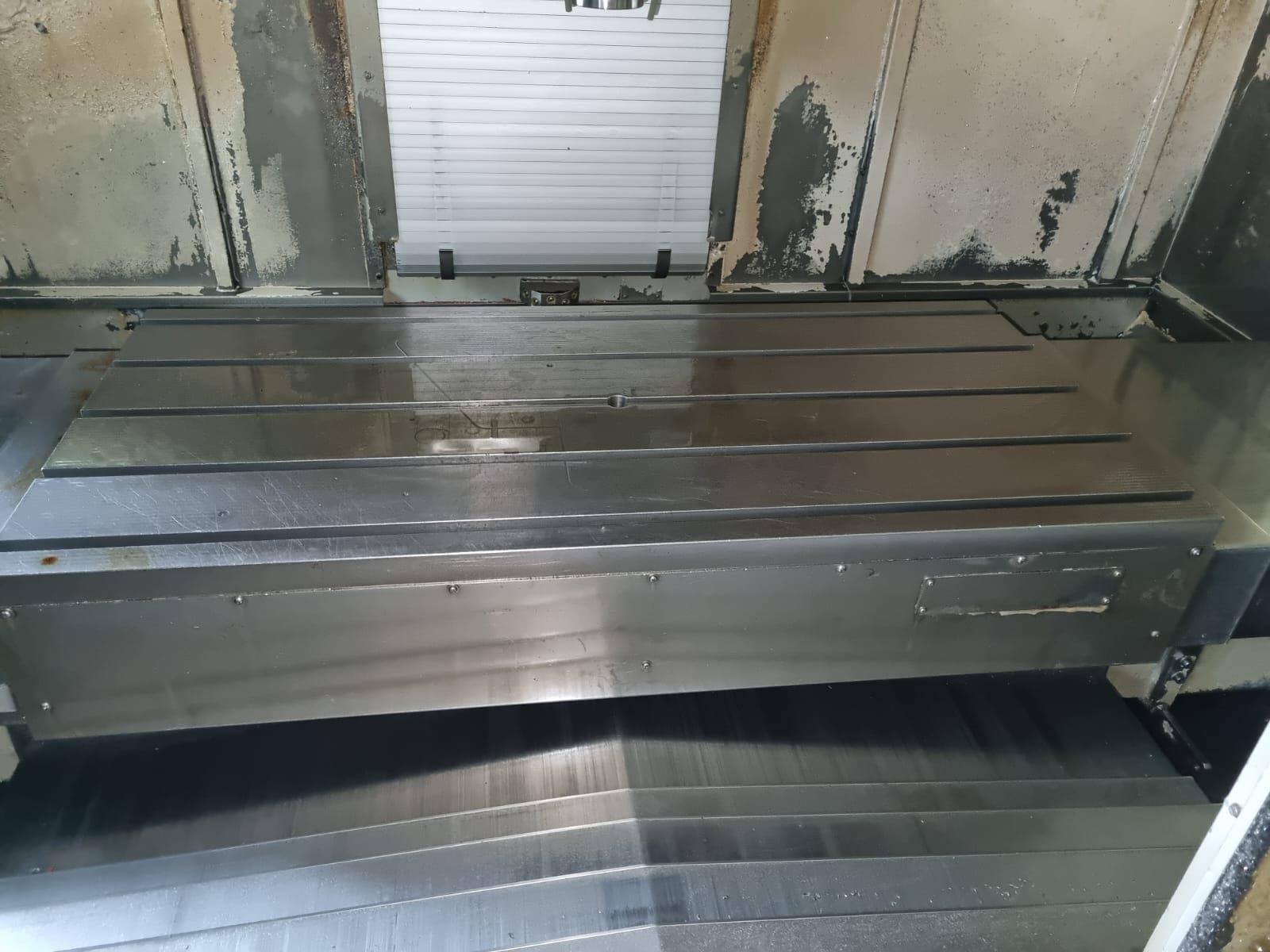

table clamping surface mm 590 x 1270
travel:
longitudinal (X) mm 1016
transverse (Y) mm 610
vertical (Z) mm 760
worktop pcs 2
dimensions of the worktop mm 460 x 770
max. table load kg 900
T-slots ( number x width x spacing ) mm 5 x 18 x 125
Dimensions of the central groove mm 18 H6
Dimensions of the central hole mm 30 H6
max. workpiece at a tool length of 300 mm mm 1016 x 590 x 410
distance of the table from the floor mm 910
spindle speed range in the 1st stage min -1 20 - 2000
spindle speed range in the 2nd stage min-1 2001- 8000
spindle taper ISO 40 DIN 69871 – AD
number of tools in magazine pcs 1 x 24
max. dia. tools mm 90
max. tool length mm 300
max. tool weight/total kg 8/108
tool change time from one magazine with 6
power hl. of electric motor kW 11(15)
dimensions LxWxH mm 2800 x 2200 x 3200 (working height)
machine weight kg 7,700

Axis X	1016 mm
Axis Y	610 mm
Axis Z	760 mm
Rotary table (4th axis)	no

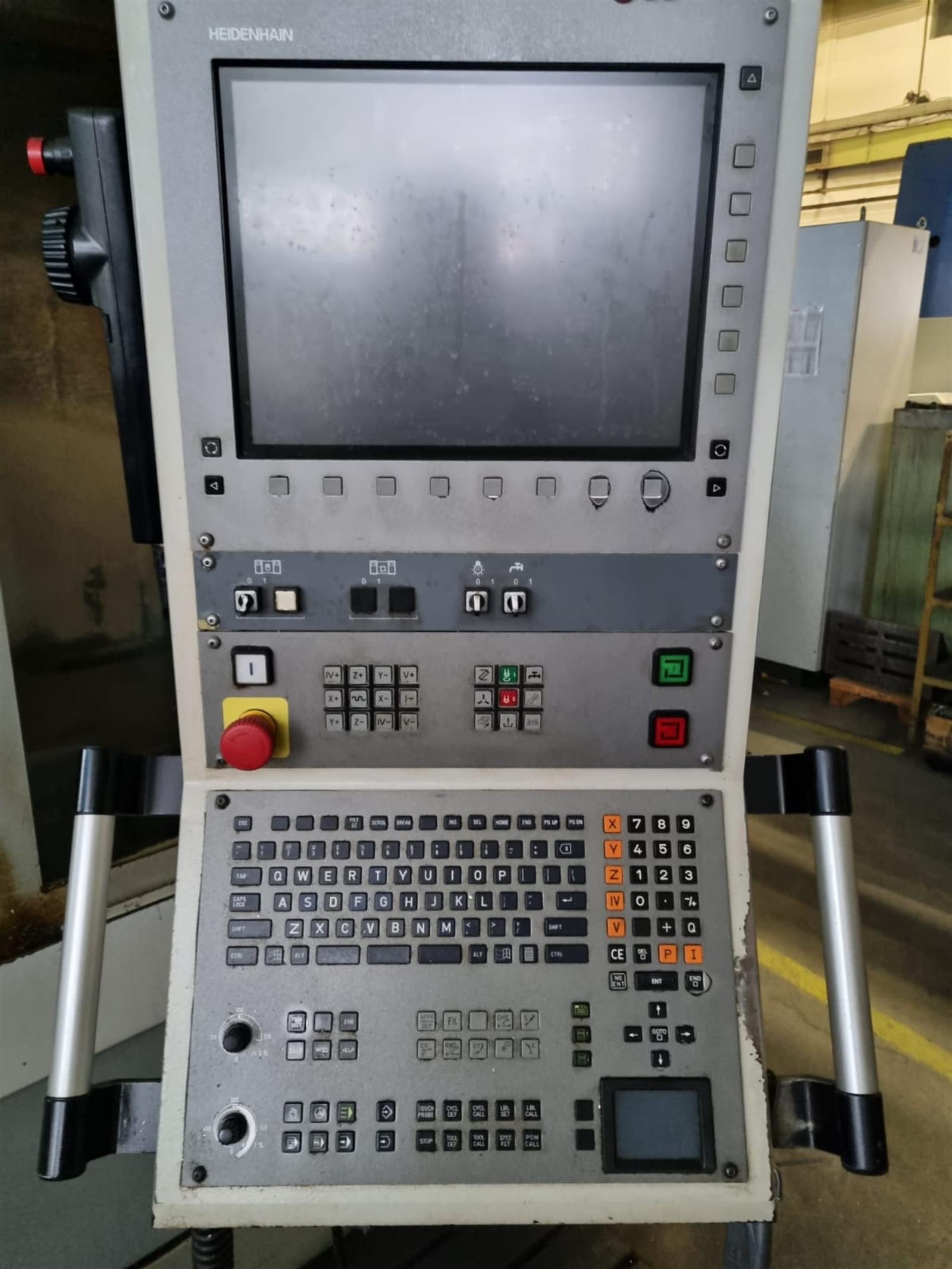

Type of CNC	Heidenhain 530
Table length	770 mm
Table width	460 mm
Max. part weight	900 kg
Spindle taper
Max. spindle speed	8000 rpm
Spindle motor power	11 kW
-------------------
Length x width x height	2800.0 × 2200.0 × 3200.0
Weight	7700 kg
Worked hours
Hours under power
State	good
At local norms	---------
Status	visible
