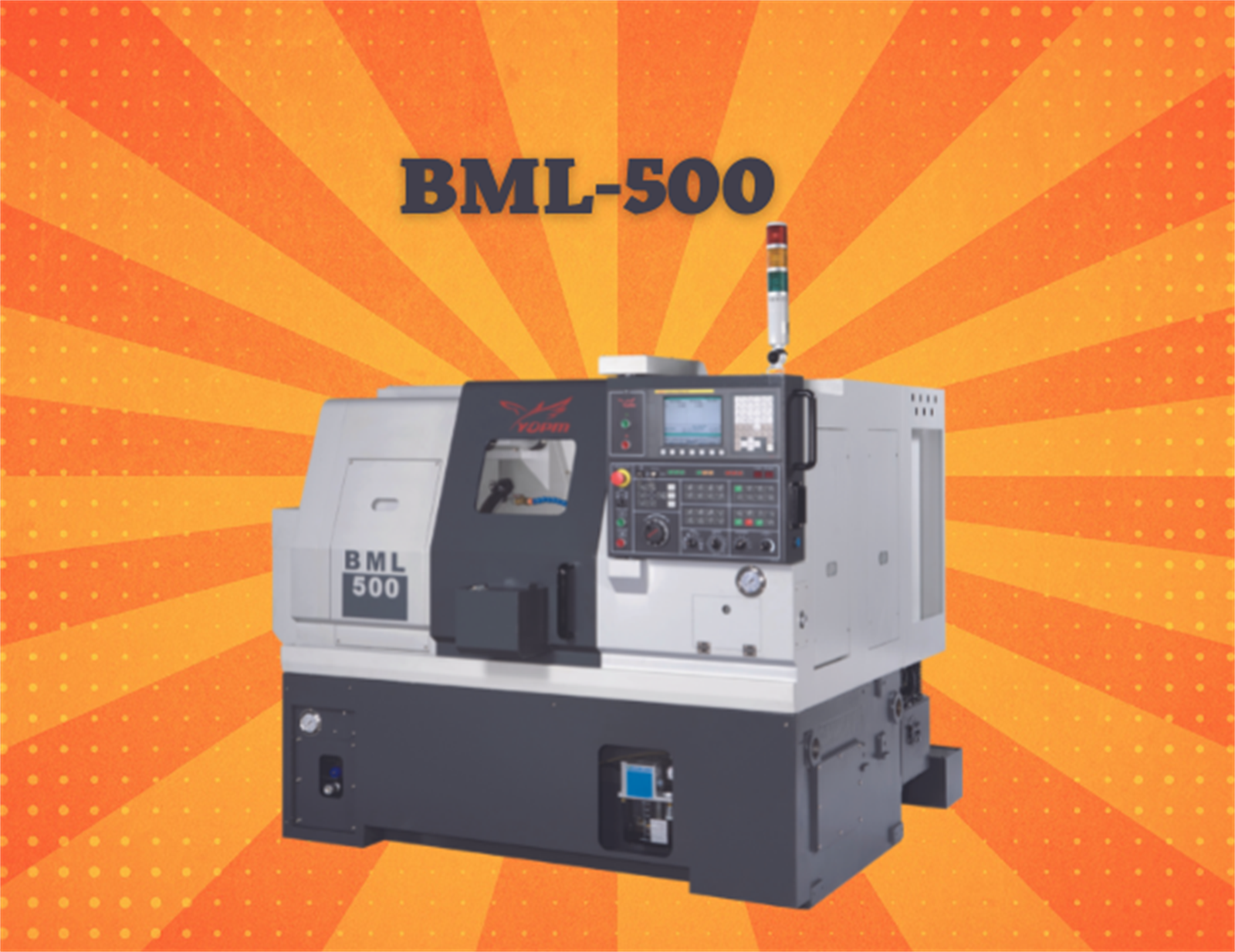

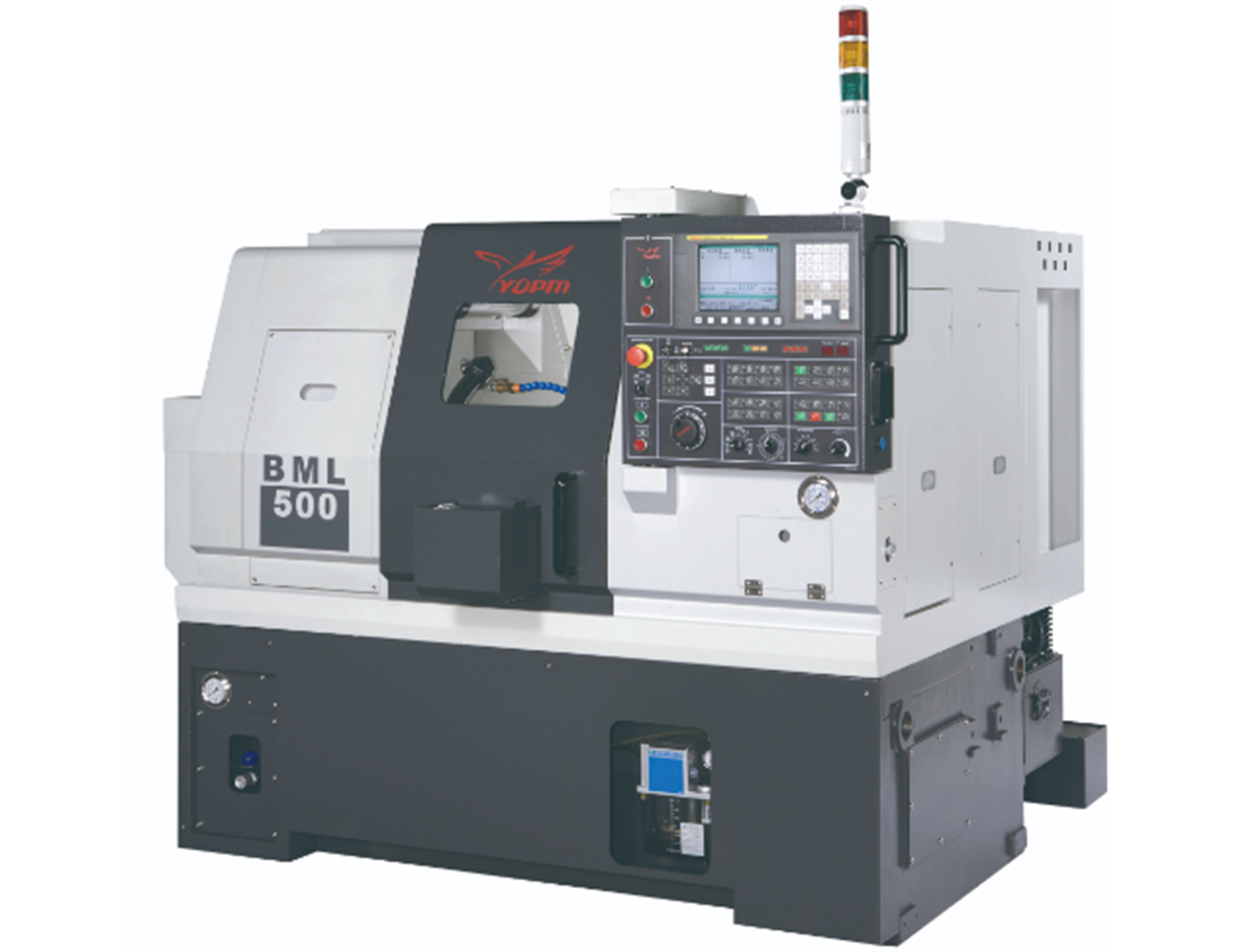

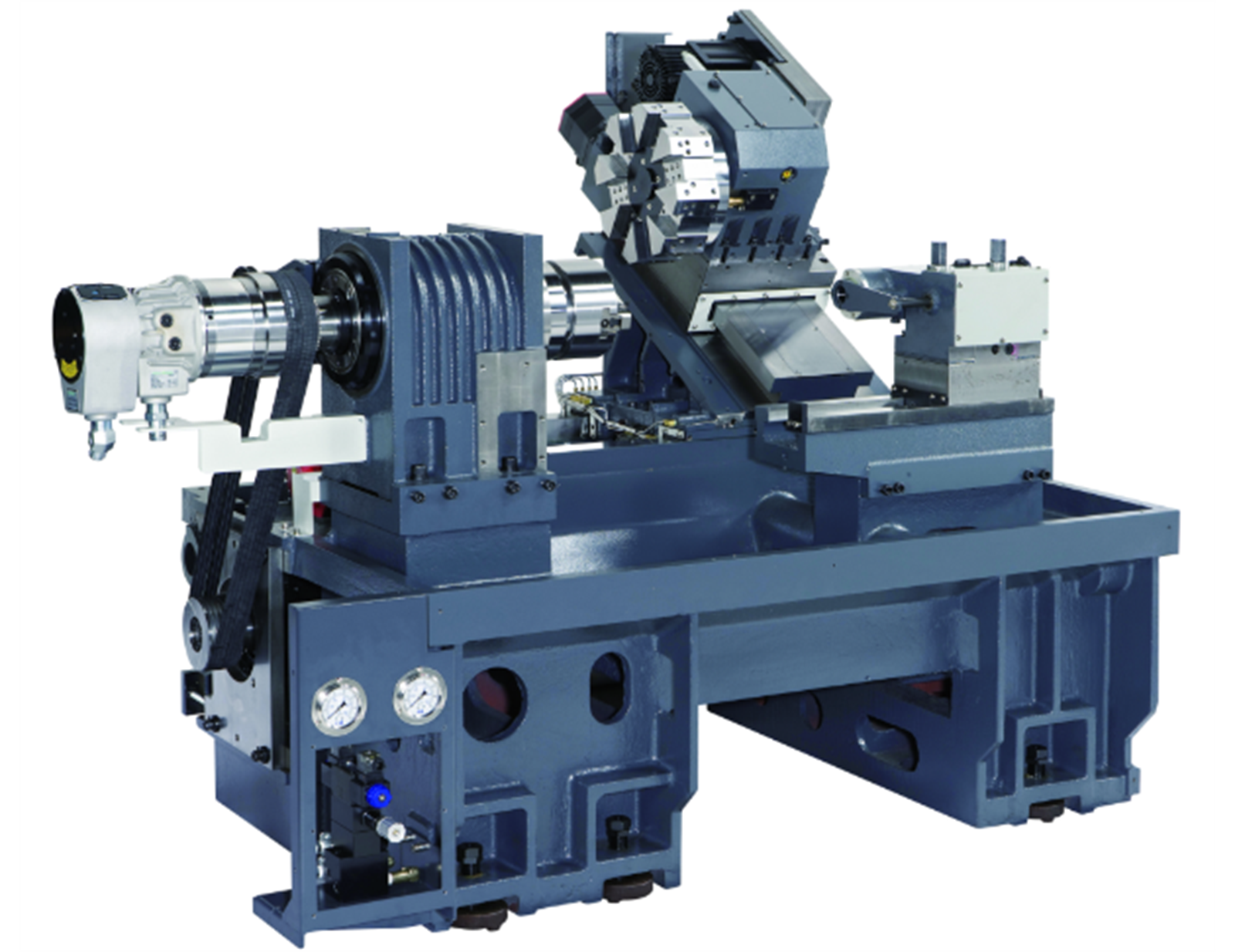

Yida Ydpm BML-500 Box Way CNC Lathes (BML-500)

Brand : Yida Ydpm

Stock Amount : 0

Est. Delivery Time60-75 Days After Order

Shipment Place Turkiye

Payment Terms% 30 T/T On Order Confirmation, % 70 T/T Before Shipment

Made InTaiwan

Min. Order Qty.1 Pcs.

Warranty1 Year

Lathes

Box Way CNC Lathes

Description：

BML-500 Live-tooling, Feedrate, Tailstock, Motors, Accuracy

Live-Tooling	Spindle Speeds	rpm	-
Feedrate	Rapid Traverse	m/min	X20, Z:24

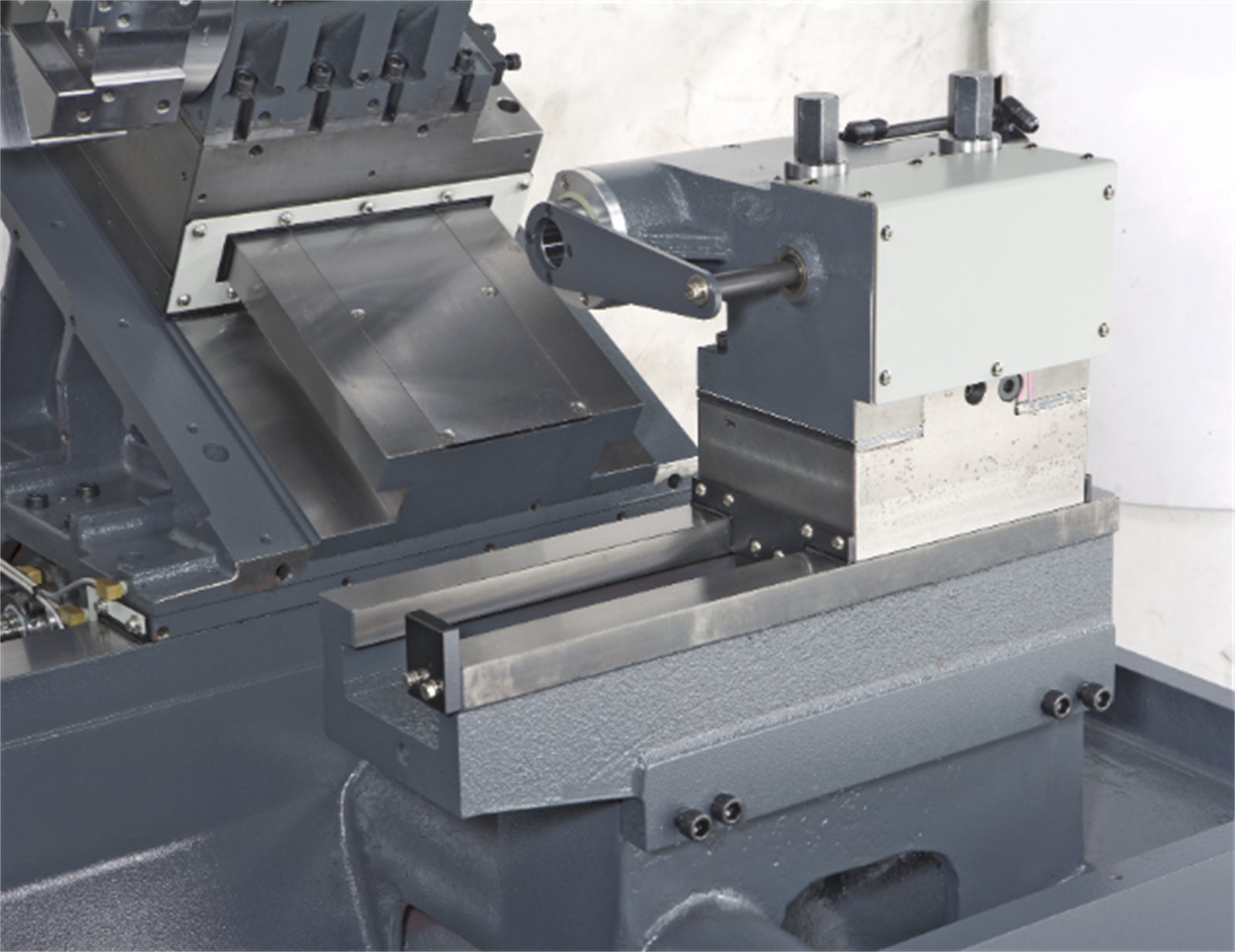

Tailstock	Type		manual
	Quill Diameter	mm	Ø55
	Quill Bore Taper		MT-4
	Quill Travel	mm	80
	Tailstock Travel	mm	300
Motors	Main Spindle	KW	-
	Sub-spindle	kW	-
	Live-tool	kW	-
	X/Z Axis Servo Motor	KW	B8/3000 (1.2)
	Hydraulic Oil Pump	kW	0.745
	Chip Conveyor	kw	0,2
	Cooland Pump	KW	0,95
Accuracy	Positioning	mm	+-0,0003
Accuracy	Repeatability	mm	+-0,002


BML-500 Power, Machine Size

Power	Requirement	KVA	380-415/220V 15KVA
Machine Size	Height (cm)	cm	150
	Floor Space (L X W)	cm	200 x200
	Packing (w/conveyor)	cm	265 x 227 x 191
	Net Weight	kgs	3050
	Gross Weight (w/conveyor)	kgs	3275
