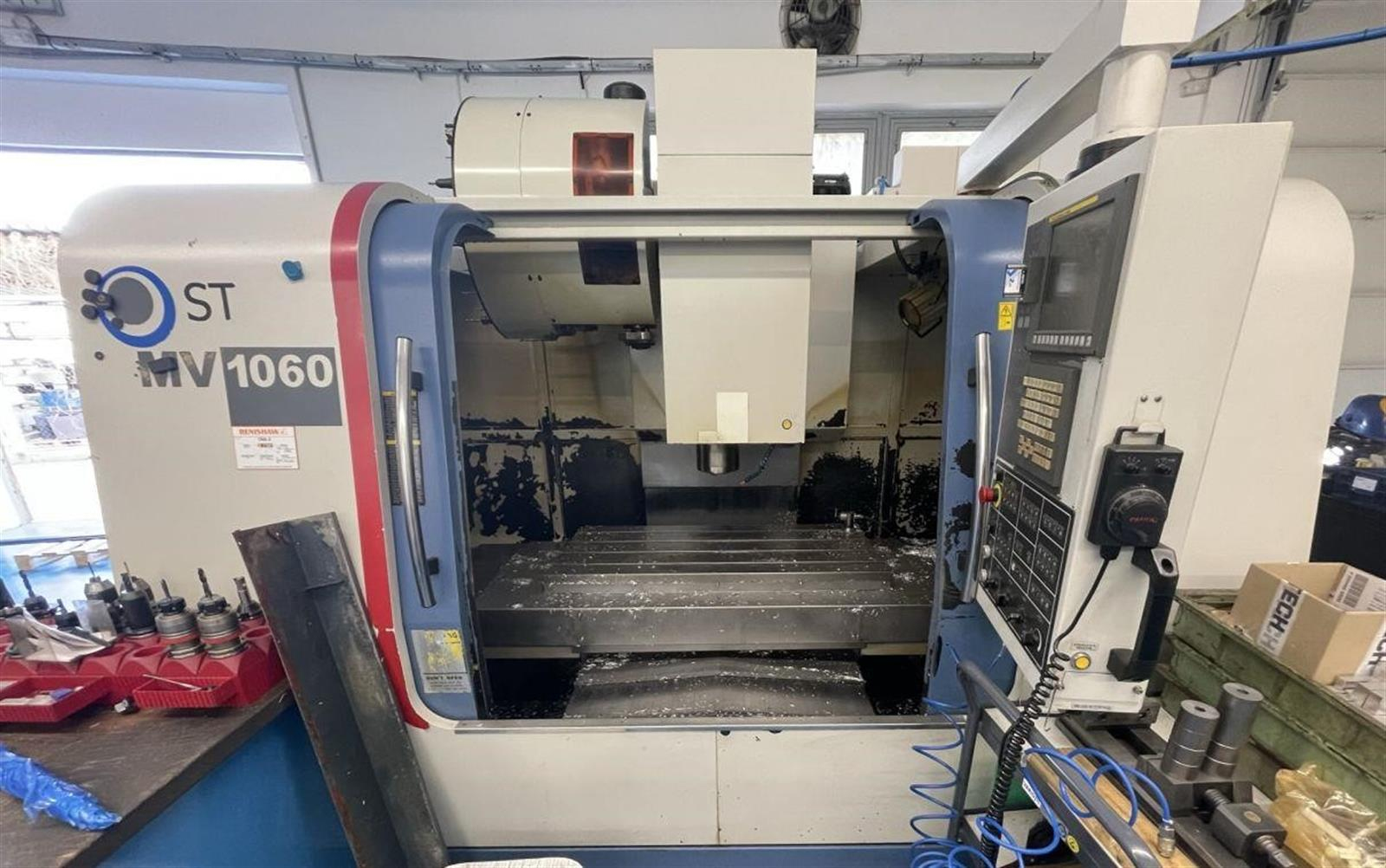

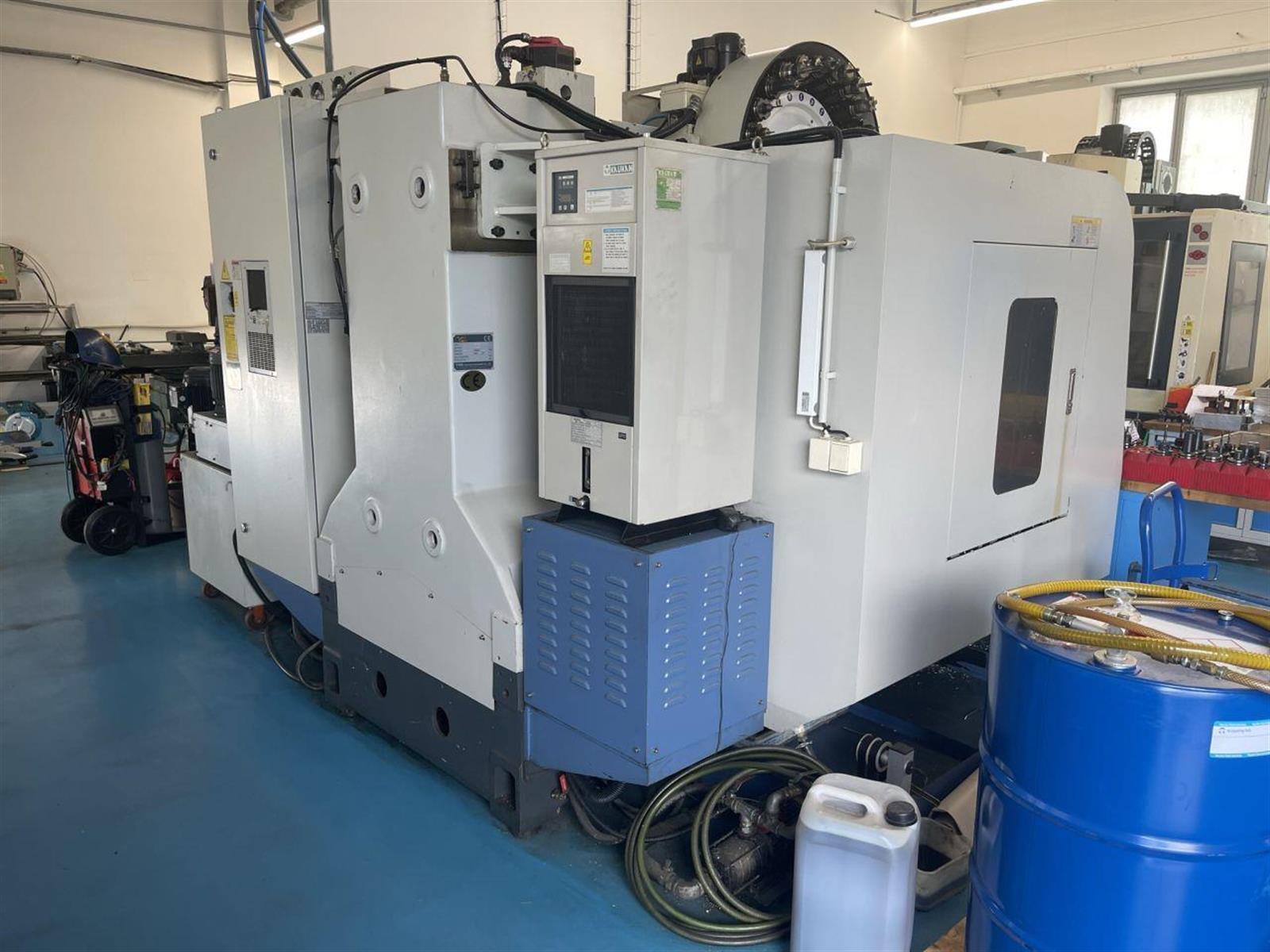

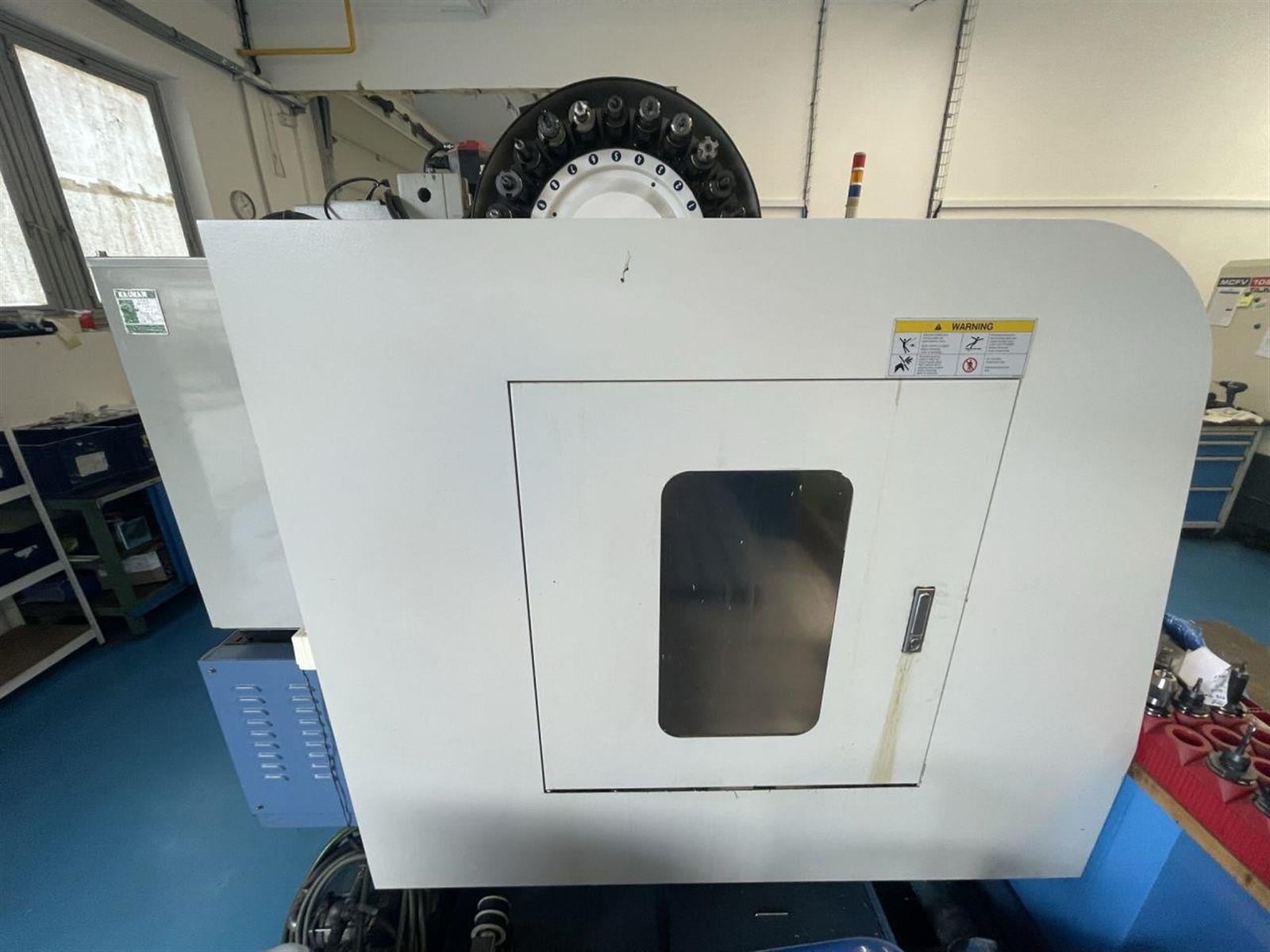

YDPM MV 1060 Machining center - vertical (YDPM MV 1060 Machining center - vertical)

Type: MV 1060
Producer: YDPM
Made in: 2008
Characteristic:

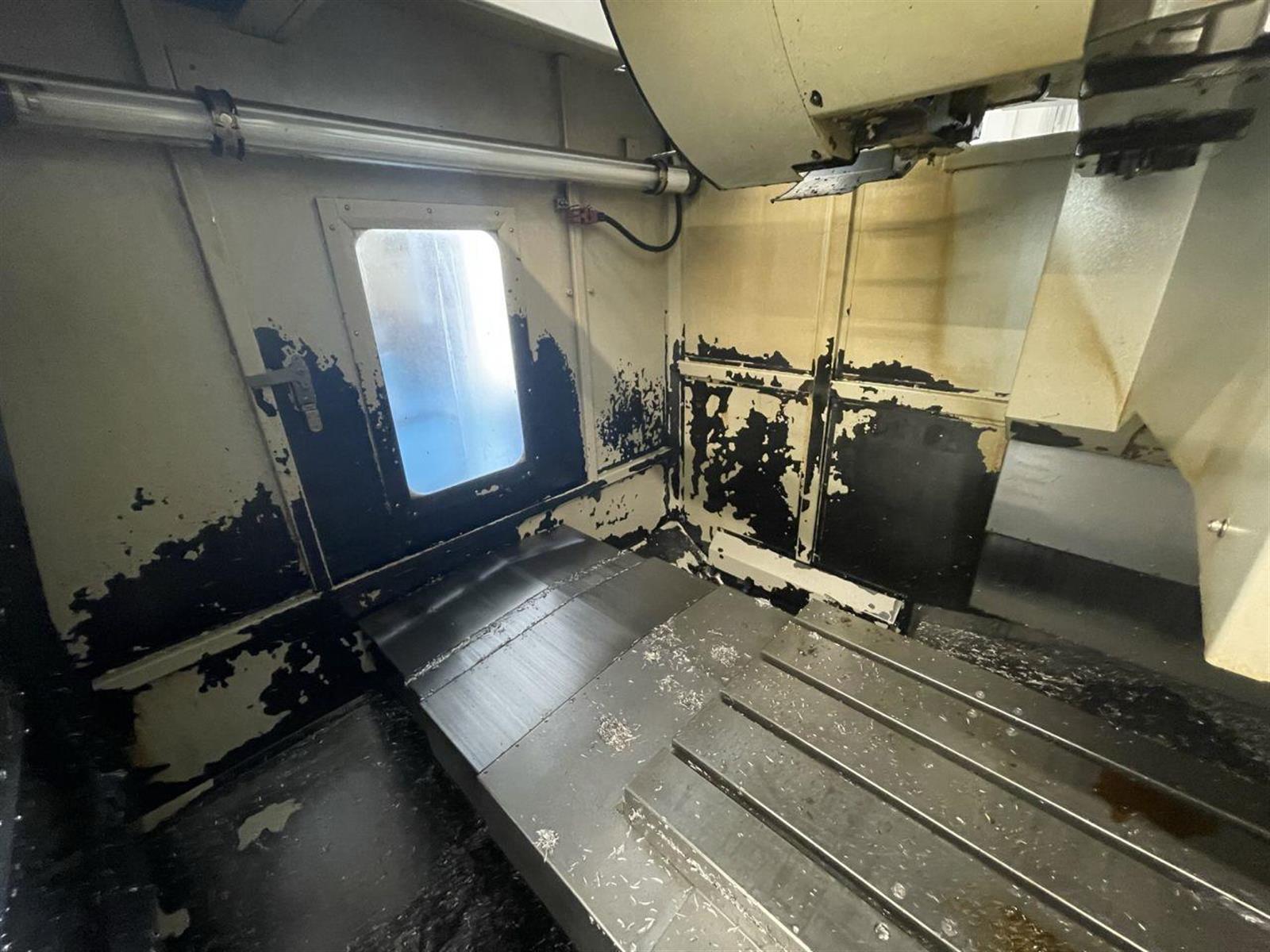

Length of the working table: 1180 mm
Width of the working table: 560 mm
Maximum table load (evenly distributed): 1000 kg
Number of tools in the magazine: 24 pcs
Maximum rotary speed of the spindle: 12.000 1/min
X-Axis travels: 1060 mm
Y-Axis travels: 620 mm
Z-Axis travels: 620 mm
Max. tool lenght: 250 mm
Max. tool weight: 6 kg
Taper: ISO 40
Max. tool diameter: 80 mm
Machine length: 4450 mm
Machine width: 3320 mm
Machine weight: 7000 kg
Equipment:
Universal head
Boring head

Axis X	1060 mm
Axis Y	620 mm
Axis Z	620 mm
Rotary table (4th axis)	no

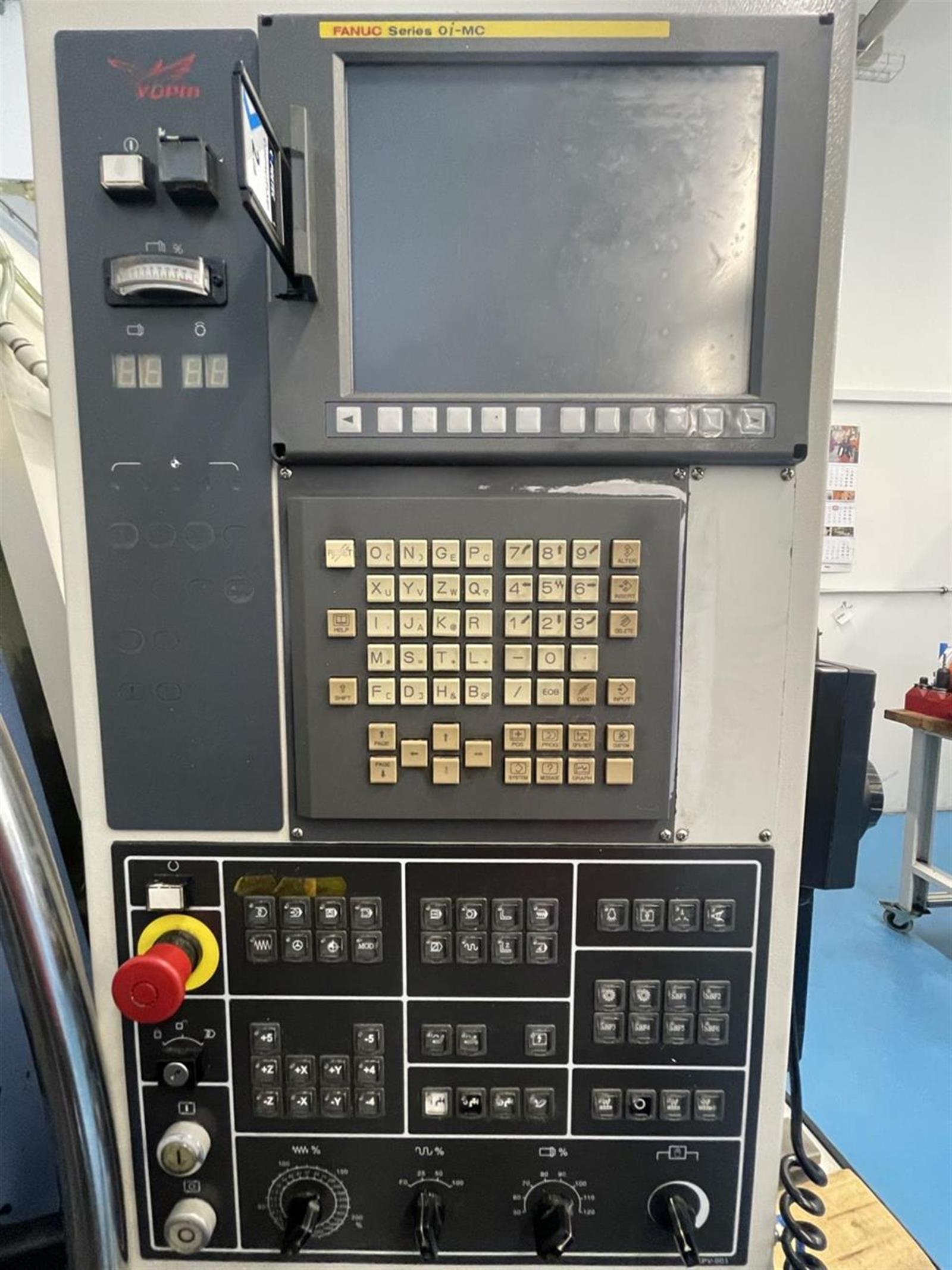

Type of CNC
Table length	1180 mm
Table width	560 mm
Max. part weight	1000 kg
Number of tool pockets	24
Spindle taper
Max. spindle speed	12000 rpm
-------------------
Weight	7000 kg
Worked hours
Hours under power
State	good
At local norms	---------
Status	under power
