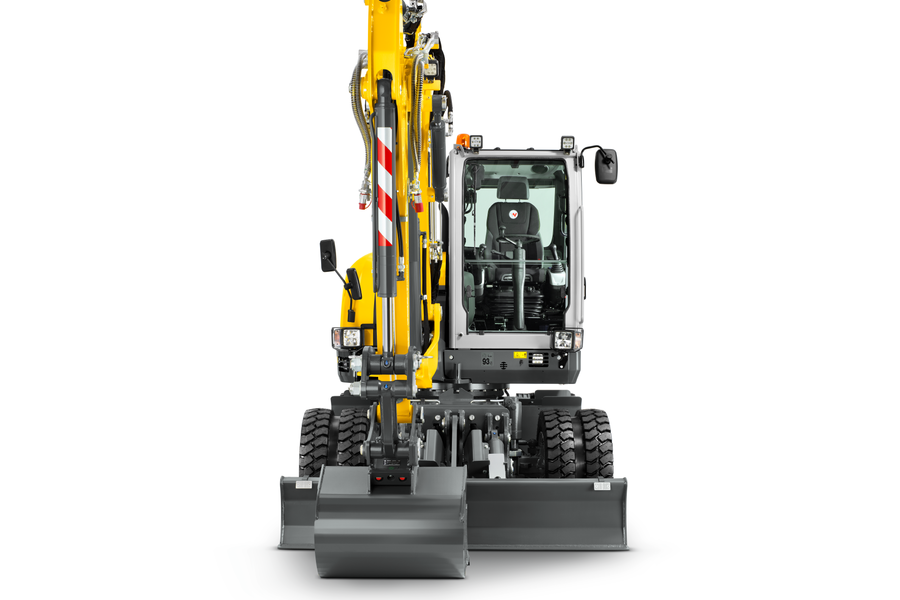

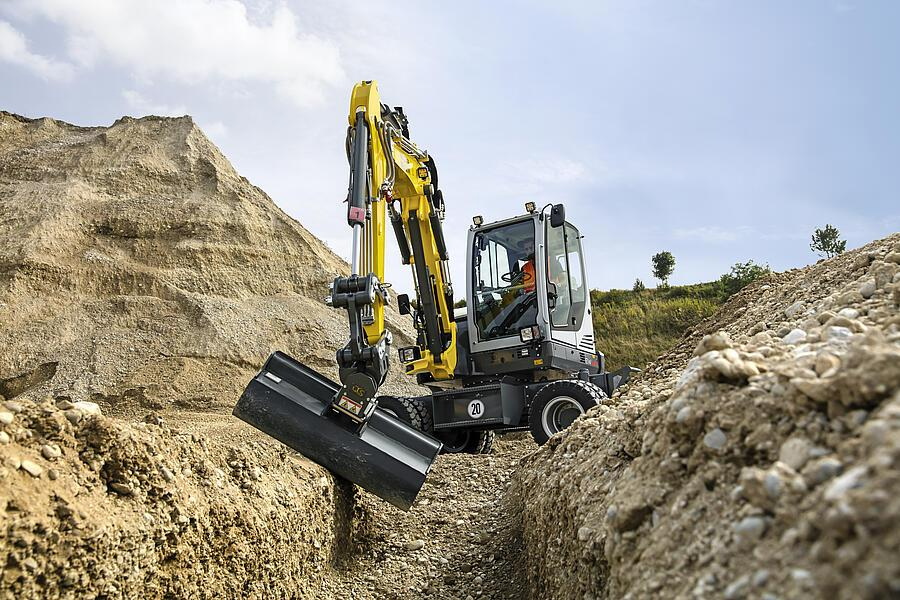

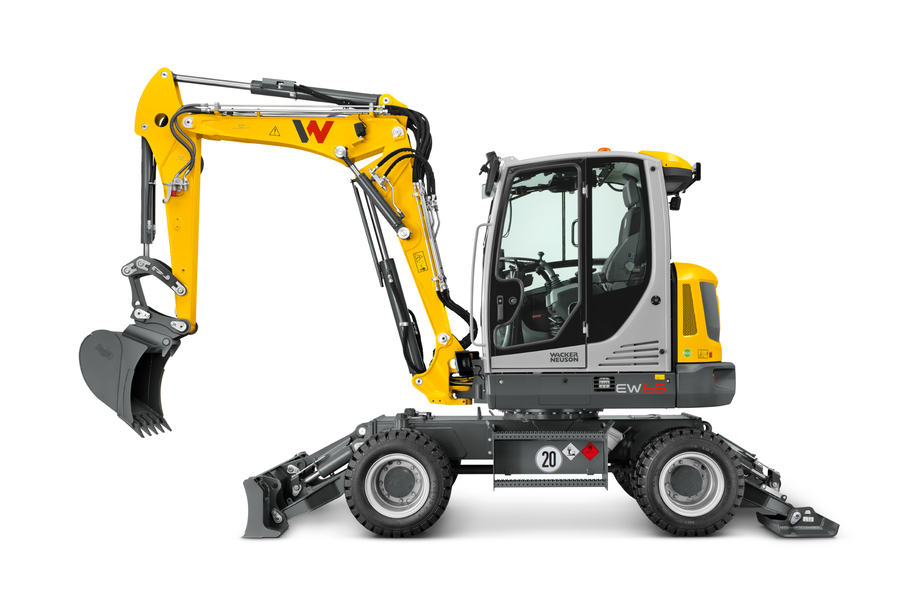

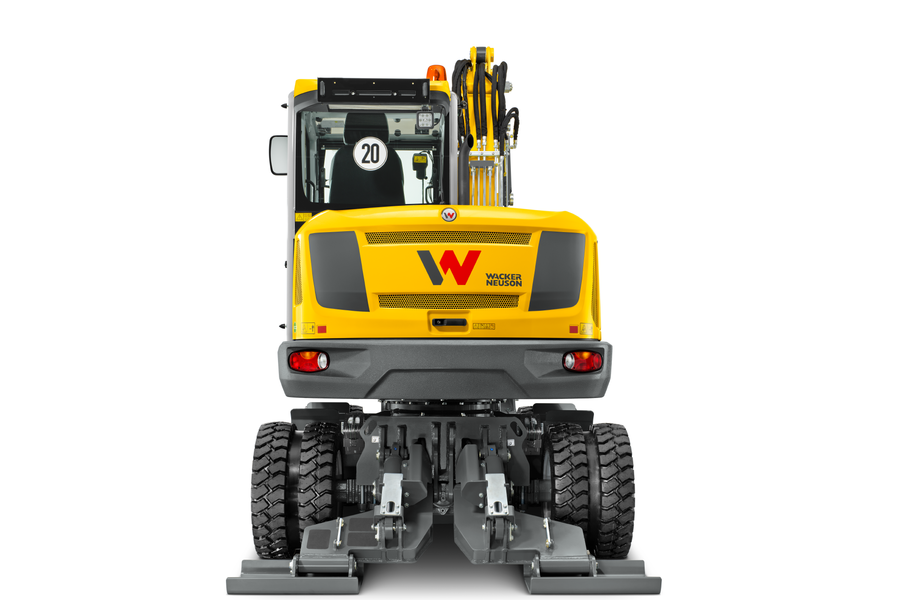

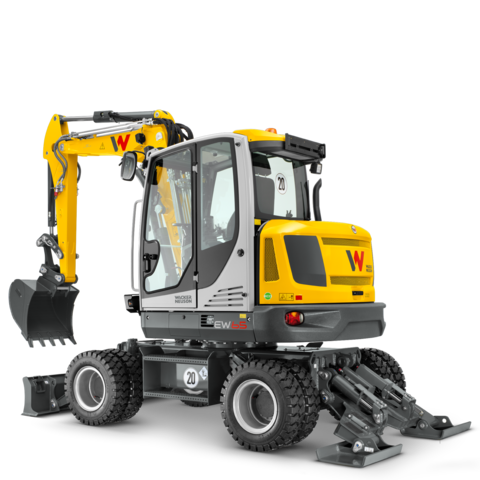

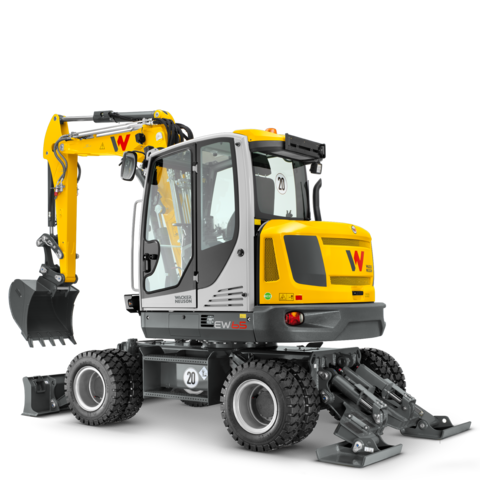

Wheeled Excavator EW65: power and speed

With a Wacker Neuson EW65 wheeled excavator, an operator can easily jump in the cab and head to the job site. The machine's road travel mode helps reduce time- and cost-intensive transport, while the variable drive system has a low rate of fuel consumption. With just one pedal to operate, the EW65 drives almost like a car. But it's a highly capable excavator, too. The powerful load-sensing hydraulic system (LUDV) ensures the same speed for several boom movements with different loads. With proportional control auxiliary hydraulics and a triple boom, the EW65 offers smooth work with attachments and an excellent digging range.

3-point kinematics

With 3-point kinematics, the conventional bucket linkage has been taken to a new level. This "3-bolt" design extends the bucket's angle of rotation to 200 degrees - 10% more than conventional bucket linkage. This increases the vertical dig depth as well as the digging forces. This eliminates the need to reposition the excavator as often, significantly increasing efficiency.

Intuitive operating concept

The intuitive operating concept enables simple and comprehensive control of the excavator. The machine is operated using a joystick, jog dial and keypad. This makes accessing attachment and oil level settings for the additional control circuits quick and easy.

Optimal positioning of hydraulic components

Short hose paths result in lower power loss in the hydraulic system. This increases the service life of the hydraulic hoses, due to fewer wear points, especially in confined areas.
The clearly defined routing of the hydraulic hoses ensures maximum efficiency, by reducing line resistance.

Powerful drive system with LUDV

The powerful drive system combines with a load-sensing hydraulic system (LUDV) to deliver quick working cycles, greater application flexibility, and easier control for comfortable and fatigue-free operation of the excavator. No matter what the load to be moved, the control movements on the joystick stay the same. Along with increased operating comfort, this results in a performance plus, while simultaneously reducing fuel consumption.

Triple boom

The articulated or "triple" boom provides greater maneuverability and, therefore, greater freedom of motion. The additional joint permits the bucket to be pulled right up to the travel gear or the dozer blade. Ideal when narrow spaces need to be accessed or an obstacle has to be moved out of the way. The excavator also features a greater dump height and even greater digging depth.

2 operating modes, ECO/POWER

The two preset operating modes ECO and POWER differ from each other in engine speed and pump power. They allow easy adjustment of the excavator to the activity to be performed in order to work in the optimal fuel consumption range. In ECO mode, the focus is on economy, while in POWER mode, the focus is on work performance.

Elaborately equipped comfort cab

The ergonomically optimized operator's cab ensures maximum operating comfort. In addition, an offset arm position, various windshield positions, a sunshade and a large skylight provide optimal visibility. Numerous other equipment options, such as heated seats, automatic air conditioning, a rearview camera with 7-inch display and an air-cushioned operator's seat help to make the workplace even more comfortable.
The height and tilt of the steering wheel can be adjusted and can thus be adapted to any operator individually and quickly.

Individual support versions

Stable footing is essential, especially during heavy excavation work or in difficult ground conditions. For support, operators can use a dozer blade or support stabilizers – in front, the rear, or in any combination.

LED work lights

Optimum illumination enhances safety around the work area and provides a higher utilization of the machine at night or in poor lighting conditions. The LED technology also offers longer service life of the fixtures

Numerous attachments

Thanks to the optional additional control circuits, our excavators can be equipped with a variety of attachments. This way, you can increase your application options in no time and thus increase the utilization of your excavator.

Easy service and maintenance access

Easy service, thanks to wide-opening engine hood, allows easy access to all parts.
No disassembly of heavy parts necessary, additional easily replaceable wear parts.
Quick and unrestricted access. Hydraulic and engine oil filters, air filter, water separator and also the tank filler neck are ideally accessible. Low service costs.

Thermal resistance

The excavator can work under full load up to an ambient temperature of 45°C/113°F. The stable temperature level results in a longer service life for the hydraulic components and increases productivity.
Lower temperature level - longer life, work without loss of performance.

Up to four additional factory-installed control circuits

The optional additional control circuits allow the excavator to be equipped with a variety of attachments. This increases the applications and utilization of the excavator.

Mechanical - Output Details

Travel speed

30 km/h

Mechanical Details

Length	6,349 mm
Operating weight (min.-max.)	6,755 kg
Digging depth (max.)	3,895 mm
Width	2,088 mm
Height	2,775 mm

Engine

Cylinder	4,0
Cylinder capacity	2,216 cm3
Tank capacity	100 l
Effective power	45.5 KW
Nominal Engine speed	3,000 1/min
Operating power	45.5 KW
Operating Engine speed	3,000 1/min
Battery capacity (nom. value)	88 Ah
Engine type	Diesel engine
Fuel type	Diesel EN 590
Manufacturer	Perkins

Hydraulic

Operating pressure	240 bar
Flow rate	144 l/min
Tank capacity	92 l

Chassis

Operating pressure	420 bar
Flow rate	144 l/min

Shipping and Storage

Shipping weight6,471.7 kg

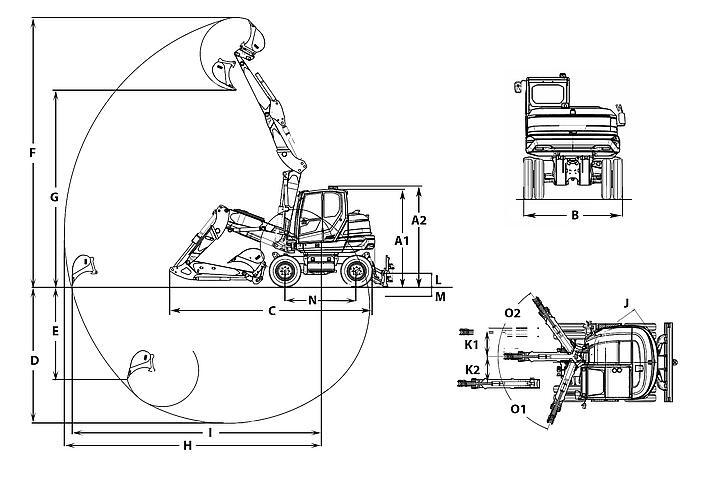

		Monoausleger	Verstellausleger
A1	Height with cab	2,775 mm	2,775 mm
	Height of dozer blade	429 mm	429 mm
A2	Total height with rotating beacon	2,952 mm	2,952 mm
B	Width of upper carriage	1,931 mm	1,931 mm
	Width of cab	1,000 mm	1,000 mm
B	Width travel gear twin tires	2,088 mm	2,088 mm
B	Width travel gear single tires	1,931 mm	1,931 mm
C	Transport length short shovel arm	6,114 mm	6,220 mm
C	Transport length long shovel arm	6,250 mm	6,349 mm
D	Digging depth max., short shovel arm	3,531 mm	3,596 mm
D	Digging depth max., long shovel arm	3,831 mm	3,895 mm
E	Piercing depth max., short shovel arm	2,088 mm	2,465 mm
E	Piercing depth max., long shovel arm	2,361 mm	2,737 mm
F	Piercing height max., short shovel arm	6,068 mm	6,834 mm
G	Dumping height max., short shovel arm	4,207 mm	4,961 mm
G	Dumping height max., long shovel arm	4,389 mm	5,195 mm
H	Digging radius max., short shovel arm	6,220 mm	6,590 mm
H	Digging radius max., long shovel arm	6,504 mm	6,877 mm
I	Max. reach at ground level (short shovel arm)	6,024 mm	6,406 mm
I	Max. reach at ground level (long shovel arm)	6,318 mm	6,706 mm
J	Tail swing radius	1,459 mm	1,459 mm
K1	Boom offset max. (to center of bucket right side)	766 mm	766 mm
K2	Boom offset max. (to center of bucket left side)	492 mm	492 mm
L	Stacking height max. (dozer blade above surface)	395 mm	395 mm
M	Digging depth max. (dozer blade below surface)	301 mm	301 mm
N	Length travel drive	2,887 mm	2,887 mm
O1	Max. swivel angle (arm system to the left)	67 °	67 °
O2	Max. swivel angle (arm system to the right)	63 °	63 °
	Track width	300 mm	300 mm
	Boom swing radius center	2,465 mm	2,605 mm
Q2	Boom swing radius right	2,393 mm	2,529 mm
Q3	Boom swing radius left	1,940 mm	2,073 mm
	Distance bucket dozer blade, short shovel arm	51 mm	514 mm

Standard Components

General

Mono tires (300-15)
Dozer blade (rear) + grab clamp (front)
LED work light on lifting arm
LED headlights, front left and one on each side, left and right, in the chassis
Tool set, including grease press and operator's manual

Engine

Liquid-cooled Perkins turbo diesel engine, model 404J-E22T, 4-cylinder/2,216 ccm, net output according to ISO 14396: 42 kW (57.1 hp), nominal speed 2,500 rpm (stage 5)
Auto idling system

Cab

Glazed tiltable safety cabin: cabin heating, sliding side window, inward retractable windshield that can also be positioned as a rain canopy, windshield wiper/washing system, fully lined cabin interior, armrests
Cabin meets the current ROPS, TOPS and FOPS* regulations
*FOPS (level I or II) only with additional protective grating
Radio installation setup (cabling, speakers, antenna)
Cabling (headlight and rotating beacon)
3 outside rear-view mirrors (left side of cabin, 2x on right side of chassis)
Rear-view camera incl. 7” multifunction display
Sun shade

Hydraulics

Load Sensing control with dual variable displacement pump (144 + 85.5 L/min)
Hydraulic pilot control via joystick operation
Valve control according to ISO, DIN, SAE, PCSA and EURO
Auxiliary hydraulic connections for two directions of movement, mounted on dipper stick
Front axle: hydraulically steered planetary drive axle with multi-disk brake
Rear axle: rigid planetary drive axle
Hydraulically dampened drive pedals and forward + reverse travel lever
Hydraulic oil cooler
Proportional control for auxiliary hydraulics/AUX I
Overload warning device Advanced

Options

Cab

Automatic air conditioning
Operator's seat, air-cushioned (incl. seat heating)
Complete radio with intercommunication station and USB charging connection
Front window protective grating

Hydraulics

Overload valve for auxiliary hydraulics - AUX I
3rd control circuit - AUX II
Flow control valve 3rd control circuit - AUX II
Powertilt setup - AUX III
Setup for Easy Lock - AUX IV
Control circuit for grapple - AUX V
Bio oil, Panolin HLP Synt46
Flat-faced coupler

Paint

Custom-made paint finish of machine in RAL (only for yellow parts)
Custom-made paint finish of machine, no RAL (only for yellow parts)
Custom-made paint finish of cabin/canopy RAL (only RAL color possible)

Security

Security 24 C (2000)
Security 36 C (3000)
Security 48 C (4000)
Security 60 C (5000)

Miscellaneous

30 km/h (19 mph)
Grab clamp (front) + parallel blade (rear)
Manufacturing confirmation (document for typification)
Parallel blade (front)
Dozer blade (front)
Stabilizers (rear) + parallel blade (front)
Stabilizers (rear) + grab clamp (front)
Stabilizers (front) + parallel blade (rear)
EquipCare
EquipCare Dual ID
LED rotating beacon
General operating license (ABE) for Germany
LED front and rear work lights
Diesel filling pump
Drive signal
Long dipper stick (+ 300 mm)
StVO accessories (incl. first aid kit, warning triangle and license bracket)
Articulated boom
KAT immobilizer system
Twin tires, 7.50 x 15
Mono tires, GSP + 425
Cruise control
ISO - SAE switch-over

Editions

Edition A

Basic machine
+ PERKINS turbo diesel engine (stage 5)
+ Overload valve for auxiliary hydraulics - AUX I
+ Setup for Easy Lock - AUX IV
+ Powertilt setup - AUX III
+ Automatic air-conditioning
+ Diesel filling pump
+ 3rd control circuit - AUX II
+ Control circuit for grapple - AUX V
+ Articulated boom
+ StVO accessories
+ Complete radio
+ Rotating beacon
+ Twin tires, 7.50 x 15
+ Operator's seat, air-cushioned
+ LED front and rear work lights

(Shipping weight (+/- 2%): 7,016 kg)

Edition B

Basic machine
+ PERKINS turbo diesel engine (stage 5)
+ Overload valve for auxiliary hydraulics - AUX I
+ Setup for Easy Lock - AUX IV
+ Powertilt setup - AUX III
+ Automatic air-conditioning
+ Diesel filling pump
+ 3rd control circuit - AUX II
+ Articulated boom
+ StVO accessories
+ Complete radio
+ Rotating beacon
+ Twin tires, 7.50 x 15
+ Operator's seat, air-cushioned
+ LED front and rear work lights
+ 30 km/h (19 mph)

(Shipping weight (+/- 2%): 7,000 kg)
