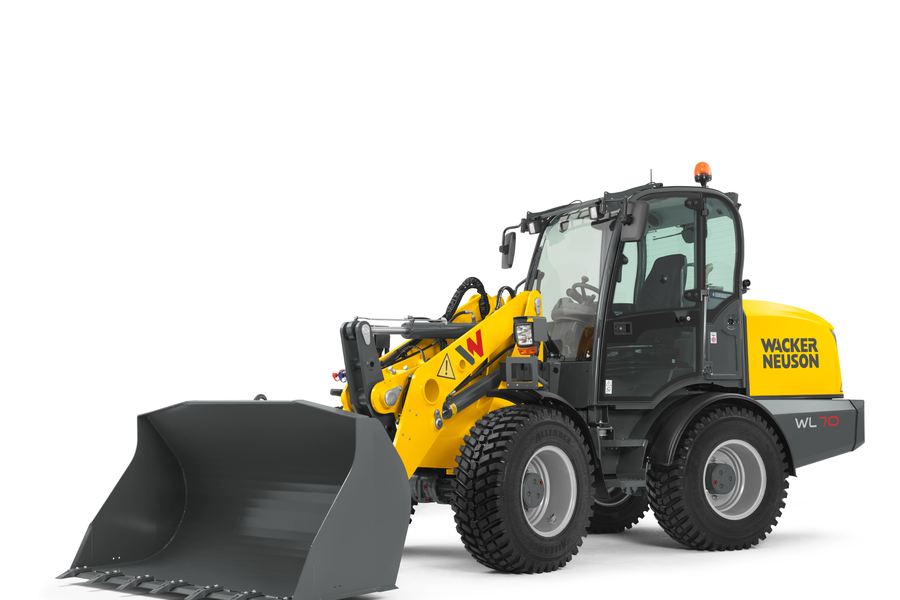

Wheel loader WL70: The powerhouse

Thanks to cutting-edge engine technology in accordance with the most current emission standard, the WL70 wheel loader offers an extremely efficient but still high-performance engine, making this machine a powerhouse in application. This is supported by a very sturdy load arm design. Lift height and engine output are at the top of the 7 t wheel loader class. This makes quick and efficient material handling possible. The 40 km/h option also allows the machine to be relocated quickly and is thus flexible and efficient in application.

30/40 km/h speed

With the appropriate engine, the machine can reach a speed of 30 or 40 km/h. This allows the machine to move from A to B more quickly, saving time and increasing efficiency.

The wheel loader as an attachment carrier

The tasks for wheel loaders are varied and so are the attachments from Wacker Neuson. With our comprehensive and sophisticated product range of attachments, any model can become a multifunctional machine.
The investment asset “wheel loader” can be used for a variety of task areas and is thus very economical.

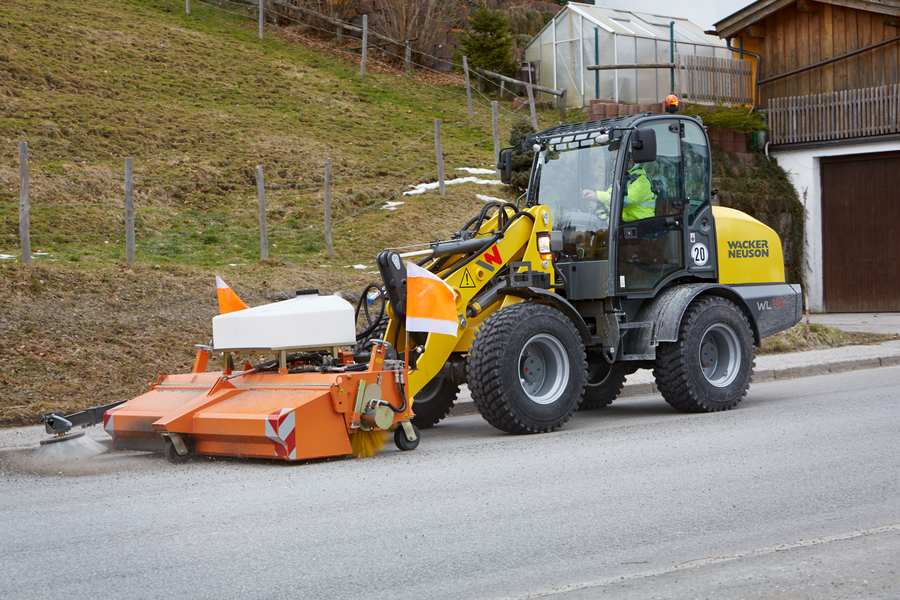

The machine can be used all year round (e.g. even for winter service), relying on many different attachments depending on the application.

Clear 3.5-inch digital display

The most important functions are always kept in view: With the digital display, the operator maintains a clear overview of the machine. In addition to standard displays such as temperature, tank level or operating hours, active functions, such as active electrical functions, the continuous operation of the 3rd control circuit or the activated differential lock are displayed.
The various functions and settings are controlled via the jog dial, which makes operation simple and convenient for the operator.

Comfortable working environment

The efficiently designed heating and ventilation system with fan, fresh air filter and well-placed air nozzles keeps the cab in a comfortable working climate.
Sufficient air nozzles are installed depending on the type of cab, which enables good air circulation and makes the working climate pleasant for the operator.

Joystick console spring-mounted on the operator's seat

The joystick console is mounted on the operator's seat and is cushioned against vibrations. If the operator's seat is adjusted to the operator's needs, the joystick console is also adjusted accordingly and always has the perfect position, a plus in comfort and ergonomics for the operator.
The joystick console and the operator's seat form a single unit. This means that the operator's arm position is not changed while working with the machine. This increases comfort for the operator allowing them to work for longer without fatigue.

Quality

High-quality powder coating

Compared to conventional wet painting, powder coating significantly extends the service life of the machine and is environmentally friendly at the same time.
The durable powder coating guarantees value retention and ensures an accordingly high resale value for the machine.

Performance

100 % connectible differential lock

The connectible 100% differential lock provides maximum traction and thrusting power when needed. It also keeps tire wear low. This increases the efficiency of the machine.
During normal operation the differential lock is deactivated, this provides safety, low wear and, as a result, saves in operating costs.

High hydraulic performance

A Wacker Neuson wheel loader always has enough hydraulic output and is thus suited for the operation of many different attachments, which in turn makes a great variety of applications areas possible.
The flexible combination with various attachments reduces the total fleet and thus the total cost of ownership (TCO).
Compact machines with high hydraulic output save money, as it is not necessary to immediately procure or use a bigger machine.

Machine parameters adjustable via Jog Dial

The Jog Dial control element enables various machine parameters and functions to be operated and read out via the display: This includes setting the loading oscillation damping, reading out the operating hours and machine information or keeping track of service intervals. The jog dial is positioned within easy reach of the operator's work area.
If necessary, the flow rate of the hydraulic oil can be manually set using the jog dial control element. This is advantageous if the machine drives a hydraulic attachment, which does not require the full hydraulic performance of the machine. The operator can work with the machine and attachment very sensitively and in a resource-conserving way.
In the event of a servicing requirement, the Jog Dial can quickly provide the important error messages and required machine information. This speeds up diagnosis and reduces machine downtime.

Safety

Comfortable Cab

The spacious and comfortable cab meets the current European Machinery Directive in accordance with ROPS and FOPS protection and offers plenty of headroom and freedom of movement. This provides an excellent overview of the attachments, the immediate working area, and the entire machine surroundings, which in turn increases occupational safety as the operator always has the machine surroundings within view.
The cab's full glazing and deeply recessed windows give the operator an excellent view of the attachment and the entire work area. This ensures safety, as the operator always has a clear view of the work environment.
The cab impresses with outstanding ergonomics, generous space and many individual adjustment options for the operator. The cab provides protection from wind, weather, and external environmental conditions. This allows fatigue-free work even over a longer period of time.

Maintenance

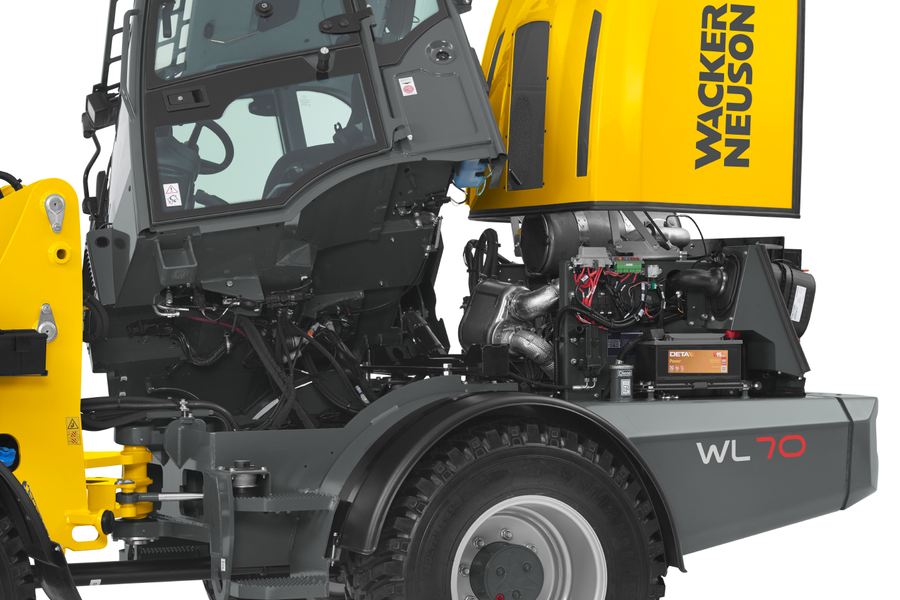

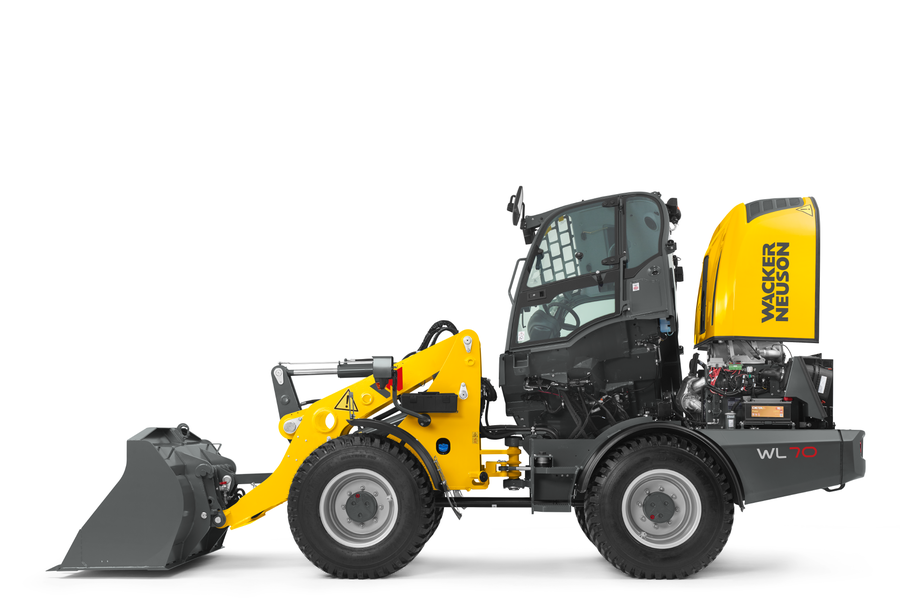

Tiltable cabin and optimal service access

The cab can be tilted to the side. This allows easy access to the engine, hydraulic system, and electronics. This considerably simplifies checking and maintaining the machine. This in turn results in reduced machine downtimes and thus lower operating costs.
Quick and easy serviceability automatically maximize the availability of the machine. This in turn reduces total operating costs.

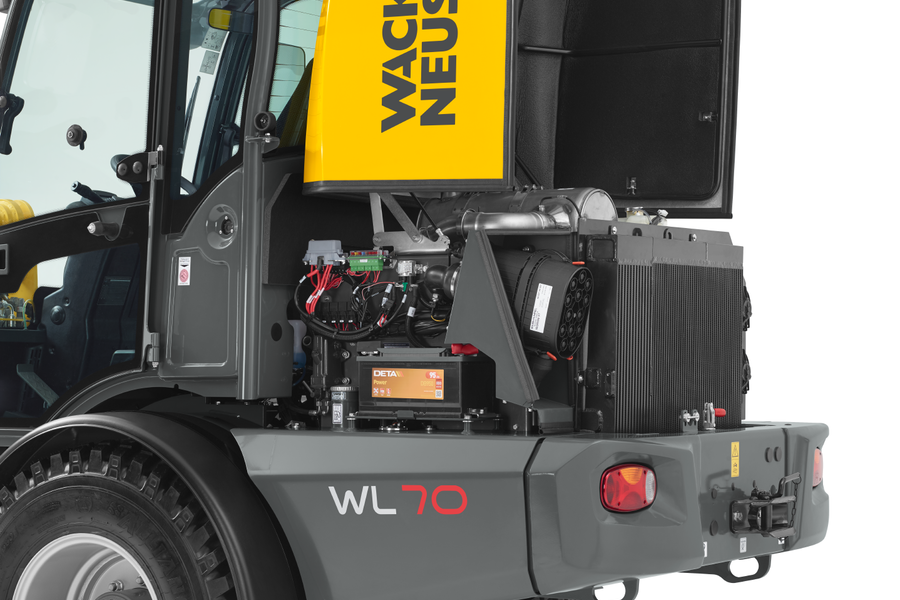

Easily accessible machine components.

Regularly lubricating all lubrication points is essential for the correct and effective maintenance and thereby the value retention of the machine. To save time and make work easier, the lubrication points on Wacker Neuson wheel loaders are always in an easily accessible position.
Since the lubrication points are easily accessible, the machine is lubricated more often than if the lubrication points are located in a position that is difficult to access. This in turn increases the longevity of the machine and increases value retention.

Split hydraulic hoses

Wacker Neuson wheel loaders are designed with short hydraulic hose lengths in mind, and the hoses are split at several points. Therefore, if a hydraulic hose needs replacing, only the affected part will need to be replaced, not the entire hose in the hydraulic circuit. This speeds up repair times enormously and is also cost-efficient.

Efficiency

Inch brake pedal: Engine output where it is needed.

1. No pressure on inch brake pedal: full power for the drive system 2. Slightly depressed inch-brake pedal: speed is reduced, more power to the work hydraulics. 3. Firmly depressed brake-inch pedal: The speed is reduced further, even more power to the work hydraulics. 4. Fully depressed inch-brake pedal: the wheel loader stands still, full power to the work hydraulics.
The advantages of the inch-brake pedal are obvious: less wear on the operating brake and optimum power distribution of the engine output.

Rear hydraulic connections

The machine can be equipped with rear hydraulic connections (single or double-acting). This increases the machine's range of applications because rear hydraulic attachments or tipper trailers can also be operated.
The various rear hydraulic options expand the machine's range of applications and offer more flexibility in use. One machine can be used multifunctionally for different activities, no additional vehicles or machines are needed.
Please note that the product range may vary depending on the country. Under certain circumstances, the contents / products shown here may not be available in your country. The illustrations, equipment, and data shown may also differ from the current product range in your country. Optional extras may be shown that are subject to an additional charge. Subject to changes.
Delivery times can vary - subject to prior sale.
With the selection of different options, the technical data of the products can vary accordingly. Please note that equipment cannot be changed for editions.

Mechanical-output details

Travel speed	20 km/h
Travel speed stage 1	0 - 7 km/h
Travel speed stage 2	0 - 20 km/h
Travel speed (Option)	30 km/h

Mechanical Details

Operating weight	7,000 kg
Bucket capacity	1.1 m3

Hydraulic

Operating pressure	210 bar
Flow rate	100 l/min
Tank capacity	95 l

Operating fluids

Hydraulic fluid volume	125 l
Tank capacity AdBlue® / DEF	19 l
Fuel Tank capacity	105 l

Chassis

Operating pressure	455 bar
Flow rate	156 l/min

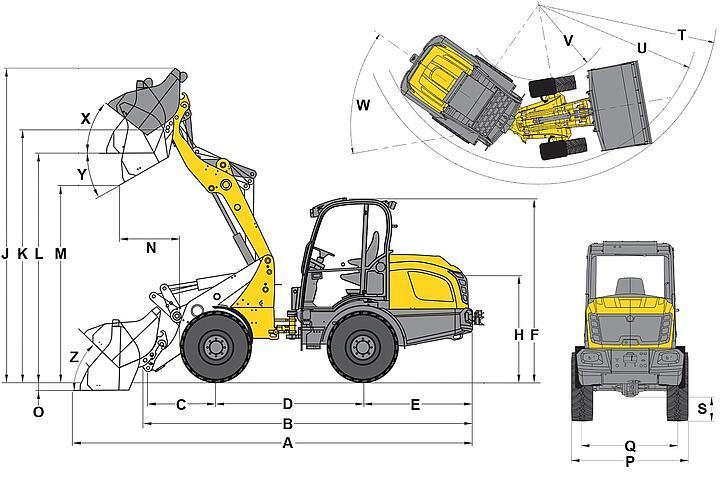

A	Total length	5,898 mm
B	Total length without bucket	4,780 mm
C	Bucket pivot point (to center of axle)	991 mm
D	Wheel base	2,150 mm
E	Rear overhang	1,676 mm
F	Height with cab	2,693 mm
H	Seat height	1,609 mm
J	Total working height	4,536 mm
K	Bucket pivot point (max. lift height)	3,686 mm
L	Load-over height	3,375 mm
M	Dumping height	2,840 mm
N	Reach (at M)	850 mm
O	Digging depth	74 mm
P	Total width	1,829 mm
Q	Track width	1,422 mm
S	Ground clearance	375 mm
T	Maximum radius	4,341 mm
U	Radius on the outer edge	3,686 mm
V	Inner radius	1,666 mm
W	Articulation angle	42 °
X	Rollback angle at max. lift height	33 °
Y	Dumping angle	33 °
Z	Rollback angle on ground	39 °
-		405/70 R 18 EM ET0

Engine

Perkins 904J-E36TA, 100 kW / 136 HP, Stage V

Steering system

Hydraulic articulated pendulum steering, pendulum angle ± 12°
Steering cylinder: 2

Tires

405/70 R 18 EM ET0 (including water filling in front)

Drive system

Hydrostatic all-wheel drive system, travel direction can be chosen via joystick
Operating brake: Disc brake (combined with parking brake)
Central service and parking brake in the drive train acts on all 4 wheels
100% differential lock, electro-hydraulically connectable on front and rear axle

Hydraulics

3rd control circuit front electronically proportionally and parallel via joystick
Hydraulic oil cooler
Floating position for lift cylinder
Lock for 3rd control circuit via switch
Oil quantity adjustment via jog dial
Pressure relief of hydraulic connections on loading swing arm

Operator's cab

Comfort cab with heater and fan, laterally tiltable, ROPS / FOPS-tested
Fully damped comfort seat with safety belt, weight, back and height adjustment
Adjustable steering wheel (tilt)
Right armrest
Hydraulically controlled joystick with forward-reverse control and integrated touch button for differential lock
Work lights, 2 in front and 2 in rear
Operating hour meter
Fuel display
Combination box, including warning triangle and first aid kit
