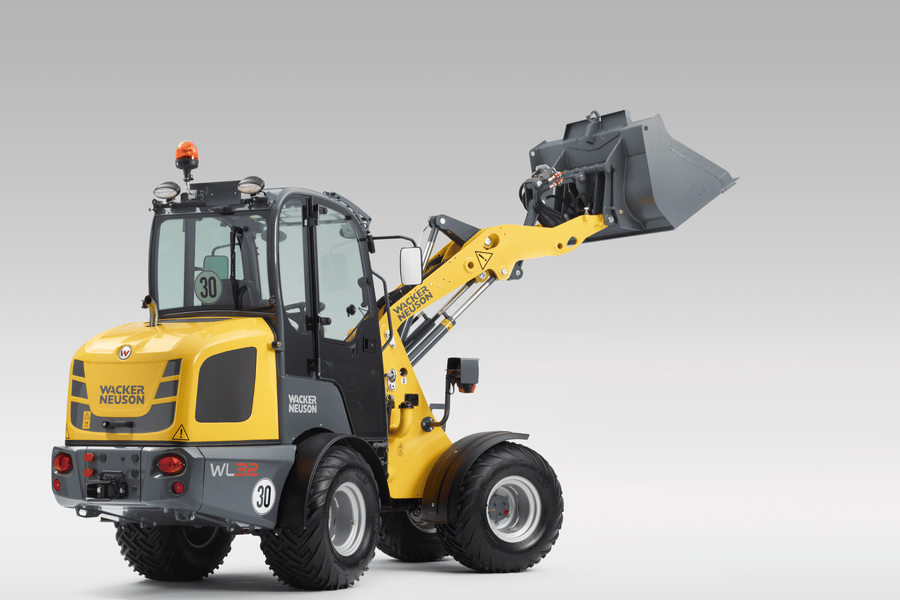

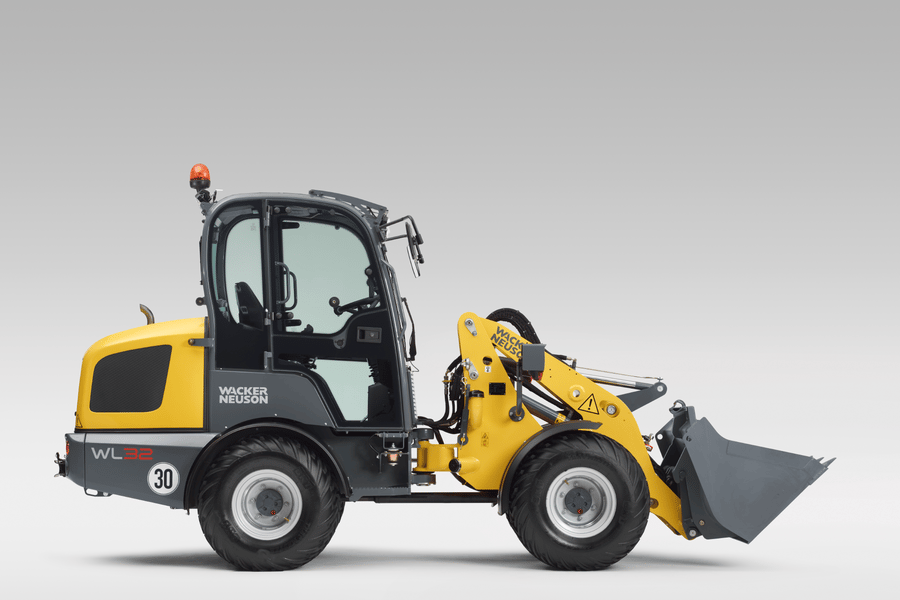

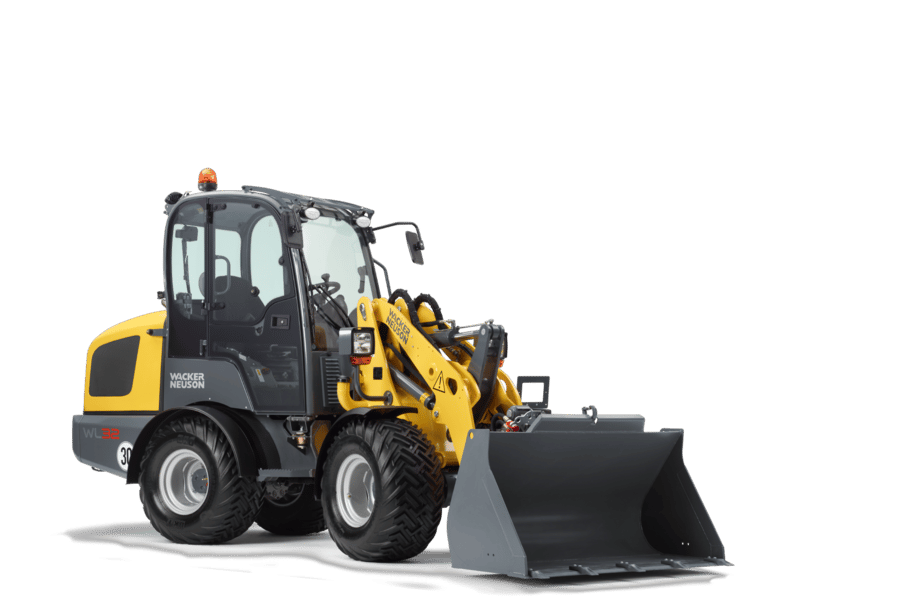

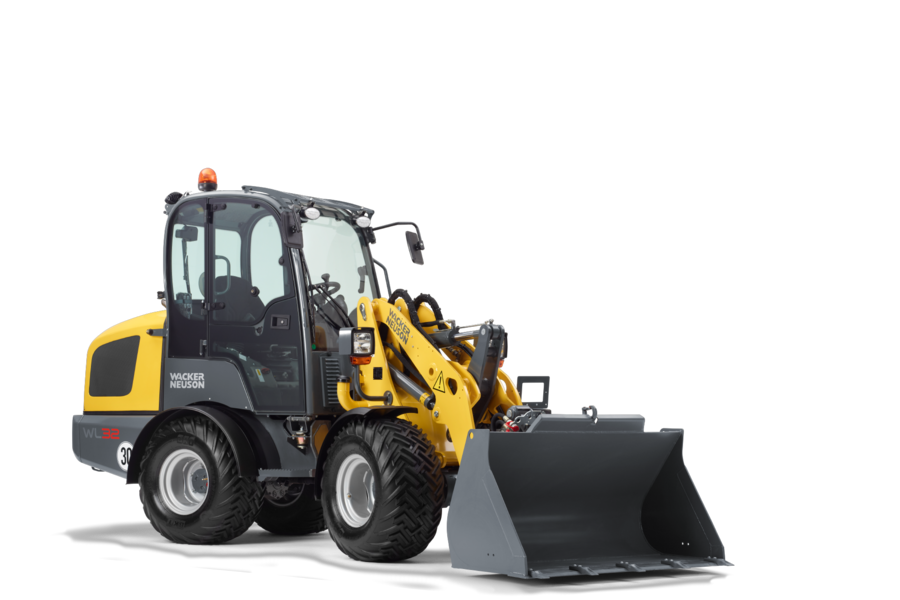

Wheel Loader WL32: Versatile and powerful tool carrier

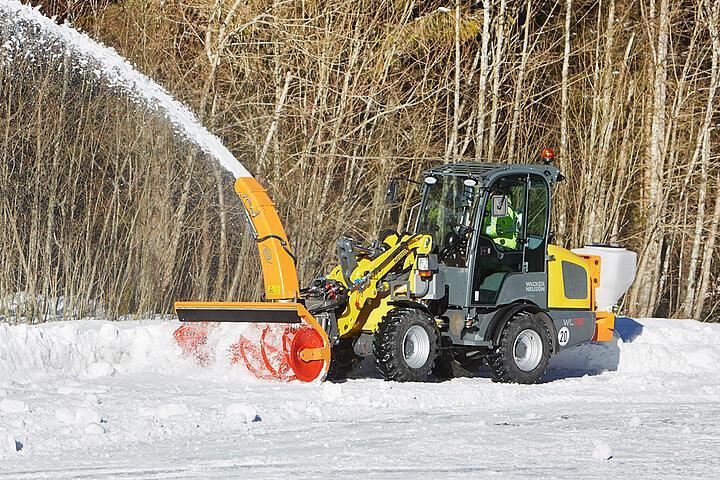

The WL32 wheel loader is the ideal partner when it comes to handling a wide range of different work tasks. It is well suited to transport material, green area maintenance with a mulcher and mower and especially snow removal services. Because of its compact dimensions, particularly the narrow width of the machine, it can be used with snowplow on sidewalks. With up to 100 l/min hydraulic output, it can efficiently operate demanding attachments such as a snow blower.

High hydraulic performance

A Wacker Neuson wheel loader always has enough hydraulic output and is thus suited for the operation of many different attachments, which in turn makes a great variety of applications areas possible.
The flexible combination with various attachments reduces the total fleet and thus the total cost of ownership (TCO).
Compact machines with high hydraulic output save money, as it is not necessary to immediately procure or use a bigger machine.

High-quality powder coating

Compared to conventional wet painting, powder coating significantly extends the service life of the machine and is environmentally friendly at the same time.
The durable powder coating guarantees value retention and ensures an accordingly high resale value for the machine.

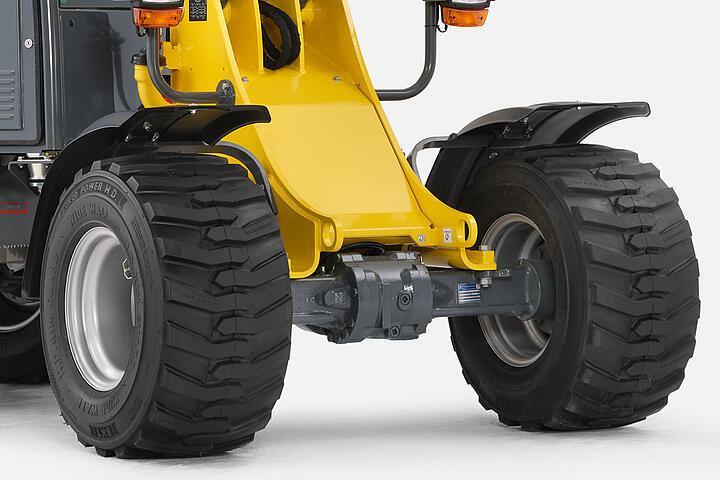

100 % connectible differential lock

The connectible 100% differential lock provides maximum traction and thrusting power when needed. It also keeps tire wear low. This increases the efficiency of the machine.
During normal operation the differential lock is deactivated, this provides safety, low wear and, as a result, saves in operating costs.

The wheel loader as an attachment carrier

The tasks for wheel loaders are varied and so are the attachments from Wacker Neuson. With our comprehensive and sophisticated product range of attachments, any model can become a multifunctional machine.
The investment asset “wheel loader” can be used for a variety of task areas and is thus very economical.
The machine can be used all year round (e.g. even for winter service), relying on many different attachments depending on the application.

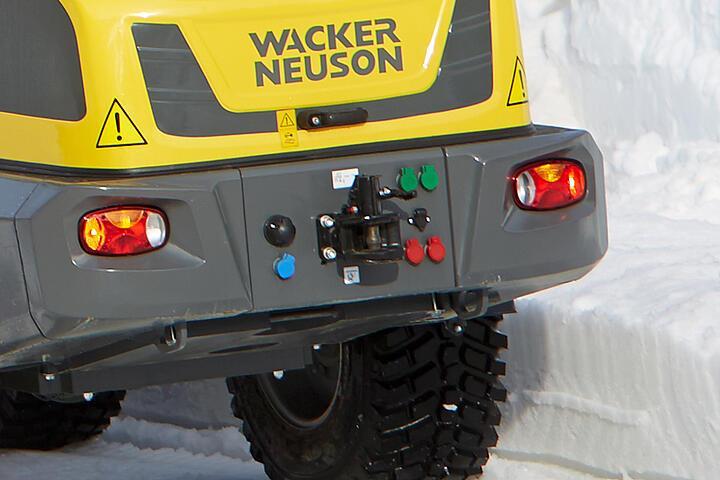

Rear hydraulic connections

The machine can be equipped with rear hydraulic connections (single or double-acting). This increases the machine's range of applications because rear hydraulic attachments or tipper trailers can also be operated.
The various rear hydraulic options expand the machine's range of applications and offer more flexibility in use. One machine can be used multifunctionally for different activities, no additional vehicles or machines are needed.

Safety

Comfortable Cab

The spacious and comfortable cab meets the current European Machinery Directive in accordance with ROPS and FOPS protection and offers plenty of headroom and freedom of movement. This provides an excellent overview of the attachments, the immediate working area, and the entire machine surroundings, which in turn increases occupational safety as the operator always has the machine surroundings within view.
The cab's full glazing and deeply recessed windows give the operator an excellent view of the attachment and the entire work area. This ensures safety, as the operator always has a clear view of the work environment.
The cab impresses with outstanding ergonomics, generous space and many individual adjustment options for the operator. The cab provides protection from wind, weather, and external environmental conditions. This allows fatigue-free work even over a longer period of time.

Maintenance

Tiltable cabin and optimal service access

The cab can be tilted to the side. This allows easy access to the engine, hydraulic system, and electronics. This considerably simplifies checking and maintaining the machine. This in turn results in reduced machine downtimes and thus lower operating costs.
Quick and easy serviceability automatically maximize the availability of the machine. This in turn reduces total operating costs.

Easily accessible machine components.

Regularly lubricating all lubrication points is essential for the correct and effective maintenance and thereby the value retention of the machine. To save time and make work easier, the lubrication points on Wacker Neuson wheel loaders are always in an easily accessible position.
Since the lubrication points are easily accessible, the machine is lubricated more often than if the lubrication points are located in a position that is difficult to access. This in turn increases the longevity of the machine and increases value retention.

Split hydraulic hoses

Wacker Neuson wheel loaders are designed with short hydraulic hose lengths in mind, and the hoses are split at several points. Therefore, if a hydraulic hose needs replacing, only the affected part will need to be replaced, not the entire hose in the hydraulic circuit. This speeds up repair times enormously and is also cost-efficient.

Efficiency

Inch brake pedal: Engine output where it is needed.

1. No pressure on inch brake pedal: full power for the drive system 2. Slightly depressed inch-brake pedal: speed is reduced, more power to the work hydraulics. 3. Firmly depressed brake-inch pedal: The speed is reduced further, even more power to the work hydraulics. 4. Fully depressed inch-brake pedal: the wheel loader stands still, full power to the work hydraulics.
The advantages of the inch-brake pedal are obvious: less wear on the operating brake and optimum power distribution of the engine output.

Performance

Compact dimensions for optimal maneuverability

The compact design of the machine is impressive with its small radius and excellent maneuverability. This means that even work in confined spaces is no problem.
Compact dimensions and optimum maneuverability ensure a high degree of control. The machine is not unnecessarily wide or long; the space available and the size of the machine are always optimally utilized.

30 km/h speed

With the appropriate engine, the machine reaches a speed up to 30 km/h. This allows the machine to move from A to B more quickly, saving time and increasing efficiency.
Please note that the product range may vary depending on the country. Under certain circumstances, the contents / products shown here may not be available in your country. The illustrations, equipment, and data shown may also differ from the current product range in your country. Optional extras may be shown that are subject to an additional charge. Subject to changes.
Delivery times can vary - subject to prior sale.
With the selection of different options, the technical data of the products can vary accordingly. Please note that equipment cannot be changed for editions.

Mechanical-output details

Travel speed	0 - 20 km/h
Travel speed stage 1	0 - 7 km/h
Travel speed stage 2	0 - 20 km/h

Mechanical Details

Operating weight	3,400 kg
Bucket capacity	0.45 m3

Engine

Cylinder	4,0
Cylinder capacity	2,216 cm3
Tank capacity	65 l
Operating power	36.3 KW
Operating Engine speed	2,800 1/min
Starter battery Voltage	12 V
Battery capacity (nom. value)	95 Ah
Manufacturer	Perkins
Engine designation	404 D - 22

Hydraulic

Operating pressure	210 bar
Flow rate	56 l/min
Tank capacity	35 l

Operating fluids

Hydraulic fluid volume

35 l

Chassis

Operating pressure	450 bar
Flow rate	56 l/min
Steering angle max.	45
Brake	Surge brake
Axle	Planetary axle
Drive unit	Hydrostatic
Hydraulikpump	Displacement pump

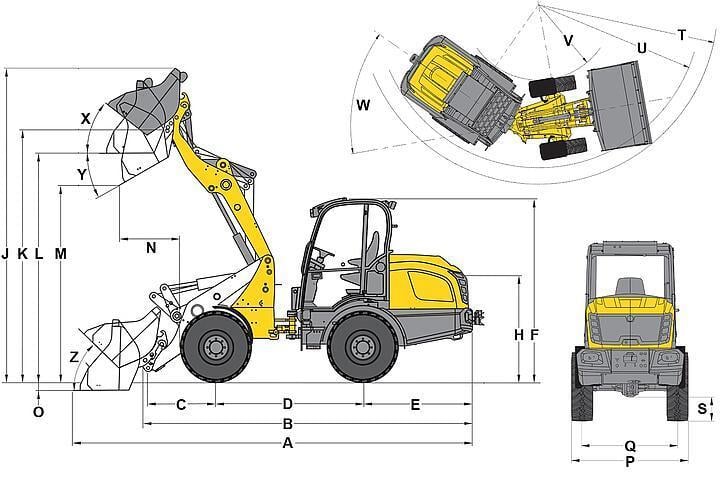

A	Total length	4,715 mm
B	Total length without bucket	4,022 mm
C	Bucket pivot point (to center of axle)	675 mm
D	Wheel base	1,952 mm
E	Rear overhang	1,290 mm
F	Height with operator's canopy (fixed)	2,351 mm
F	Height with cab	2,351 mm
H	Seat height	1,354 mm
J	Total working height	3,948 mm
K	Bucket pivot point (max. lift height)	3,208 mm
L	Load-over height	2,890 mm
M	Dumping height	2,300 mm
N	Reach (at M)	265 mm
O	Digging depth	123 mm
P	Total width	1,414 mm
Q	Track width	1,014 mm
S	Ground clearance	275 mm
T	Maximum radius	3,447 mm
U	Radius on the outer edge	3,171 mm
V	Inner radius	1,731 mm
W	Articulation angle	45 °
X	Rollback angle at max. lift height	56 °
Y	Dumping angle	37 °
Z	Rollback angle on ground	46 °
-		31x15.50-15 EM ET-37

Engine

Perkins 404 J-E22T, 45 kW / 61.2 HP, Stage V

Steering system

Hydraulic articulated pendulum steering, pendulum angle ± 12°
Steering cylinder: 1

Tires

31x15.50-15 EM ET-37

Drive system

Hydrostatic all-wheel drive system, travel direction can be chosen via joystick
Operating brake: Drum brake (combined with parking brake)
Central service and parking brake in the drive train acts on all 4 wheels
100% differential lock, electro-hydraulically connectable on front and rear axle

Hydraulics

3rd control circuit front electronically proportionally parallel via joystick, hydraulic oil cooler
Floating position for lift cylinder
Lock for 3rd control circuit via switch

Operator's cab

Operator's canopy with restraint system ROPS / FOPS tested incl. rear window, operator's cab can be tilted to the side
Fully damped comfort seat with safety belt, weight, back and height adjustment
Adjustable steering column
Right armrest
Work lights, 2 in front and 2 in rear
Operating hour meter
Fuel display
