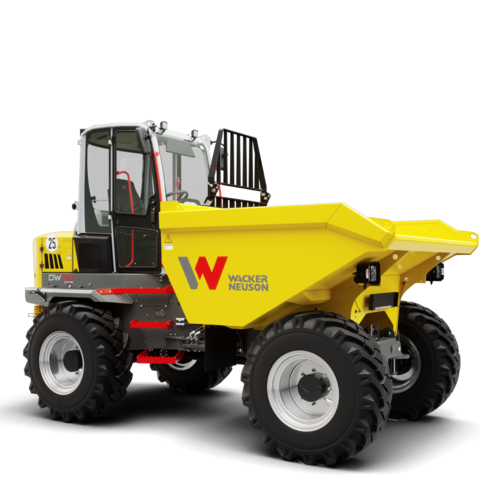

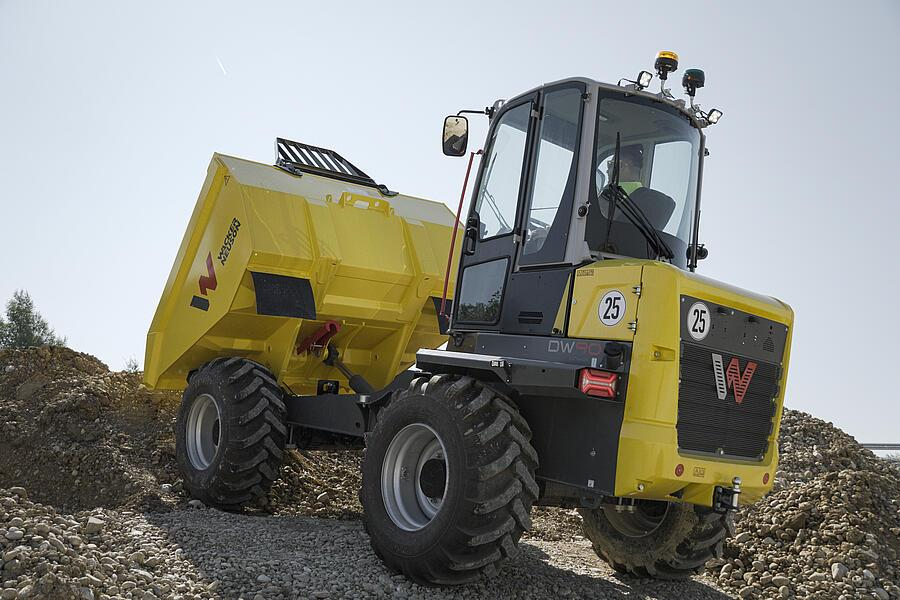

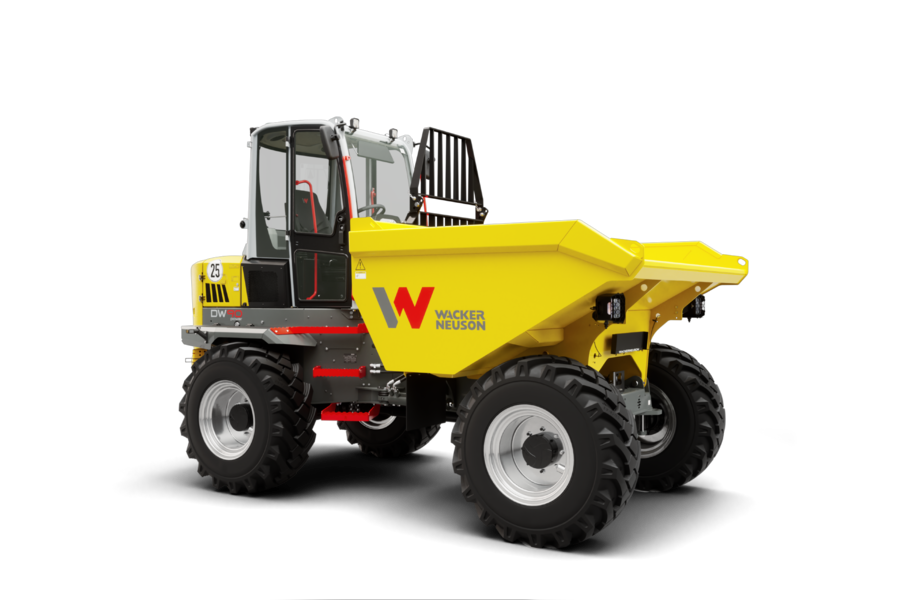

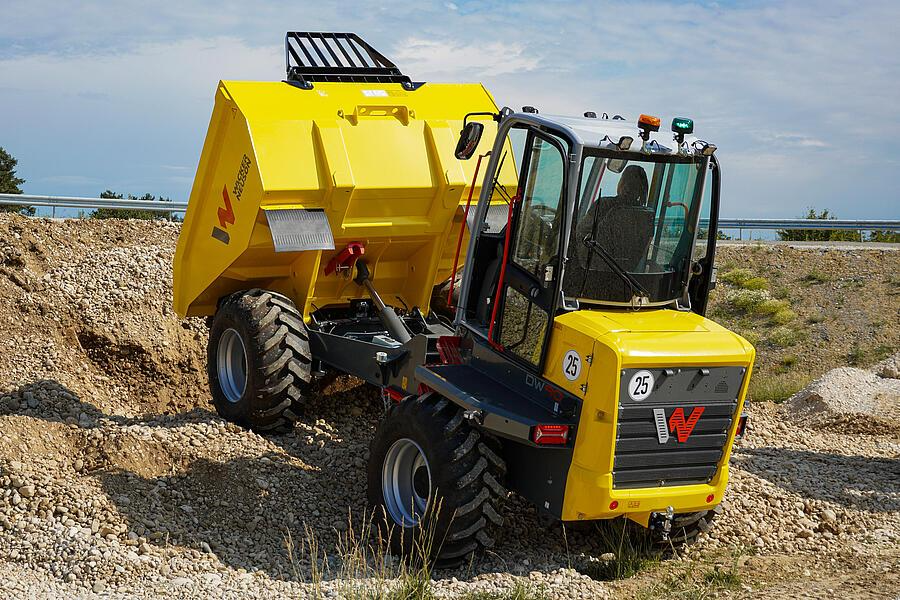

Wheel dumpers DW90: The power package for the safety-conscious

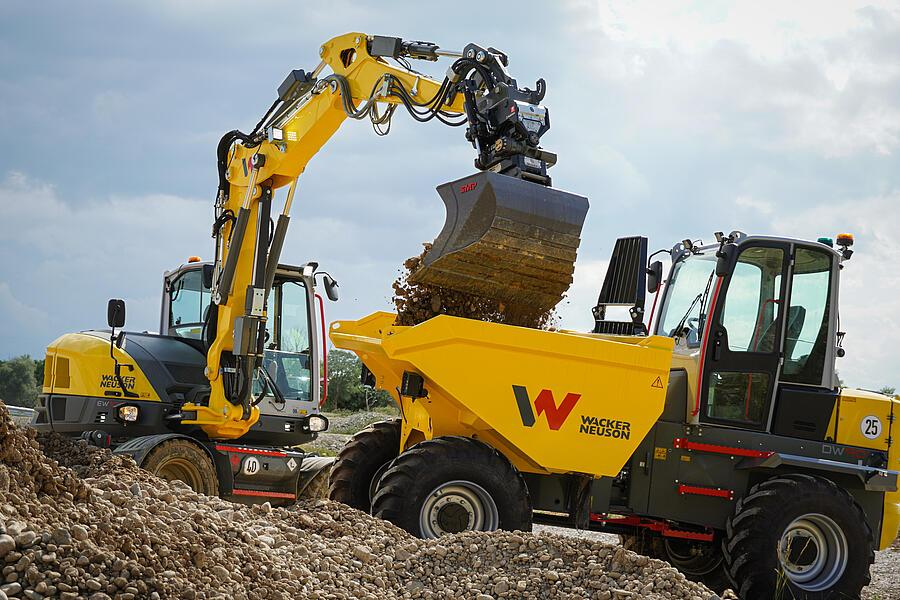

The outstanding operator environment and the high level of safety features contribute to this exceptional material handler with a payload of 9,000 kg. The high skip volume provides space for a lot of material, and reduces the turnaround times on the construction site. Those who have a lot to transport, while valuing safety and performance, are on the right path with the DW90. And all that with up to 25 km/h. The cameras mounted on both sides with washing system provide the respective image on the 7-inch color display and thereby increase the safety of the machine’s surroundings with a high level of visibility. Furthermore, it is equipped ex works with skip and tilt monitoring, as well as optionally with a hill-hold function.

High skip volume

• The high skip volume of the machine enables the transfer of a lot of material in a very short time, which minimizes the material handling time on the construction site.
• In this way, the construction site process can be made more efficient and both, time and costs, can be saved.

Inclination monitoring

• If the machine is tilted in an unsafe standing position or becomes unstable, the inclination monitoring intervenes and warns the operator.
• An optical and an acoustic signal display both the speed limitation with the skip tilted in an unsafe position as well as an unstable machine position. This should make it clear to the operator that he is exposed to an increased risk of accident if he does not pay attention.

Skip monitoring

• Skip monitoring takes over the control of the skip position before driving off and thus prevents consequential damage or accidents.
• Real-time checking of the skip position informs the operator if locking is incomplete and reduces travel speed to 13 km/h to avoid accidents.
• This minimizes the risk of damage or accidents to the machine and the surroundings.

Hydrostatic 4-wheel drive with automatic ECO mode

• Just hop on and go: with the hydrostatic 4-wheel drive, the operator can concentrate on his work without frequent gear shifting.
• A continuously constant tractive force from 0 to the maximum speed and a hydrostatic brake provide for a comfortable driving experience.
• The machine's automatic ECO mode is an asset to cost and environmentally-conscious users as it ensures minimal consumption with optimum power use.

Hill-Hold function

• The integrated hill-hold function prevents the machine from rolling back when at standstill, as soon as the foot is taken off the gas pedal.
• The machine is braked automatically and secured against rolling back.

Cab

• A strong plus, especially in the rain, cold or heat: the ideally equipped cab, makes work comfortable year-round for the operator, and also offers the highest level of safety with ROPS/FOPS Level II certification. (DIN EN ISO 3471 and 3449)
• The cab is equipped for comfort with the optimal arrangement of all switches and control elements for efficient working.
• Storage options (cup holder, area for mobile phone, etc.) and the high quality or workmanship provide a high level of working comfort.

Translucent headlight protective grating

• Due to the fine structure of the protective grating, it need not be removed for driving on streets and saves valuable time in the sequence of operations.
• Despite the fine design, the protective grating effectively protects against damage to the headlights.

Auto-stop function

• The built-in auto-stop function switches the machine off after 5 minutes without use. This period of time can be adjusted and the operator is notified visually and acoustically before switching off.
• Electrical loads, such as headlights, are also switched off to conserve the machine's battery. Operating costs are reduced, maintenance intervals are extended and resale value increases.
• The resulting reduction in engine running time reduces exhaust emissions/CO2.

Extended maintenance intervals

• The long maintenance intervals of 500 operating hours make possible additional cost savings due to fewer service and maintenance intervals divided over the entire use.

Speed regulation system

• The speed regulation system automatically maintains the speed of the machine where possible, provided it is activated. This way, the operator doesn’t have to concentrate on his speed and can enjoy the comfort of automation.

Articulated pendulum joint

• The articulated pendulum joint adapts to all uneven terrain on the construction site. The operator immediately senses a change in the position and can keep the machine under control.

Mechanical Details

Engine

Hydraulic

Chassis

Engines

Deutz TD2.9 L4

Standard Components

General

• Payload 9,000 kg
• Hydraulic front tip skip (volume heaped 4,500 L, struck 3,600 L, water mass 2,350 L)
• Roll Over Protective Structure (ROPS) with gas-pressurized spring
• Speed: 25 km/h
• Tires: 500/60-22.5 (Mitas, TR-12) flotation tires with outstanding traction
• View camera in front with 7'' color monitor (IP69) and camera with LEDs (IP69)
• Multi-functional 7-inch color display for camera and machine signals (incl. lockable vandalism protection)
• Watertight, lockable document box

Engine

• Water-cooled DEUTZ TD 2.9 diesel engine, 4 cylinders, 2,900 ccm, engine output 55.4 kW (75.3 hp) (stage 5)

Hydraulics

• Permanent all-wheel drive
• Hydrostatic automotive drive
• Hydrostatic drive system with hydrostatic brake and brake light
• Hydrostatic articulated frame steering (load sensing)
• Combined brake-inch pedal, designed as 2-circuit brake system
• Hydraulically operated spring-loaded parking brake

Options

Cabin & ROPS

• Cabin (ROPS/FOPS Level II, incl. powerful heater)
• Air-conditioning system
• Bluetooth radio with hands-free installation (incl. 2 USB charging connections)

Hydraulics

• Panolin HLP Synt46 (Bio)

Paint

• Custom-made paint finish of cabin/canopy/ROPS RAL (only RAL color possible)
• Custom-made paint finish of machine in RAL (only for yellow parts)
• Custom-made paint finish of machine, no RAL (only for yellow parts)

Security

• Security 24 C (2000)
• Security 36 C (3000)
• Security 48 C (4000)
• Security 60 C (5000)

Other

• LED front and rear work lights
• Outside mirrors (rear-view mirrors left and right)
• Entry in signal color
• Road Lights
• Skip guard
• Manufacturing confirmation (document for typification)
• Reverse alarm (broadband tone)
• Rear-view camera
• Orange and green LED rotating beacon
• Seat contact switch
• Orange safety belt
• Equipment for road traffic
• EquipCare 36 months (including app and manager)
• Equip Care Dual ID
• TÜV road homologation (Germany)
• License bracket front + rear
• Towing device & plug receptacle

Editions

Edition A

Basic machine
+ Seat contact switch
+ Entry in signal color
+ Orange and green LED rotating beacon
+ Reverse alarm (broadband tone)
+ Equipment for road traffic (includes outside rear-view mirrors, wheel chock, and road lighting)
+ Towing device + socket
+ Orange safety belt

(Shipping weight +/- 2%: 4,268 kg)

Edition B

Basic machine
+ Cab
+ Seat contact switch
+ Entry in signal color
+ Orange and green LED rotating beacon
+ Reverse alarm (broadband tone)
+ Equipment for road traffic
+ Towing device + socket
+ Orange safety belt
+ LED front and rear work lights
+ Skip guard

(Shipping weight +/- 2%: 4,583 kg)
