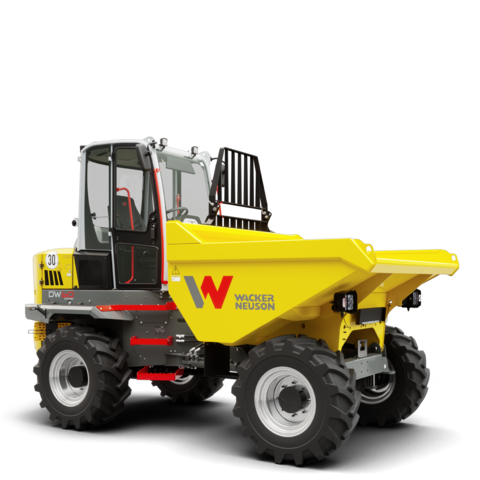

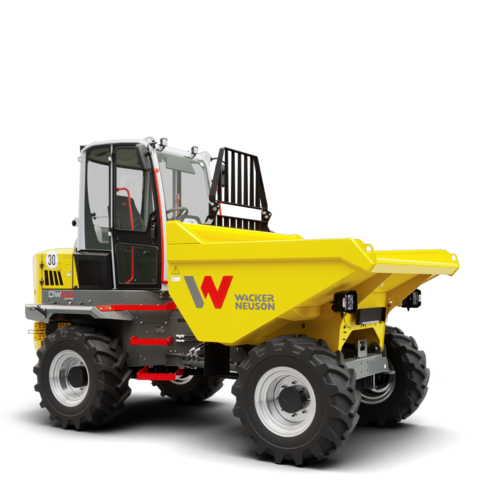

Wheel dumpers DW60: The smooth power package for versatile applications

The DW60 represents one of the larger wheel dumpers from Wacker Neuson. Alongside the countless basic safety features, like skip and tilt monitoring, it also provides the right option for very particular applications: Whether turf tires for the protection of the subbase, or a comfort cab including heated seats, Bluetooth radio with hands-free, and air-conditioning system for all-weather use. The articulated joint and the hydrostatic drive system also make it a reliable work machine with a high tractive force, stability, and power, even with a full load.

Hill-Hold function

• The integrated hill-hold function prevents the machine from rolling back when at standstill, as soon as the foot is taken off the gas pedal.
• The machine is braked automatically and secured against rolling back.

Inclination monitoring

• If the machine is tilted in an unsafe standing position or becomes unstable, the inclination monitoring intervenes and warns the operator.
• An optical and an acoustic signal display both the speed limitation with the skip tilted in an unsafe position as well as an unstable machine position. This should make it clear to the operator that he is exposed to an increased risk of accident if he does not pay attention.

Hydrostatic 4-wheel drive with automatic ECO mode

• Just hop on and go: with the hydrostatic 4-wheel drive, the operator can concentrate on his work without frequent gear shifting.
• A continuously constant tractive force from 0 to the maximum speed and a hydrostatic brake provide for a comfortable driving experience.
• The machine's automatic ECO mode is an asset to cost and environmentally-conscious users as it ensures minimal consumption with optimum power use.

Seat belt monitoring with start release

• The seat belt monitoring system signals visually and acoustically if an attempt is made to start the machine when the operator is not wearing a seat belt. The additional start release prevents start-up in this case.
• The safety during operation is increased once again and improper starting is thus prevented.

Turf tires

• The tires large surface area applies less low ground pressure and are ideally suited for job sites where protecting the current landscape is a priority.
• Especially on lawns, additional repair work or seeding the existing landscape is reduced, saving time and money.
• The tread, developed specially for sensitive subbases, minimizes potential damage.

Auto-stop function

• The built-in auto-stop function switches the machine off after 5 minutes without use. This period of time can be adjusted and the operator is notified visually and acoustically before switching off.
• Electrical loads, such as headlights, are also switched off to conserve the machine's battery. Operating costs are reduced, maintenance intervals are extended and resale value increases.
• The resulting reduction in engine running time reduces exhaust emissions/CO2.

Extended maintenance intervals

• The long maintenance intervals of 500 operating hours make possible additional cost savings due to fewer service and maintenance intervals divided over the entire use.

Speed regulation system

• The speed regulation system automatically maintains the speed of the machine where possible, provided it is activated. This way, the operator doesn’t have to concentrate on his speed and can enjoy the comfort of automation.

Articulated pendulum joint

• The articulated pendulum joint adapts to all uneven terrain on the construction site. The operator immediately senses a change in the position and can keep the machine under control.

Translucent headlight protective grating

• Due to the fine structure of the protective grating, it need not be removed for driving on streets and saves valuable time in the sequence of operations.
• Despite the fine design, the protective grating effectively protects against damage to the headlights.

Mechanical Details

Engine

Hydraulic

Chassis

Standard Components

General

• Payload 6,000 kg
• Hydraulic front tip skip (volume struck 2,700 L, heaped 3,500 L, water mass 1,900 L)
• Skip and incline monitoring
• Roll Over Protective Structure (ROPS) with gas-pressure damper (transport height folded 2,542 mm)
• Max. speed: 25 km/h
• Tires: 405/70-20 (Mitas, MPT-01) tread with very good traction and self-cleaning
• Front camera with 7-inch color monitor (IP69) and camera with LEDs (IP69) incl. cleaning system
• Multi-functional 7-inch color display (IP69) for camera and machine signals
• Lockable vandalism protection for the display
• Watertight, lockable document box
• Imitation leather seat incl. seat contact switch
• Seat belt monitoring with orange safety belt
• Outside rear-view mirrors (rear-view mirror)

Engine

• Water-cooled DEUTZ TD 2.2 turbo diesel engine, 3 cylinders, 2,194 ccm, engine output 44.5 kW (59.7 hp) (stage 5)
• incl. Auto-stop function

Hydraulics

• Permanent all-wheel drive
• Hydrostatic automotive drive
• Hydrostatic drive system with hydrostatic brake and brake light
• Hydrostatic articulated frame steering (load sensing)
• Combined brake-inch pedal, designed as 2-circuit brake system
• Electrically operated spring-loaded parking brake

Options

Hydraulics

• Panolin HLP Synt46 (Bio)

Paint

• Custom-made paint finish of machine in RAL (only for yellow parts)
• Custom-made paint finish of machine, no RAL (only for yellow parts)
• Custom-made paint finish of cabin/canopy RAL (only RAL color possible)

Security

• Security 24 C (2000)
• Security 36 C (3000)
• Security 48 C (4000)
• Security 60 C (5000)

Cabin & ROPS

• LED working lights(front and rear)
• Bluetooth radio with hands-free system and USB charging connection (only with cab version)
• Heated imitation leather seat
• Air-conditioning system

Other

• 55 kW turbo diesel engine (DEUTZ TD 2.9, 4-cylinder turbo diesel engine, 2,900 ccm, auto-stop function)
• Entry in signal color
• Equipment for road traffic (wheel chock, rear license bracket and reverse alarm - broadband tone)
• Road lights on the side
• Tires, Mitas MPT-03 (universal tread with M+S label)
• Swivel tip skip (1,600 L water mass / 2,350 L struck / 3,150 L heaped)
• Swivel tip skip (3m ) (1,600 L water mass / 2,300 L struck / 3,100 L heaped)
• EquipCare 36 months (incl. App and Manager)
• EquipCare Dual ID
• Cruise control system
• Manufacturer confirmation
• Hill-hold function (automatic parking brake in the event of machine downtime)
• License bracket front & rear
• Skip guard (developed and tested according to ISO 10262, front protection level 2)
• Turf tires, ATG Turf Spec ET-20
• (Orange/green) LED rotating beacon
• Rear-view camera incl. washing system
• Orange safety belt
• Road approval (Germany)
• Toolbox (lockable, both sides in the fenders of the machine)
• Towing device (incl. socket)

Editions

Edition A

Basic machine

+ Swivel tip skip
+ Entry in signal color
+ (Orange/green) LED rotating beacon
+ Equipment for road traffic
+ Reverse alarm (conspicuous broadband tone)
+ Towing device with socket
+Toolbox (lockable, both sides in the fenders of the machine)


(Shipping weight (+/- 2%): 4,189 kg)

Edition B

Basic machine
+ 55 kW engine
+ Swivel tip skip (3m)
+ Special tires, MITAS MPT-03
+ LED running lights on the side
+ License bracket front & rear
+ Entry in signal color
+ (Orange) LED rotating beacon
+ Reverse alarm (conspicuous broadband tone)
+ Equipment for road traffic
+ Towing device
+Toolbox (lockable, both sides in the fenders of the machine)

(Shipping weight (+/- 2%): 4,243 kg)

Edition C

Basic machine
+ 55-kW engine
+ Cab
+ Entry in signal color
+ Swivel tip skip
+ (Orange/green) LED rotating beacon
+ Reverse alarm (conspicuous broadband tone)
+ Equipment for road traffic
+ Towing device
+ LED work lights front & rear
+ Skip guard
+Toolbox (lockable, both sides in the fenders of the machine)

(Shipping weight (+/- 2%): 4,595 kg)
