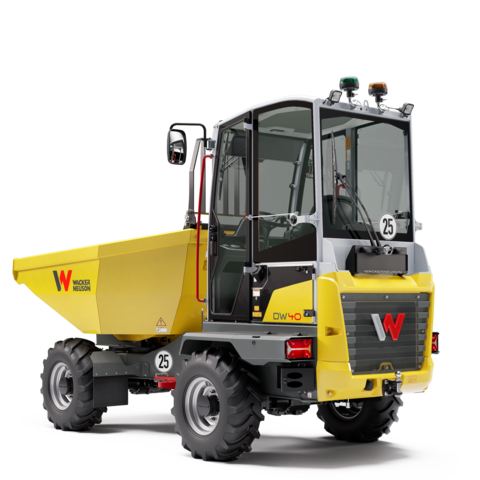

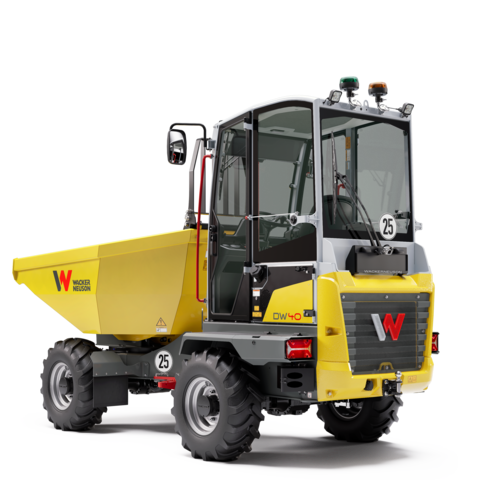

Wheel dumpers DW40: Reliable, safer and durable for material handling

With modern engine technology, the wheel dumper fleet can reach a speed of 25 km/h with a total payload of four metric tons. In doing so, the operator can rely on very high safety standards: The skip and tilt monitoring warns the operator of an unsafe use of the machine, while the cameras to the front and rear, including a washing system, provide the surroundings on a large 7-inch display. These and many other safety features make the DW40 a partner on the construction site, which can prevent accidents and noticeably increase the operator’s level of comfort.

Hill-Hold function

• The integrated hill-hold function prevents the machine from rolling back when at standstill, as soon as the foot is taken off the gas pedal.
• The machine is braked automatically and secured against rolling back.

Skip monitoring

• Skip monitoring takes over the control of the skip position before driving off and thus prevents consequential damage or accidents.
• Real-time checking of the skip position informs the operator if locking is incomplete and reduces travel speed to 13 km/h to avoid accidents.
• This minimizes the risk of damage or accidents to the machine and the surroundings.

Hydrostatic 4-wheel drive

• Just hop on and go: with the hydrostatic drive system, the operator can concentrate on his work without frequent gear shifting.
• A continuously constant tractive force from 0 to the maximum speed and a hydrostatic brake provide for a comfortable driving experience.

Inclination monitoring

• If the machine is tilted in an unsafe standing position or becomes unstable, the inclination monitoring intervenes and warns the operator.
• An optical and an acoustic signal display both the speed limitation with the skip tilted in an unsafe position as well as an unstable machine position. This should make it clear to the operator that he is exposed to an increased risk of accident if he does not pay attention.

Seat belt monitoring with start release

• The seat belt monitoring system signals visually and acoustically if an attempt is made to start the machine when the operator is not wearing a seat belt. The additional start release prevents start-up in this case.
• The safety during operation is increased once again and improper starting is thus prevented.

Auto-stop function

• The built-in auto-stop function switches the machine off after 5 minutes without use. This period of time can be adjusted and the operator is notified visually and acoustically before switching off.
• Electrical loads, such as headlights, are also switched off to conserve the machine's battery. Operating costs are reduced, maintenance intervals are extended and resale value increases.
• The resulting reduction in engine running time reduces exhaust emissions/CO2.

Extended maintenance intervals

• The long maintenance intervals of 500 operating hours make possible additional cost savings due to fewer service and maintenance intervals divided over the entire use.

Speed regulation system

• The speed regulation system automatically maintains the speed of the machine where possible, provided it is activated. This way, the operator doesn’t have to concentrate on his speed and can enjoy the comfort of automation.

Articulated pendulum joint

• The articulated pendulum joint adapts to all uneven terrain on the construction site. The operator immediately senses a change in the position and can keep the machine under control.

Translucent headlight protective grating

• Due to the fine structure of the protective grating, it need not be removed for driving on streets and saves valuable time in the sequence of operations.
• Despite the fine design, the protective grating effectively protects against damage to the headlights.

Large control stand

• Very comfortable: the large control stand offers freedom of movement for the legs.
• The wide leg protection provides protection from moving parts or parts of the load while driving.

Mechanical Details

Engine

Standard Components

General

• Payload 4,000 kg
• Hydraulic swivel tip skip (skip volume struck 1,800 L, heaped 2,300 L, water mass 1,190 L)
• Skip and incline monitoring
• Seat belt monitoring with orange safety belt

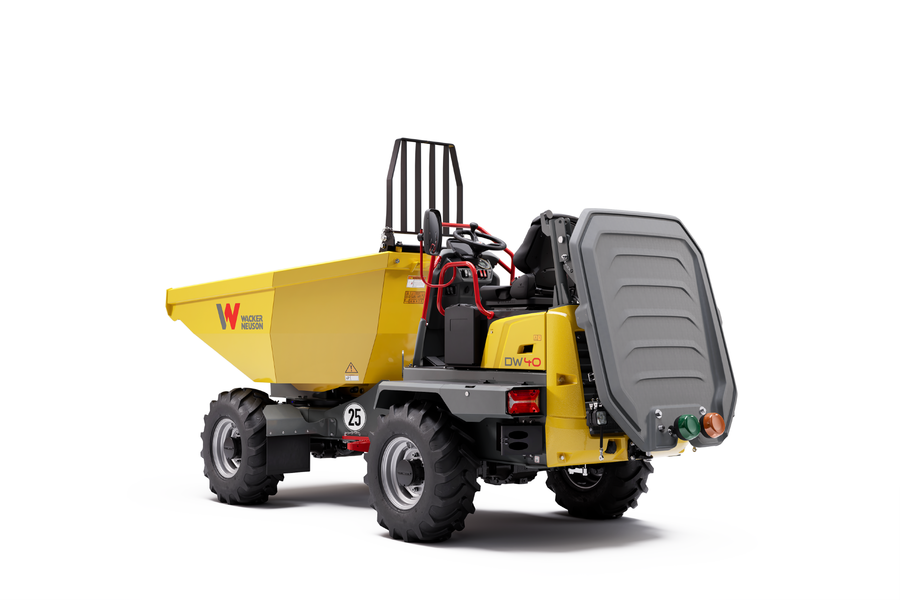

• Fold-down roll over protection system (ROPS) with gas pressure damper (Transport height folded: 1,945 mm)
• Max. speed: 25 km/h
• Watertight and lockable document box
• Tires, Mitas TS-05, 11.5/80-15.3, tread with very good traction, also for application in the industrial sector

Engine

• Water-cooled Perkins turbo diesel engine, model 403J-E17T, engine output 36 kW (45.3 hp), nominal speed 2,200 rpm (stage 5)
• Auto-stop function

Hydraulics

• Permanent all-wheel drive
• Hydrostatic automotive drive system with partially locked differential
• Hydrostatic drive system and brake - with brake light
• Hydrostatic articulated frame steering (load sensing)
• Combined brake-inch pedal
• Electrically operated spring-loaded parking brake

Options

Hydraulics

• Panolin HLP Synt46 (Bio)

Security

• Security 24 C (2000)
• Security 36 C (3000)
• Security 48 C (4000)
• Security 60 C (5000)

Paint

• Custom-made paint finish of machine in RAL (only for yellow parts)
• Custom-made paint finish of machine  no RAL (only for yellow parts)
• Custom-made paint finish of cabin/canopy RAL (only RAL colors possible)

Cabin & ROPS

• Cab (including powerful heater, tinted glass on all sides, laminated safety glass in front, windshield wipers and radio installation setup and entry in signal color)
• Air-conditioning system
• Radio incl. Bluetooth hands-free installation and USB charging connection (2 amps)
• LED front and rear work lights (only available in conjunction with cabin)
• Weather protection roof (foldable for transport)
• Seat belt monitoring incl. machine start release
• Heated imitation leather seat

General

• Ball hitch & socket for towing device
• Entry in high visibility color
• Equipment for road traffic (rear license bracket, wheel chock and reverse alarm)
• EquipCare 36 months (incl. App &# 38; Manager)
• EquipCare Dual ID (only in conjunction with EquipCare)
• Speed regulating system
• Manufacturing confirmation (document for typification)
• Hill-hold function (automatic parking brake in the event of machine downtime)
• Skip guard
• Rear-view camera incl. cleaning system
• (Orange/green) LED rotating beacon
• Special tires/all-terrain tires; (11.5/80-15.3, Mitas TR-03)
• TÜV road approval (Germany)
• Toolbox integrated both sides in fenders of the machine (lockable
• Towing device and socket

Editions

Edition A

Basic machine
+ Swivel tip skip
+ Entry in signal color
+ (Orange) LED rotating beacon
+ Equipment for road traffic
+ Reverse alarm (conspicuous broadband tone)
+Towing device
+Toolbox (lockable, both sides in the fenders of the machine)

(Shipping weight +/- 2%: 2,602 kg)
