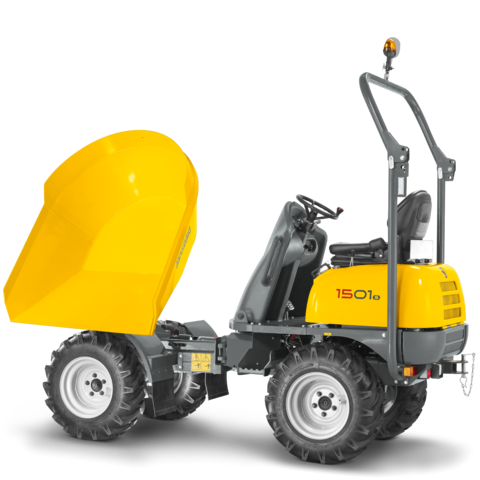

Wheel dumper 1501: The multi-talent in mini-format

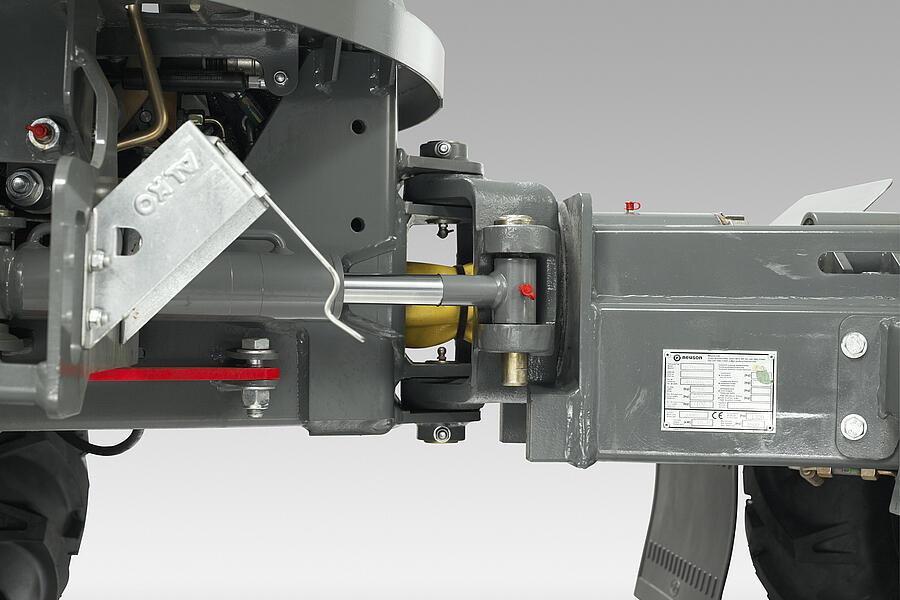

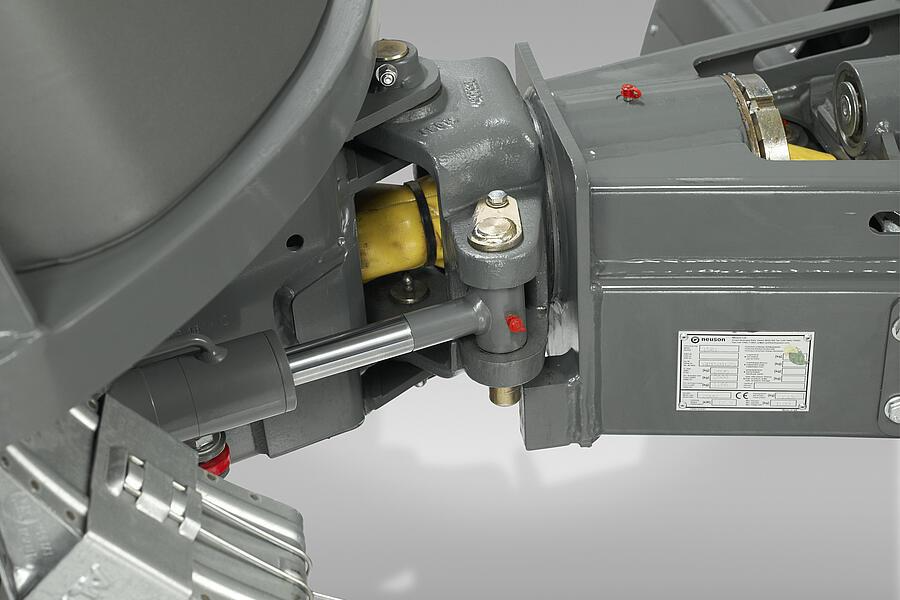

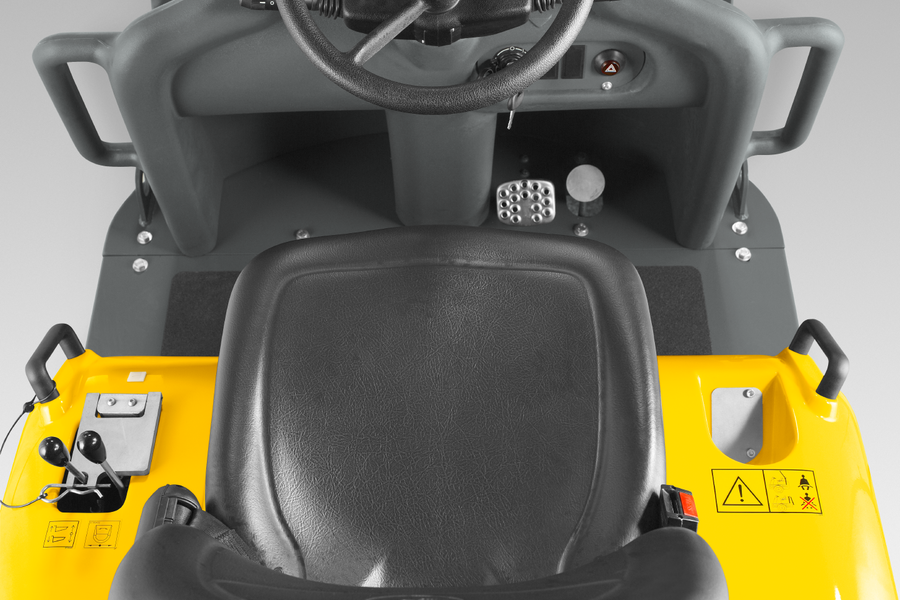

The twin-lock 4-wheel drive system makes the 1501 a perfect partner for uneven or steep terrain. The articulated pendulum joint adapts to all uneven terrain providing the necessary stability. The high tip skip, equipped as standard, as well as the optionally available swivel tip skip, ensure that no requirements for use are overlooked. A fold-down roll over protection system and the small dimensions make it convenient to transport. The optional reverse alarm, rotating beacon and outside review mirrors enhance safety. Wide leg protection, the fold-down roll-over protection system and the large control station provide safer and intuitive operation.

Swivel tip skip

• The very versatile, large rotary tipping trough allows for extension in all directions, perfect for side backfilling or even leveling when transporting liquids on inclines.
• The rotary tipping trough brings the material exactly to the point thanks to infinitely variable 180° rotation - particularly practical in tight spaces.

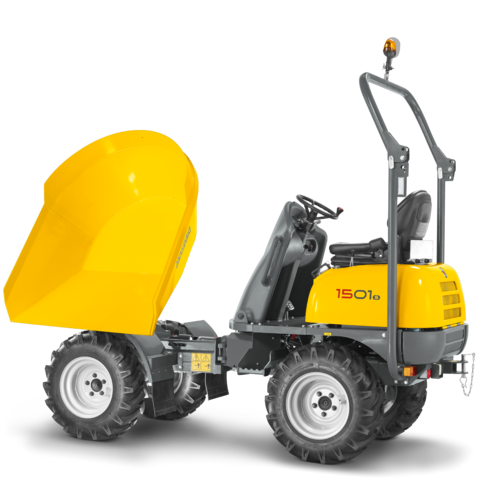

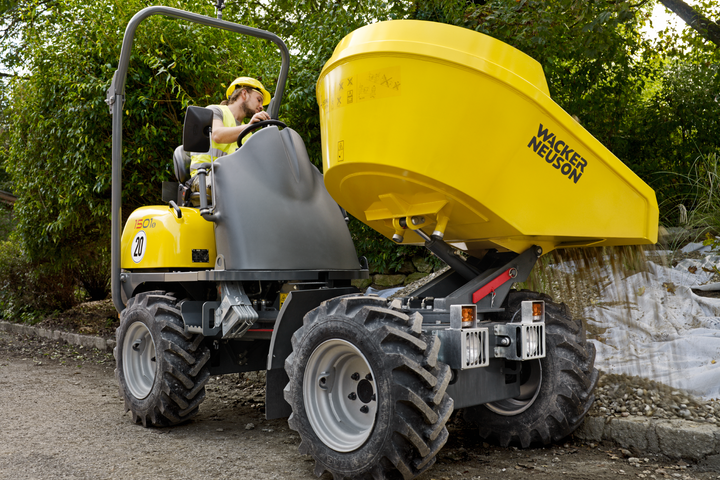

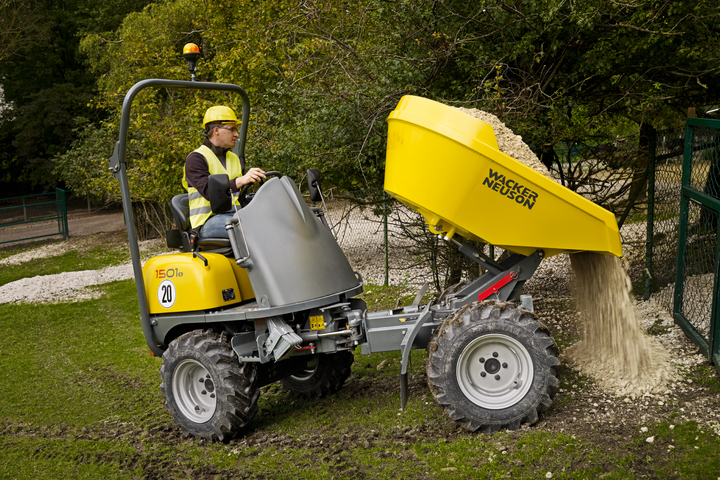

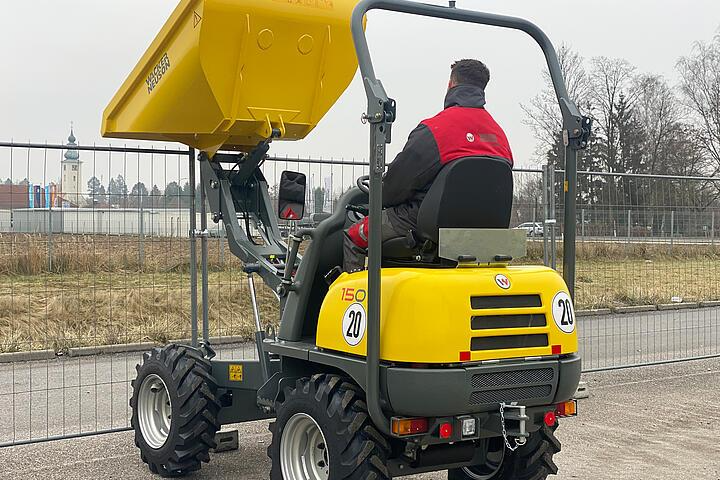

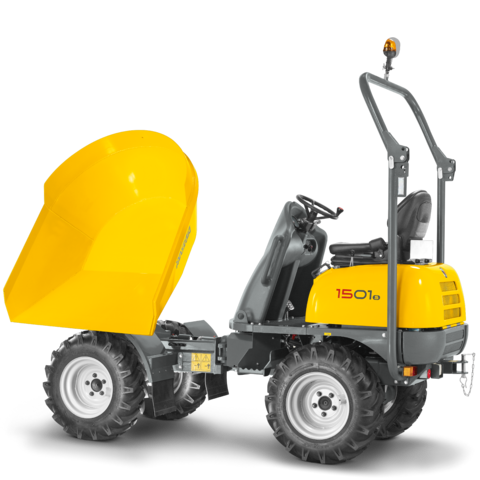

High tip skip

• The high tip skip makes it possible to get over height differences with no problem while unloading, without a ramp.
• Among other things, it can be used as a front tip skip, which comes with the advantage of a low dumping height.

Small dimensions

• The compact dimensions of the machine make it ideal for maneuvering and working in confined spaces.
• This gives better possibilities to maneuver the machine in narrow applications.
• The machine can be operated without restrictions even in narrow places.

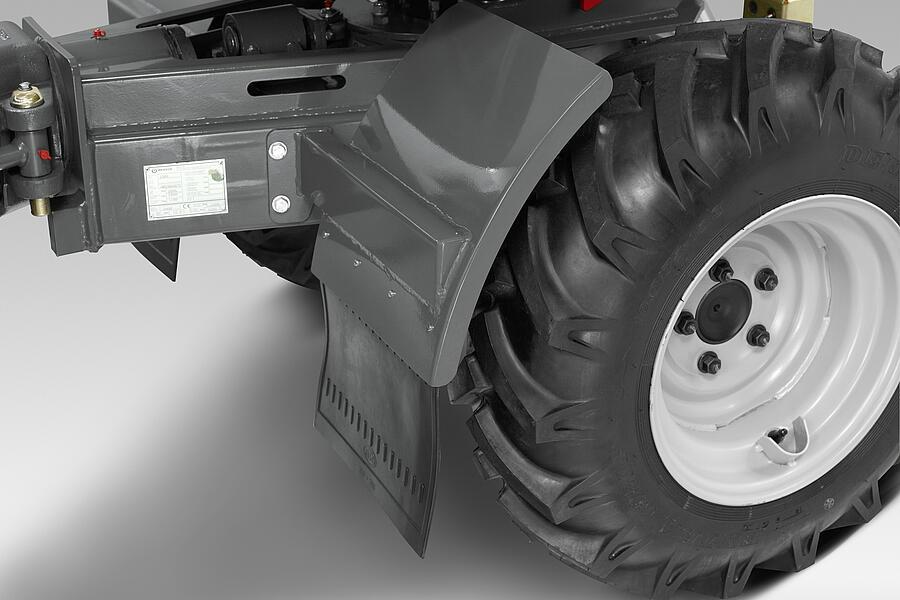

High ground clearance

• The high ground clearance allows the machine to be operated on very uneven terrain, even off paved roads.

Driving without changing gears

• Since the dumpers do not need a gearshift at all, operation is not only easier and more intuitive, but also safer for the driver and the environment.
• The driver can concentrate fully on his work and the surroundings without shifting gears.

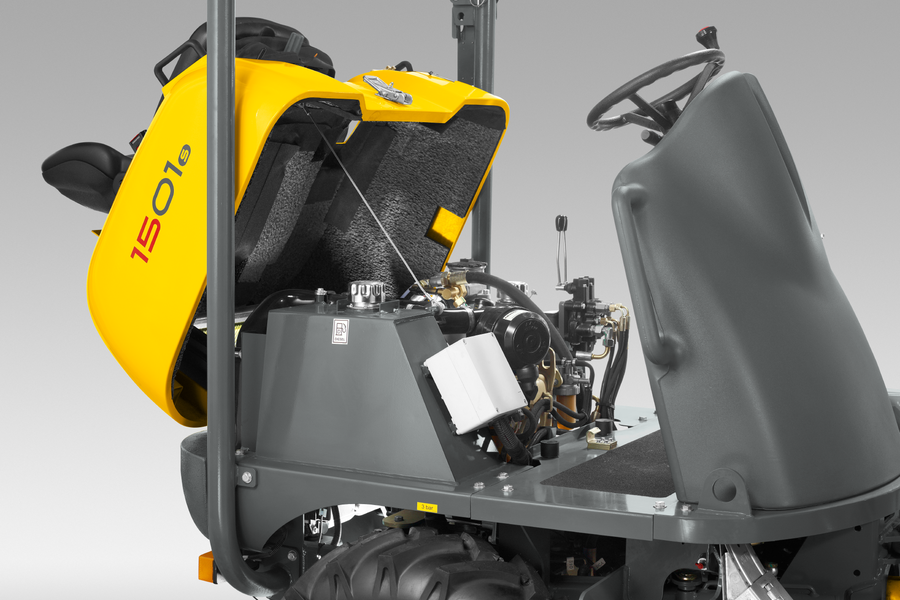

Easy service and maintenance access

• The easily accessible service and maintenance access points make daily checks, as well as regular maintenance and servicing, simple and time-saving.
• Placed at an optimal height and without much effort, you can quickly reach all service and maintenance points to complete daily routine tasks without spending much time.

3-cylinder turbo diesel engine

• The powerful diesel engine offers a high level of efficiency at a low weight.
• With the built-in turbocharger, the machine is productive in any environment including high altitudes.
• By optimally matching all components, it also ensures an optimum centre of gravity for the machine.

Mechanical Details

Engine

Hydraulic

Chassis

Shipping and Storage

Engines

Yanmar EPA TIER II; 2012/46/EU

Standard Components

General

• Payload 1,500 kg
• Hydraulic high tip skip 650 L struck/800 L heaped
• Roll Over Protective Structure (ROPS)
• Speed: 16 km/h
• Tires: 10.0/75-15.3 (Mitas, TS-05) tread with very good traction, also for application in the industrial sector

Engine

• Water-cooled Yanmar diesel engine, model 3TNV76, 3 cylinders / 1,116 ccm, engine output 18.9 kW (25.7 hp), nominal speed 3,000 rpm

Hydraulics

• Permanent all-wheel drive
• Automotive drive system, TWIN-LOCK system
• Gear pump (25 L/min)
• Hydrostatic drive system as operating brake
• Hydrostatic articulated frame steering (load sensing)

Options

Cabin & Rops

• Outside rear-view mirrors (rear-view mirrors left and right)

Hydraulics

• Panolin HLP Synt46 (Bio)

Paint

• Custom-made paint finish of machine in RAL (only for yellow parts)
• Custom-made paint finish of machine, no RAL (only for yellow parts)

Security

• Security 24 C (2000)
• Security 36 C (3000)
• Security 48 C (4000)

Other

• Swivel tip skip (volume 650 L struck/800 L heaped)
• Manufacturing confirmation (document for typification)
• Reverse alarm
• LED rotating beacon
• Socket for towing device
• Road traffic regulation accessories (incl. road lighting and wheel chock)
• EquipCare
• TÜV road homologation (Germany)

Editions

Edition A

Basic machine
+ Rotating beacon
+ Reverse alarm
+ Outside rear-view mirrors (rear-view mirrors)
+ Road traffic regulation accessories (incl. road lighting and wheel chock)

(Shipping weight +/- 2%: 1,320 kg)

Edition B

Basic machine
+ Rotating beacon
+ Reverse alarm
+ Outside rear-view mirrors (rear-view mirrors)
+ Swivel tip skip
+ Road traffic regulation accessories (incl. road lighting and wheel chock)

(Shipping weight +/- 2%: 1,261 kg)
