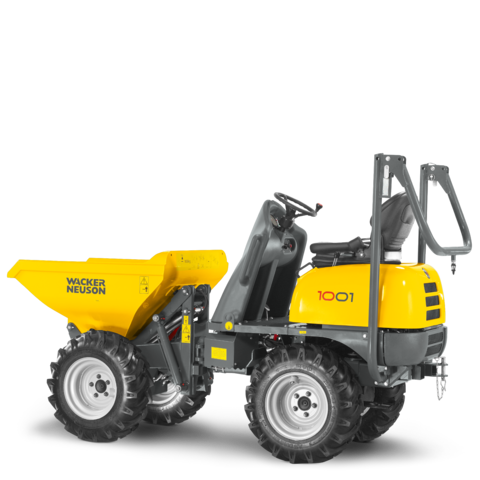

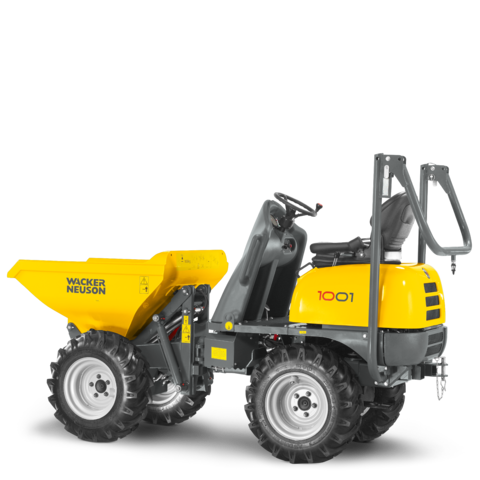

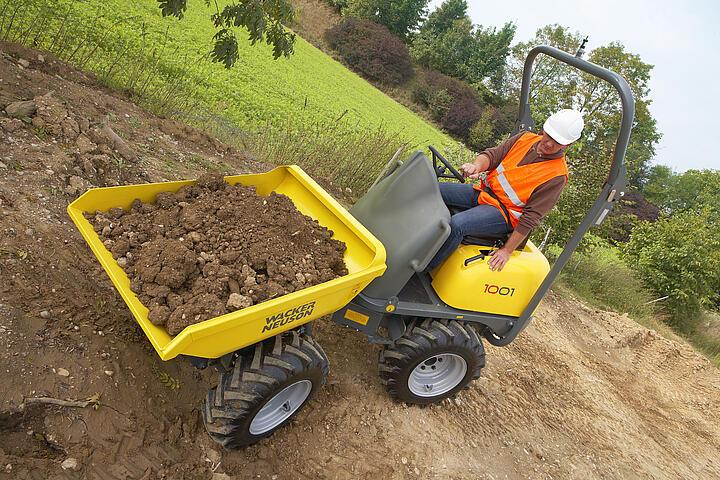

Wheel dumper 1001: The all-rounder

The 1001 is the perfect solution for confined spaces. The extremely compact machine is available with a 990 mm width and can fit through narrow passages. Thanks to the typical articulated pendulum joint and the low-maintenance twin-lock 4-wheel drive system, traction remains guaranteed on every terrain. The fold-down roll over protection system provides a high level of safety and still ensures problem-free use and transport in narrow spaces. A wide control station and the intuitive operating concept also provide a high level of comfort on the machine. Easily reachable service accesses top off the overall package.

Twin-lock 4-wheel drive system

• The low-maintenance, variable twin-lock 4-wheel drive makes working rough ground conditions easy. Each of the four wheels has its own hydraulic motor so the power is always optimally distributed
• The simple operation, with traction remaining at the same level even on steep terrain, provides for safer operating conditions. The elimination of the universal joint shaft increases ground clearance allowing the dumper to easily travel over uneven ground.
• This means easier maintenance and cost savings as changing transmission oil and brake fluid is eliminated.

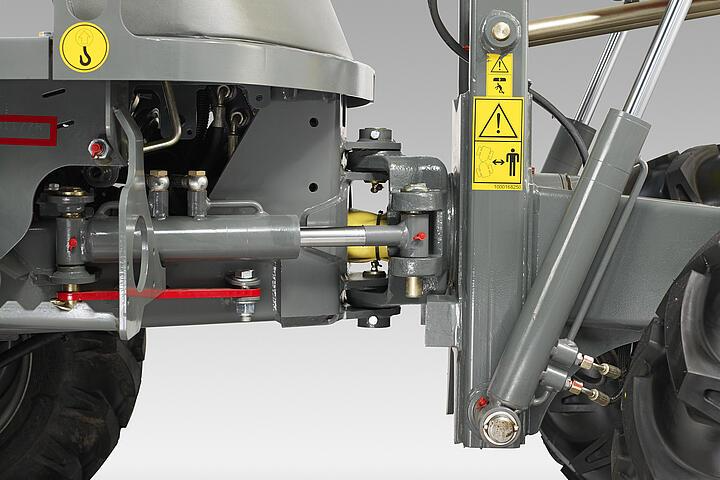

Articulated pendulum joint

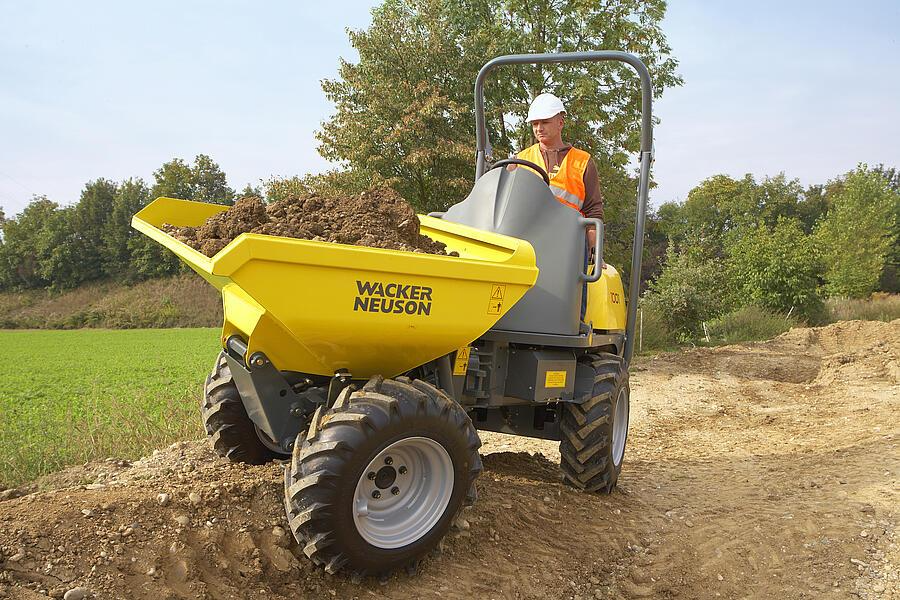

• The articulated pendulum joint adapts to all uneven terrain on the construction site. The operator immediately senses a change in the position and can keep the machine under control.

Small dimensions

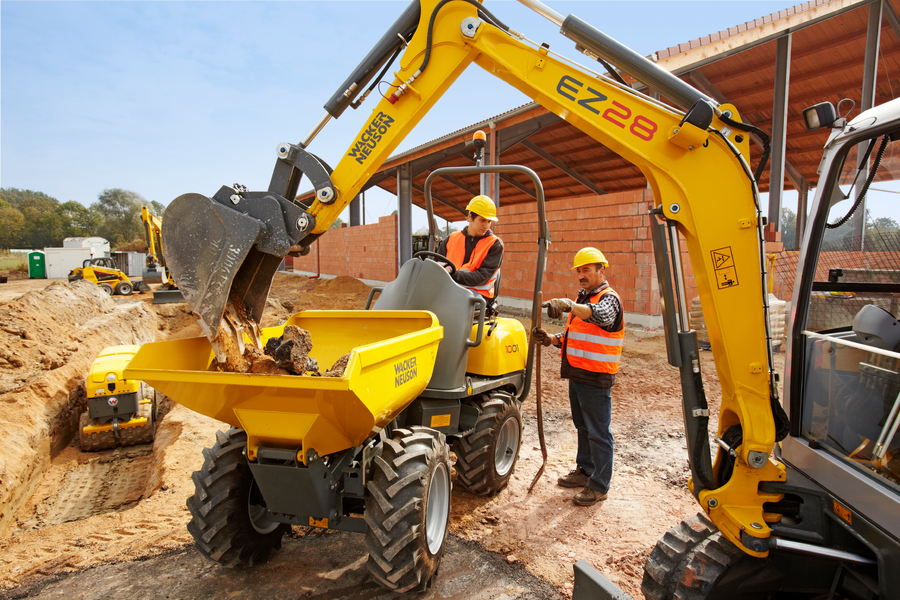

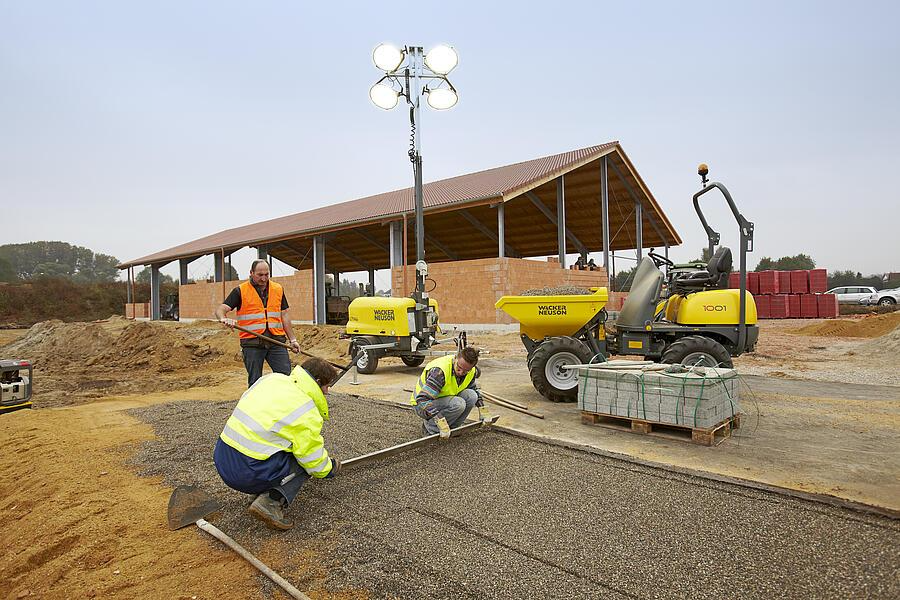

• The compact dimensions of the machine make it ideal for maneuvering and working in confined spaces.
• This gives better possibilities to maneuver the machine in narrow applications.
• The machine can be operated without restrictions even in narrow places.

Optimal weight distribution

• The optimal weight distribution of the machine ensures low ground pressure, which means that it does not sink in on a soft surface and can be used without restrictions.
• The optimum ratio of small dimensions to high payload while maintaining stability and safety round off the machine's overall package.
• The traction of the machine in the terrain is increased.

High ground clearance

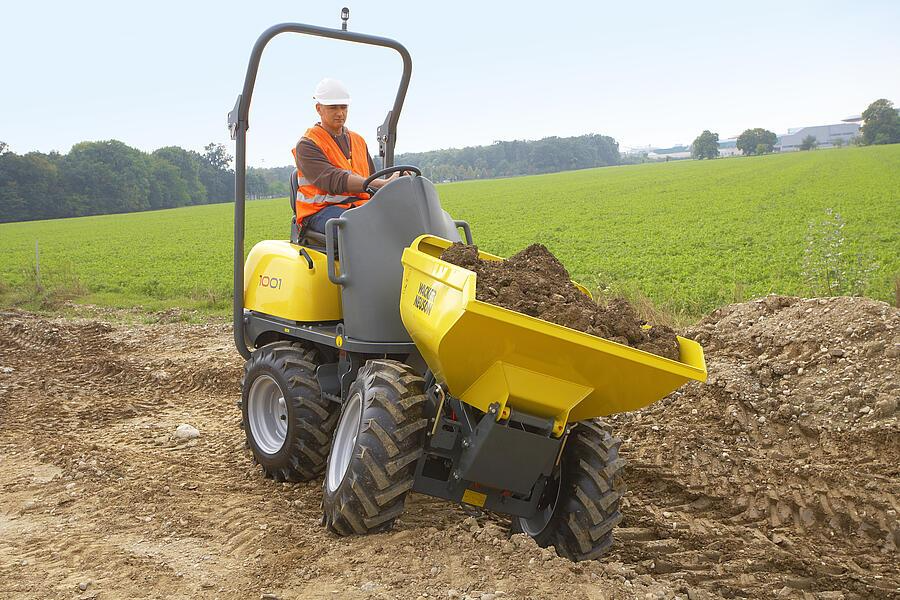

• The high ground clearance allows the machine to be operated on very uneven terrain, even off paved roads.

Driving without changing gears

• Since the dumpers do not need a gearshift at all, operation is not only easier and more intuitive, but also safer for the driver and the environment.
• The driver can concentrate fully on his work and the surroundings without shifting gears.

Entry and exit on both sides

• Entry and exit on both sides of machines is practical when the machine is parked very close to an obstacle or is being used for filling on one side.
• The control station can be safely entered and exited quickly and easily on either side of the machine.
• The 3-point contact on entry and exit provides added safety of the operator. When entering and exiting the machine, the operator has 3 points of contact area, alternating hand-hand-foot.

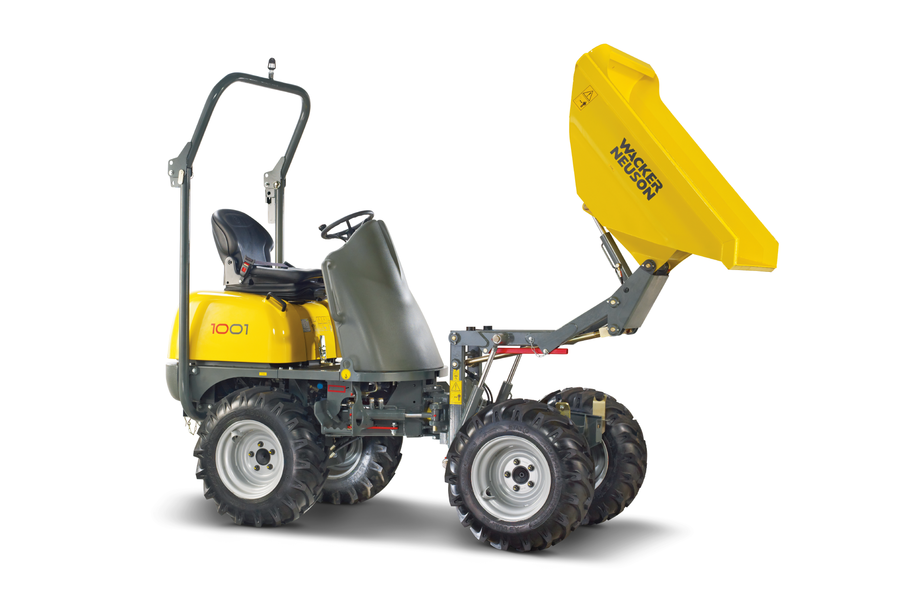

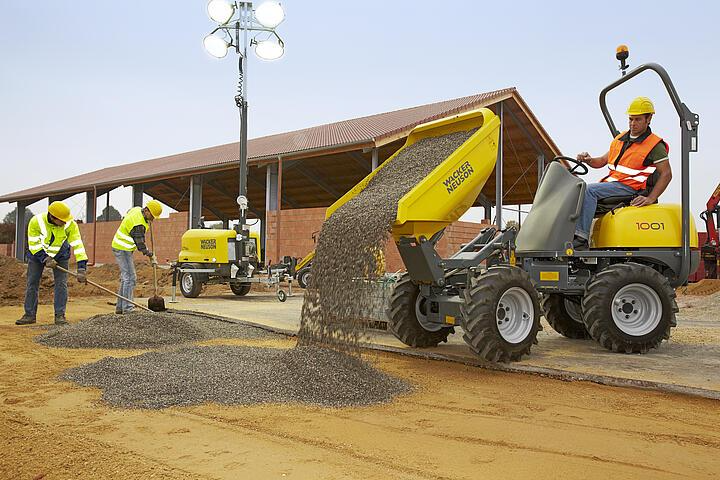

High tip skip

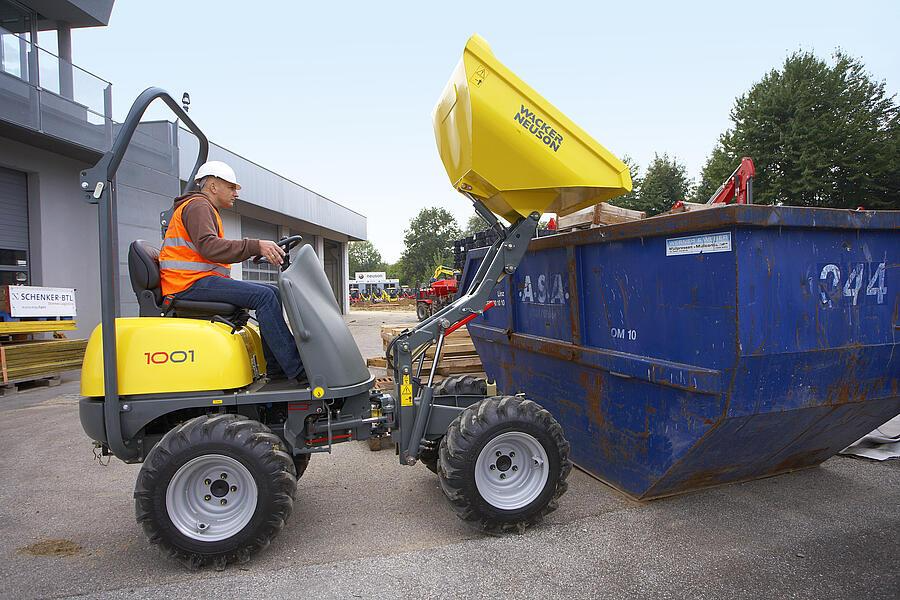

• The high tip skip makes it possible to get over height differences with no problem while unloading, without a ramp.

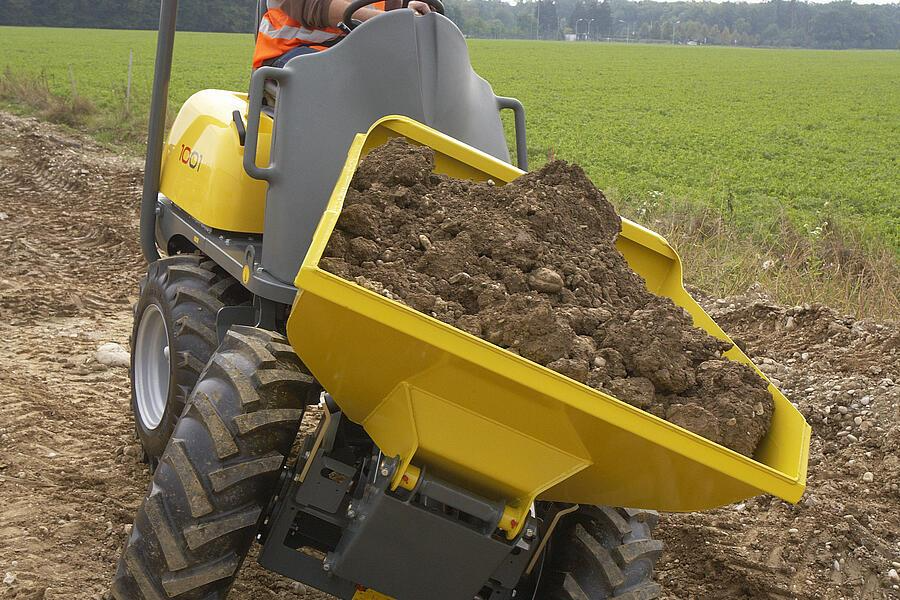

• Among other things, it can be used as a front tip skip, which comes with the advantage of a low dumping height.

Easy service and maintenance access

• The easily accessible service and maintenance access points make daily checks, as well as regular maintenance and servicing, simple and time-saving.
• Placed at an optimal height and without much effort, you can quickly reach all service and maintenance points to complete daily routine tasks without spending much time.

Large control stand

• Very comfortable: the large control stand offers freedom of movement for the legs.
• The wide leg protection provides protection from moving parts or parts of the load while driving.

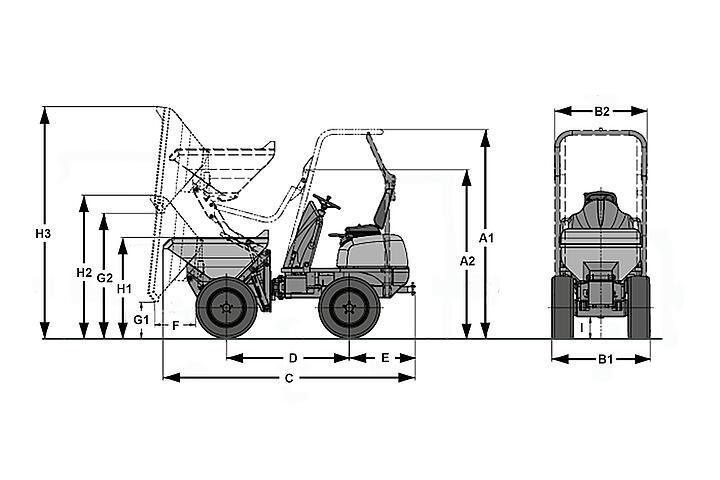

Mechanical - output details

Mechanical Details

Engine

Chassis

Shipping and Storage

Engines

Yanmar 3TNV76 EPA TIER II; 2012/46/EU

Standard Components

General

• Payload 1,000 kg
• Hydraulic high tip skip 415 L struck/525 L heaped
• Roll Over Protective Structure (ROPS)
• Speed: 14 km/h
• Tires: 10.0/75-15.3 (Mitas, TS-05) tread with very good traction, also for application in the industrial sector

Engine

• Water-cooled Yanmar diesel engine, model 3TNV76, 3 cylinders / 1,116 ccm, engine output 18.9 kW (25.7 hp), nominal speed 3,000 rpm (stage 5)

Hydraulics

• Permanent all-wheel drive
• Automotive drive system, TWIN-LOCK system
• Gear pump (25 L/min)
• Hydrostatic drive system as operating brake
• Hydrostatic articulated frame steering (load sensing)

Options

Cabin & ROPS

• Outside rear-view mirrors (rear-view mirrors left and right)

Hydraulics

• Panolin HLP Synt46 (Bio)

Paint

• Custom-made paint finish of machine in RAL (only yellow parts)
• Custom-made paint finish of machine, no RAL (only yellow parts)

Security

• Security 24 C (2000)
• Security 36 C (3000)
• Security 48 C (4000)

Other

• Manufacturing confirmation (document for typification)
• Reverse alarm
• LED rotating beacon
• Narrow tires (990 mm, 850 kg payload, with narrow ROPS bar)

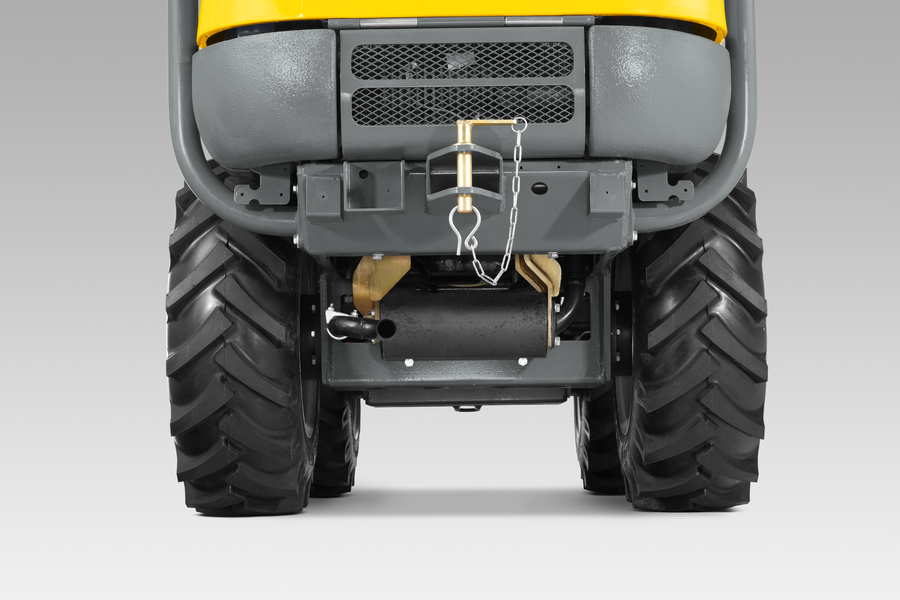

• Socket for towing device
• Road traffic regulation accessories (incl. road lighting and wheel chock)
• EquipCare (including app & manager)
• TÜV road homologation (Germany)

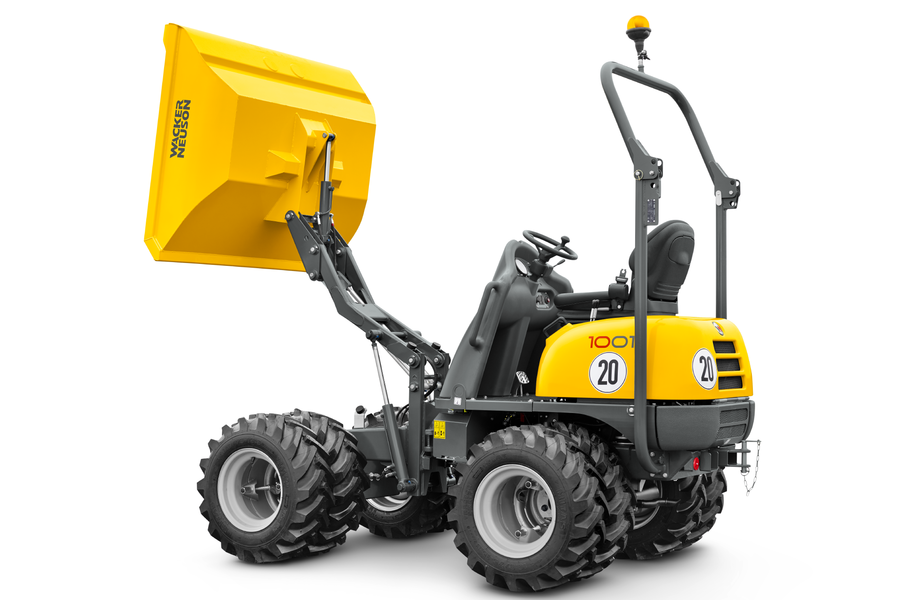

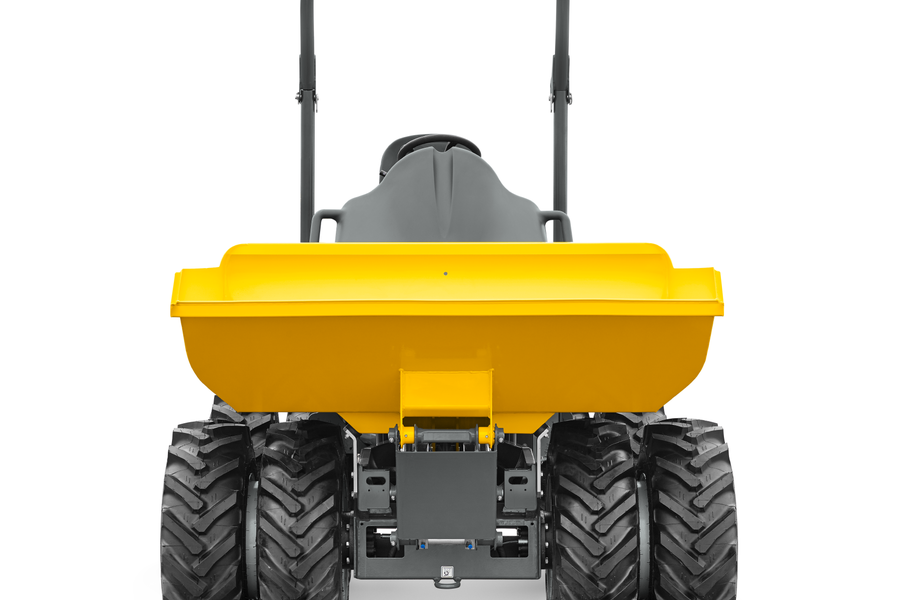

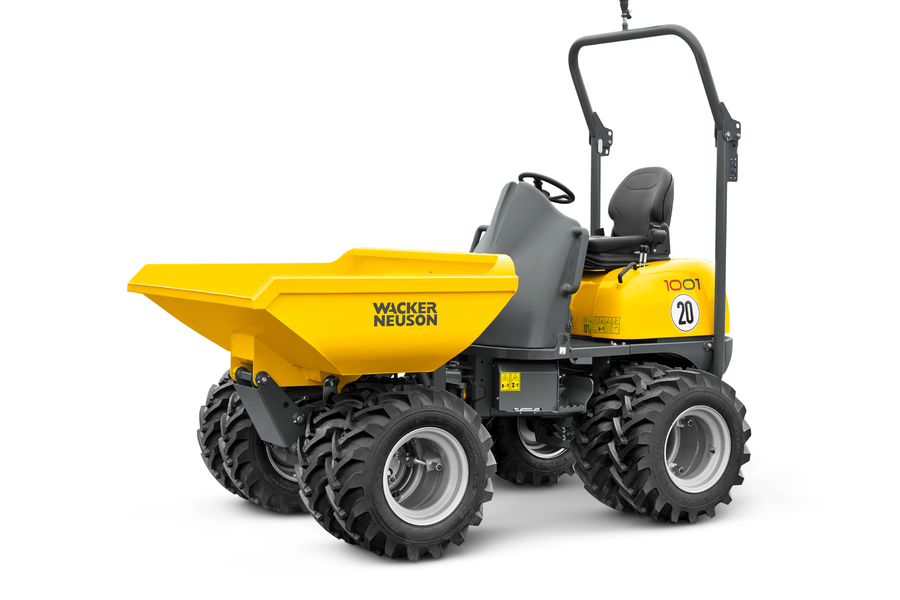

• Twin tires (front and rear, width 1,790 mm) incl. light materials skip (620 L struck/900 L heaped)
  NOTE: road circulation approval is not possible!

Editions

Edition A

Basic machine
+ Narrow tires
+ LED rotating beacon
+ Reverse alarm
+ Road traffic regulation accessories
+ Plug receptacle for towing device
+ Outside rear-view mirrors (rear-view mirrors)

(Shipping weight +/- 2%: 1,150 kg)

Edition B

Basic machine
+ LED rotating beacon
+ Reverse alarm
+ Road traffic regulation accessories

(Shipping weight +/- 2%: 1,215 kg)
