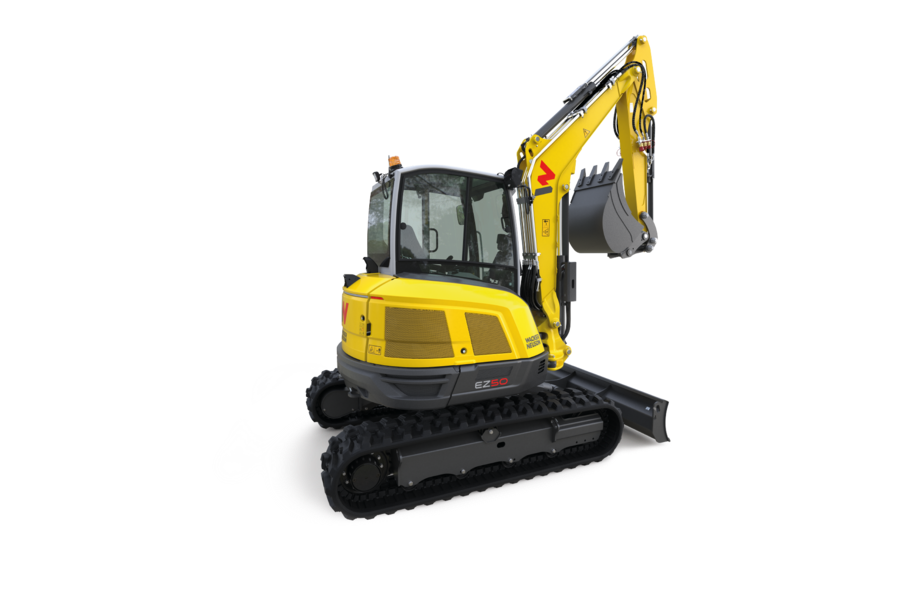

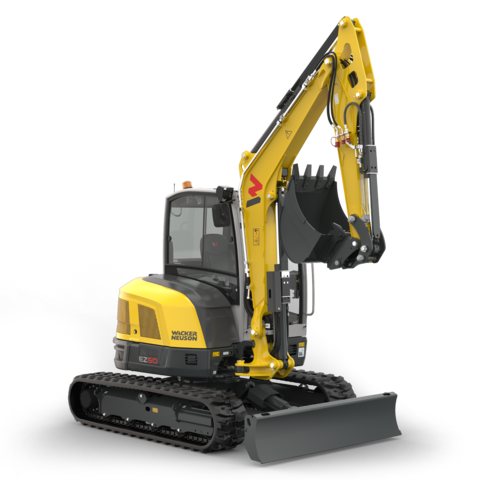

Tracked Zero Tail Excavator EZ50: The compact and powerful zero-tail excavator

Full speed ahead: The EZ50 mini-excavator offers excellent lifting and digging power as well as quick work cycles. Using the newest technologies, the emissions of the mini-excavator were reduced and, at the same time, the efficiency increased. For example, the powerful engine in the EZ50 meets the stage 5 exhaust emission standards. In terms of operator-friendliness, the excavator is impressive. The intuitive operating concept and excellent view of the work area contribute to the easy and comfortable operation of the machine. The EZ50 is also a zero-tail excavator and is well suited for working in narrow spaces.

Flexible cylinder rod protection

The cylinders and the cylinder rods are protected from damage thanks to the plastic rails, which lengthens their service life and saves costs. Due to their flexible material, they return to their original shape after an impact. Their appearance and characteristics are completely retained.

3-point kinematics

With 3-point kinematics, the conventional bucket linkage has been taken to a new level. This "3-bolt" design extends the bucket's angle of rotation to 200 degrees - 10% more than conventional bucket linkage. This increases the vertical dig depth as well as the digging forces. This eliminates the need to reposition the excavator as often, significantly increasing efficiency.

Active Working Signal (AWS)

The red LED strip running diagonally over the engine hood lights up when the joystick control is pressed down. This signals to bystanders nearby that the excavator is ready for operation and can be moved at any time.

Load Sensing Flow Sharing

Load Sensing Flow Sharing enables precise and efficient control of the excavator. The machine adjusts to the load and the joystick movements are always kept the same for the operator.
The hydraulics work more efficiently, saving energy and ultimately costs. But it also makes operation easier for the operator.
Load-sensing systems help to regulate the flow rate according to demand. The less power is used, the lower the fuel consumption.

Zero Tail

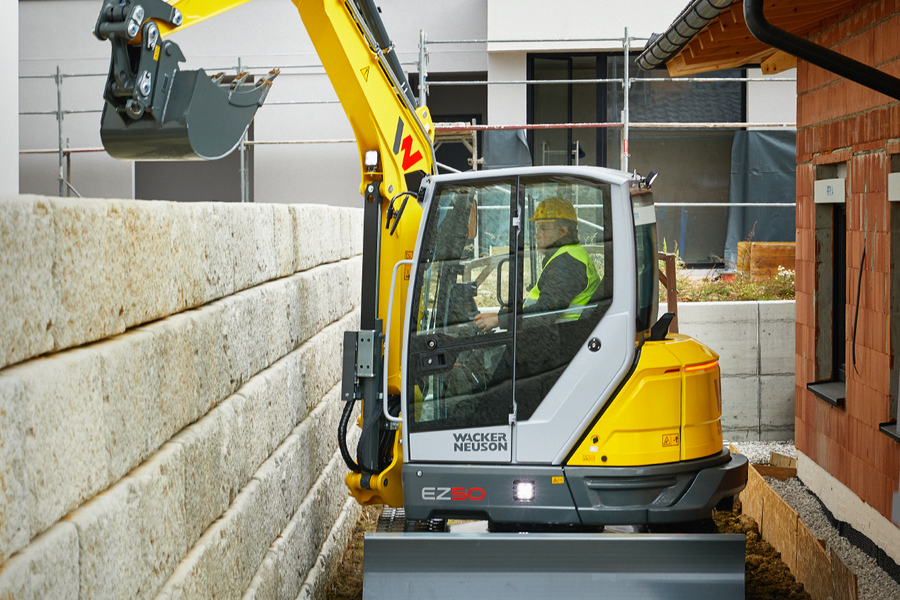

When space is limited: Pivot safely, even in the tightest of spaces or right next to the wall - with the Zerotail excavator without rear overhang, no problem.
Optimal working in limited working conditions, high maneuverability and time savings are guaranteed.

Compact dimensions

High level of safety during transportation, cost and time savings. The excavator scores points with a low entry height and reduced external dimensions due to the intelligent component arrangement, providing higher stability thanks to the low center of gravity.
Whether during transportation or in tight spaces: thanks to its compact design, the excavator can easily be taken to your next job site. And on the construction site, the machine can maneuver anywhere easily and quickly, even in confined spaces - for high efficiency in every application.

Numerous attachments

Thanks to the optional additional control circuits, our excavators can be equipped with a variety of attachments. This way, you can increase your application options in no time and thus increase the utilization of your excavator.

Hydraulic thumb

The optional hydraulic thumb offers, beside a conventional bucket application, a grip function, which expands the spectrum of applications.
With this additional grip function, material can be cleared away quite easily.

Up to 5 additional control circuits ex work

Thanks to the optional additional control circuits, our excavators can be equipped with a variety of attachments. This allows for more application possibilities and increased utilization of the excavator.

Hose guidance by swiveling bracket

Optimum hose routing through the swiveling bracket provides the best possible protection for the hoses against external influences, which extends their service life. The field of vision is not restricted and abrasion of the hoses is significantly reduced.

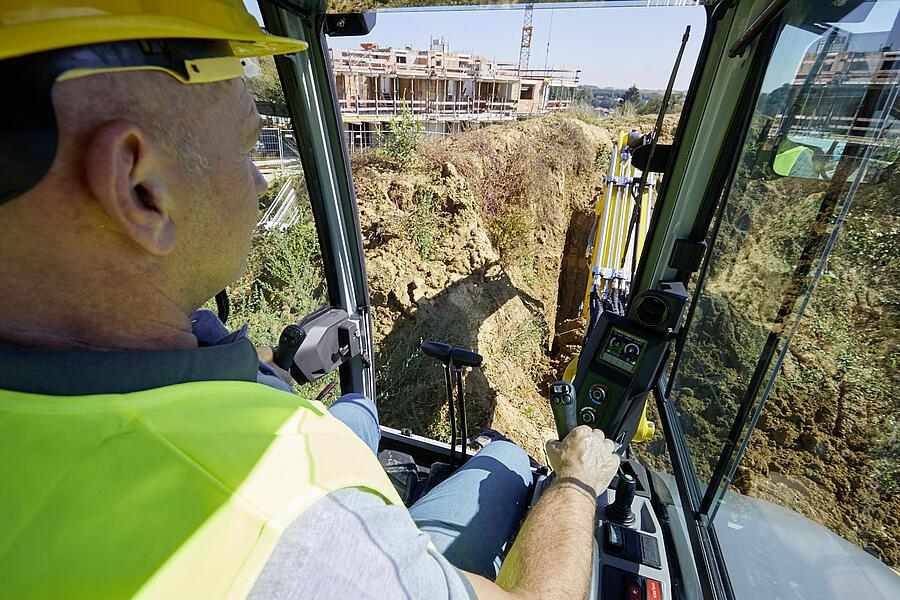

Very good all-round visibility

The design of the machine has been specially adapted to the needs of the operator in terms of optimum visibility. For example, the right front track is very visible in the normal sitting position, which significantly increases safety for the operator and the surrounding area.
Everything in view - ideal view of the attachment and of the right front track as well as the side and partial rear section of the machine

Mechanical - Output Details

Superstructure turning speed	9.5 1/min
Travel speed	4.4 km/h
Break Out Force Bucket	36.8 kN
Break Out Force Lift Arm	24.8 kN

Mechanical Details

Length	6,050 mm
Operating weight (min.-max.)	4,847 - 5,855 kg
Digging depth (max.)	3,667 mm
Width	1,960 mm
Height	2,667 mm
Weight	4,617 kg

Engine

Cylinder	3,0
Cylinder capacity	1,662 cm3
Effective power	32.5 KW
Nominal Engine speed	2,000 1/min
Battery capacity (nom. value)	77 Ah
Engine type	Diesel engine
Exhaust-gas limit	EU Stage V
Manufacturer	Perkins
Engine designation	403J - E17T

Hydraulic

Operating pressure	245 bar
Flow rate	126 l/min
Flow rate max.	126 l/min
Operating pressure slewing gear	209 bar
Hydraulikpump	Axial piston pump

Shipping and Storage

Shipping weight

4,617 kg

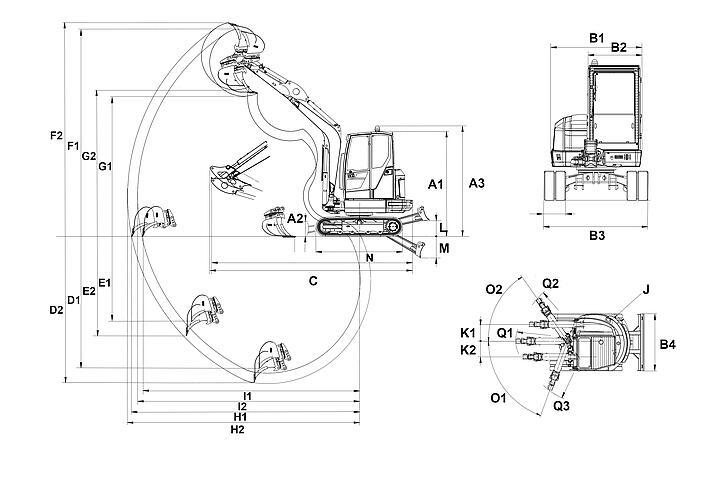

A1	Height with cab	2,555 mm
A3	Total height with rotating beacon	2,667 mm
B1	Width of upper carriage	1,724 mm
B2	Width of cab	980 mm
B3	Width travel gear	1,960 mm
B4	Width of dozer blade	1,960 mm
C	Transport length short shovel arm	5,467 mm
C	Transport length long shovel arm	5,482 mm
D1	Digging depth max., short shovel arm	3,467 mm
D2	Digging depth max., long shovel arm	3,667 mm
E1	Piercing depth max., short shovel arm	2,085 mm
E2	Piercing depth max., long shovel arm	2,262 mm
F1	Piercing height max., short shovel arm	5,470 mm
F2	Piercing height max., long shovel arm	5,599 mm
G1	Dumping height max., short shovel arm	3,655 mm
G2	Dumping height max., long shovel arm	3,784 mm
H1	Digging radius max., short shovel arm	5,916 mm
H2	Digging radius max., long shovel arm	6,150 mm
I1	Max. reach at ground level (short shovel arm)	5,794 mm
I2	Max. reach at ground level (long shovel arm)	5,988 mm
J	Tail swing radius	1,047 mm
J	Tail swing radius with tail weight	1,152 mm
K1	Boom offset max. (to center of bucket right side)	764 mm
K2	Boom offset max. (to center of bucket left side)	770 mm
L	Stacking height max. (dozer blade above surface)	410 mm
M	Digging depth max. (dozer blade below surface)	443 mm
N	Length travel drive	2,508 mm
O1	Max. swivel angle (arm system to the left)	70 °
O2	Max. swivel angle (arm system to the right)	55 °
Q1	Boom swing radius center	2,505 mm
Q2	Boom swing radius right	2,329 mm
Q3	Boom swing radius left	2,064 mm
	Distance bucket dozer blade, short shovel arm	429 mm
	Distance bucket dozer blade, long shovel arm	333 mm

Standard Components

General

Rubber track: 400 mm
Dozer blade
LED work light mounted on lifting arm
AWS (Active Working Signal) on the engine hood (red LED strips that signal the machine’s readiness to work)
Toolkit, including grease press and operator's manual

Engine

Liquid-cooled Perkins diesel engine, model 403J-E17T, 3-cylinder/1,662 ccm, net output (Power Mode) according to ISO 14396: 32.5 kW (44.2 hp), nominal speed 2,000 rpm (stage 5)
Auto idling system

Canopy

Adjustable, sprung comfort seat with artificial leather cover and safety belt
Canopy (and cabin) meets the current ROPS, TOPS and FOPS* regulations

Hydraulics

Load Sensing Flow Sharing hydraulic system (max. discharge volume 126 L/min, max. working pressure 245 bar)
Hydraulic pilot control via joystick operation
Valve control according to ISO, DIN, SAE, PCSA and EURO
Auxiliary hydraulic connections for 2 directions of travel on shovel arm | AUX I
Automatic 2-speed transmission, 2 travel speeds automatically switched, 2nd gear manually lockable
Hydraulically dampened drive pedals and forward + reverse travel lever
Hydraulic oil cooler
Parking brake for undercarriage and slewing system
Proportional control for AUX I; adjustable and programmable discharge volume via jog dial

Options

Cab

Glazed safety cabin with cabin heating (incl. divided windshield and fully-lined cab interior), windshield wiper and washer system, radio installation setup and cell phone holder with USB charging function - only activated in conjunction with radio)
LED front and rear work lights
Outside rear-view mirrors (rear-view mirrors) on both sides
Bluetooth radio with intercommunication station (for cabin version only)
Air-conditioning system
Fragment protection
Rear-view camera incl. 7-inch multifunction display (for cabin version only)
Orange safety belt
Front protective grating

Hydraulics

Overload valve for auxiliary hydraulics/AUX I
Hydraulic coupling, flat - auxiliary hydraulics/AUX I
Pressure release for auxiliary hydraulics/AUX I
3rd control circuit/AUX II
Overload valve for auxiliary hydraulics + 3rd control circuit/AUX I + II
Pressure release of 3rd control circuit + auxiliary hydraulics/AUX I + II
Powertilt setup/AUX III
Setup for hydraulic quick-hitch system/AUX IV
Powertilt + HSWS setup/AUX III + IV
Hydraulic thumb setup/AUX VI
Control circuit for grapple/AUX V
Panolin HLP Synt46 bio oil
Advanced overload warning device

Paint

Custom-made paint finish of machine in RAL (only for yellow parts)
Custom-made paint finish of machine, NO RAL (only for yellow parts)
Single-color custom-made paint finish of cabin/canopy/ROPS in RAL (only RAL color possible)

Security

Security 24 C (2000)
Security 36 C (3000)
Security 48 C (4000)
Security 60 C (5000)

Miscellaneous

Auto-stop function
Counterweight (+ 200 kg)
EquipCare
EquipCare Dual ID
Drive signal, broadband tone
Long shovel arm (+ 200 mm)
Swiveling dozer blade, hydraulic (+ 216 kg, turning angle 25° left and right, incl. floating position)
Orange and/or green LED rotating beacon
ISO-SAE change-over switch
Steel track (400 mm)
Piston rod protection (for bucket and dipper stick cylinders)
KAT immobilizer system
Service valve
Refueling pump

Editions

Edition A

Basic machine
+ Cab (standard)
+ LED front and rear work lights
+ Outside rear-view mirrors, left and right
+ Advanced overload warning device
+ Setup for hydraulic quick-hitch system/AUX IV
+ Auto-stop function
+ Drive signal
+ Piston rod protection
+ Refueling pump

(Shipping weight +/- 2%: 4,763 kg)

Edition B

Basic machine
+ Cab (standard)
+ LED front and rear work lights
+ Air-conditioning system
+ Advanced overload warning device
+ Overload valve AUX I + AUX II
+ 3rd control circuit/AUX II
+ Hydraulic coupling, flat
+ Setup for hydraulic quick-hitch system/AUX IV
+ Pressure release AUX I + AUX II
+ Counterweight
+ Piston rod protection
+ Long dipper stick
+ Diesel filling pump

(Shipping weight +/- 2%: 5,011 kg)

Edition C

Basic machine
+ Cab (standard)
+ LED front and rear work lights
+ Air-conditioning system
+ Bluetooth radio with intercommunication station
+ Advanced overload warning device
+ Overload valve AUX I + AUX II
+ 3rd control circuit/AUX II
+ Powertilt + HSWS setup/AUX III + IV
+ Control circuit for grapple/AUX V
+ Hydraulic coupling, flat
+ Pressure release AUX I + AUX II
+ Counterweight
+ Piston rod protection
+ Diesel filling pump

(Shipping weight +/- 2%: 5,010 kg)
