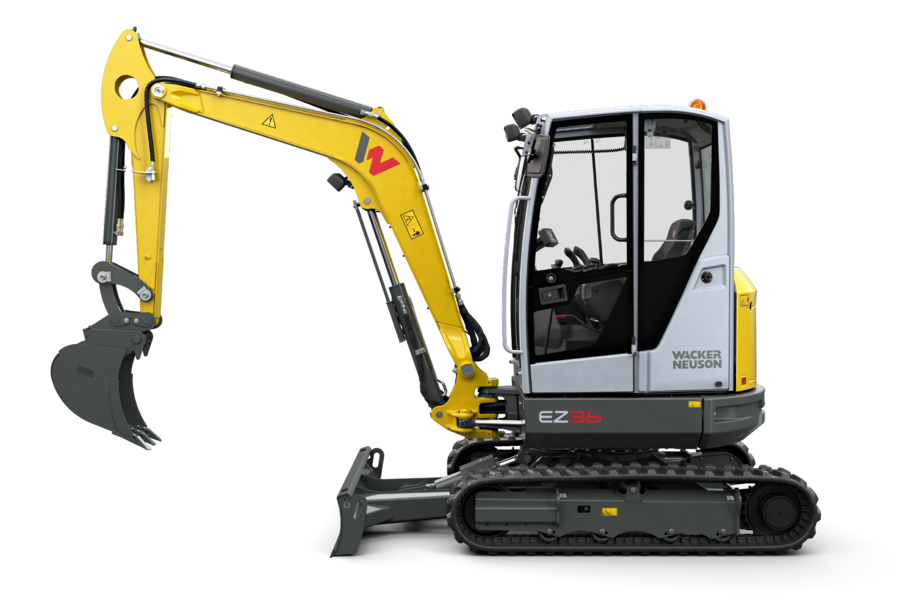

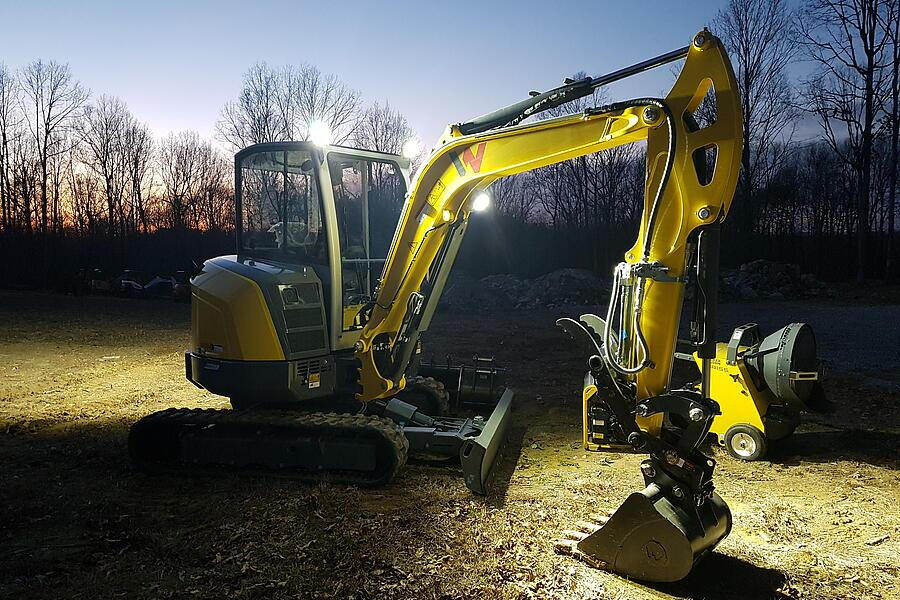

Tracked Zero Tail Excavator EZ36: Compact design and high performance

Get in and start working – with the EZ36, performance meets maximum efficiency. This zero tail excavator is ideal if compact dimensions are needed. Minimal rear overhang makes working along walls and other obstacles an easy task. The machine features intuitive operation using a joystick, display and jog dial, as well as a comfortable working environment. This leaves the operator in full control of the application. Configurable to meet a customer’s requirements, the EZ36 offers dealer-installed options, including a hydraulic thumb and rotating beacon.

Comfortable, fully glazed cab

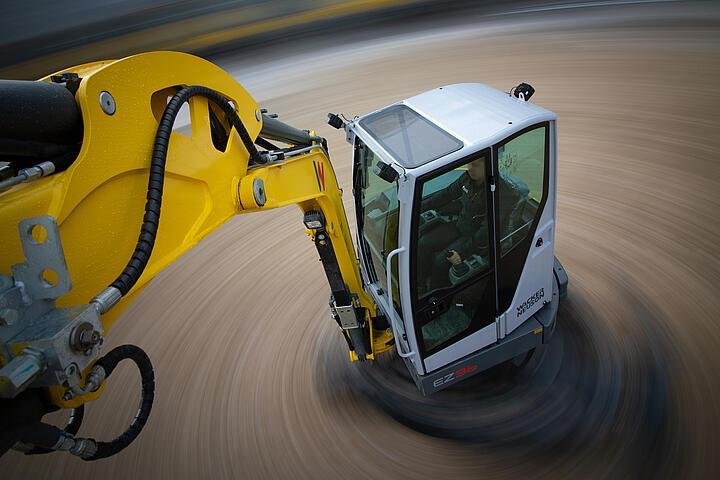

The large, fully glazed and tiltable cabin with roof window offers the operator an optimal 360° visibility of his work area. This gives the operator a good view of his working area, colleagues and any dangers. Meanwhile, available despite this.
It can be easily disassembled for service and repair work. All hydraulic functions of the excavator meanwhile remain available despite this.

Intuitive operating concept

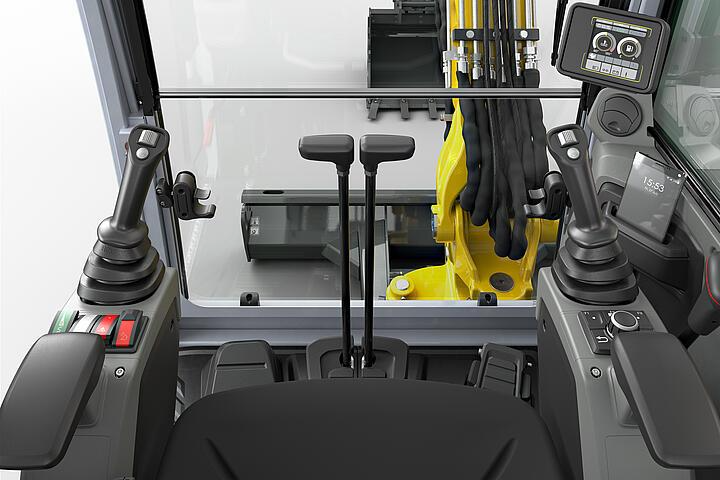

The intuitive operating concept enables simple and comprehensive control of the excavator. The machine is operated using a joystick, jog dial and keypad. This makes accessing attachment and oil level settings for the additional control circuits quick and easy.

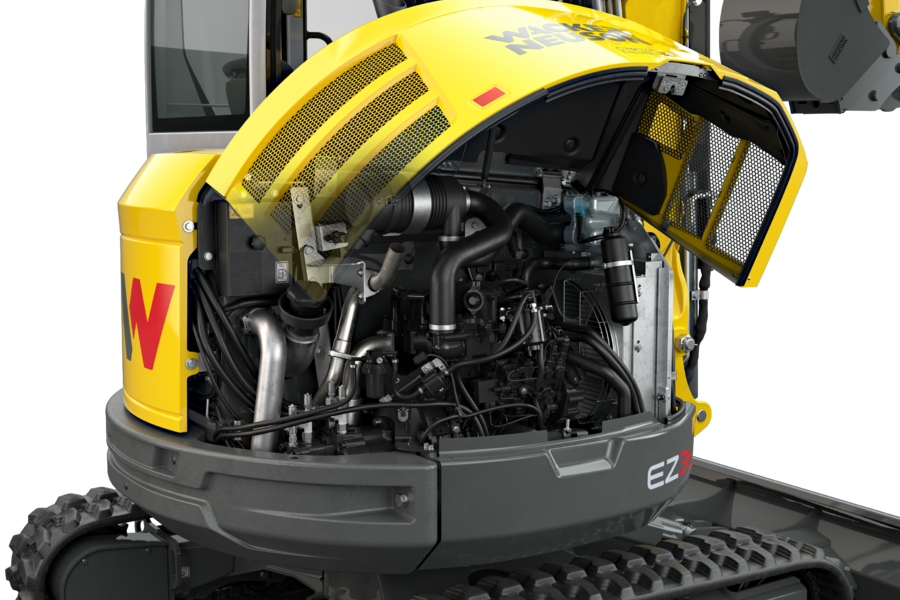

Optimized drive concept

The well thought-out drive concept with optimized engine-pump management allows quick and precise control of the excavator. This makes up to 15 percent faster work cycles possible. The available engine versions are low in consumption and require no exhaust after-treatment.

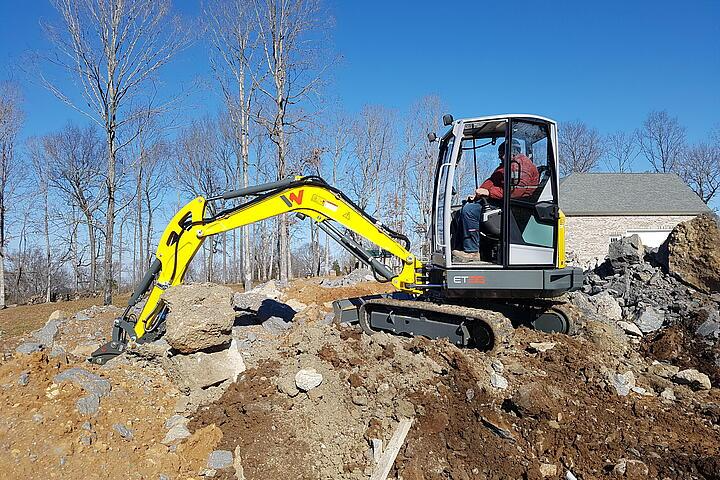

VDS Vertical Digging System

The vertical digging system compensates for slopes of up to 15 degrees, making it possible to vertically excavate on a slope. This is not only ergonomic for the operator, but it also saves time and also means less excavated material.
Up to 25 percent material and time savings when excavating and filling. Safe working and higher stability in sloping spaces.

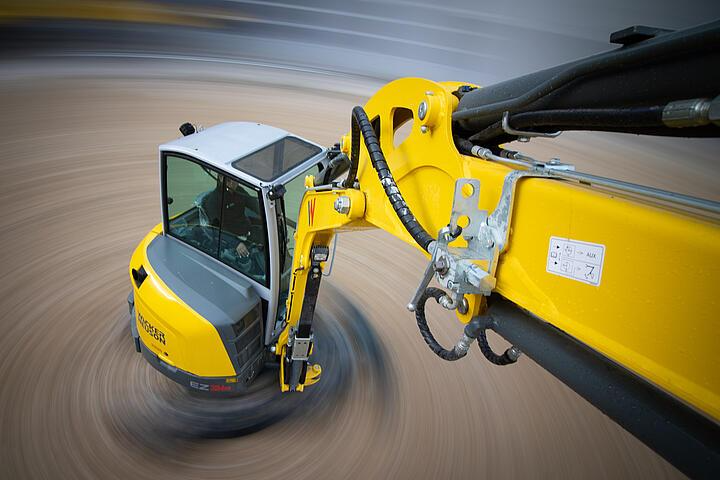

The same swing power over 360 degrees allows fatigue-free work with the seat position remaining the same.

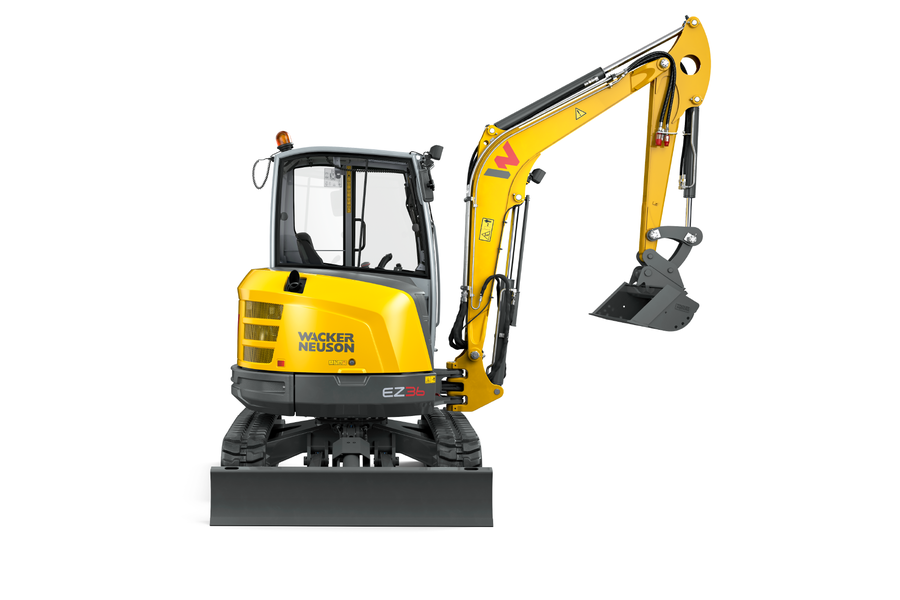

Zero Tail

When space is limited: Pivot safely, even in the tightest of spaces or right next to the wall - with the Zerotail excavator without rear overhang, no problem.
Optimal working in limited working conditions, high maneuverability and time savings are guaranteed.

Dirt-repellent travel gear

Less dirt is accumulated in the slanted travel gear box and, due to its special method of construction, it is also easier to clean.

Custom-made paint finish

All excavators by Wacker Neuson can be ordered personalized with special paint in the production process.

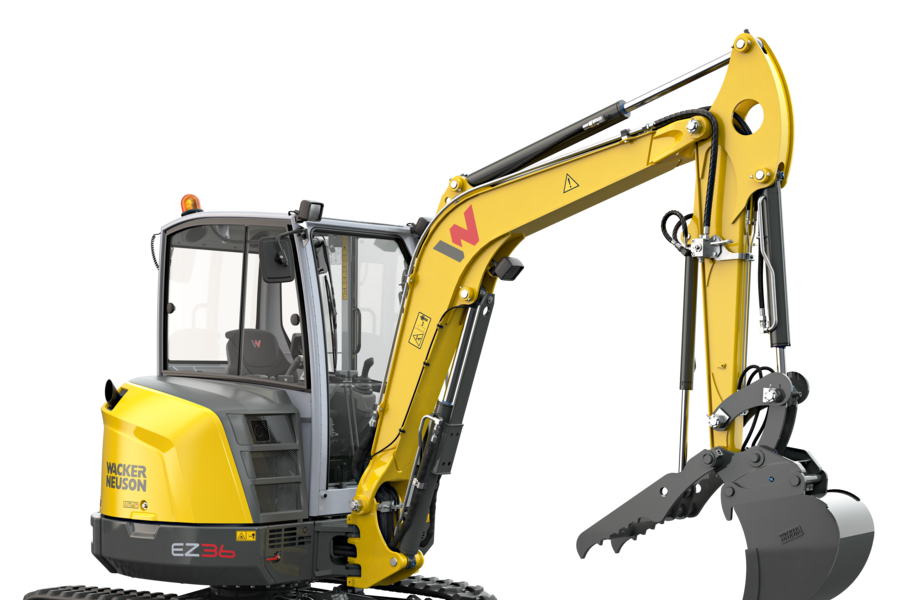

Hydraulic thumb

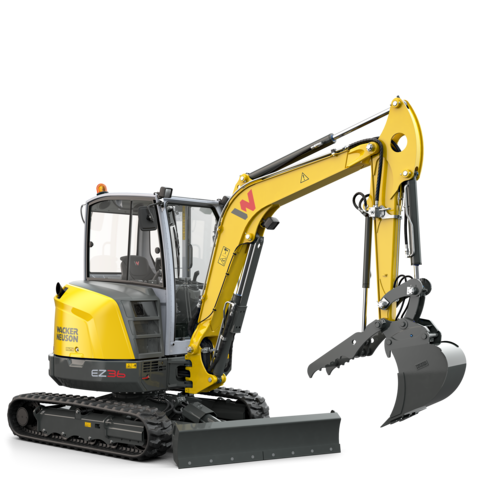

The optional hydraulic thumb offers, beside a conventional bucket application, a grip function, which expands the spectrum of applications.
With this additional grip function, material can be cleared away quite easily.

Flexible cylinder rod protection

Protective cylinder guards made of plastic keep the cylinder rods of lifting arm, bucket and dipper stick cylinders safe from damage, increasing service life and can save significant costs. The cylinder guard material is flexible, so no permanent damage occurs upon contact with foreign objects. Work interruption due to replacement is eliminated.

Mechanical - Output Details

Superstructure turning speed	9.5 1/min
Travel speed	4.7 km/h
Break Out Force Bucket	35 kN
Break Out Force Lift Arm	21.1 kN

Mechanical Details

Length	5,508 mm
Operating weight (min.-max.)	3,718 - 4,945 kg
Digging depth (max.)	3,497 mm
Width	1,750 mm
Height	2,711 mm

Engine

Cylinder	3,0
Cylinder capacity	1,642 cm3
Effective power	18.2 KW
Nominal Engine speed	2,400 1/min
Battery capacity (nom. value)	71 Ah
Engine type	Diesel engine
Exhaust-gas limit	EU Stage V
Manufacturer	Yanmar
Engine designation	3TNV88

Hydraulic

Operating pressure	240 bar
Flow rate max.	120 l/min
Operating pressure slewing gear	195 bar
Hydraulikpump	Axial piston and 2 gear pumps

Operating Fluids

Cooling fluid volume	5 l
Hydraulic fluid volume	61.5 l

Shipping and Storage

Shipping weight

3,529 kg

Chassis

Drive unit

Axialpistonmotor with RGU

Engine

Cylinder	3
Cylinder capacity	1,642 cm3
Effective power	18.2 KW
Nominal Engine speed	2,400 1/min
Stroke
Bore
Engine type	Diesel engine
Fuel type	Diesel EN 590
Exhaust-gas limit	EU Stage V
Manufacturer	Yanmar
Engine designation	3TNV88

Cylinder	3
Cylinder capacity	1,642 cm3
Effective power	22.2 KW
Nominal Engine speed	2,400 1/min
Starter battery Voltage	12 V
Stroke
Bore
Engine type	Diesel engine
Exhaust-gas limit	EPA3
Manufacturer	Yanmar
Engine designation	3TNV88

		mit Option VDS

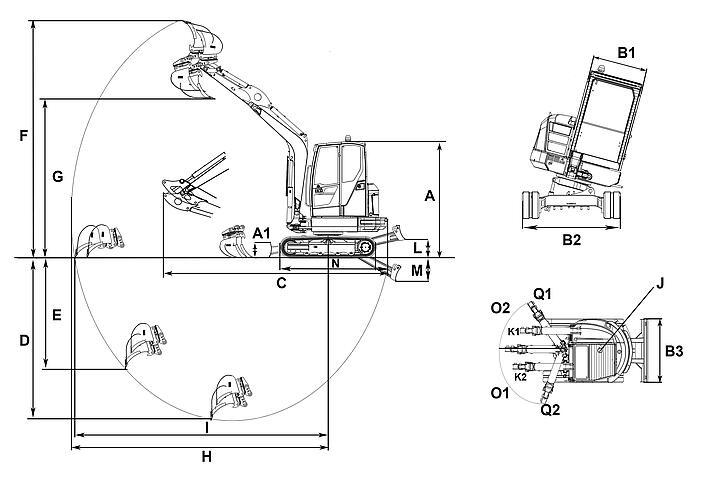

A	Height with cab	2,491 mm	2,573 mm
A1	Height of dozer blade	357 mm	357 mm
A	Total height with rotating beacon	2,630 mm	2,711 mm
B1	Width of cab	980 mm	980 mm
B2	Width travel gear	1,750 mm	1,750 mm
B3	Width of dozer blade	1,750 mm	1,750 mm
C	Transport length	5,503 mm	5,489 mm
D	Digging depth max., short shovel arm	3,247 mm	3,172 mm
D	Digging depth max., long shovel arm	3,497 mm	3,422 mm
E	Piercing depth max., short shovel arm	2,123 mm	2,048 mm
E	Piercing depth max., long shovel arm	2,360 mm	2,285 mm
F	Piercing height max., short shovel arm	4,925 mm	5,004 mm
F	Piercing height max., long shovel arm	5,082 mm	5,157 mm
G	Dumping height max., short shovel arm	3,336 mm	3,411 mm
G	Dumping height max., long shovel arm	3,489 mm	3,564 mm
H	Digging radius max., short shovel arm	5,298 mm	5,270 mm
H	Digging radius max., long shovel arm	5,582 mm	5,546 mm
I	Max. reach at ground level (short shovel arm)	5,391 mm	5,378 mm
I	Max. reach at ground level (long shovel arm)	5,641 mm	5,629 mm
J	Tail swing radius	933 mm	933 mm
K1	Boom offset max. (to center of bucket right side)	680 mm	680 mm
K2	Boom offset max. (to center of bucket left side)	650 mm	650 mm
L	Stacking height max. (dozer blade above surface)	393 mm	393 mm
M	Digging depth max. (dozer blade below surface)	505 mm	505 mm
N	Length travel drive	2,062 mm	2,062 mm
O1	Max. swivel angle (arm system to the left)	70 °	70 °
O2	Max. swivel angle (arm system to the right)	45 °	45 °
Q1	Boom swing radius right	55 °	55 °
Q2	Boom swing radius left	70 °	70 °

Standard Components

General

Rubber track: 300 mm
Dozer blade
LED work light mounted on lifting arm
Toolkit, including grease press and operator's manual
Watertight, lockable document box

Engine

Liquid-cooled Yanmar diesel engine, model 3TNV88, 3-cylinder/1,642 ccm, net output according to ISO 14396: 22.2 kW (30.2 hp), nominal speed 2,500 rpm (stage 5)
Auto idling system

Canopy

Adjustable, sprung comfort seat with mock leather upholstery and safety belt
Canopy (and cabin) meets the current ROPS, TOPS and FOPS* regulations

Hydraulics

Dual variable displacement pump and double gear pump (42.5 x 42.5 + 26.3 + 11.3 L/min)
Aggregate power level regulation
Hydraulic pilot control via joystick operation
Valve control according to ISO, DIN, SAE, PCSA and EURO
Auxiliary hydraulic connections for two directions of travel, mounted on dipper stick
Automatic 2-speed transmission, 2 travel speeds automatically switched, 2nd gear manually lockable
Hydraulically servo-controlled and damped foot pedals and forward + reverse travel lever
Hydraulic oil cooler
Enlarged unpressurized return line (for various attachments)
Proportional control for AUX I; discharge volume adjustable via potentiometer

Options

Cab

Cab (standard, glazed safety cab)
Cab heating
Upper windshield swings back, bottom window pane lifts out
Windshield wiper and washer system
Fully-lined cab interior
Front and rear work lights
Side mirror (rear-view mirror)
Complete radio with intercommunication station and USB charging connection
Air-conditioning system
Fragment protection

Hydraulics

Overload valve for auxiliary hydraulics/AUX I
3rd control circuit/AUX II
Overload valve for 3rd control circuit/AUX II
Powertilt setup/AUX III
Setup for Easy Lock/AUX IV
Control circuit for grapple/AUX V
Panolin HLP Synt46 bio oil
Flat-faced coupler
Hydraulic thumb (setup)
Advanced overload warning device

Paint

Custom-made paint finish of machine in RAL (only for yellow parts)
Custom-made paint finish of machine, no RAL (only for yellow parts)
Custom-made paint finish of cabin/canopy RAL (only RAL color possible)

Security

Security 24 C (2000)
Security 36 C (3000)
Security 48 C (4000)
Security 60 C (5000)

Miscellaneous

Outside rear-view mirrors (rear-view mirrors), right and left
EquipCare
EquipCare Dual ID
VDS (Vertical Digging System)
Yanmar diesel engine 3TNV88F-EPWN (stage 5)
LED rotating beacon

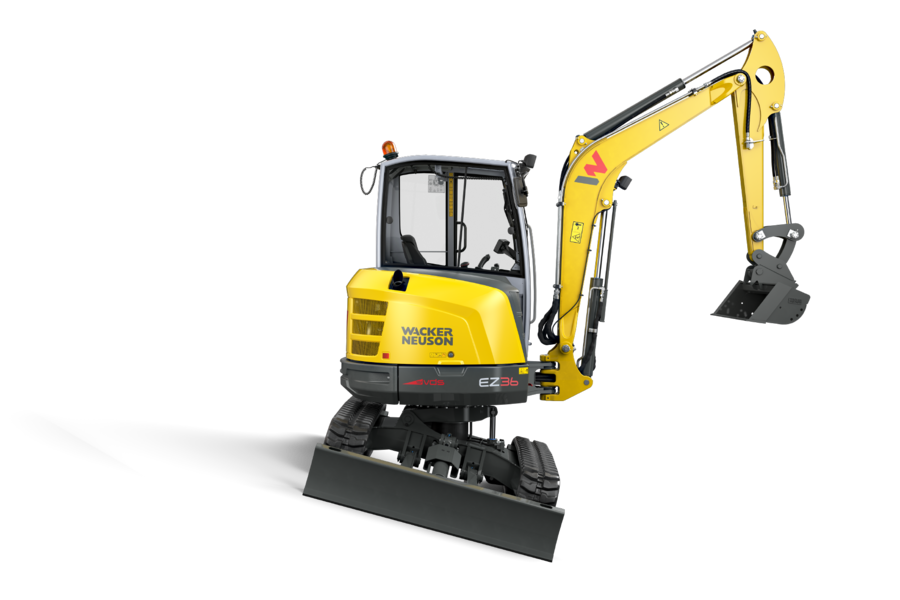

Swiveling dozer blade, hydraulic (+ 100 kg, turning angle 25° left and right, incl. floating position)
KAT immobilizer system
Long shovel arm (+ 250 mm)
ISO-SAE change-over switch
Piston rod protection
Drive signal
Steel track (300 mm)
Counterweight (+ 153 kg)

Editions

Edition A

Basic machine
+ Engine 18.2 kW (stage 5)
+ Cab (standard)
+ LED headlights
+ Counterweight
+ Long dipper stick
+ Advanced overload warning device
+ Setup for Easy Lock/AUX IV

(Shipping weight (+/- 2%): 3,800 kg)

Edition B

Basic machine
+ Engine 18.2 kW (stage 5)
+ Cab (standard)
+ LED headlights
+ Counterweight
+ VDS (Vertical Digging System)
+ Overload valve for auxiliary hydraulics/AUX I
+ Setup for Easy Lock/AUX IV
+ Advanced overload warning device
+ Powertilt setup/AUX III
+ Control circuit for grapple/AUX V

(Shipping weight (+/- 2%): 3,803 kg)
