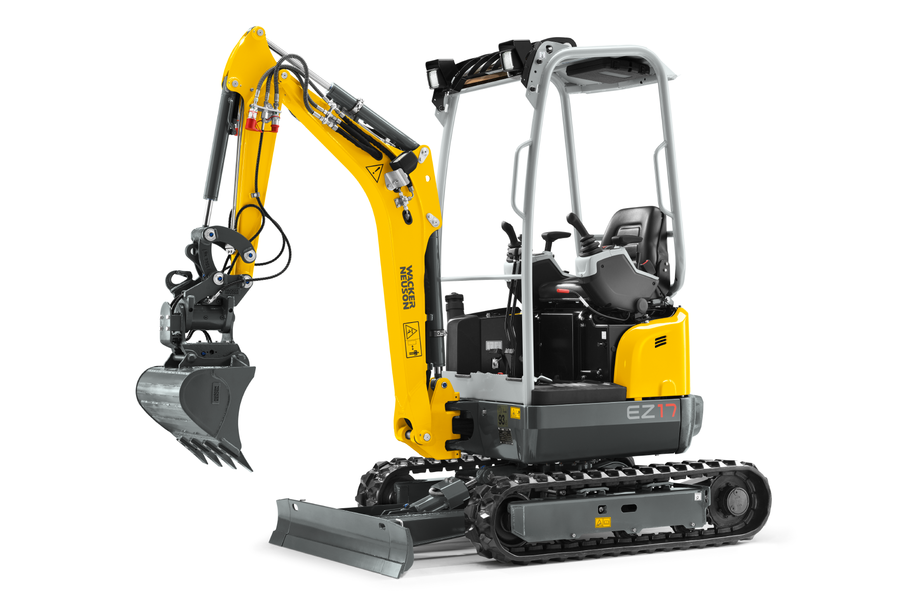

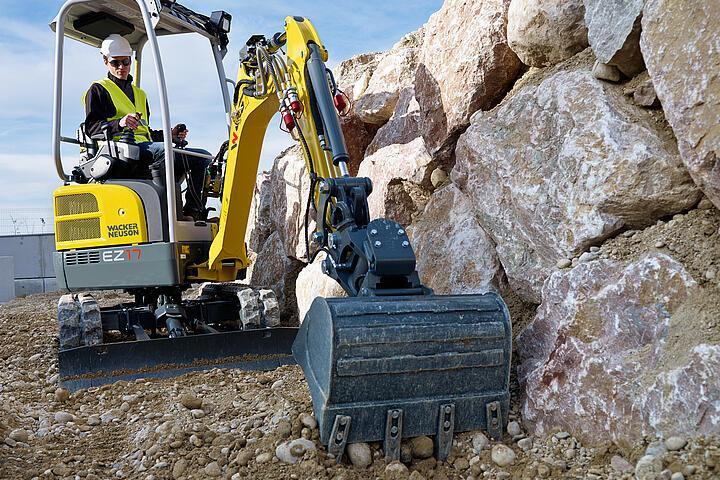

Tracked Zero Tail Excavator EZ17: Compact, powerful, and maneuverable

The EZ17 compact excavator is the most powerful zero tail excavator in its class. The large-volume diesel engine, LUDV (Load Sensing System) and an innovative cooling system provide the highest levels of performance and efficiency. The compact and durable design guarantees a long service life. The EZ17 offers the operator an unrestricted field of vision through the roof window.

Mechanical-output details

Gradeability	58 %
Superstructure turning speed	10 1/min
Travel speed	4.8 km/h
Break Out Force Bucket	18.7 kN
Break Out Force Lift Arm	9.1 kN

Mechanical Details

Length	3,585 mm
Operating weight (min.-max.)	1,724 - 2,083 kg
Digging depth (max.)	2,486 mm
Width	990 mm
Height	2,360 mm

Engine

Cylinder	3,0
Cylinder capacity	1,176 cm3
Tank capacity	22 l
Effective power	13.8 KW
Nominal Engine speed	2,200 1/min
Operating power	13.4 KW
Operating Engine speed	2,200 1/min
Starter battery Voltage	12 V
Battery capacity (nom. value)	44 Ah
Engine type	Diesel engine
Manufacturer	Yanmar
Engine designation	3TNV76

Hydraulic

Operating pressure	240 bar
Flow rate	39 l/min
Flow rate max.	39 l/min
Tank capacity	21 l
Operating pressure slewing gear	150 bar
Hydraulikpump	Variable displacement pump

Chassis

Operating pressure

240 bar

Shipping and Storage

Shipping weight

1,596 kg

Optimally protected stick and lifting arm cylinders

The stick and lifting arm cylinders are mounted on the upper side, so that they won’t be demolished either by colliding with the dozer blade or due to picked-up material. This minimizes the probability of damages. This saves costs on the one hand and additionally ensures safety.

Powerful drive system with LUDV

The powerful drive system combines with a load-sensing hydraulic system (LUDV) to deliver quick working cycles, greater application flexibility, and easier control for comfortable and fatigue-free operation of the excavator. No matter what the load to be moved, the control movements on the joystick stay the same. Along with increased operating comfort, this results in a performance plus, while simultaneously reducing fuel consumption.

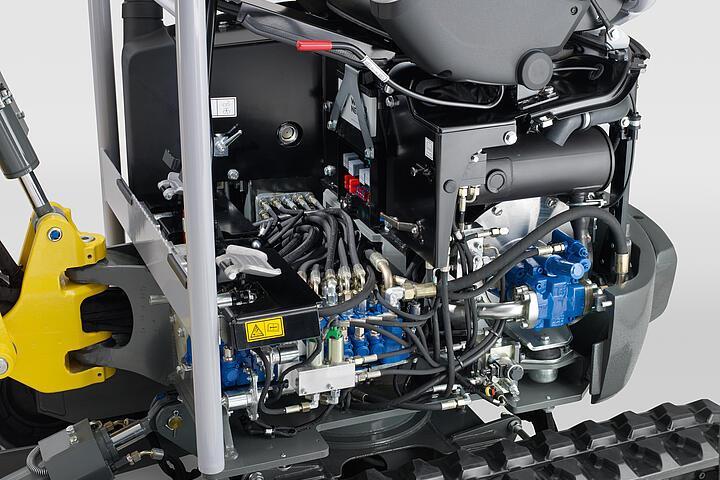

Maintenance and disassembly easier than ever before

The EZ17 redefines suitability for daily use. With a 17 mm wrench, the most important components can be disassembled at the construction site and everything can be detached conveniently to reach and check easily. Maintenance and disassembly on the EZ17 is very simple. This is important for the construction site: Time is money.

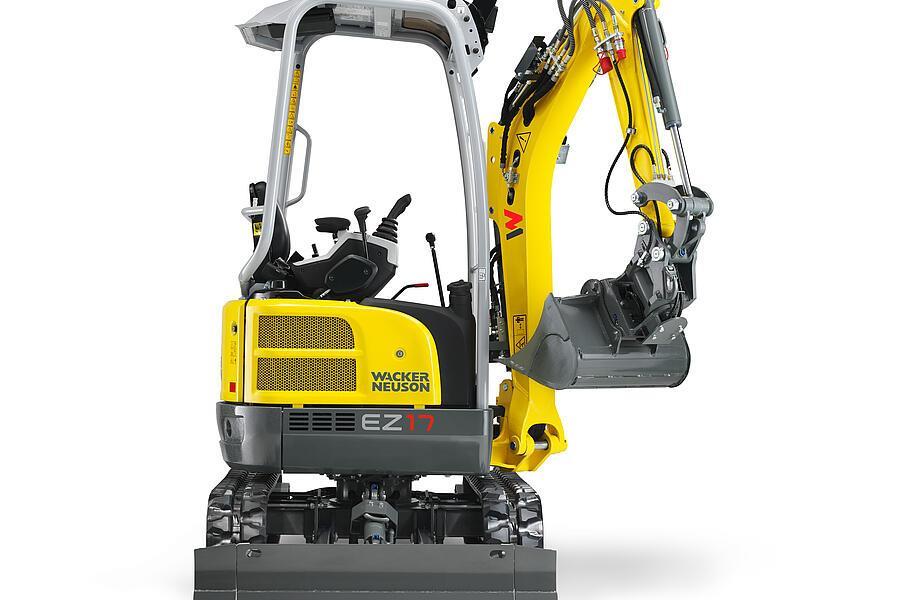

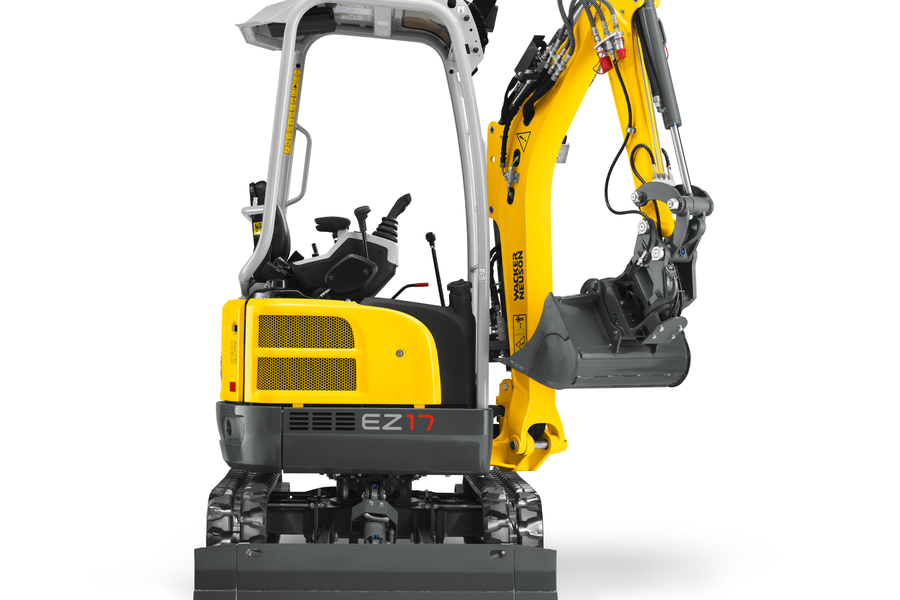

100% zero tail

Sometimes less is more, especially in tight spaces. The excavator has no rear overhang and is ideally suited for working directly alongside walls and obstructions.

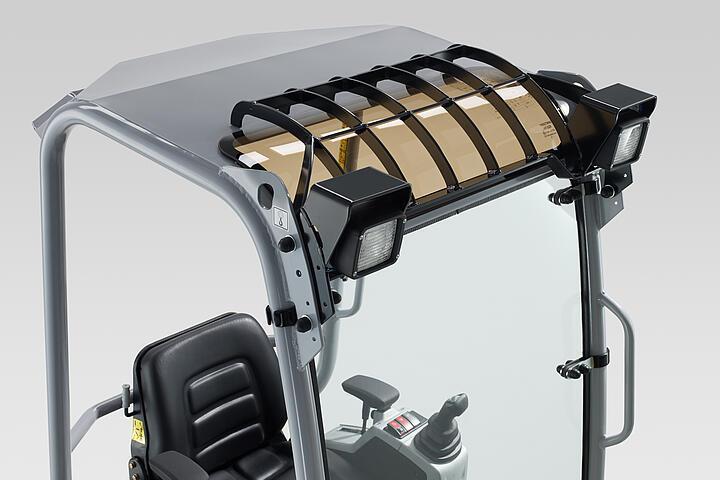

Canopy with roof window

The canopy with roof window provides a clear view in all directions, even upward. Beside the perfect view of the work area, comfort is of great importance. This is provided by, among other things, an adjustable operator’s seat with springs, an artificial leather cover, and a safety belt.

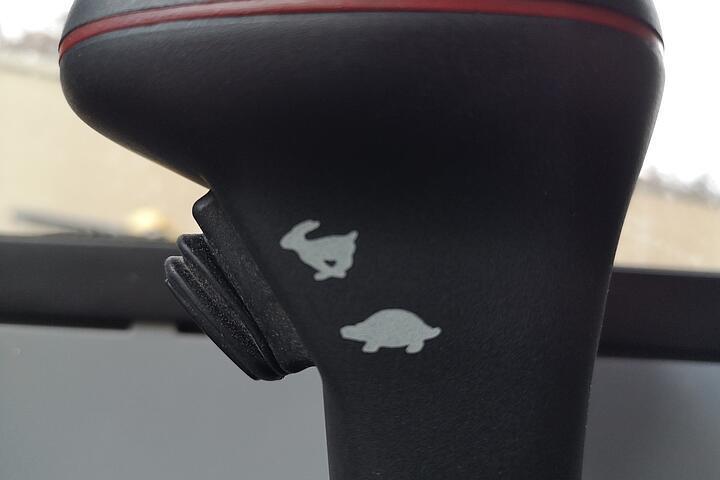

2 travel speeds

The excavator is equipped with a second travel speed level as standard. This way, it can quickly switch positions on the construction site, saving valuable time.

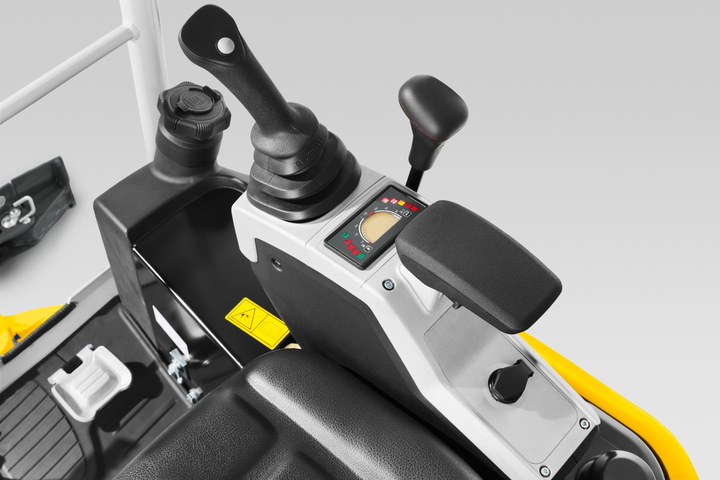

Hydraulic joystick operation

The ergonomic and sturdy joysticks, which work completely proportionally, expand the functions and possibilities for controlling the excavator. The operator can carry out movements more precisely and work with increased concentration.

Easy transport by car trailer

With the car trailer to the next construction site? No problem - the low weight allows transport incl. attachment tools by means of a 3.5 t trailer.

Numerous attachments

Thanks to the optional additional control circuits, our excavators can be equipped with a variety of attachments. This way, you can increase your application options in no time and thus increase the utilization of your excavator.

2 lifting lugs on the roof

The machine can be moved on the construction site very easily without problems using a crane. Also, loading and unloading the excavator from the truck can be done quickly.

Thermal resistance

The excavator can work under full load up to an ambient temperature of 45°C/113°F. The stable temperature level results in a longer service life for the hydraulic components and increases productivity.
Lower temperature level - longer life, work without loss of performance.

Up to four additional factory-installed control circuits

The optional additional control circuits allow the excavator to be equipped with a variety of attachments. This increases the applications and utilization of the excavator.
Please note that the product range may vary depending on the country. Under certain circumstances, the contents / products shown here may not be available in your country. The illustrations, equipment, and data shown may also differ from the current product range in your country. Optional extras may be shown that are subject to an additional charge. Subject to changes.
Delivery times can vary - subject to prior sale.
With the selection of different options, the technical data of the products can vary accordingly. Please note that equipment cannot be changed for editions.

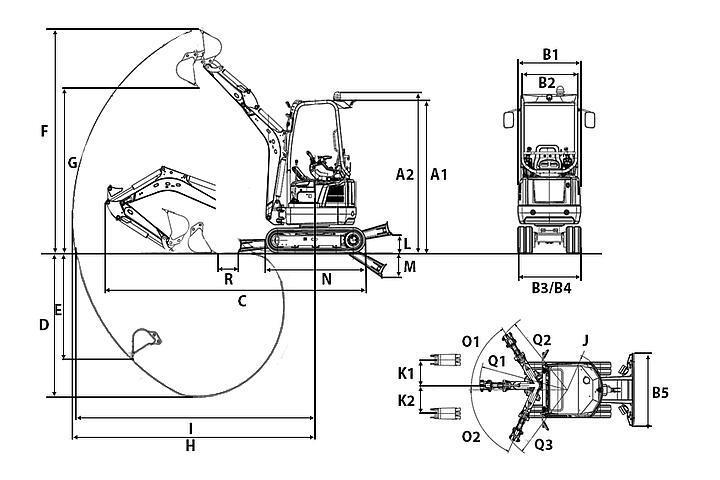

A2	Height with cab	2,362 mm
A6	Total height with rotating beacon	2,538 mm
B1	Width of upper carriage	990 mm
B2	Width of cab	885 mm
B3	Width travel gear	1,300 mm
B4	Width travel gear retracted	990 mm
B5	Width of dozer blade	1,300 mm
C1	Transport length	2,828 mm
C2	Transport length short shovel arm	3,584 mm
C3	Transport length long shovel arm	3,551 mm
D2	Digging depth max., short shovel arm	2,326 mm
D3	Digging depth max., long shovel arm	2,486 mm
E2	Piercing depth max., short shovel arm	1,713 mm
E3	Piercing depth max., long shovel arm	1,863 mm
F2	Piercing height max., short shovel arm	3,462 mm
F3	Piercing height max., long shovel arm	3,576 mm
G2	Dumping height max., short shovel arm	2,436 mm
G3	Dumping height max., long shovel arm	2,550 mm
H2	Digging radius max., short shovel arm	3,899 mm
H3	Digging radius max., long shovel arm	4,050 mm
I2	Max. reach at ground level (short shovel arm)	3,848 mm
I3	Max. reach at ground level (long shovel arm)	4,002 mm
J1	Tail swing radius	660 mm
K1	Boom offset max. (to center of bucket right side)	533 mm
K2	Boom offset max. (to center of bucket left side)	418 mm
L1	Stacking height max. (dozer blade above surface)	271 mm
M1	Digging depth max. (dozer blade below surface)	390 mm
N1	Length travel drive	1,607 mm
O1	Max. swivel angle (arm system to the left)	65 °
O2	Max. swivel angle (arm system to the right)	57 °
P1	Track width	230 mm
Q1	Boom swing radius center	1,627 mm
Q2	Boom swing radius right	1,519 mm
Q3	Boom swing radius left	1,372 mm
R1	Distance bucket dozer blade, short shovel arm	332 mm
R2	Distance bucket dozer blade, long shovel arm	260 mm

General

230 mm rubber track
Dozer blade
Work light mounted to boom
Toolkit, including grease press and operator's manual
Watertight, lockable document box

Engine

Liquid-cooled YANMAR diesel engine, model 3TNV76, 3-cylinder/1,116 ccm, net output according to ISO 14396: 13.8 kW (18.8 hp), nominal speed 2,200 rpm (stage 5)

Canopy

Adjustable comfort seat with artificial leather cover and safety belt; canopy (and cabin) complies with current ROPS, TOPS and FOPS* regulations
*FOPS (level I and II) only with additional protective grating

Hydraulics

LUDV - hydraulic system (load-independent flow distribution)
Variable displacement pump (39.6 L/min)
Hydraulic pilot control via joystick operation
Valve control according to ISO, DIN, SAE, PCSA and EURO
Auxiliary hydraulic connections for two directions of travel, mounted on shovel arm
Hydraulic oil cooler

Miscellaneous
