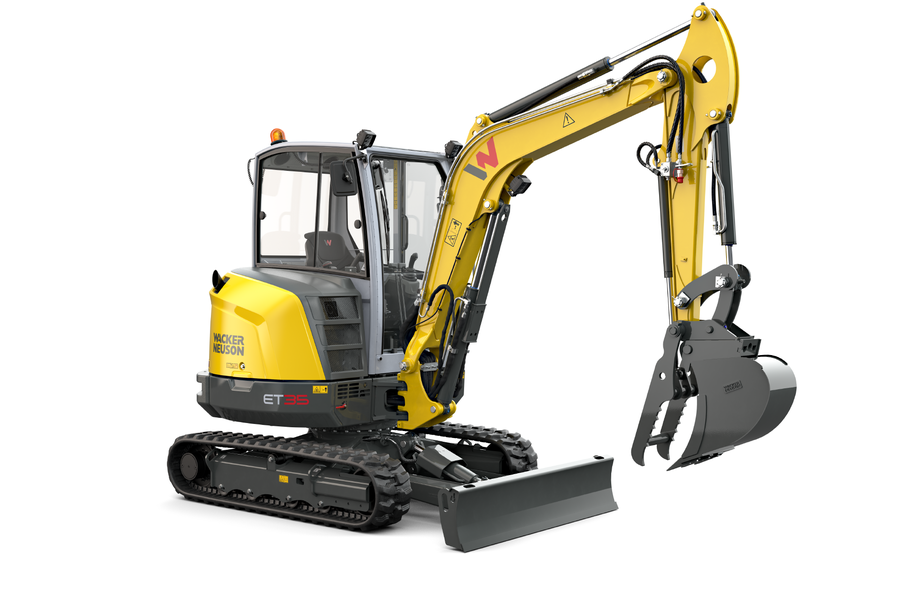

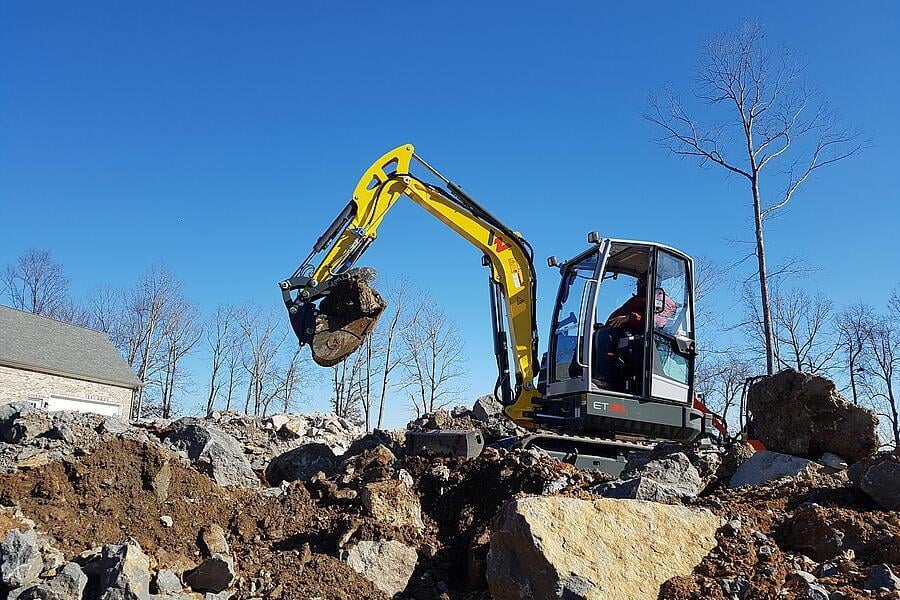

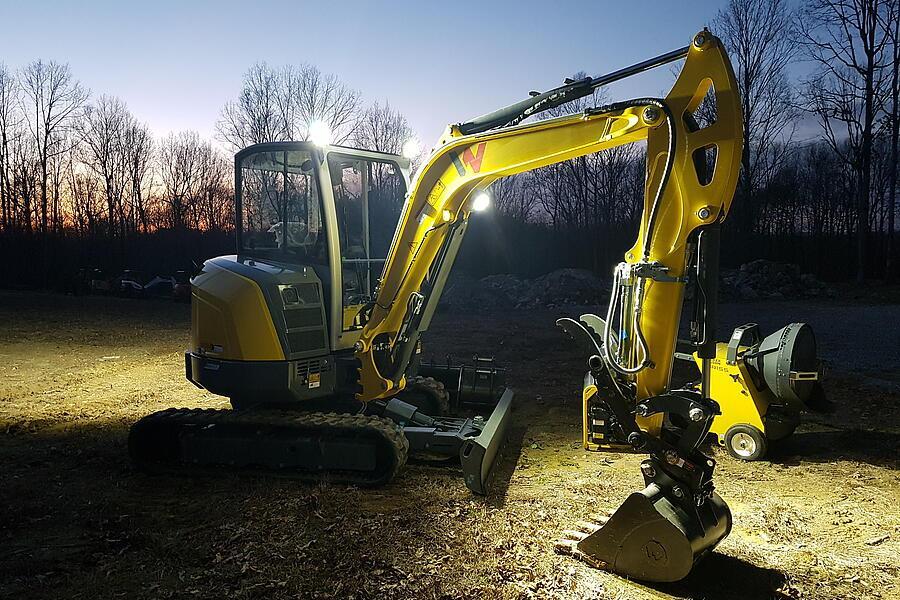

Tracked Conventional Excavator ET35: Impressive productivity

The tracked excavator in the 3.5-metric ton class impresses with its performance and many well thought-out details. Along with the optimized engine-pump management for up to 15% faster working cycles, the excellent stability and the ergonomically designed cabin ensure efficient and fatigue-free work. Thanks to the numerous options available ex work, the ET35 can also be adapted individually to the customer’s requirements.

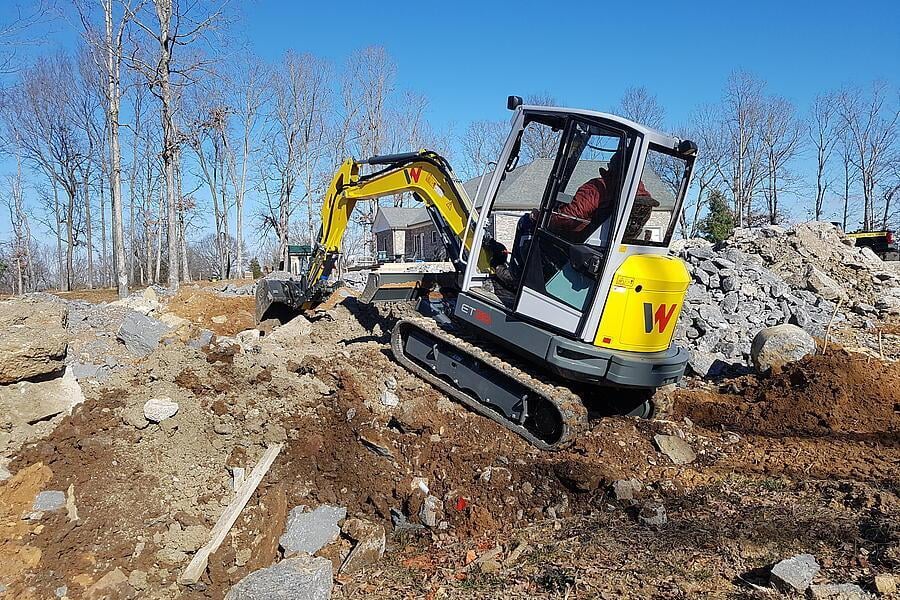

VDS Vertical Digging System

The vertical digging system compensates for slopes of up to 15 degrees, making it possible to vertically excavate on a slope. This is not only ergonomic for the operator, but it also saves time and also means less excavated material.
Up to 25 percent material and time savings when excavating and filling. Safe working and higher stability in sloping spaces.
The same swing power over 360 degrees allows fatigue-free work with the seat position remaining the same.

Optimized drive concept

The well thought-out drive concept with optimized engine-pump management allows quick and precise control of the excavator. This makes up to 15 percent faster work cycles possible. The available engine versions are low in consumption and require no exhaust after-treatment.

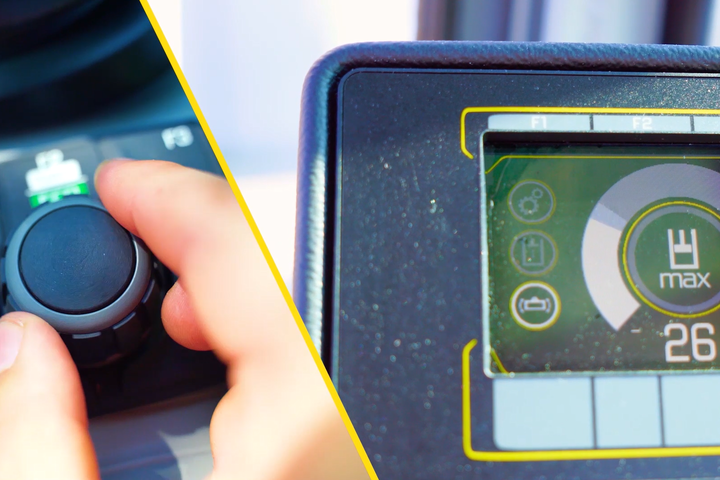

Jog dial

The jog dial system, familiar from the automotive area, including a clear display, allows intuitive selection of the right operating settings via a press-push button as well as various settings via a keypad. ECO mode is the standard mode for efficient and fuel-saving work; HI mode stands for maximum pump performance and fast, powerful work and LOW mode for extremely precise, sensitive work.

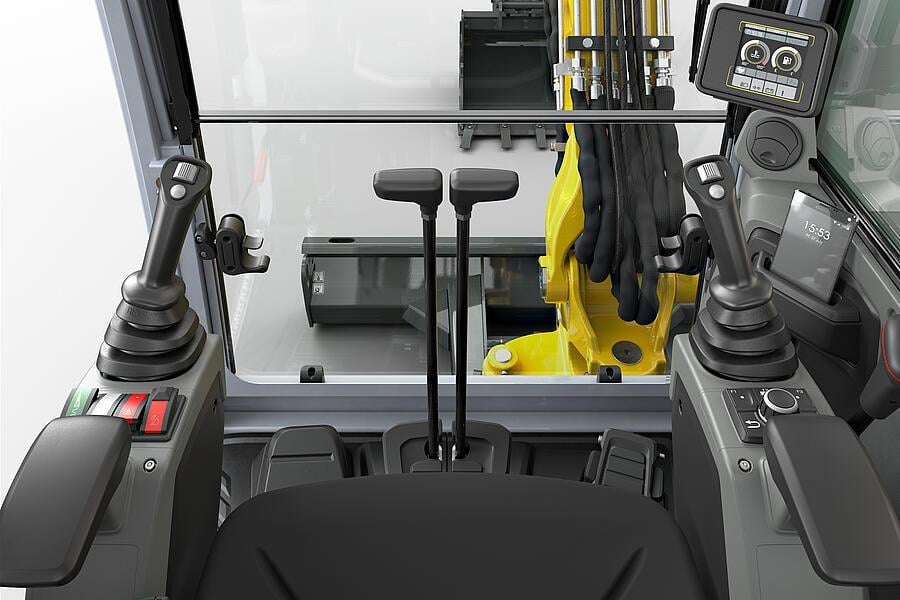

Comfortable, fully glazed cab

The large, fully glazed and tiltable cabin with roof window offers the operator an optimal 360° visibility of his work area. This gives the operator a good view of his working area, colleagues and any dangers. Meanwhile, available despite this.
It can be easily disassembled for service and repair work. All hydraulic functions of the excavator meanwhile remain available despite this.

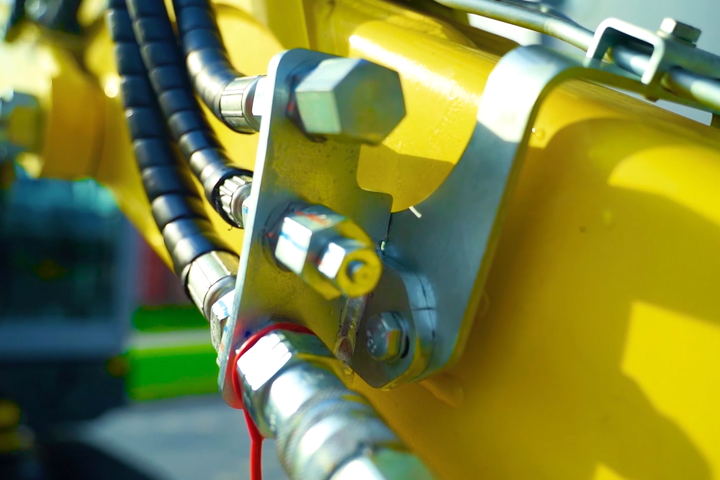

Up to four additional factory-installed control circuits

The optional additional control circuits allow the excavator to be equipped with a variety of attachments. This increases the applications and utilization of the excavator.

Variety

Hydraulic thumb

The optional hydraulic thumb offers, beside a conventional bucket application, a grip function, which expands the spectrum of applications.
With this additional grip function, material can be cleared away quite easily.

Custom-made paint finish

All excavators by Wacker Neuson can be ordered personalized with special paint in the production process.

Maintenance

Dirt-repellent travel gear

Less dirt is accumulated in the slanted travel gear box and, due to its special method of construction, it is also easier to clean.

Efficiency

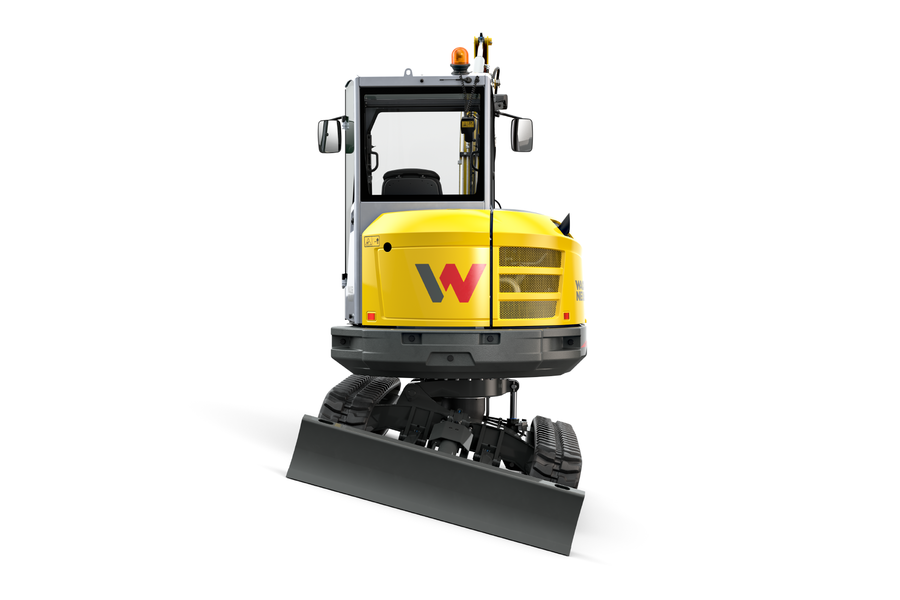

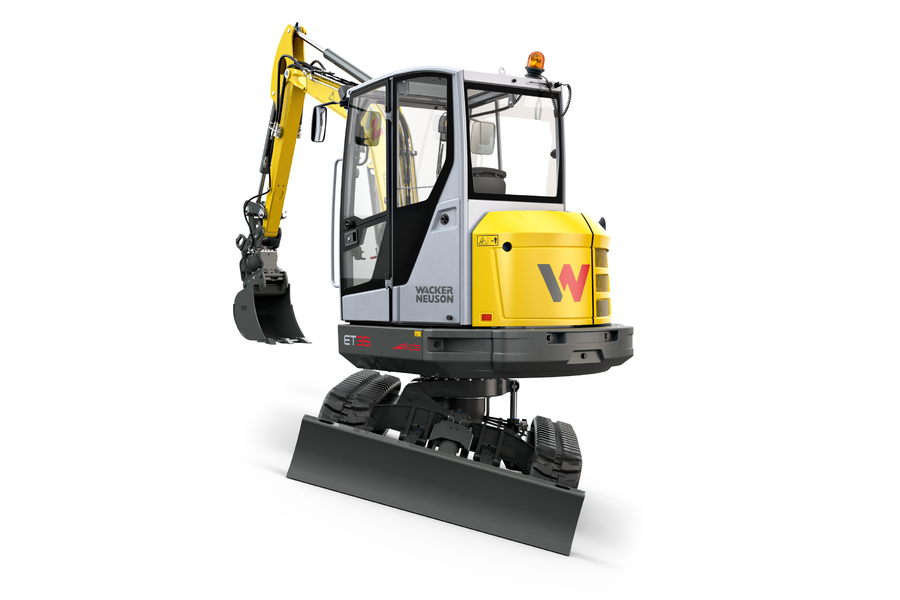

Hydraulic swivelling dozer blade

The swivel blade can be swiveled straight or variably by up to 25 degrees to the left or right. This way, the machine does not have to be reset in one direction as often during longer-lasting backfilling tasks. In the floating position, the dozer blade automatically follows the contour of the ground, so that the driver doesn’t have to make adjustments.
Infinitely variable swivelling with floating position for more flexibility and efficiency.

Guided track rollers outside

In particular for lifting heavy loads, the externally located guide track rollers as well as an optimized weight distribution give the excavators a higher lateral stability.

Thermal resistance

The excavator can work under full load up to an ambient temperature of 45°C/113°F. The stable temperature level results in a longer service life for the hydraulic components and increases productivity.
Lower temperature level - longer life, work without loss of performance.

Safety

Flexible cylinder rod protection

Protective cylinder guards made of plastic keep the cylinder rods of lifting arm, bucket and dipper stick cylinders safe from damage, increasing service life and can save significant costs. The cylinder guard material is flexible, so no permanent damage occurs upon contact with foreign objects. Work interruption due to replacement is eliminated.

Mechanical-output details

Superstructure turning speed	9.5 1/min
Travel speed	4.7 km/h
Break Out Force Bucket	35 kN
Break Out Force Lift Arm	21.1 kN

Mechanical Details

Length	5,271 mm
Operating weight (min.-max.)	3,553 - 4,753 kg
Digging depth (max.)	3,497 mm
Width	1,630 mm
Height	2,711 mm

Engine

Cylinder	3,0
Cylinder capacity	1,642 cm3
Effective power	18.2 KW
Nominal Engine speed	2,400 1/min
Battery capacity (nom. value)	71 Ah
Engine type	Diesel engine
Exhaust-gas limit	EU Stage V
Manufacturer	Yanmar
Engine designation	3TNV88

Hydraulic

Operating pressure	240 bar
Flow rate max.	120 l/min
Operating pressure slewing gear	195 bar
Hydraulikpump	Axial piston and 2 gear pumps

Shipping and Storage

Shipping weight

3,364 kg

Chassis

Drive unit

Axialpistonmotor with RGU

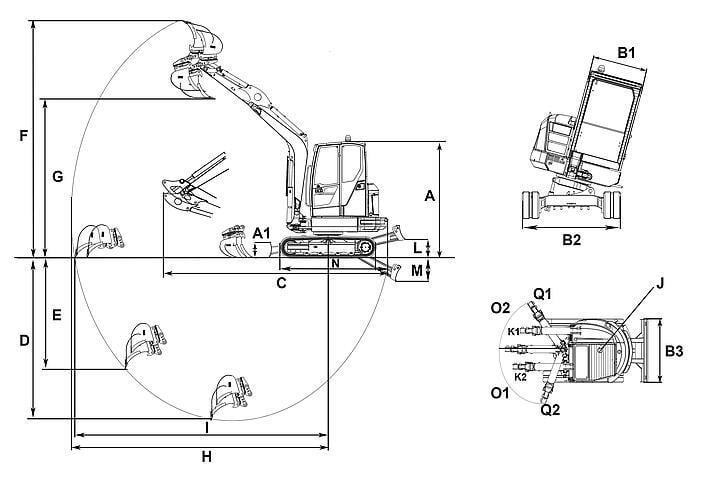

		Standard	VDS
A	Height with cab	2,491 mm	2,573 mm
A	Total height with rotating beacon	2,630 mm	2,711 mm
B1	Width of cab	980 mm	980 mm
B2	Width travel gear	1,630 mm	1,630 mm
B3	Width of dozer blade	1,630 mm	1,630 mm
C	Transport length short shovel arm	5,268 mm	5,252 mm
D	Digging depth max., short shovel arm	3,245 mm	3,166 mm
D	Digging depth max., long shovel arm	3,497 mm	3,416 mm
E	Piercing depth max., short shovel arm	2,120 mm	2,042 mm
E	Piercing depth max., long shovel arm	2,360 mm	2,279 mm
F	Piercing height max., short shovel arm	4,929 mm	5,010 mm
F	Piercing height max., long shovel arm	5,082 mm	5,163 mm
G	Dumping height max., short shovel arm	3,337 mm	3,417 mm
G	Dumping height max., long shovel arm	3,489 mm	3,570 mm
H	Digging radius max., short shovel arm	5,270 mm	5,270 mm
H	Digging radius max., long shovel arm	5,507 mm	5,507 mm
I	Max. reach at ground level (short shovel arm)	5,158 mm	5,143 mm
I	Max. reach at ground level (long shovel arm)	5,408 mm	5,393 mm
J	Tail swing radius	1,168 mm	1,168 mm
K1	Boom offset max. (to center of bucket right side)	476 mm	476 mm
K2	Boom offset max. (to center of bucket left side)	447 mm	447 mm
L	Stacking height max. (dozer blade above surface)	393 mm	393 mm
M	Digging depth max. (dozer blade below surface)	505 mm	505 mm
N	Length travel drive	2,062 mm	2,062 mm
O1	Max. swivel angle (arm system to the left)	70 °	70 °
O2	Max. swivel angle (arm system to the right)	55 °	55 °
Q1	Boom swing radius right	55 °	55 °
Q2	Boom swing radius left	70 °	70 °

General

Rubber track: 300 mm
Dozer blade
LED work light mounted on lifting arm
Toolkit, including grease press and operator's manual
Document box reachable from operator's seat (A4 format, watertight, lockable)

Engine

Liquid-cooled Yanmar diesel engine, model 3TNV88F, 3-cylinder/1,642 ccm, net output according to ISO 24.8 kW (30.2 hp), nominal speed 2,400 rpm (stage 5)

Canopy

Adjustable, sprung comfort seat with artificial leather cover and safety belt
Canopy (and cabin) meets the current ROPS, TOPS and FOPS* regulations

Hydraulics

Dual variable displacement pump and double gear pump (42.5 x 42.5 + 26.3 + 11.3 L/min)
Aggregate power level regulation
Hydraulic pilot control via joystick operation
Valve control according to ISO, DIN, SAE, PCSA and EURO
Auxiliary hydraulic connections for 2 directions of travel on shovel arm/AUX I
Automatic 2-speed transmission, 2 travel speeds automatically switched, 1st gear manually lockable
Hydraulically servo-controlled and damped foot pedals and forward + reverse travel lever
Hydraulic oil cooler
Parking brake for undercarriage and slewing system
Proportional control for AUX I; discharge volume adjustable via potentiometer
