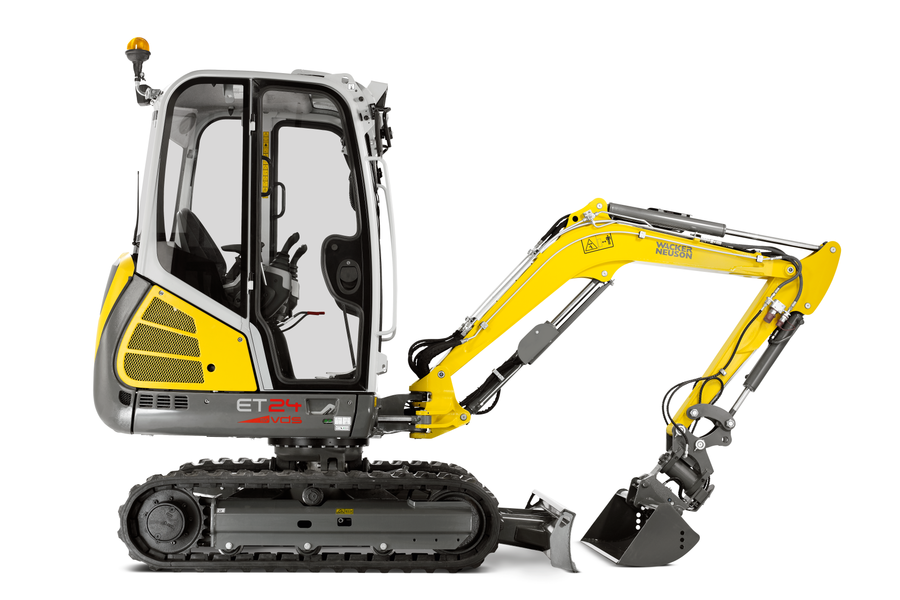

Tracked Conventional Excavator ET24: The generalist of its class

The ET24 combines the advantages of the lighter weight classes with the power rating of the 2.5-metric ton class. Due to this, it has more lift capacity at a low weight and compact dimensions. This makes it strong and flexible in transport as well as when changing positions. The high excavating and tractive power increases the machine’s productivity, saving time simultaneously. The powerful drive system, together with the intelligent cooling system, allow efficient working cycles, even at high ambient temperatures. Thanks to the generously arranged cab design, the operator has enough freedom of movement for head and legs. The ergonomic seat, individually adjustable, also makes fatigue-free working possible. A variety of options is available for the ET24. The excavator can thus be configured completely according to the customer’s requirements.

Innovative front windshield system

The windshields can be adjusted to any condition on the construction site. Closed, they are water- and windproof. The upper front window can be pushed under the cabin roof. The lower pane serves as splash protection. The lower windshield slides behind the upper window, making it ideal for talking with colleagues. If necessary, both windows are pushed below the cabin roof, where they are stored safely.

The two-part front window allows for optimal ventilation in the cabin in any weather. In addition, it makes it easier to communicate with the operator. A separate removal and storage of the window is a thing of the past.

Significantly lower risk of damage or loss; higher level of operating comfort

Comfortable, fully glazed cab

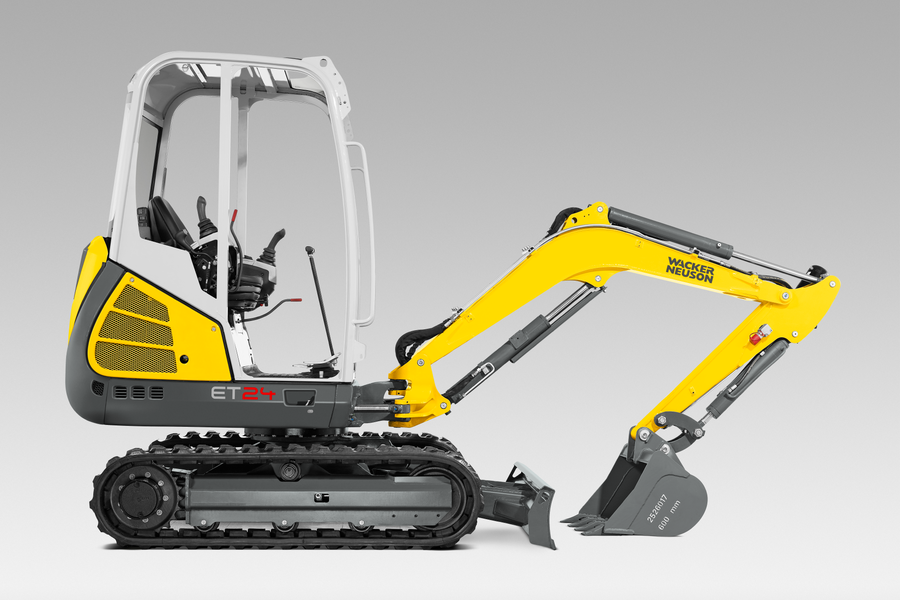

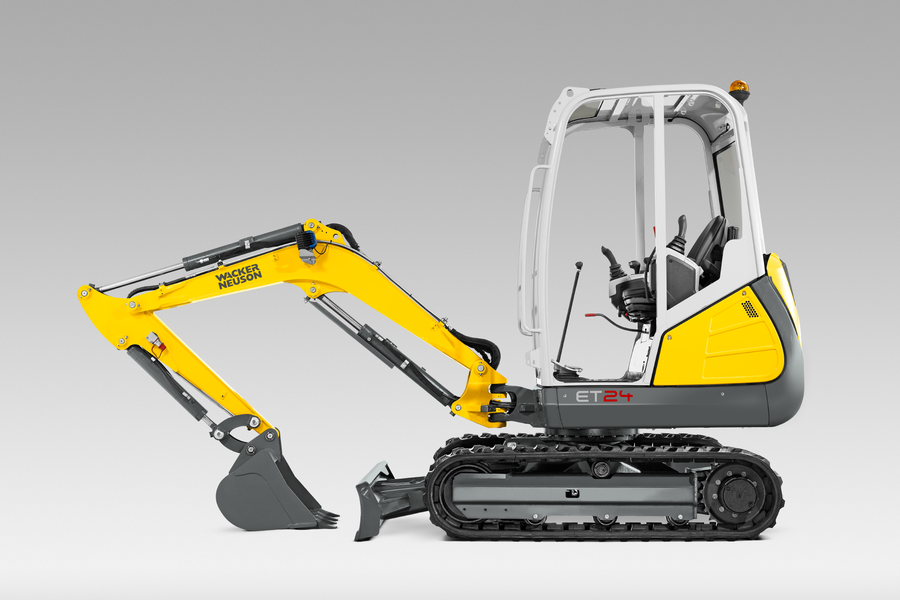

The large, fully glazed and tiltable cabin with roof window offers the operator an optimal 360° visibility of his work area. This gives the operator a good view of his working area, colleagues and any dangers. Meanwhile, available despite this.

It can be easily disassembled for service and repair work. All hydraulic functions of the excavator meanwhile remain available despite this.

Powerful drive system

Thanks to the high performance of the drive system, the maximum power of the excavator is available at every point of operation. This brings up to 30% higher power for an even better performance.

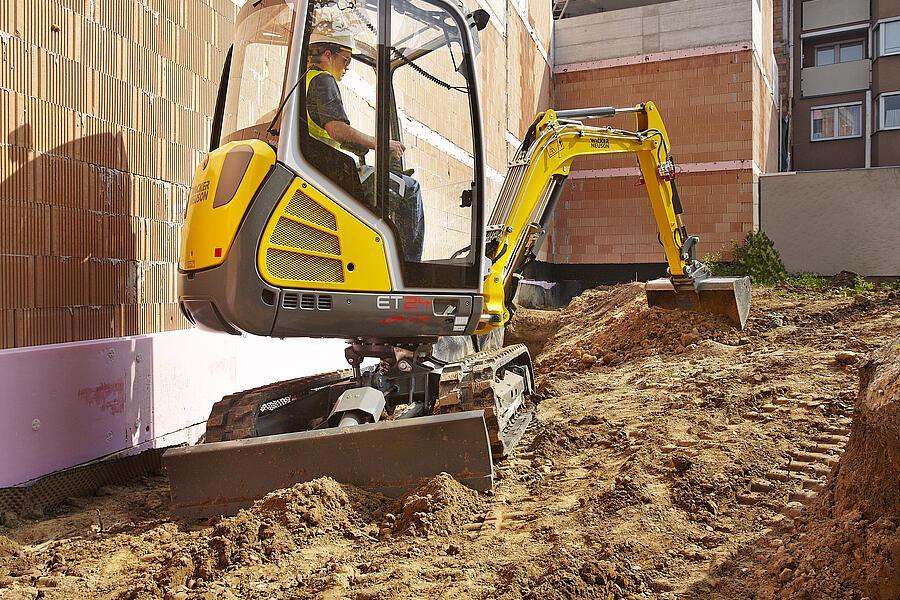

VDS Vertical Digging System

The vertical digging system compensates for slopes of up to 15 degrees, making it possible to vertically excavate on a slope. This is not only ergonomic for the operator, but it also saves time and also means less excavated material.

Up to 25 percent material and time savings when excavating and filling. Safe working and higher stability in sloping spaces.

The same swing power over 360 degrees allows fatigue-free work with the seat position remaining the same.

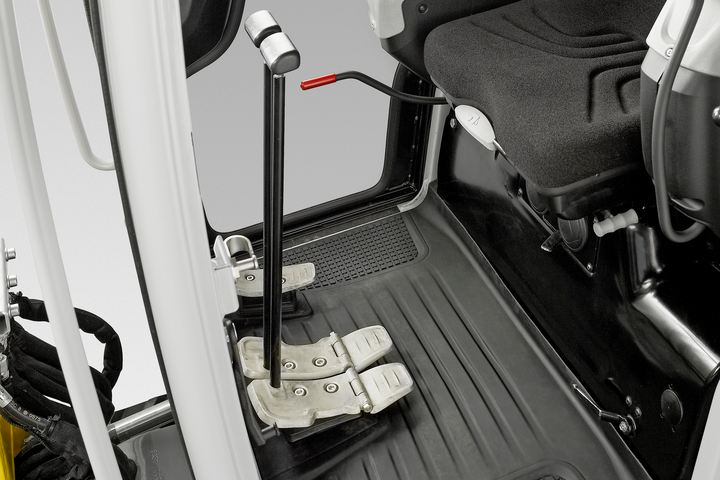

Hydraulically pilot-controlled travel pedals

The hydraulically pilot-controlled travel pedals provide comfortable and precise control without mechanical wear. Driving with foot control leaves the hands free for other functions. This saves time and increases operating comfort.

Performance

2 travel speeds

The excavator is equipped with a second travel speed level as standard. This way, it can quickly switch positions on the construction site, saving valuable time.

Compact dimensions

High level of safety during transportation, cost and time savings. The excavator scores points with a low entry height and reduced external dimensions due to the intelligent component arrangement, providing higher stability thanks to the low center of gravity.

Whether during transportation or in tight spaces: thanks to its compact design, the excavator can easily be taken to your next job site. And on the construction site, the machine can maneuver anywhere easily and quickly, even in confined spaces - for high efficiency in every application.

Variety

2 lifting lugs on the roof

The machine can be moved on the construction site very easily without problems using a crane. Also, loading and unloading the excavator from the truck can be done quickly.

Maintenance

Easy service and maintenance access

Easy service, thanks to wide-opening engine hood, allows easy access to all parts.
No disassembly of heavy parts necessary, additional easily replaceable wear parts.
Quick and unrestricted access. Hydraulic and engine oil filters, air filter, water separator and also the tank filler neck are ideally accessible. Low service costs.

Comfort

Second cabin door for entry and exit on both sides

The excavator cabin can be optionally equipped with a second driver’s door. This makes getting in and out easier, especially in narrow or sloped spaces.

Easy transport by car trailer

With the car trailer to the next construction site? No problem - the low weight allows transport incl. attachment tools by means of a 3.5 t trailer.

Safety

Laterally raised cast bumper

The extremely sturdy raised bumper made of massive cast iron prevents damage to the rear, thus contributing to the long service life of the machine. Along with the high quality, it is also visually impressive as a modern design element.

Efficiency

Laterally raised cast bumper

The extremely sturdy raised bumper made of massive cast iron prevents damage to the rear, thus contributing to the long service life of the machine. Along with the high quality, it is also visually impressive as a modern design element.

Mechanical-output details

Gradeability	58 %
Superstructure turning speed	10 1/min
Travel speed	4 km/h
Break Out Force Bucket	21.8 kN
Break Out Force Lift Arm	15 kN

Mechanical Details

Length	4,022 mm
Operating weight (min.-max.)	2,200 - 2,746 kg
Digging depth (max.)	2,602 mm
Width	1,400 mm
Height	2,392 mm

Engine

Cylinder	3,0
Cylinder capacity	1,116 cm3
Effective power	13.8 KW
Nominal Engine speed	2,200 1/min
Battery capacity (nom. value)	44 Ah
Engine type	Diesel engine
Exhaust-gas limit	EU Stage V
Manufacturer	Yanmar
Engine designation	3TNV76

Hydraulic

Operating pressure	240 bar
Flow rate	78 l/min
Flow rate max.	78 l/min
Tank capacity	19 l
Operating pressure slewing gear	150 bar
Hydraulikpump	Double variable and 2 gear pumps

Chassis

Operating pressure

240 bar

Shipping and Storage

Shipping weight

2,057 kg

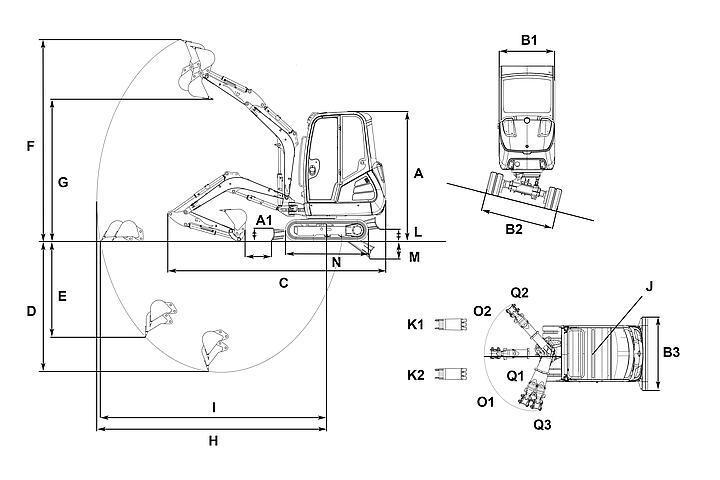

		VDS
A	Height with cab	2,392 mm	2,472 mm
A1	Height of dozer blade	300 mm	300 mm
A	Total height with rotating beacon	2,578 mm	2,657 mm
B1	Width of upper carriage	990 mm	990 mm
B2	Width travel gear	1,400 mm	1,400 mm
B3	Width of dozer blade	1,400 mm	1,400 mm
C	Transport length	4,022 mm	3,980 mm
D	Digging depth max., short shovel arm	2,402 mm	2,323 mm
D	Digging depth max., long shovel arm	2,602 mm	2,523 mm
E	Piercing depth max., short shovel arm	1,562 mm	1,482 mm
E	Piercing depth max., long shovel arm	1,746 mm	1,667 mm
F	Piercing height max., short shovel arm	3,949 mm	4,028 mm
F	Piercing height max., long shovel arm	4,071 mm	4,151 mm
G	Dumping height max., short shovel arm	2,748 mm	2,827 mm
G	Dumping height max., long shovel arm	2,870 mm	2,950 mm
H	Digging radius max., short shovel arm	4,146 mm	4,146 mm
H	Digging radius max., long shovel arm	4,334 mm	4,334 mm
I	Max. reach at ground level (short shovel arm)	4,020 mm	3,995 mm
I	Max. reach at ground level (long shovel arm)	4,216 mm	4,204 mm
J	Tail swing radius	1,169 mm	1,169 mm
K1	Boom offset max. (to center of bucket right side)	516 mm	516 mm
K2	Boom offset max. (to center of bucket left side)	359 mm	359 mm
L	Stacking height max. (dozer blade above surface)	294 mm	348 mm
M	Digging depth max. (dozer blade below surface)	334 mm	316 mm
N	Length travel drive	1,838 mm	1,838 mm
O1	Max. swivel angle (arm system to the left)	77 °	77 °
O2	Max. swivel angle (arm system to the right)	48 °	48 °
	Track width	250 mm	250 mm
Q1	Boom swing radius center	1,666 mm	1,666 mm
Q2	Boom swing radius right	1,582 mm	1,582 mm
Q3	Boom swing radius left	1,356 mm	1,356 mm

General

250 mm rubber track
Dozer blade
LED work light mounted on lifting arm
Toolkit, including grease press and operator's manual
Watertight, lockable document box

Engine

Liquid-cooled Yanmar diesel engine, model 3TNV76, 3-cylinder/1,116 ccm, net output according to ISO 13.8 kW (18.8 hp), nominal speed 2,200 rpm (stage 5)

Canopy

Adjustable comfort seat with artificial leather cover and safety belt; canopy (and cabin) complies with current roll over protection system ROPS and FOPS* regulations
*FOPS (level I and II) only with additional protective grating

Hydraulics

Dual variable displacement pump and 2 gear pumps (26.1 + 26.1 + 19.4 + 6.4 L/min)
Aggregate power level regulation
Hydraulic pilot control via joystick operation
Valve control according to ISO, DIN, SAE, PCSA and EURO
Auxiliary hydraulic connections for two directions of travel, mounted on shovel arm
2 travel speeds
Hydraulically dampened drive pedals and forward + reverse travel lever
Hydraulic oil cooler

Wacker Neuson Tracked Conventional Excavator ET24 (ET24)

Delivery Time Ready In Stock

Shipment Place Turkiye

Payment Terms % 100 T/T On Order Confirmation

Made In Germany

Min. Order Qty.1 Pcs.

Warranty1 year
