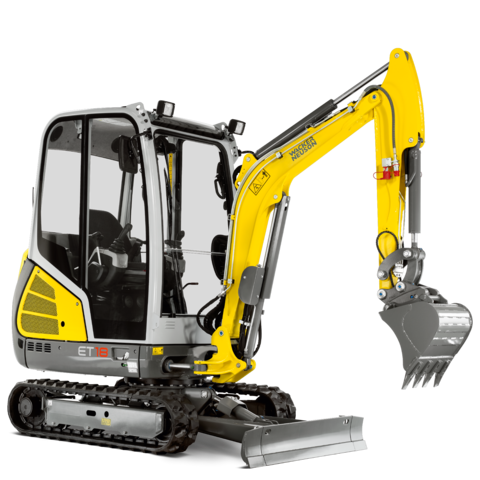

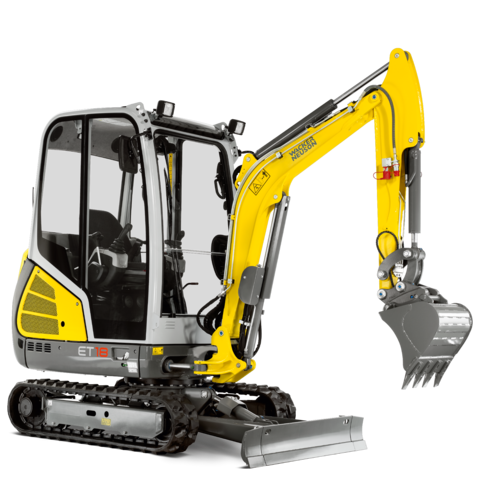

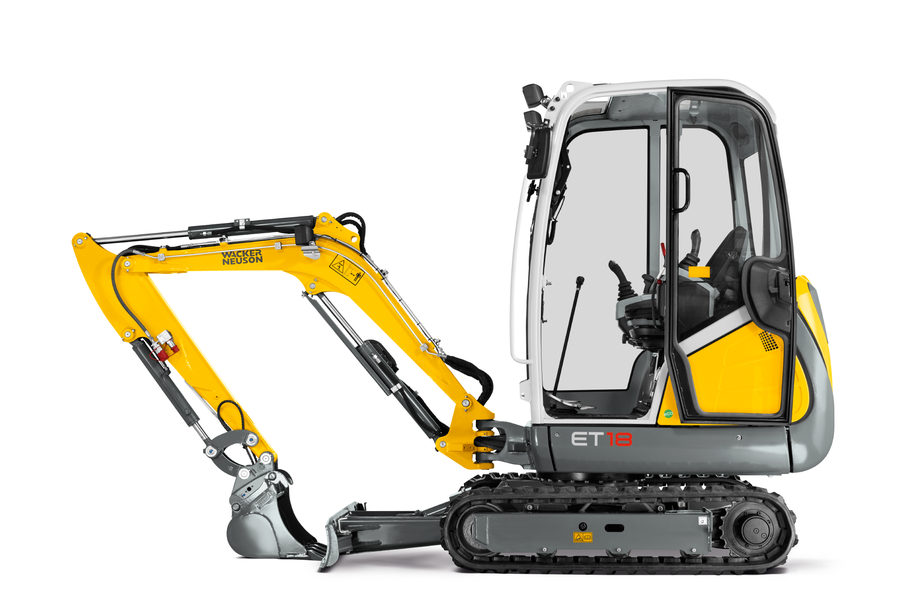

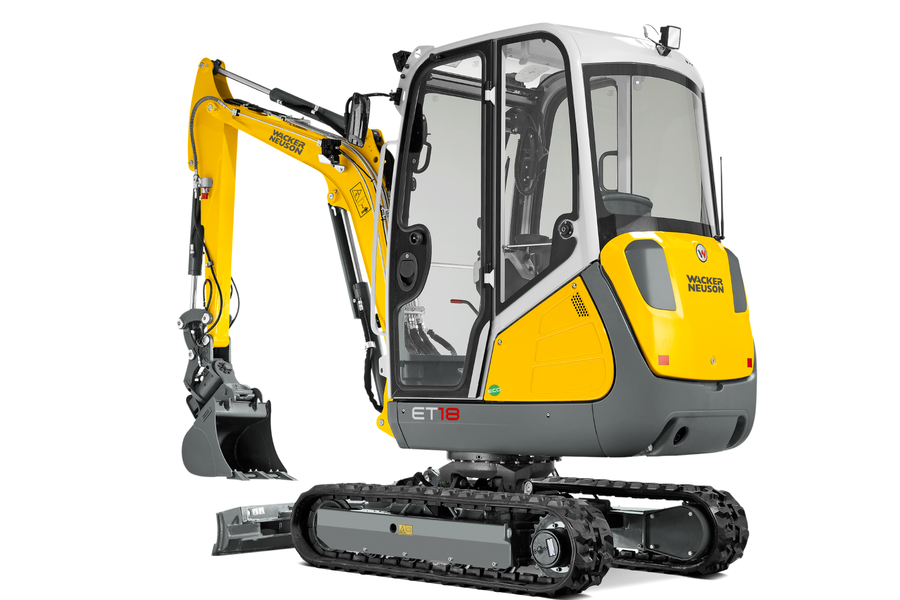

Tracked Conventional Excavator ET18: Overall performance that’s impressive

With the excavator ET18, Wacker Neuson sets new standards in the 1.7 to 2.4 metric ton class. The combination of time-tested and proven elements and intelligent development approaches are demonstrated in the extra performance and efficiency. Well thought-out features such as a large cabin and the two-part front windshield mechanism also increase the operator’s comfort.

Hydraulic joystick operation

The ergonomic and sturdy joysticks, which work completely proportionally, expand the functions and possibilities for controlling the excavator. The operator can carry out movements more precisely and work with increased concentration.

Powerful drive system

Thanks to the high performance of the drive system, the maximum power of the excavator is available at every point of operation. This brings up to 30% higher power for an even better performance.

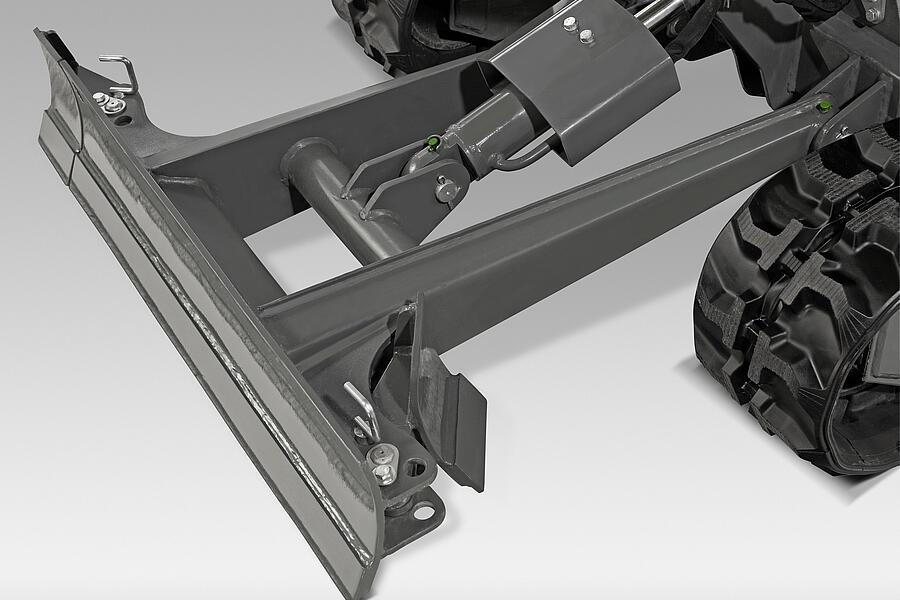

Hydraulic telescopic travel gear with dozer blade extension

The hydraulically telescoped travel gear with a max. outer width of 1300 mm gives stability. In no time, it can be retracted to a width of 990 mm. With the foldable dozer blade extension, this makes individual adjustment to the job site conditions possible. Meanwhile, the extension elements are always connected to the machine and thus do not get lost.

VDS Vertical Digging System

The vertical digging system compensates for slopes of up to 15 degrees, making it possible to vertically excavate on a slope. This is not only ergonomic for the operator, but it also saves time and also means less excavated material.
Up to 25 percent material and time savings when excavating and filling. Safe working and higher stability in sloping spaces.
The same swing power over 360 degrees allows fatigue-free work with the seat position remaining the same.

Second cabin door for entry and exit on both sides

The excavator cabin can be optionally equipped with a second driver’s door. This makes getting in and out easier, especially in narrow or sloped spaces.

2 travel speeds

The excavator is equipped with a second travel speed level as standard. This way, it can quickly switch positions on the construction site, saving valuable time.

Compact dimensions

High level of safety during transportation, cost and time savings. The excavator scores points with a low entry height and reduced external dimensions due to the intelligent component arrangement, providing higher stability thanks to the low center of gravity.
Whether during transportation or in tight spaces: thanks to its compact design, the excavator can easily be taken to your next job site. And on the construction site, the machine can maneuver anywhere easily and quickly, even in confined spaces - for high efficiency in every application.

Numerous attachments

Thanks to the optional additional control circuits, our excavators can be equipped with a variety of attachments. This way, you can increase your application options in no time and thus increase the utilization of your excavator.

2 lifting lugs on the roof

The machine can be moved on the construction site very easily without problems using a crane. Also, loading and unloading the excavator from the truck can be done quickly.

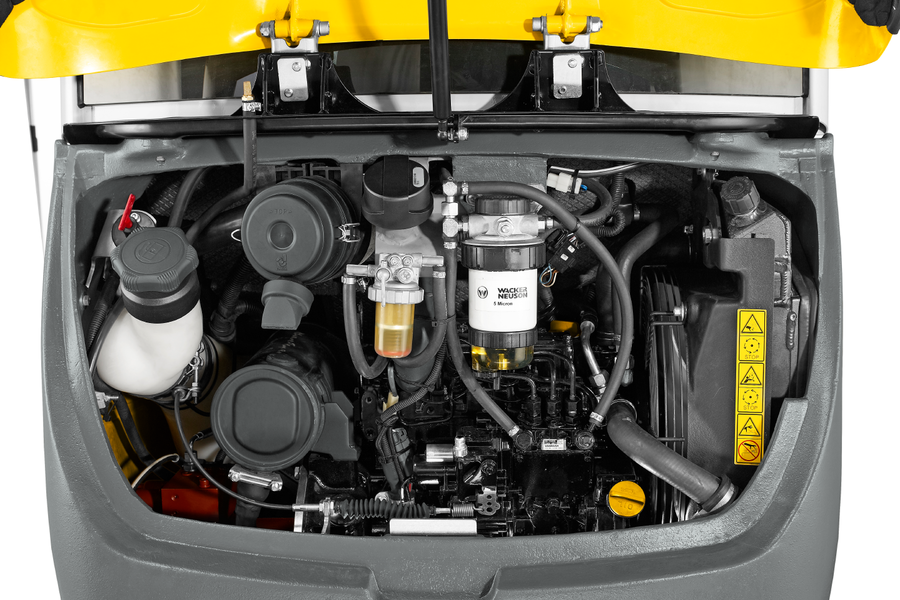

Easy service and maintenance access

Easy service, thanks to wide-opening engine hood, allows easy access to all parts.
No disassembly of heavy parts necessary, additional easily replaceable wear parts.
Quick and unrestricted access. Hydraulic and engine oil filters, air filter, water separator and also the tank filler neck are ideally accessible. Low service costs.

Laterally raised cast bumper

The extremely sturdy raised bumper made of massive cast iron prevents damage to the rear, thus contributing to the long service life of the machine. Along with the high quality, it is also visually impressive as a modern design element.

Thermal resistance

The excavator can work under full load up to an ambient temperature of 45°C/113°F. The stable temperature level results in a longer service life for the hydraulic components and increases productivity.
Lower temperature level - longer life, work without loss of performance.

Up to four additional factory-installed control circuits

The optional additional control circuits allow the excavator to be equipped with a variety of attachments. This increases the applications and utilization of the excavator.

Easy transport by car trailer

With the car trailer to the next construction site? No problem - the low weight allows transport incl. attachment tools by means of a 3.5 t trailer.

Hydraulically pilot-controlled travel pedals

The hydraulically pilot-controlled travel pedals provide comfortable and precise control without mechanical wear. Driving with foot control leaves the hands free for other functions. This saves time and increases operating comfort.

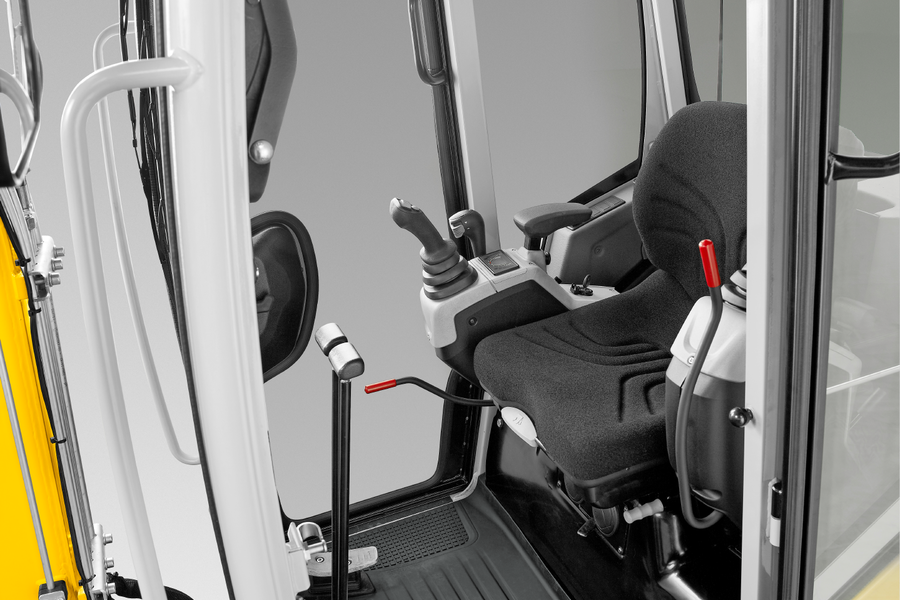

Comfortable, fully glazed cab

The large, fully glazed and tiltable cabin with roof window offers the operator an optimal 360° visibility of his work area. This gives the operator a good view of his working area, colleagues and any dangers. Meanwhile, available despite this.
It can be easily disassembled for service and repair work. All hydraulic functions of the excavator meanwhile remain available despite this.

Mechanical - Output Details

Gradeability	58 %
Superstructure turning speed	10 1/min
Travel speed	5.3 km/h
Break Out Force Bucket	18.8 kN
Break Out Force Lift Arm	11.2 kN

Mechanical Details

Length	3,854 mm
Operating weight (min.-max.)	1,725 - 2,405 kg
Digging depth (max.)	2,402 mm
Width	990 mm
Height	2,289 mm

Engine

Cylinder	3,0
Cylinder capacity	1,116 cm3
Effective power	13.8 KW
Nominal Engine speed	2,200 1/min
Battery capacity (nom. value)	44 Ah
Engine type	Diesel engine
Exhaust-gas limit	EU Stage V
Manufacturer	Yanmar
Engine designation	3TNV76

Hydraulic

Operating pressure	200 bar
Flow rate	73 l/min
Flow rate max.	73 l/min
Tank capacity	19 l
Operating pressure slewing gear	125 bar
Hydraulikpump	Double variable and 2 gear pumps

Chassis

Operating pressure

200 bar

Shipping and Storage

Shipping weight1,582 kg

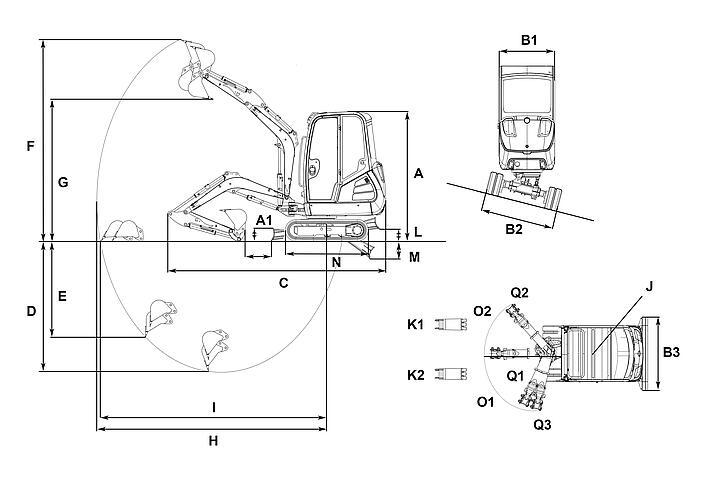

		VDS
A	Height with cab	2,285 mm	2,392 mm
A	Height of canopy	2,289 mm
A1	Height of dozer blade	230 mm	230 mm
A	Total height with rotating beacon	2,470 mm	2,577 mm
B1	Width of upper carriage	990 mm	38.98 mm
B2	Width travel gear	1,300 mm	1,300 mm
B2	Width travel gear retracted	990 mm	990 mm
B3	Width of dozer blade	990 mm	990 mm
C	Transport length	3,854 mm	3,801 mm
D	Digging depth max., short shovel arm	2,202 mm	2,095 mm
D	Digging depth max., long shovel arm	2,402 mm	2,295 mm
E	Piercing depth max., short shovel arm	1,415 mm	1,309 mm
E	Piercing depth max., long shovel arm	1,600 mm	1,493 mm
F	Piercing height max., short shovel arm	3,447 mm	3,553 mm
F	Piercing height max., long shovel arm	3,558 mm	3,663 mm
G	Dumping height max., short shovel arm	2,510 mm	2,611 mm
G	Dumping height max., long shovel arm	2,621 mm	2,722 mm
H	Digging radius max., short shovel arm	3,802 mm	3,802 mm
H	Digging radius max., long shovel arm	3,989 mm	3,989 mm
I	Max. reach at ground level (short shovel arm)	3,700 mm	3,668 mm
I	Max. reach at ground level (long shovel arm)	3,894 mm	3,864 mm
J	Tail swing radius	1,169 mm	1,169 mm
K1	Boom offset max. (to center of bucket right side)	516 mm	516 mm
K2	Boom offset max. (to center of bucket left side)	359 mm	359 mm
L	Stacking height max. (dozer blade above surface)	209 mm	268 mm
M	Digging depth max. (dozer blade below surface)	311 mm	251 mm
N	Length travel drive	1,462 mm	1,465 mm
O1	Max. swivel angle (arm system to the left)	77 °	77 °
O2	Max. swivel angle (arm system to the right)	48 °	48 °
	Track width	230 mm	230 mm
Q1	Boom swing radius center	1,584 mm	1,584 mm
Q2	Boom swing radius right	1,501 mm	1,501 mm
Q3	Boom swing radius left	1,279 mm	1,279 mm

Standard Components

General

230 mm rubber track
Dozer blade
LED work light mounted on lifting arm
Toolkit, including grease press and operator's manual
Watertight, lockable document box

Engine

Liquid-cooled Yanmar diesel engine, model 3TNV76, 3-cylinder/1,116 ccm, net output according to ISO 13.8 kW (18.8 hp), nominal speed 2,200 rpm (stage 5)

Canopy

Adjustable comfort seat with artificial leather cover and safety belt; canopy (and cabin) complies with current ROPS, TOPS and FOPS* regulations
*FOPS (level I or II) only with additional protective grating

Hydraulics

Dual variable displacement pump and 2 gear pumps (47.6 + 19.1 + 6.5 L/min)
Aggregate power level regulation
Hydraulic pilot control via joystick operation
Valve control according to ISO, DIN, SAE, PCSA and EURO
Auxiliary hydraulic connections for two directions of travel, mounted on shovel arm
2 travel speeds
Hydraulically dampened drive pedals and forward + reverse travel lever
Hydraulic telescopic travel gear from 900 mm to 1,300 mm, with dozer blade extension
Hydraulic oil cooler

Options

Cab

Cab (standard)
2-door cab
Front and rear work lights
Side mirror (rear-view mirror)
Canopy with rear window
FOPS protective grating level 1
Radio installation setup (antenna, speakers)
Radio with intercommunication station
Fragment protection

Hydraulics

Advanced overload warning device (safety valves for lifting arm, shovel arm and dozer blade)
Proportional control for auxiliary hydraulics/AUX I
Overload valve for auxiliary hydraulics/AUX I
3rd control circuit/AUX II
Flow control valve 3rd control circuit/AUX II
Powertilt setup/AUX III
Setup for Easy Lock/AUX IV
Control circuit for grapple/AUX V
Panolin HLP Synt46 (Bio)
Flat-faced coupler

Paint

Custom-made paint finish of machine in RAL (only for yellow parts)
Custom-made paint finish of machine, no RAL (only for yellow parts)
Custom-made paint finish of cabin/canopy RAL (only RAL color possible)

Security

Security 24 C (2000)
Security 36 C (3000)
Security 48 C (4000)
Security 60 C (5000)

Miscellaneous

EquipCare
VDS (Vertical Digging System)
Canopy with rear window
LED rotating beacon
Drive signal
Auto idling system
Long shovel arm (+ 200 mm)
Long dozer blade
KAT immobilizer system
ISO-SAE change-over switch
Front window protective grating

Editions

Edition A

Basic machine
+ 2-door cab
+ Front and rear work lights
+ Proportional control for auxiliary hydraulics/AUX I
+ Long dozer blade
+ Powertilt setup/AUX III
+ Setup for Easy Lock/AUX IV
+ Radio installation setup

(Shipping weight (+/- 2%): 1,850 kg)

Edition C

Basic machine
+ 2-door cab
+ Front and rear work lights
+ Proportional control for auxiliary hydraulics/AUX I
+ Long dipper stick
+ Setup for Easy Lock/AUX IV
+ Radio installation setup

(Shipping weight (+/- 2%): 1,845 kg)

Edition D

Basic machine
+ 2-door cab
+ Front and rear work lights
+ VDS (Vertical Digging System)
+ Proportional control for auxiliary hydraulics/AUX I
+ Long dipper stick
+ Setup for Easy Lock/AUX IV
+ Radio installation setup

(Shipping weight (+/- 2%): 1,955 kg)

Wacker Neuson Tracked Conventional Excavator ET18 (ET18)

Delivery Time Ready In Stock

Shipment Place Turkiye

Payment Terms % 100 T/T On Order Confirmation

Made In Germany

Min. Order Qty.1 Pcs.

Warranty1 year
