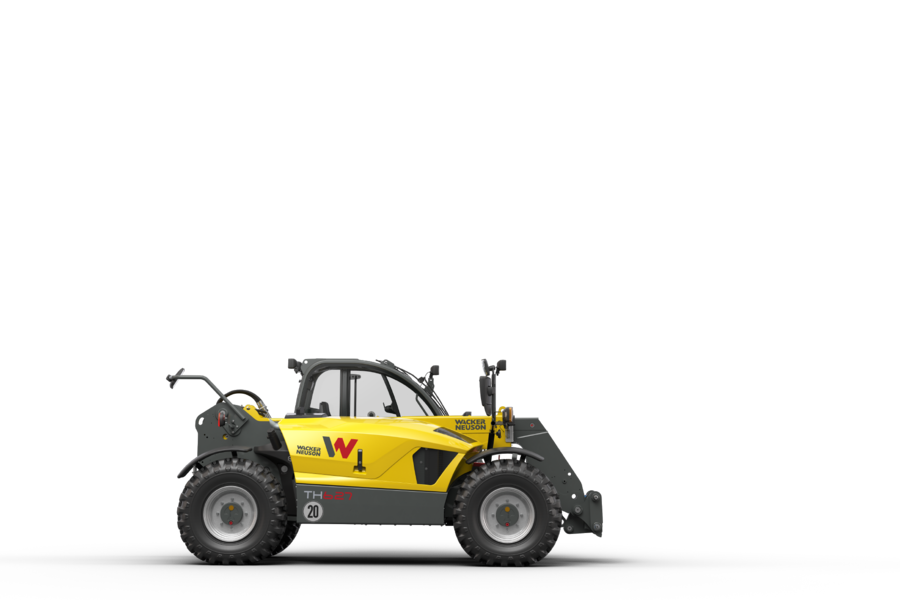

Telehandler TH627: Maneuverable and effective.

If stacking heights of 6 meters are involved, the telehandler TH627 is the ideal solution. With a payload of 2.7 metric tonnes, it remains stable even during extreme loading processes. The numerous option variants make the TH627 a real all-rounder on the construction site. With two cabin variants, the vehicle offers a low overall height or, with the high cabin, an even better all-round visibility.

Choice between two cab heights.

• Improved 360° visibility for the operator due to the raised cab. Increases safety for the operator and the surrounding area.
• Low overall height is ideal for use in confined spaces.

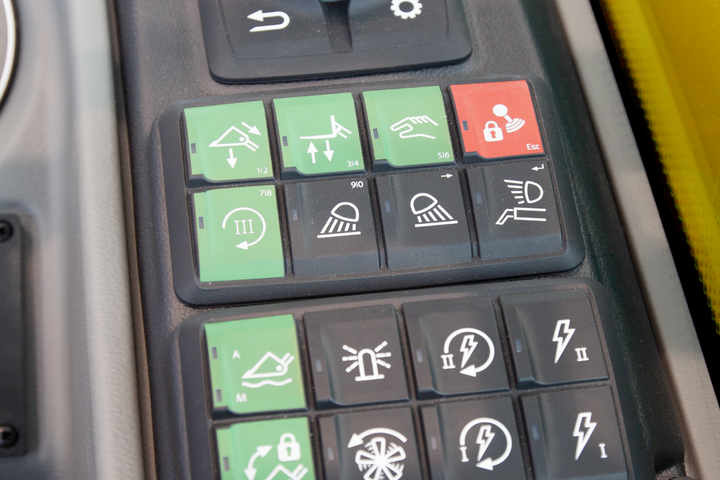

All switches assigned to the same category are the same color.

• Efficiency during work with the machine is increased due to simplified operation.
• The color-coded switches increase safety by reducing the danger of confusing the switches.
• This way, even new operators quickly find their way around the machines.

Good accessibility for daily maintenance.

• For example, a wide-opening engine hood and sight glasses for monitoring fill levels make daily maintenance easier. This saves time and money.
• Service work on the engine, for example oil changes, is simplified by the engine tray with removable service flaps and hanging-mounted filters.
• Fuse boxes in the footwell ensure quick and clear fuse changing. In addition, the battery is easily accessible, housed next to the entrance. This way, repairs to the electrics can be completed quickly and easily.

Comfort

Three-point hydraulic system in the rear, category 2.

• With the three-point hydraulic system and PTO, other attachments can be operated in the field or on the spot.
• The rear hydraulics can be conveniently operated from the cab or from outside via control buttons at the rear of the machine.
• To keep the overall turning radius tight, the lower linkages can be folded up in a “parking position”.

Large windows provide a panoramic view of the job site.

• The optimal view for the operator increases safety for people in the surrounding area of the machine.
• The large glass surface area contributes to a more comfortable working environment for the operator

The steering column is adjustable to the needs of the operator.

• An ergonomically favorable position can be set for every type and size of operator. More comfort through individual adjustment.
• The steering wheel can be folded away. This makes available more room for entering and exiting.

Efficiency

Brake function and inch function are combined in one pedal.

• As the inch function is often the only one required when handling materials, the brake is not unnecessarily actuated too often. Consequently, service costs for the brake are reduced, as is wear.
• As only one pedal is required for both functions, there is no need to switch pedals.
• Faulty operation is prevented because the pedals cannot be confused.

Maintenance

• Please note that the product range may vary depending on the country. Under certain circumstances, the contents / products shown here may not be available in your country. The illustrations, equipment, and data shown may also differ from the current product range in your country. Optional extras may be shown that are subject to an additional charge. Subject to changes.
• Delivery times can vary - subject to prior sale.
• With the selection of different options, the technical data of the products can vary accordingly. Please note that equipment cannot be changed for editions.

Mechanical-output details

Mechanical Details

Hydraulic

Engine

• Perkins 404J-E22T, 45 kW / 61 HP, Stage V

• Hydrostatic all-wheel steering
• Steering angle max. 2 x 40
• Oscillating angle of the rear axle: ± 8°
• Steering cylinder: 2

• 10.5/80-18 AS ET0

• Hydrostatic all-wheel drive system, travel direction can be chosen via joystick
• Operating brake: Mechanical disc brake (combined with parking brake)
• Central service and parking brake in the drive train acts on all 4 wheels

• 3rd Front control circuit proportional via joystick incl double detent
• Hydraulic oil cooler
• VLS (Vertical Lift System)
• Damping in telescopic cylinder and lifting cylinder (lifting)

• Cab with heating and ventilation ROPS / FOPS tested with VSG safety window on the right side
• Comfort seat with safety belt
• Hydraulically pilot-controlled joystick with direction switch and proportional telescopic function
• Operating hour meter
• Fuel display
• Roof window wiper
• Tilt display

• Work lights, 1 in front and 1 in rear
• Lighting equipment according to StVZO (road traffic licensing regulations)
• TÜV-report for road travel
• Reversing alarm (acoustic)
