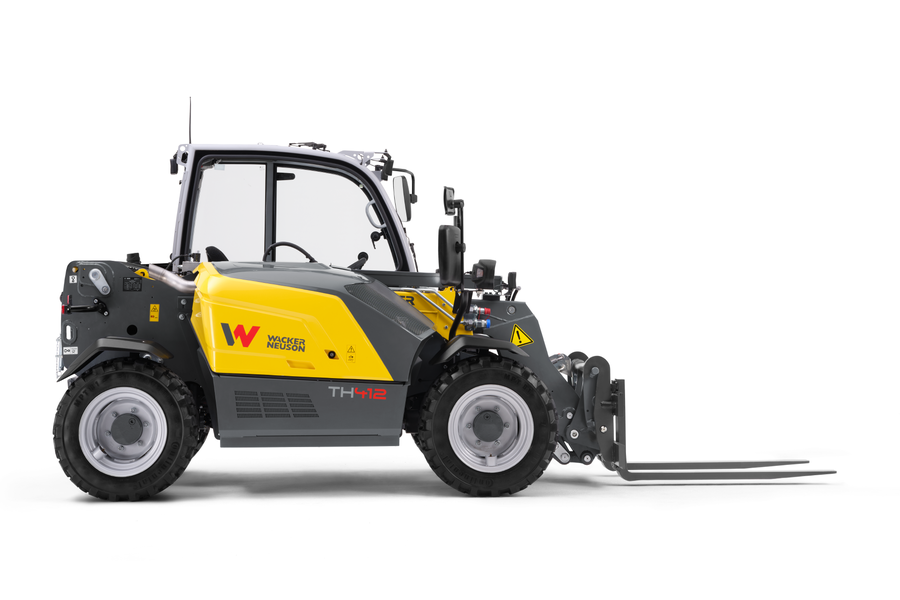

Telehandler TH412: Compact and powerful

All wheel steering, low centre of gravity and excellent stability distinguish the TH412 telehandler. The integrated driver assistance system VLS (Vertical Lift System) ensures safety, while also increases the operator comfort. The electronically regulated drive system with various operator modes enables an externally productive work operation with the machine. Thanks to its low operating weight and very compact dimensions, the TH412 can be transported on a car trailer without any problems. This makes its flexible for use in many different areas.

Electronically controlled drive system

Smarter driving and working: With the electronically regulated drive system, the machine can be driven and used completely needs-based. Wacker Neuson has implemented four different operator modes especially for this. Auto mode and Eco mode always come as standard. Optionally you can then either select the attachment mode or the M-drive mode. This provides the operator with maximum flexibility because the machine can be configured according to their requirements.
The electronic regulation reduces the losses in the drive system and ensures a higher rate of efficacy as well as increased efficiency when compared with existing solutions. A lower power requirement enables operation with low rpms. Due to a very finely tuned protective measure package, reliable and durable working using the machine has also been enabled.

Electric parking brake

The electric parking brake automatically activates if the machine stands still, the direction of travels is set to neutral or the operator leaves the seat. The parking brake is automatically released if the machine is put into gear using the accelerator. This provides the operator and their working environment with a maximum level of safety and comfort. The machine can therefore be operated more efficiently using the electric parking brake.
Naturally, the electric parking brake can likewise be manually activated and deactivated by operating a switch. The operator therefore always has control and can work with the machine in accordance with their requirements.
The electric parking brake provides both a comfortable auto-hold and hill-hold function. This prevents the machines from unintentionally rolling away and in doing so increases safety when working.

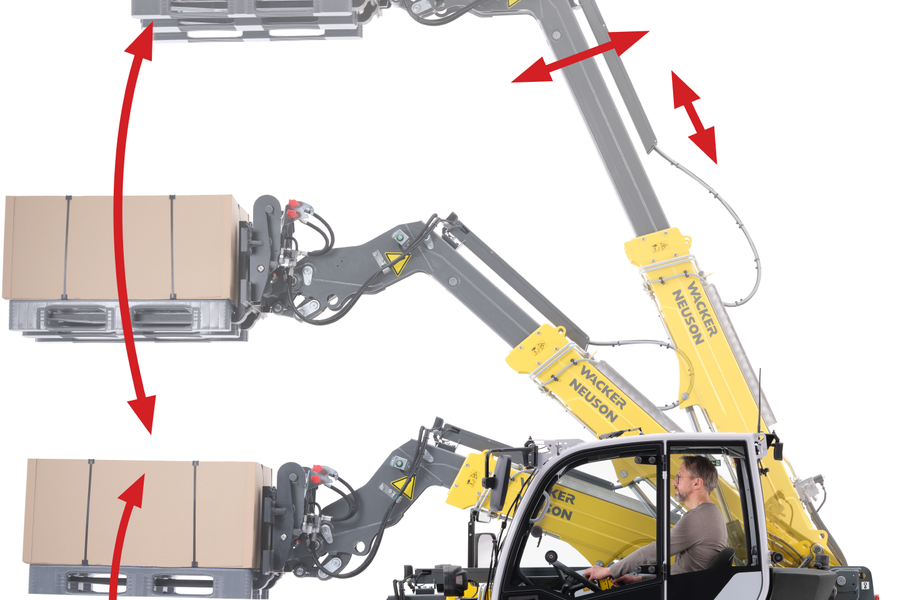

VLS (Vertical Lift System)

The VLS (Vertical Lift System) is a driver assistance system that makes the work easier for the operator when lifting or lowering loads by extending and retracting the telescopic boom semi-automatically when lifting and lowering, respectively, without the operator having to additionally control the telescopic function. This makes smooth and quick work possible.
The almost vertical lifting and lowering movement also makes the telehandler with the VLS very stable because the load does not enter into the overload area. Experienced operators can work even faster and safer with the VLS. Inexperienced operators receive valuable support for lifting and loading work.
The VLS (Vertical Lift System) can be categorised into two different modes: In the bucket mode, the telescopic arm always automatically retracts within the upper and lower area and within the upper area the telescopic arm does not automatically extend, this is suitable, for example, for loading works with bulk material. The stacking mode, the telescopic boom does not automatically retract within the lower area, in the upper area the telescopic boom automatically extends, it is possible to simultaneously lower and extend the telescopic arm, this is, for example, suitable for stacking work with pallets.

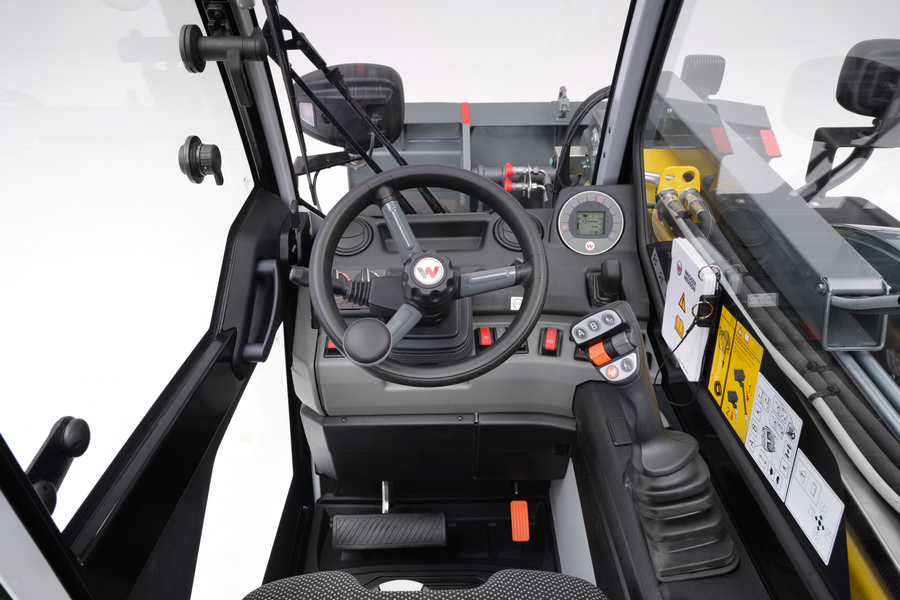

Colour-oriented operating concept

All of the operating elements are within reach and the most important machine information is always within the operator’s view via the optimally positioned display. The switch and operating elements are colour-coordinated into different groups: grey = electric, red = safety, blue/orange = drive system, green = hydraulics. This way, quick detection and orientation are guaranteed.
The standardised Wacker Neuson operation philosophy and the colour-oriented operating concept enable the operator intuitive operation of the machine. The quick orientation makes working with the machine easier for new or changing operators, while simultaneously increase work safety.

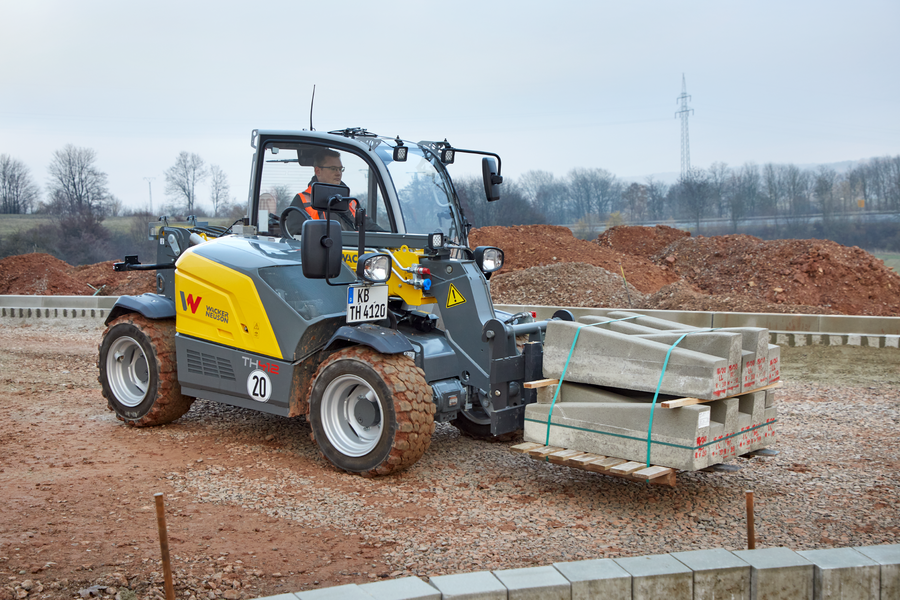

Compact and powerful

The telehandler is impressive with its optimal relationship between lift height, compact dimensions, and powerful machine performance. This combination in such a compact machine is unique.
With the all wheel steering, 4-wheel drive and one-piece frame, it is completely stable and well-equipped for many different tasks. The low centre of gravity of the machine also increases the stability.
Precisely when its tight, for example in work passages in storage sites or in tight construction sites, the telehandler comes into its won with its small radii and optimal maneuverability.

Quality

High-quality powder coating

In comparison to conventional wet painting, powder-coating greatly extends the service life of the machine and is also environment friendly.
The durable powder coating guarantees value retention and ensures an accordingly high resale value for the machine.

Robust Telescopic Arm

The telescopic arm is both sturdy and stable in design, and is positioned in the middle of the machine, which counteracts the twisting. The parallel guide is hydraulic and the sliding elements in the interior pipe of the telescopic arm are maintenance-free. This reduces wear and increases the service life of the machine.

Eco-friendliness

Electronically regulated drive system: ECO-Mode

In the Eco mode, the engine speed is lowered to 2,200 rpm after the desired vehicle speed is reached, so that both, noise reduction and fuel economy are possible.
Eco-mode enables comfortable and resource-saving driving, especially over longer distances.
Please note that the product range may vary depending on the country. Under certain circumstances, the contents / products shown here may not be available in your country. The illustrations, equipment, and data shown may also differ from the current product range in your country. Optional extras may be shown that are subject to an additional charge. Subject to changes.
Delivery times can vary - subject to prior sale.
With the selection of different options, the technical data of the products can vary accordingly. Please note that equipment cannot be changed for editions.

Mechanical-output details

Travel speed stage 1	0 - 7 km/h
Travel speed stage 2	0 - 28 km/h

Mechanical Details

Weight	2,750 kg
Payload max.	1,250 kg
Payload lift max.	1,250 kg
Lift bucket swivel	4,537 mm

Hydraulic

Operating pressure	220 bar
Flow rate	28 l/min
Tank capacity	36 l

Operating fluids

Cooling fluid volume	7.5 l
Hydraulic fluid volume	60 l
Fuel Tank capacity	38 l
Hydraulic fluid type	ISO VG 46

Chassis

Turning radius	2,695 mm
Operating pressure	380 bar

A	Total length	3,944 mm
B	Total length without bucket	2,991 mm
C	Bucket pivot point (to center of axle)	450 mm
D	Wheel base	1,922 mm
E	Rear overhang	427 mm
F	Height with cab	1,995 mm
H	Seat height	978 mm
J	Total working height	5,280 mm
K	Bucket pivot point (max. lift height)	4,537 mm
L1	Load-over height telescopic arm retracted	2,949 mm
L	Load-over height telescopic arm extended	4,163 mm
M1	Dumping height telescopic arm retracted	2,415 mm
M	Dumping height telescopic arm extended	3,630 mm
N	Reach (at M)	557 mm
O	Digging depth	96 mm
P	Total width	1,564 mm
Q	Track width	1,235 mm
S	Ground clearance	294 mm
T	Maximum radius	3,506 mm
U	Radius on the outer edge	2,695 mm
V	Inner radius	951 mm
X	Rollback angle at max. lift height	52 °
Y	Dumping angle	31 °
Z	Rollback angle on ground	44 °
-		10.0/75 - 15.3 AS

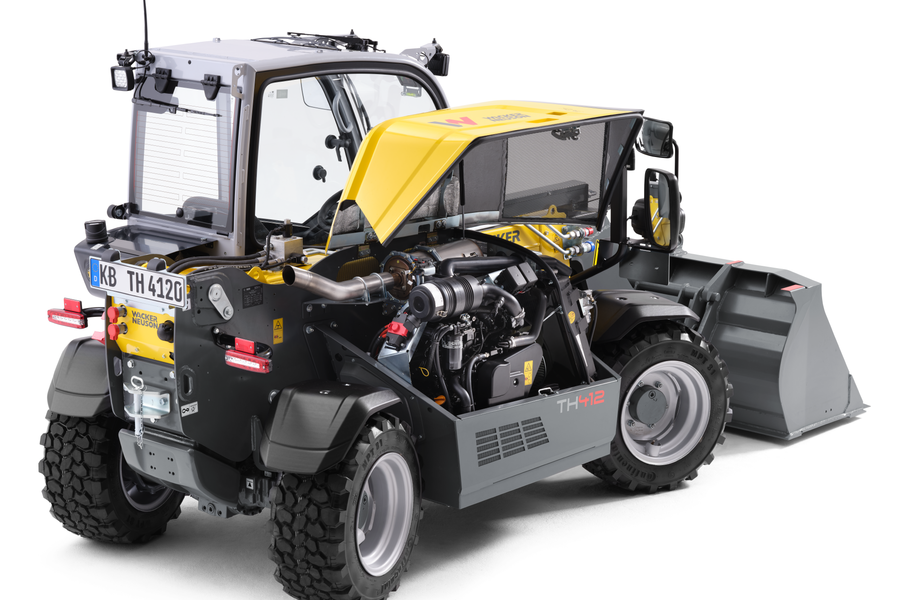

Engine

Yanmar 3 TNV 80 FT, 18.4 kW / 25 HP, EU: Stage V

Steering system

Hydrostatic all-wheel steering with end position synchronization
Steering angle max. 2x38°
Oscillating angle of the rear axle: ± 7°
Steering cylinder: 2

Tires

10.0/75 - 15.3 AS

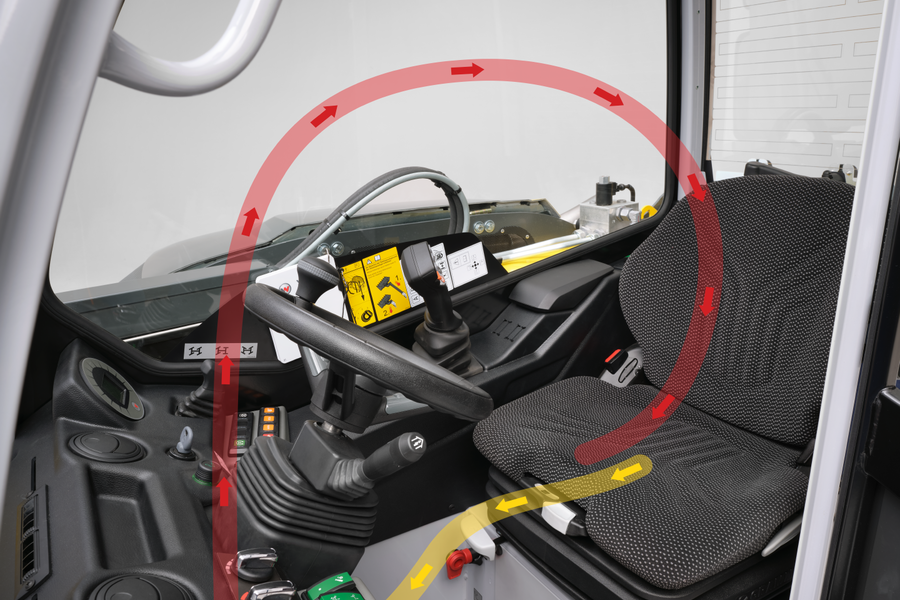

Operator's cab

Cab with heating and ventilation ROPS / FOPS tested with VSG safety window on the right side
Front, roof, and rear wipers
Heated rear window
Tilt display
Armrest with storage compartment
Sun shade
Bottle holder
Storage net

Operator's seat

Comfort seat with safety belt

Lighting

Lighting equipment according to StVZO (road traffic licensing regulations)
LED working lights, 1 in front, 1 on cab roof

Drive system

Axle: PAL1165 planetary steering axle
Drive: hydrostatic via transfer case and universal joint shaft, electronically controlled
Driving modes: Auto mode; ECO mode (reduction of engine speed when set speed is reached)
Speed: 20 km/h
Travel speeds: 2 | 7 km/h / 20 km/h (Optional 30)
Operating brake: Hydraulically actuated disc brake on front axle acting on rear axle via universal joint shaft
Parking brake: Electro-hydraulic spring-loaded brake on front axle, acting on rear axle via universal joint shaft incl. Auto-hold function
