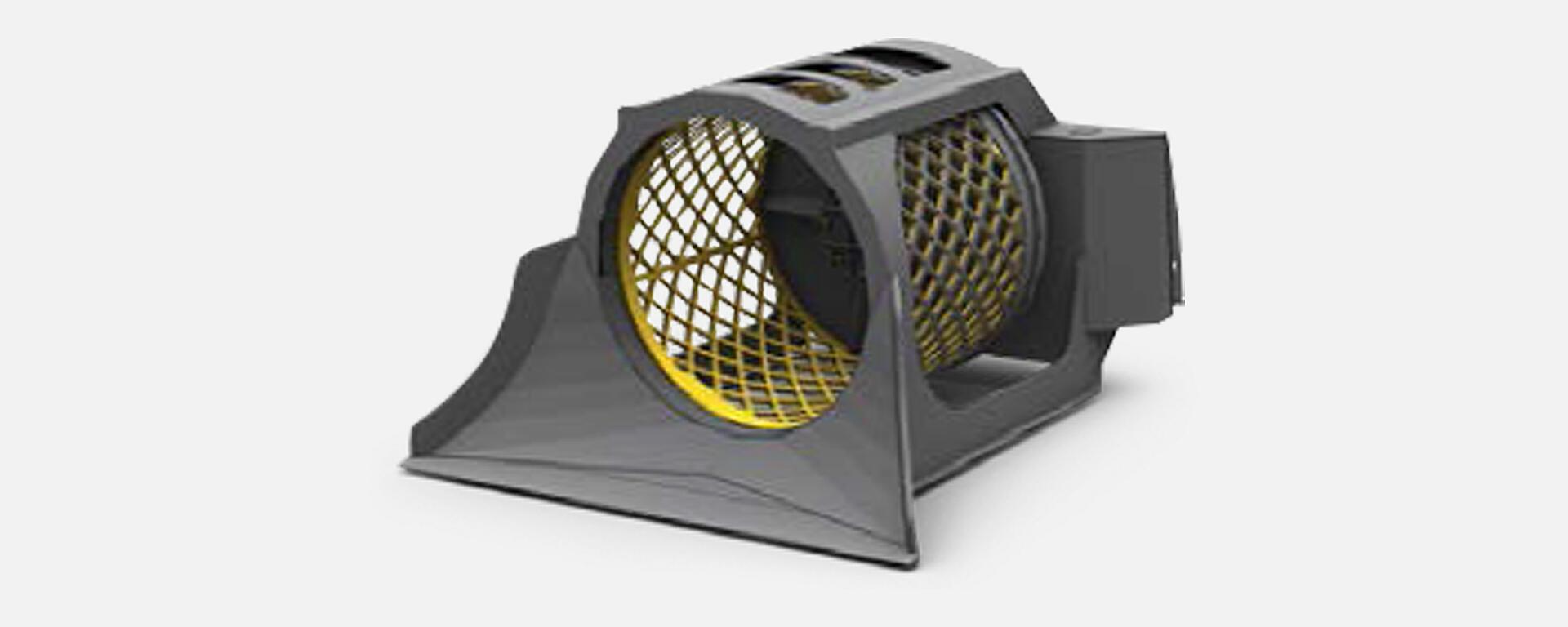

• The rotary sieve is suitable for screening overburden, excavated material, demolition material, and fill material. The material can be processed directly on site, which increases the productivity of the machine and attachment
• With the rotary sieve, the particle size of the material to be screened can be adjusted directly from the operator's cab (material thickness from 25 to 60 mm)
• The double drum consists of an inner and an outer basket. By moving the inner drum, which is driven by a hydraulic cylinder, the size of the material outlet holes is changed, so that the screen bucket can be used in a particularly versatile way
• Width: 1200 mm - 1600 mm, Max. load: 130 l - 310 l, Sieve size: 25 mm - 60 mm

Connection: 2 hoses, 1 electrical connection (adjust the size of the sieve).

Required connection for wheel loader: 3rd control circuit, Pressureless return, doubled front electrical connection

Required connection to telehandler: 3rd control circuit, Pressureless return, doubled front electrical connection

Recommended: Notch for 3rd control circuit

1. TH412
2. TH522
3. WL28
4. WL34
5. WL44
6. WL54
7. WL70
8. WL38
9. WL52
10. TH412e
11. WL28e
12. WL28e
13. TH412e
