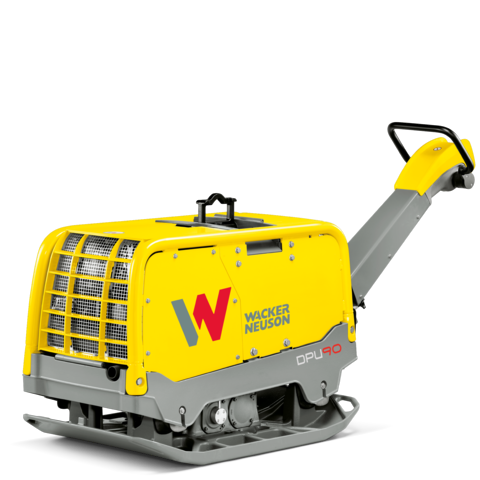

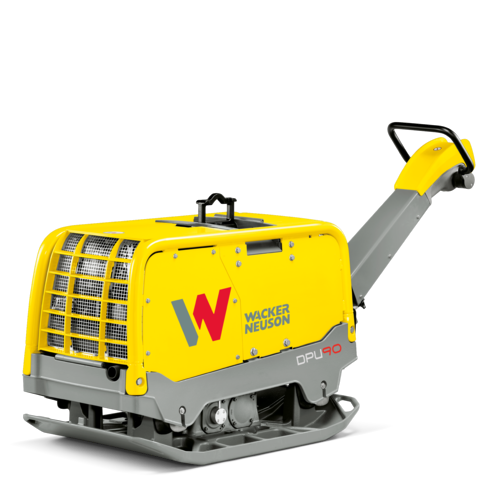

Heavy-weight reversible vibratory plates > 600 kg: Uncompromising performance with high operating comfort

The heavyweight reversible vibratory plates offer an uncompromisingly strong compaction performance with compact dimensions and a high level of operating comfort. Therefore, they are the compaction machine of choice for demanding compaction work such as road construction. The water-cooled engine provides reliable high performance. Many functional details based on the most modern technologies ensure efficiency on the job and make daily maintenance easier. The product range consists of high-performance, heavy-duty vibratory plates with centrifugal forces ranging from 80 to 130 kilonewtons.

Compact dimensions, high performance

• The machine is highly productive with the compact dimensions providing efficiency and comfortable operation.

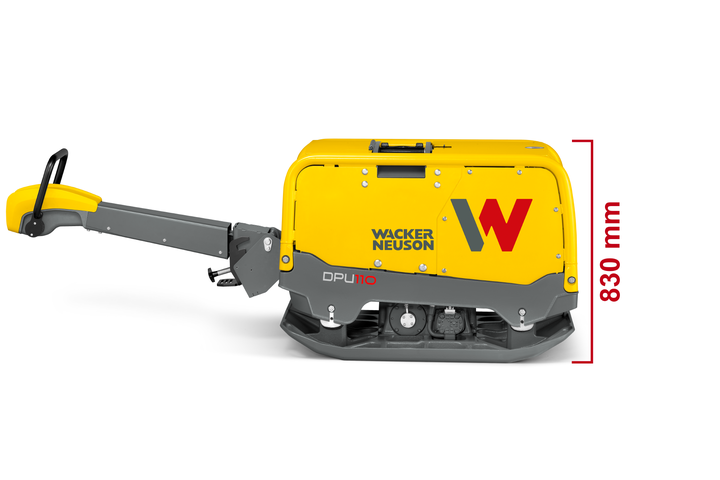

• The low machine height allows operation under lateral struts in trench shoring.
• The machine’s compact dimensions make transport easier.

Sturdy and durable

• The vibratory plate is made of heavy-duty, wear resistant materials. Due to this, it achieves a long service life. For example, the base plate is made of nodular cast iron (GJS700).
• Even after a longer operating time, the vibratory plate reaches a high resale value. Investment in this machine is thus very economical.

Center pole

• The height-adjustable center pole can be easily positioned to the size of the respective operator.
• The sturdy, self-engaging center pole lock offers a very fast and reliable safeguard for transport. The locking mechanism can be easily released using the foot pedal
• The machine's height can be reduced by quickly lowering the center pole making it easier to pass under obstructions. Afterward, the center pole can be returned directly to the previous operator position.

Intuitive guide bar with continuously adjustable speed.

• A change of direction is possible with a high degree of comfort just by moving the handle. This way, the operator can keep working with both hands, without pressing additional buttons or cranking of handles.
• The speed is infinitely adjustable.

Large tank, high capacity air filter

• Because of the large fuel tank, one tank is easily enough for a full 8-hour day. This means time and effort refilling are avoided during the workday.
• The high capacity of the air filter ensures long maintenance intervals. This saves time and expense.

Cost-optimized repair concept

• The multi-piece concept, consisting of a two-piece hood, protective frame and side panels, enables individual parts to be replaced very affordably if damaged.

Excellent maintenance access due to the two-part swiveling hood.

• The machine’s protective hood has two parts. This makes it easier to open and offers generous tool-free access to all important maintenance points.

Water-cooled engine

• The water-cooled engine offers reliable cooling even at high external temperatures.
• The machine sound level is significantly lower than that of air-cooled engines in the same class.

DPU110Lec870

Reversible vibratory plate with diesel engine, electric starter and Compatec compaction control system for the highest requirements on performance, durability and operating comfort for soil compaction. Operating width 870 mm.

Item Number 5100026869

DPU110Lec970

Reversible vibratory plate with diesel engine, electric starter and Compatec compaction control for the highest requirements on performance, sturdiness and operating comfort in soil compaction. Operating width 970 mm.

Item Number 5100027035

DPU110Lem870

Reversible vibratory plate with diesel engine, electric starter and machine protection for the highest requirements on performance, sturdiness and operating comfort in soil compaction. Operating width 870 mm.

Item Number 5100018445

DPU110Lem970

Reversible vibratory plate with diesel engine, electric starter and machine protection for the highest requirements on performance, sturdiness and operating comfort in soil compaction. Operating width 970 mm.

Item Number 5100024696

DPU80Lec670

Reversible vibratory plate with diesel engine, electric starter and Compatec compaction control for the highest requirements on performance, sturdiness and operating comfort in soil compaction. Operating width 670 mm.

Item Number 5100027032

DPU80Lec770

Reversible vibratory plate with diesel engine, electric starter and Compatec compaction control for the highest requirements on performance, sturdiness and operating comfort in soil compaction. Operating width 770 mm.

Item Number 5100026787

DPU80Lem670

Reversible vibratory plate with diesel engine, electric starter and machine protection for the highest requirements on performance, sturdiness and operating comfort in soil compaction. Operating width 670 mm.

Item Number 5100024695

DPU80Lem770

Reversible vibratory plate with diesel engine, electric starter and machine protection for the highest requirements on performance, sturdiness and operating comfort in soil compaction. Operating width 770 mm.

Item Number 5100018444

DPU90Lec670

Reversible vibratory plate with diesel engine, electric starter and Compatec compaction control for the highest requirements on compaction performance, sturdiness and operating comfort. With high frequency for application specially on sandy soils. Operating width 770 mm.

Item Number 5100027534

DPU90Lec770

Reversible vibratory plate with diesel engine, electric starter and Compatec compaction control for the highest requirements on compaction performance, sturdiness and operating comfort. With high frequency for application specially on sandy soils. Operating width 770 mm.

Item Number 5100027536

DPU90Lem770

Reversible vibratory plate with diesel engine, electric starter and machine protection for the highest requirements on performance, sturdiness and operating comfort in soil compaction. Operating width 770 mm.

Item Number 5100024731
