Coupling Set: Extra-large operating width for excellent performance on large surface areas.

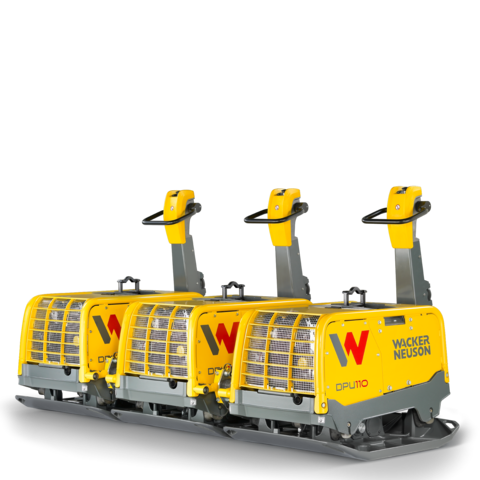

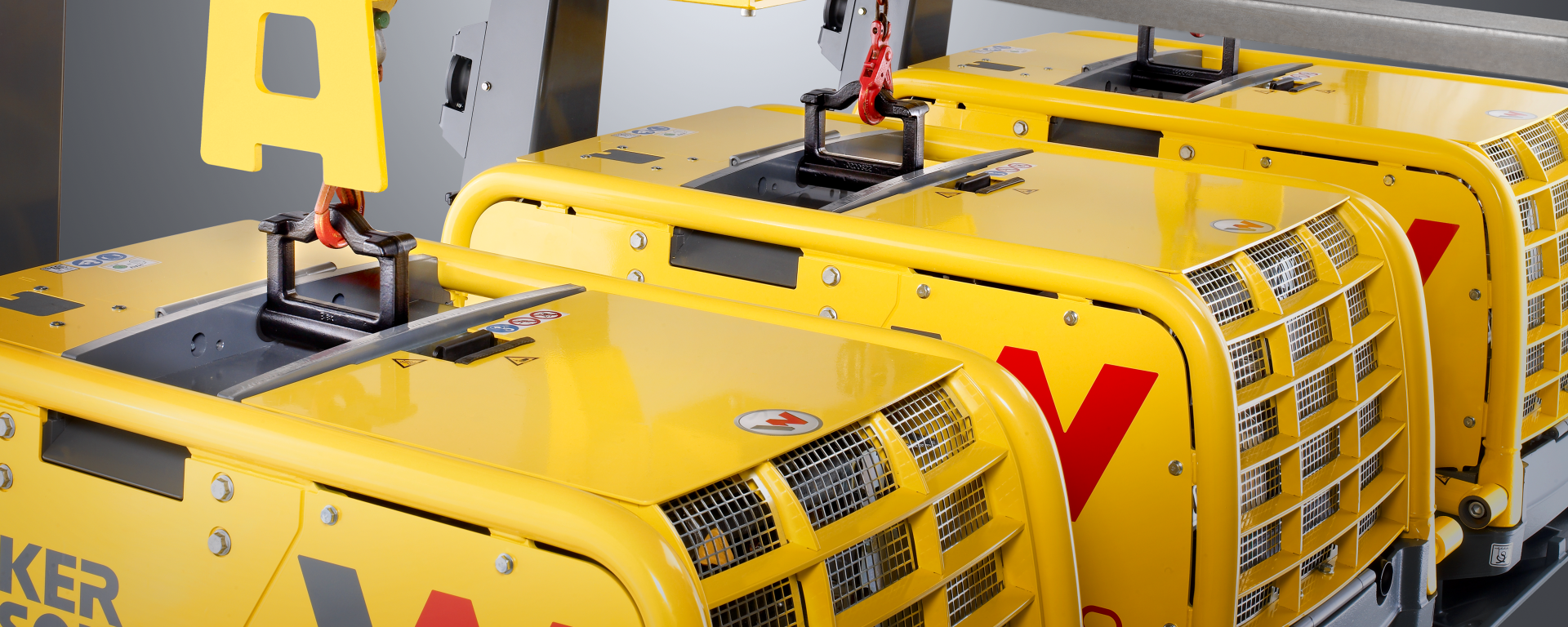

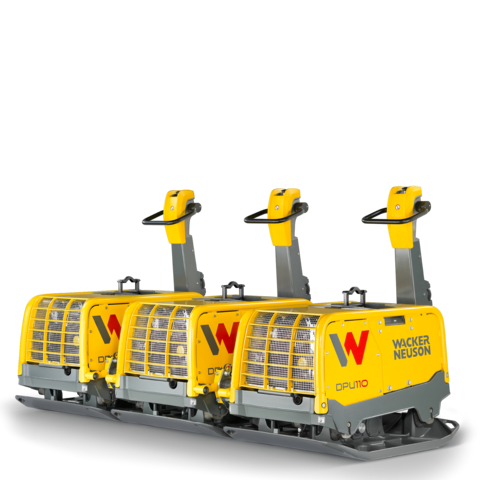

The coupling set is the ideal machine for crushed stone compaction in railway construction. It is light enough not to sink into the track bed and has a large operating width of three meters. This allows it to efficiently cover a lot of surface area. Therefore, the entire track bed can be compacted with a few passes. The remote control allows the operator to work outside of the danger area, standing away from dust, exhaust emissions and noise pollution. The three coupled DPU110 vibratory plates can also be uncoupled for individual use. This way, they offer maximum flexibility and are easier to transport.

Sturdy and durable

• The vibratory plate is made of heavy-duty, wear resistant materials. Due to this, it achieves a long service life. For example, the base plate is made of nodular cast iron (GJS700).
• Even after a longer operating time, the vibratory plate reaches a high resale value. Investment in this machine is thus very economical.

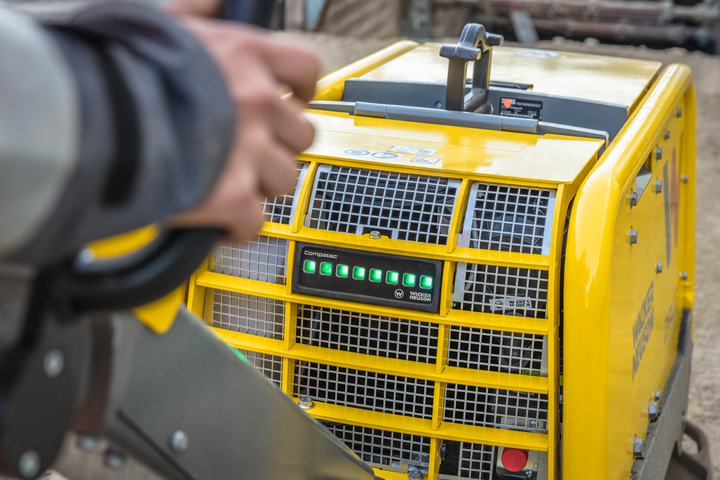

Compamatic

• Compamatic connects Compatec compaction control with a telematics function. The compaction results of a machine can be tracked at any time from your desk in the EquipCare manager.
• Compamatic helps plan out construction site processes better, ensuring quality.

Large tank, high capacity air filter

• Because of the large fuel tank, one tank is easily enough for a full 8-hour day. This means time and effort refilling are avoided during the workday.
• The high capacity of the air filter ensures long maintenance intervals. This saves time and expense.

Cost-optimized repair concept

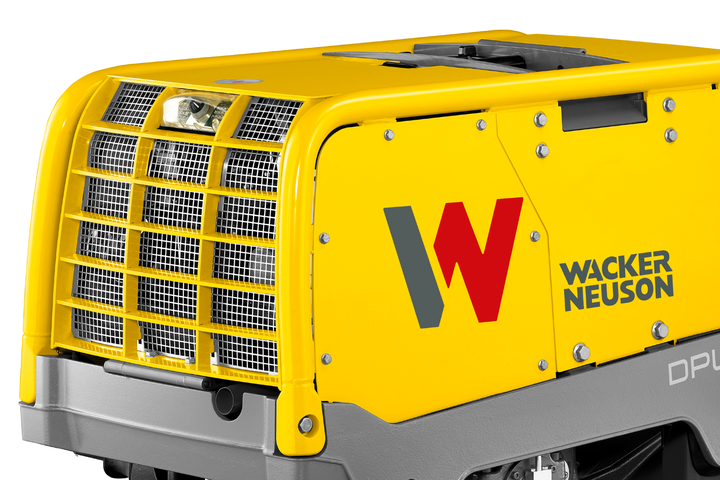

• The multi-piece concept, consisting of a two-piece hood, protective frame and side panels, enables individual parts to be replaced very affordably if damaged.

Very good accessibility to all maintenance points

• The unit offers good accessibility to all maintenance points. This saves time and costs during maintenance.

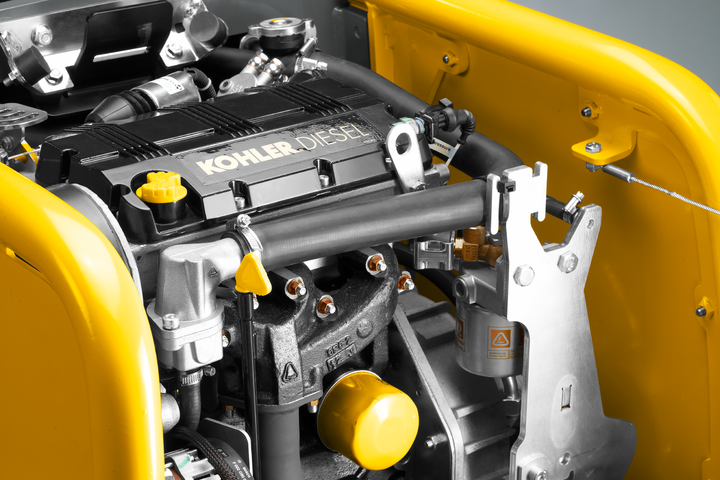

Water-cooled engine

• The water-cooled engine offers reliable cooling even at high external temperatures.
• The machine sound level is significantly lower than that of air-cooled engines in the same class.

DPU110Lekc970

Individual machine with special equipment for use in the coupling set

Item Number 5100034515
