PS series (230 V, 1~) submersible trash-water pumps: Heavy-duty and durable for demanding dewatering tasks

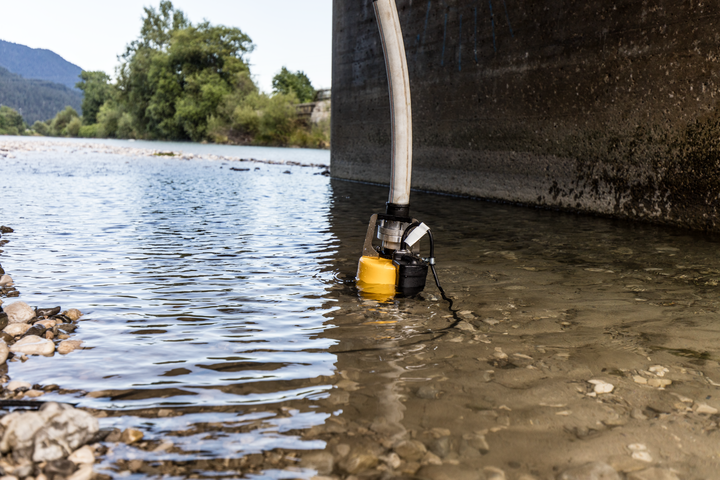

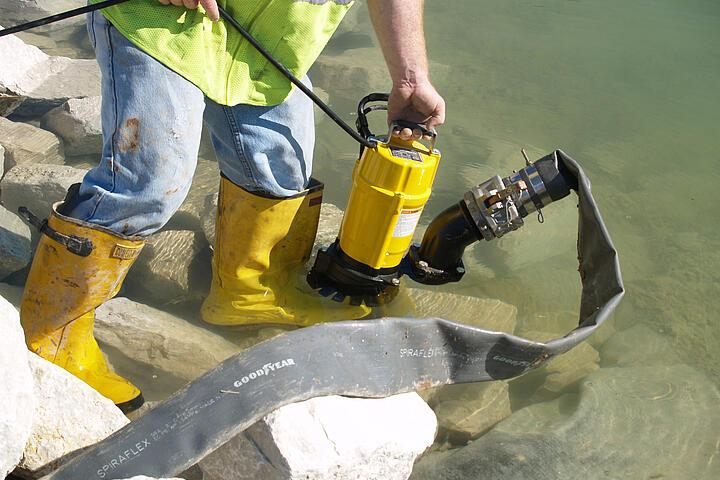

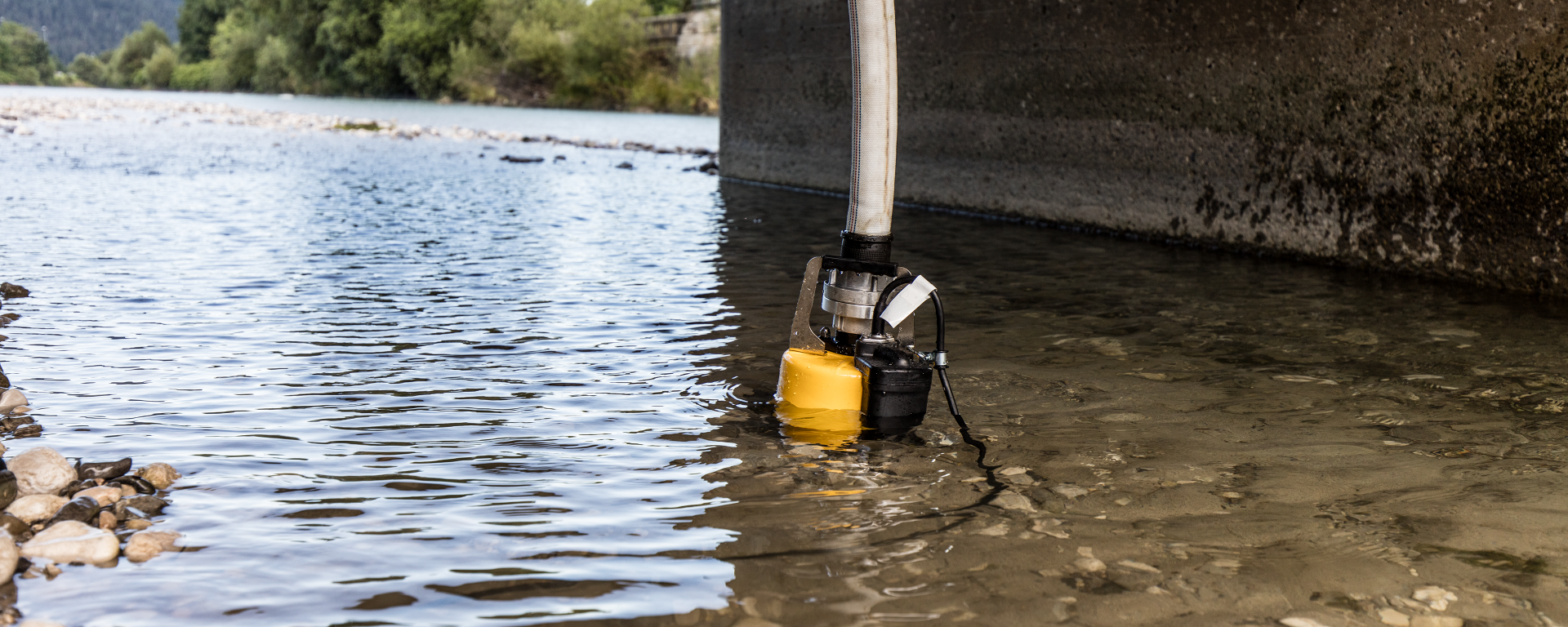

The lightweight, portable PS series of electric submersible pumps can transport dirty water with particulate matter up to 9.5 mm. They are suitable for a variety of applications, including building, civil engineering, municipal work, horticulture and landscape construction. They are extremely durable and easy to use. The high-quality pumps ensure long service life and the variety of PS pump models meet the needs of a wide range of applications.

Variety of models:

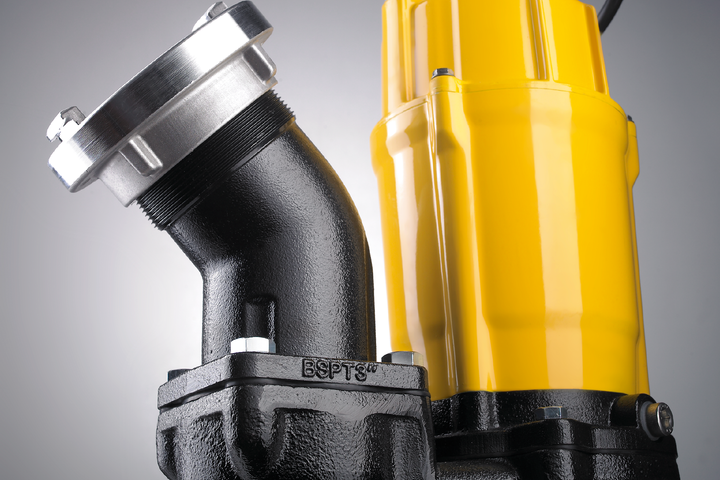

• Models with 2-inch and 3-inch hose connection (Storz coupling)
• Models with and without automatic operation (integrated level control) as well as models with external float-type switch
• Models with lateral or upwards leading hose outlet

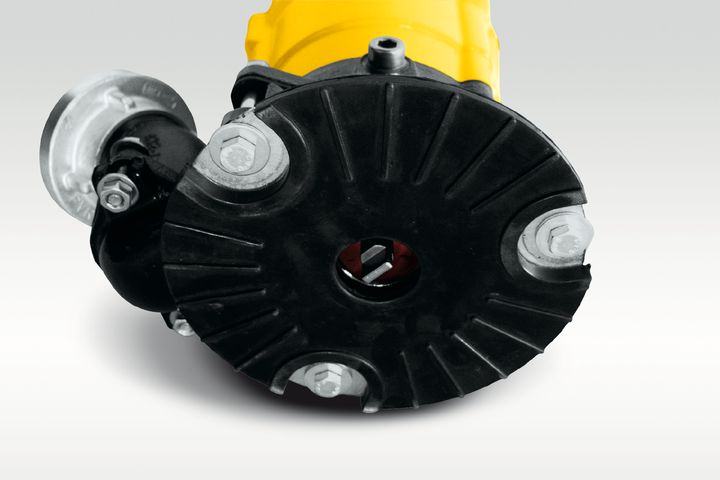

Bottom suction plate for PST2 400

• The suction strainer on the PST2 400 can be replaced with a bottom suction plate in a few steps. This accessory allows water to be pumped to as low as a few millimeters.

Reliable protection against water creepage

• The cable routing is vulcanized or potted with synthetic resin. This protects the engine compartment from penetration of water even if the cable is damaged.

Perfect sealing of the engine compartment by double, internally placed mechanical seal made of silicon carbide in the oil bath

• The shaft is sealed twice with mechanical seals towards the engine compartment. The seals are made up of extremely heat-resistant silicon carbide and are permanently in the oil bath. Due to this, they achieve a long service life.

Oil lifter for reliable lubrication in any situation

• The oil lifter lubricates and cools the shaft as well as the mechanical seals efficiently, even if the pump lies on the side. This makes the pump extremely reliable.

Safe to run dry

• Features like the double mechanical seal, the oil lifter and the thermal protection sensor make our submersible pumps reliably safe to run dry. Even long periods of intermittent operation cannot affect them.

Steel sleeve reduces wear of the shaft

• To protect the shaft from wear from abrasive substances in the dirty water, it is covered with a steel sleeve, which can be easily replaced if required.

Thermal sensor protects the engine and seals

• A thermal sensor prevents overheating of the pump and protects it from damage caused by excessive high-input current, such as from the impeller being blocked by very large particulate matter.

Heavy-duty materials

• The pump housing is made of cast iron and the impeller is made of cast iron and polyurethane. These heavy-duty components are extremely durable against wear from the gravelly-sandy dirty water.

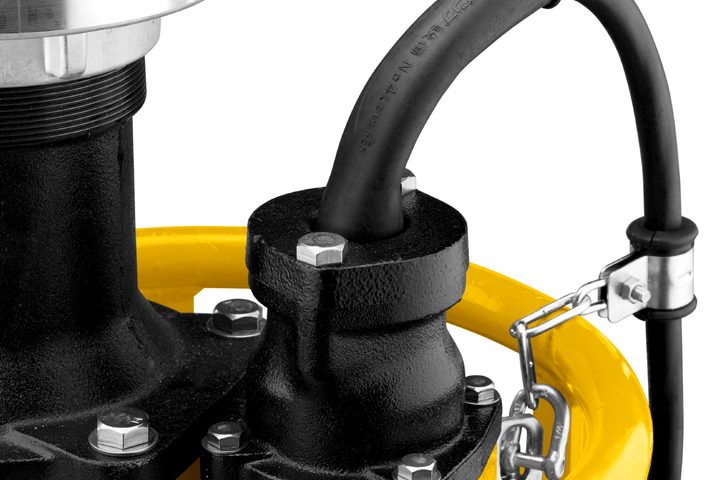

Cable with strain relief

• The strain relief protects the cable routing from damage and from penetration of water.

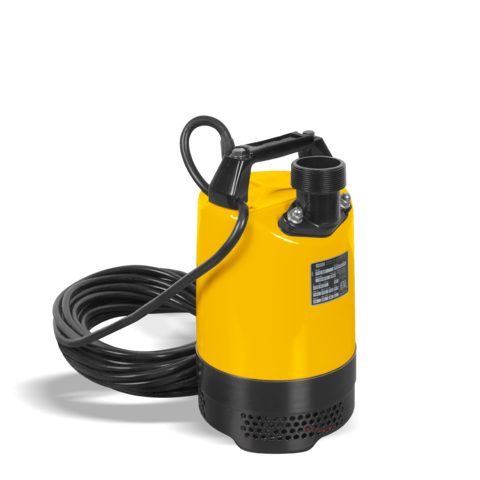

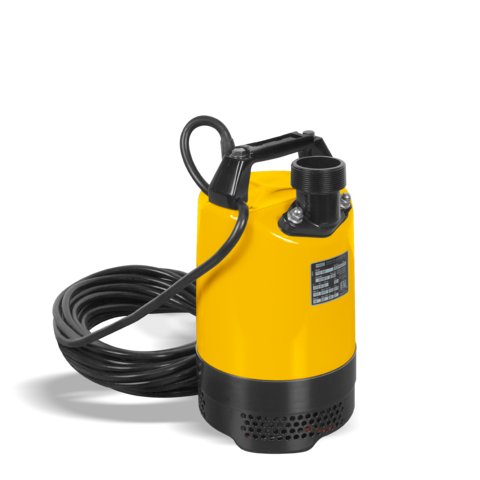

PS2-500

Electric submersible pump with 2-inch Storz coupling and Schuko plug.

Item Number 5000009176

PS2-500

Electric submersible pump with 2-inch Storz coupling, Schuko plug and float.

Item Number 5000008794

PSA2-500

Electric submersible pump with automatic switch-off, 2-inch Storz coupling and Schuko plug.

Item Number 5000009179

PSA2-500

Electric submersible pump with automatic shut-off, 2-inch Storz coupling, Schuko plug and float.

Item Number 5000008790

PS2-800

Electric submersible pump with 2-inch Storz coupling and Schuko plug.

Item Number 5000620439

PS2-800

Electric submersible pump with 2-inch Storz coupling, Schuko plug and float.

Item Number 5000620438

PSA2-800

Electric submersible pump with automatic switch-off, 2-inch Storz coupling and Schuko plug.

Item Number 5000620450

PSA2-800 mit Schwimmer

Electric submersible pump with automatic shut-off, 2-inch Storz coupling, Schuko plug and float.

Item Number 5000620449

PS2-1500

Electric submersible pump with 2-inch Storz coupling and Schuko plug.

Item Number 5000620458
