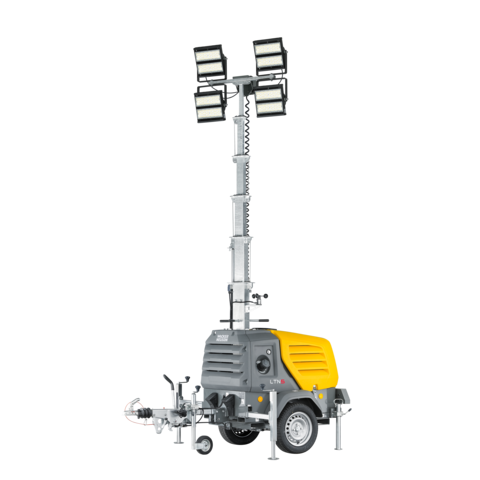

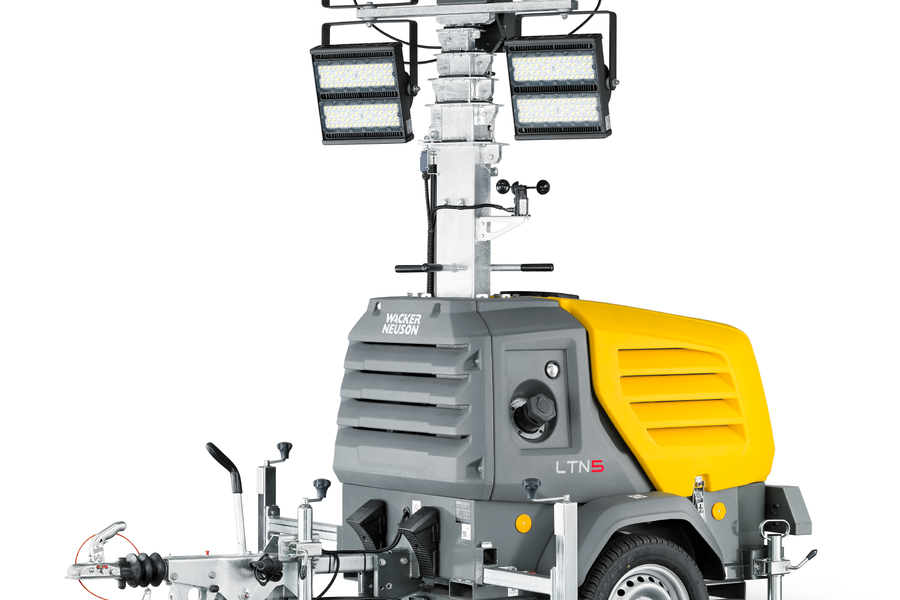

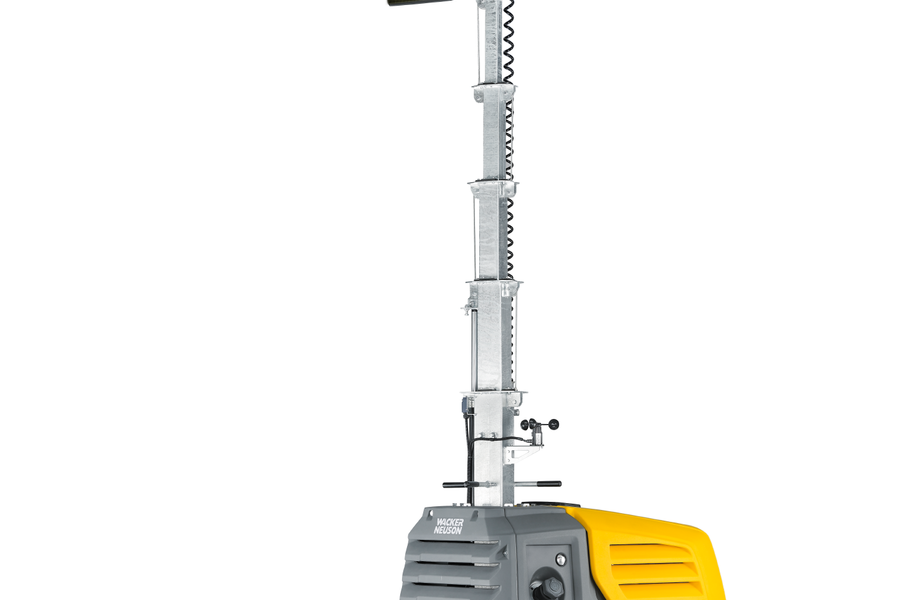

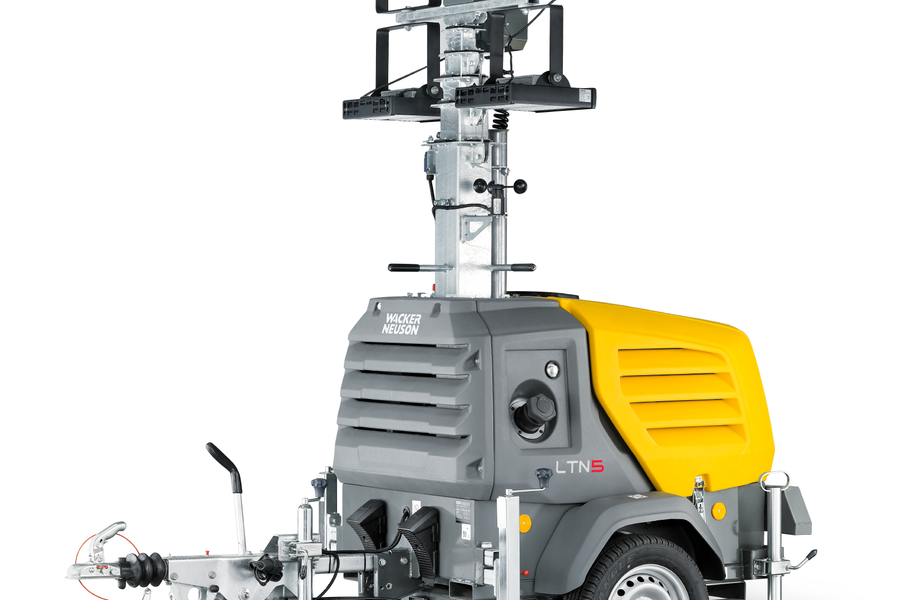

Light Towers with LED lamps LTN5Y: Portable, independent lighting for large construction sites

Thanks to its powerful LED panels, the Light Tower LTN5Y provides bright lighting, similar to daylight, for large areas. The tower can be easily raised and lowered at the press of a button. With the help of a light sensor and a timer, the operating hours can be automatically controlled as required. The trailer with road approval and the installed diesel generator make the LTN5Y a mobile, independent light source for illumination during road and bridge construction, concreting work, in parking lots, and at events.

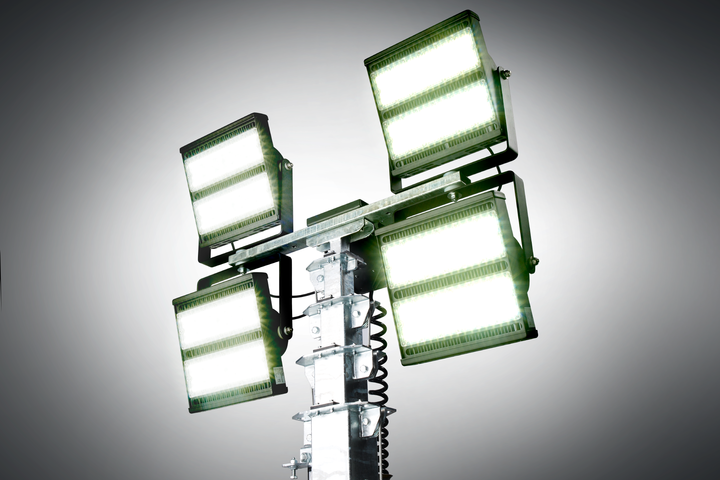

LED lamps with large illuminated area

• The light tower is equipped with 4 x 400 Watt LED light panels. It illuminates an area of up to 7,700 m², providing a bright, white light.
• LED lamps are particularly energy-efficient. That’s how they reduce fuel consumption and provide a long running time on one full tank.
• LED lamps have a long service life of up to 50,000 hours. This saves costs on replacing illuminants.

Weight below 750 kg

• The weight is below 750 kg, therefore the Light Tower can be towed with a car driver's license.

AMOSS safety system

• When the trailer brake is released, the mast lowers automatically. This means that the Light Tower can only be moved with the mast lowered. This prevents damage.

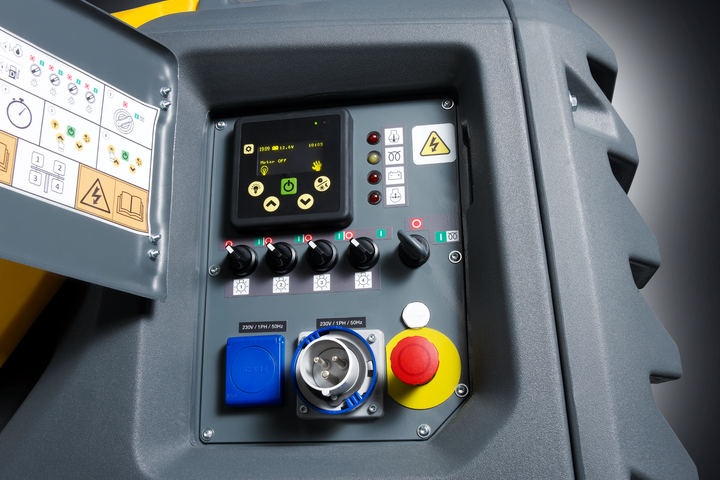

Intuitive operating panel

• The clear and easy-to-understand operating panel can be used quickly even by inexperienced operators.

Three operating modes

• Manual switching on and off of the Light Tower.
• Programmable running time: The operator can determine a schedule so that the Light Tower only runs when required. As a result, fuel can be saved.
• Light sensor: The Light Tower automatically turns on in darkness and turns off at daybreak. This save long journeys to switch it on and off.

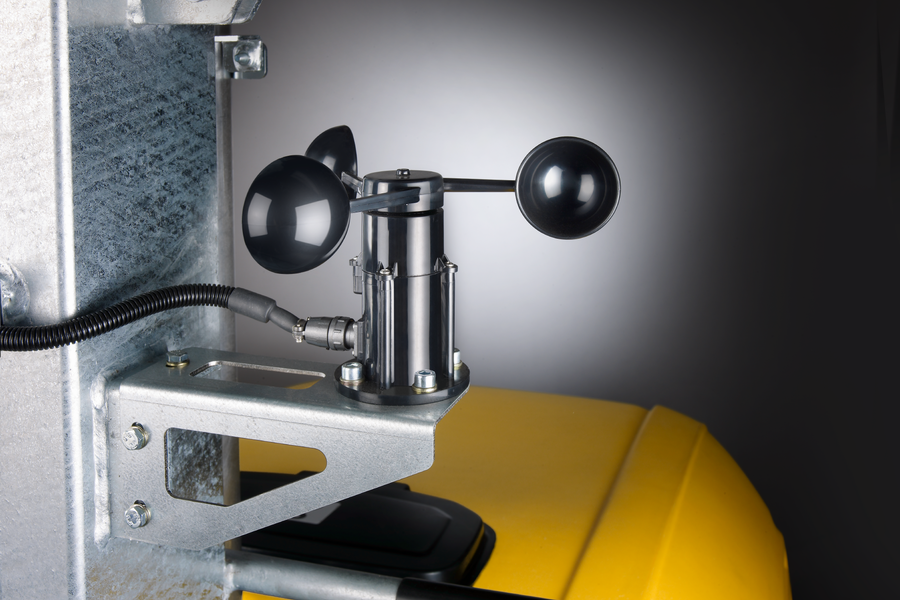

Wind sensor

• The wind sensor automatically lowers the tower in high winds.

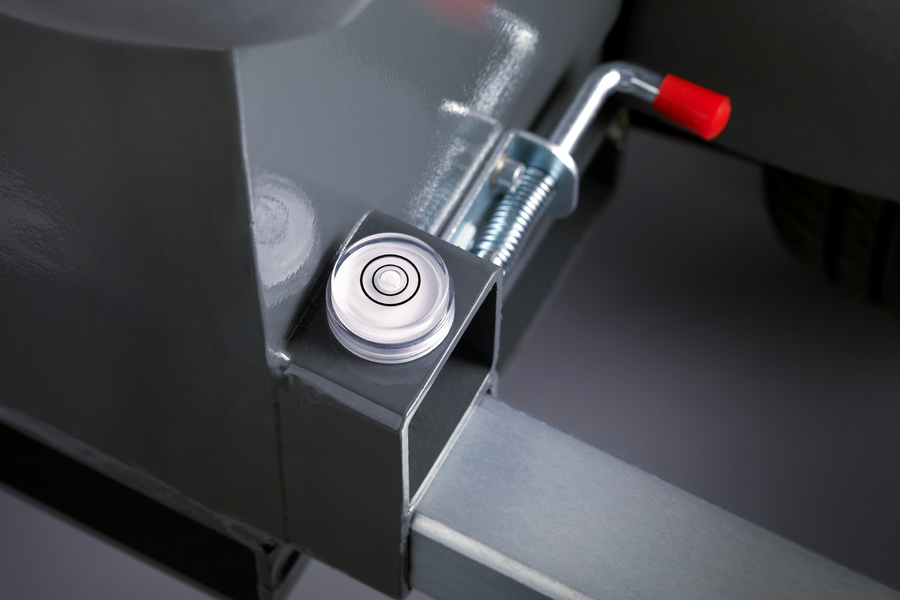

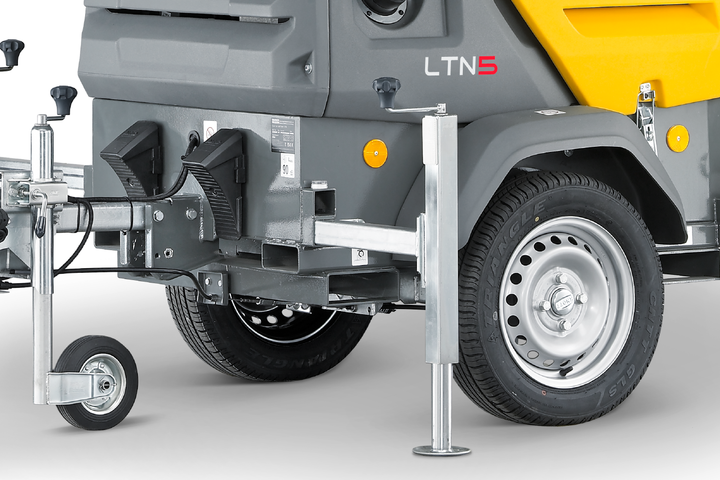

Stable outriggers

• Adjustable outriggers make alignment easier and stabilize the machine even on uneven ground and in strong winds.

Road-legal trailer

• The Light Tower's trailer is licensed for road use in Europe and comes equipped with a ball hitch as standard.

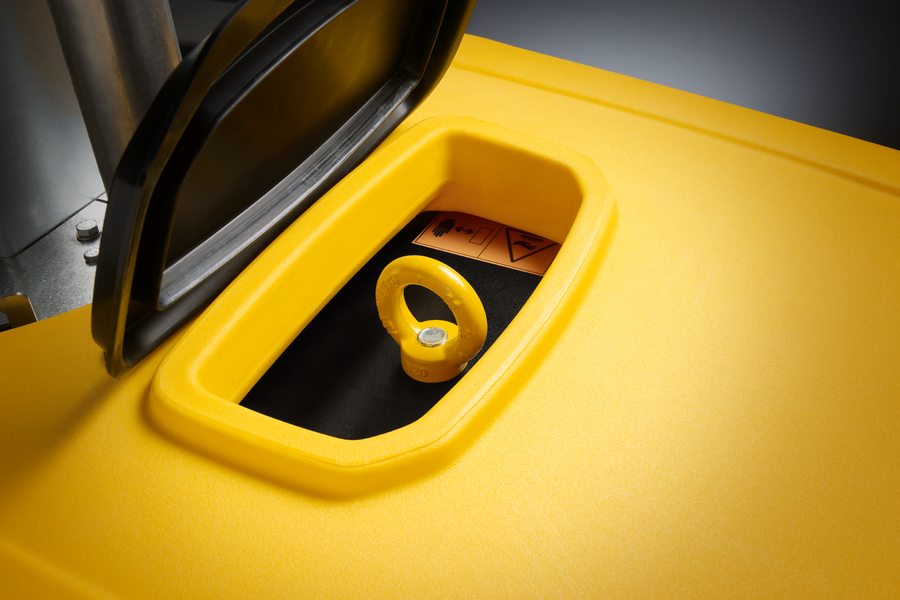

Lifting Eye

• Integrated lifting eye provides flexibility for loading, unloading, and positioning on job-site.

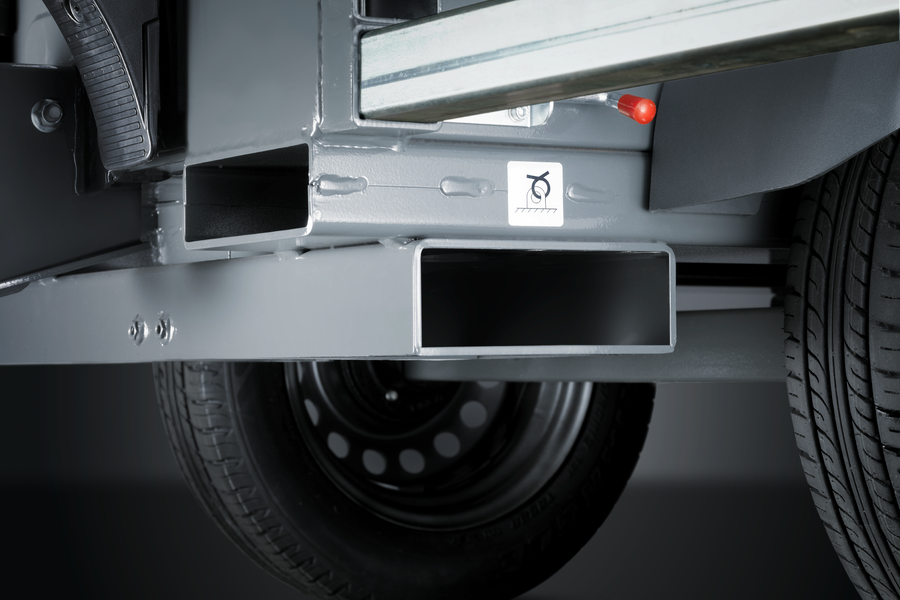

Fork lift straps

• Fork lift straps on all four sides make it easier when unloading and loading, as well as positioning on-site.

Sturdy housing

• The Light Tower is characterized by robust plastic housing, which lends it a high degree of durability to different environmental influences.

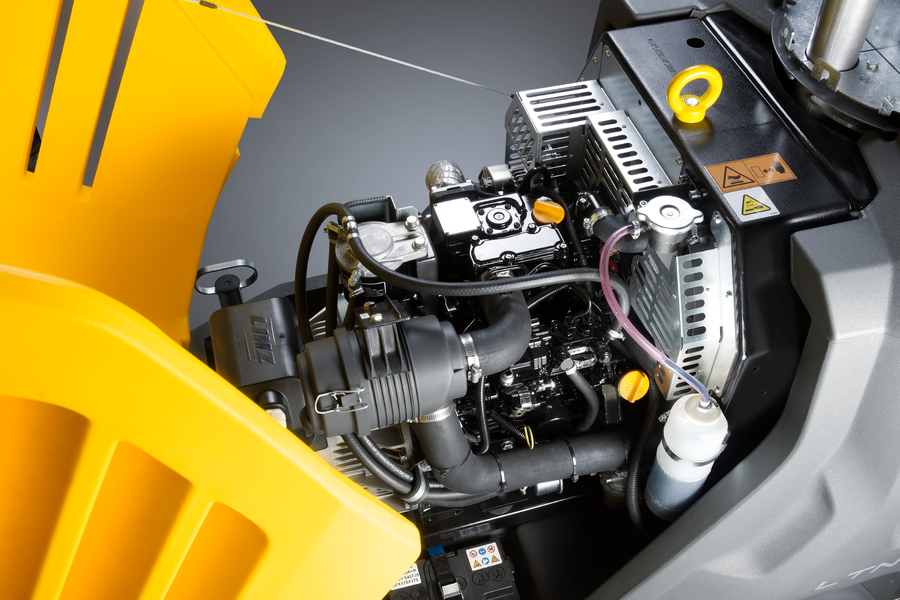

Easy maintenance access

• The hood can be swung wide open, providing generous access to all maintenance points.

Model Variations	LTN5Y UK
Output current	15.2 A
Phase	1 ~
Output Nominal power [S]	1.9 kVA
Aggregate continuous power 1~ (COP)	3.5 KW
Length	2,620 mm
Mastrotation	350 °
Windstabilität	110 km/h
Mast-Hebe-System	Electro-hydraulic
Width	1,165 mm
Height	2,700 mm
Operating Weight (with Trailer)	695 kg
Luminous spot height max.	8,200 mm
Mast height max.	7.8 m
Generator type	ALUMEN SB
Output current 1~	15.2 A
Output voltage	230 V230 V
Output frequency	50 Hz50 Hz
Generator Manufacturer	Linz Electric
Generator specification	Brushless
Engine type	Diesel engine
Cylinder	2
Cylinder capacity	570 cm3
Fuel type	Diesel EN 590
Tank capacity	105 l
Power rating max.	6.1 KW
Engine speed (Power max.)	2,000 1/min
Standard (Power max.)	SAE J1995
Effective power	3.5 kVA5.9 KW
Nominal Engine speed	1,500 1/min
Standard (Effective power)	ISO 3046-1
Exhaust-gas limit	EU Stage V
Manufacturer	Yanmar
Engine designation	2TNV70
CO2 (NRSC)	1,172 g/KWh
Main Circuit Breaker Rating	6:00 ÖÖ
Earth Leakage Circuit Breaker	10:00 ÖÖ
Lighting appliances	400W (LED)
Bulb power	1,600 W
Kind of plug	CEE-Plug 2P+E 16A 230V 6H
Receptacle Type	CEE7/3 (Typ F) 230V 16A 1~
Number of Sockets	1
Fuel consumption (Lights only)	0.9 L/hr
Run Time (Lights only)	124 hrs
Degree of protection	IP44
Luminous flux	224,000 lm
Coverage at 5 lux (0.5 fc)	30,200 m2
Flächenabdeckung bei 20 Lux	7,700 m2
Flächenabdeckung bei 50 Lux	2,700 m2

LTN5Y UK

Light tower with LED lamps, electro-hydraulically adjustable vertical mast and diesel generator.

Item Number 5100069553
