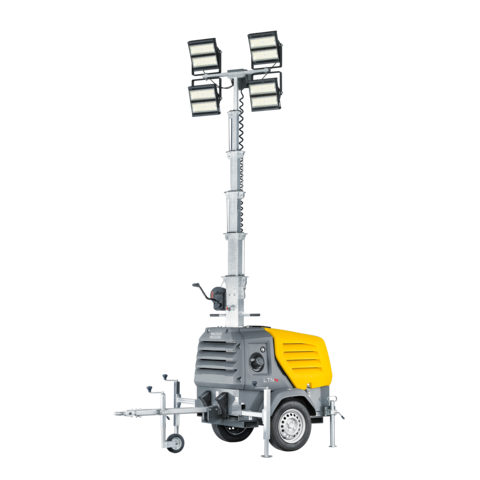

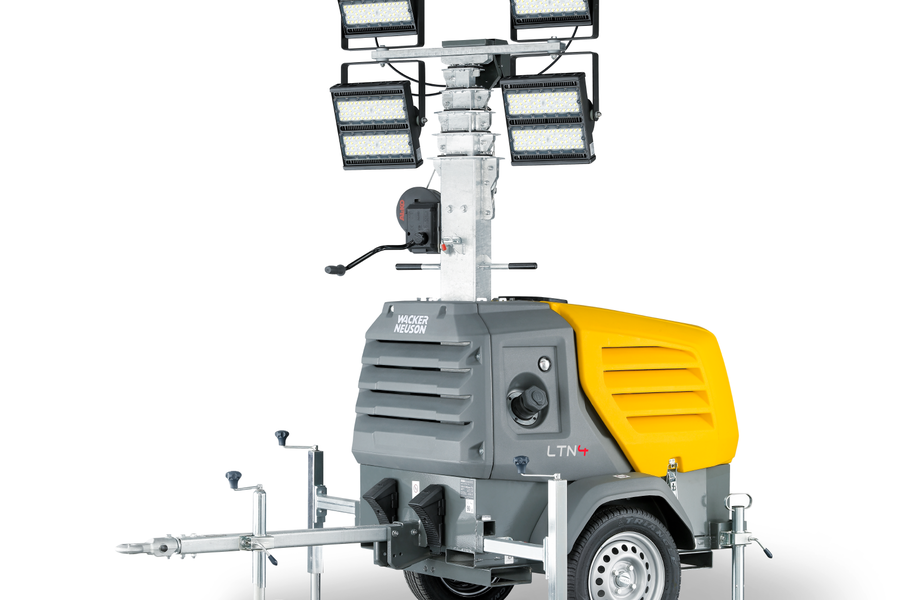

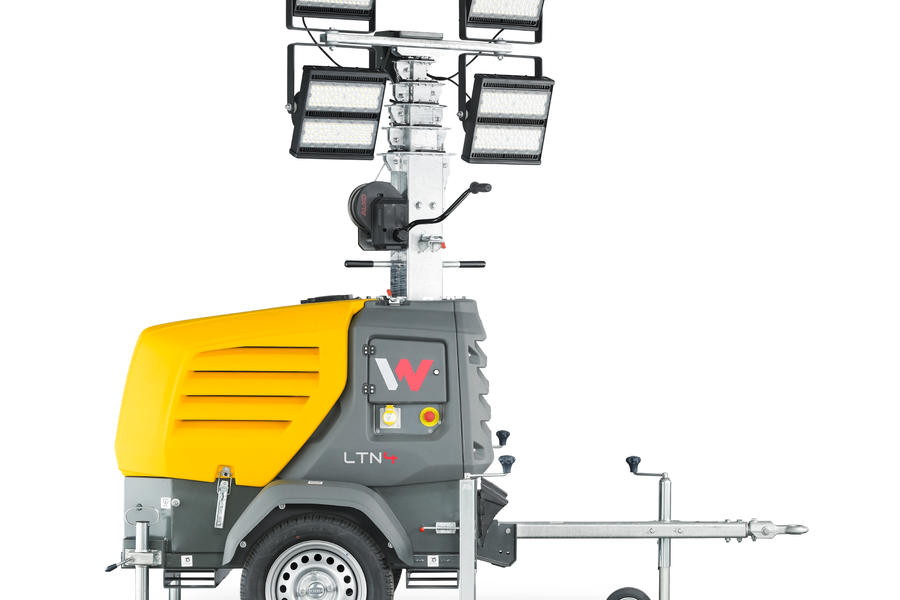

Light Towers with LED lamps LTN4Y: Portable, independent lighting for large construction sites

Thanks to its powerful LED panels, the Light Tower LTN4Y provides bright lighting, similar to daylight, for large areas. The trailer and the installed diesel generator make the LTN4Y a mobile, independent light source for illumination during road and bridge construction, concreting work, in parking lots, and at events.

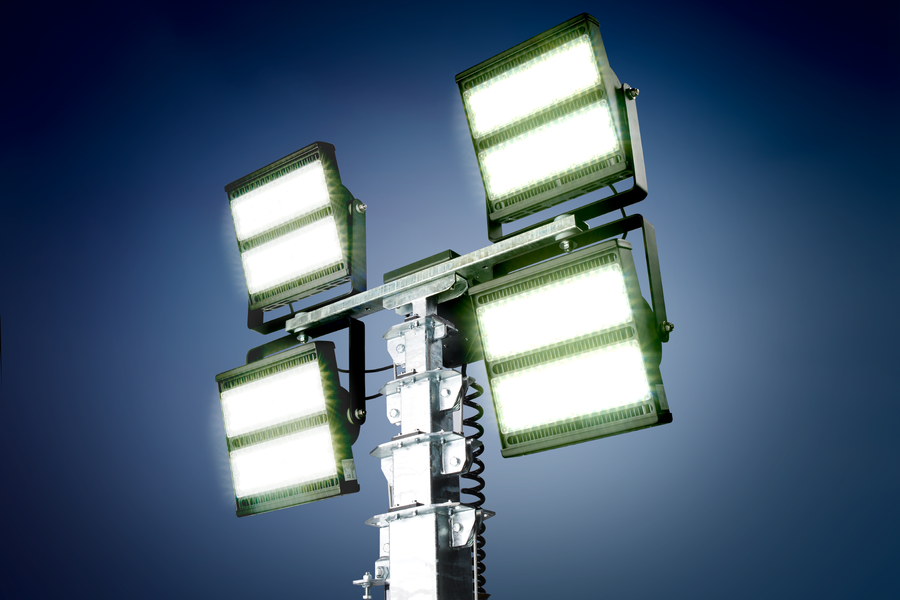

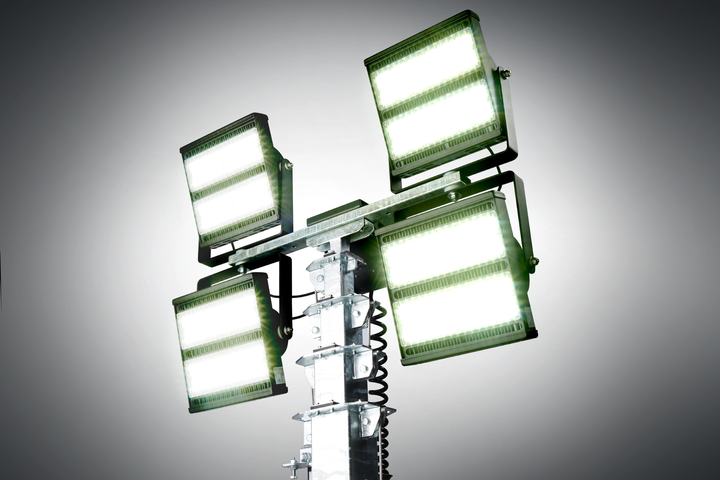

LED lamps with large illuminated area

• The light tower is equipped with 4 x 400 Watt LED light panels. It illuminates an area of up to 7,700 m², providing a bright, white light.
• LED lamps are particularly energy-efficient. That’s how they reduce fuel consumption and provide a long running time on one full tank.
• LED lamps have a long service life of up to 50,000 hours. This saves costs on replacing illuminants.

Weight below 750 kg

• The weight is below 750 kg, therefore the Light Tower can be towed with a car driver's license.

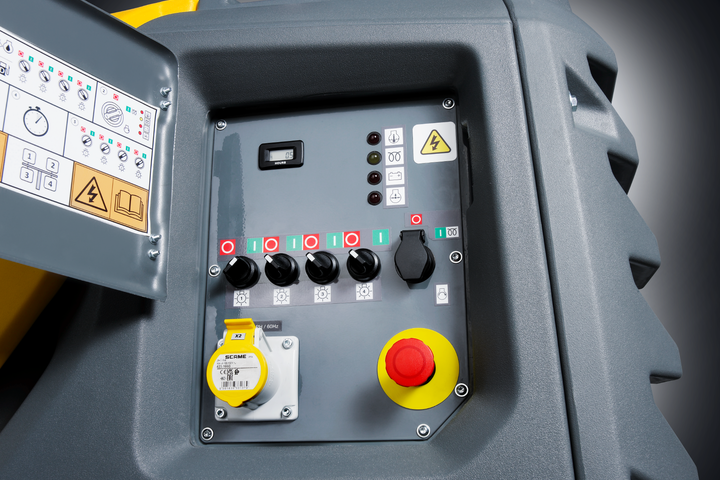

Intuitive operating panel

• The clear and easy-to-understand operating panel can be used quickly even by inexperienced operators.

Sturdy housing

• The Light Tower is characterized by robust plastic housing, which lends it a high degree of durability to different environmental influences.

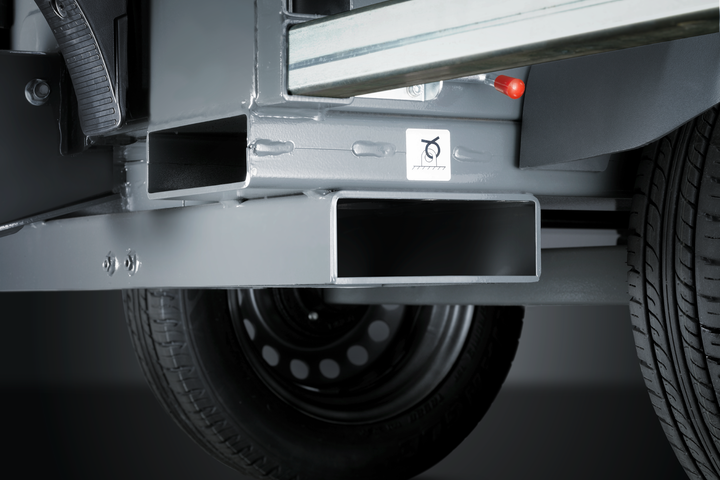

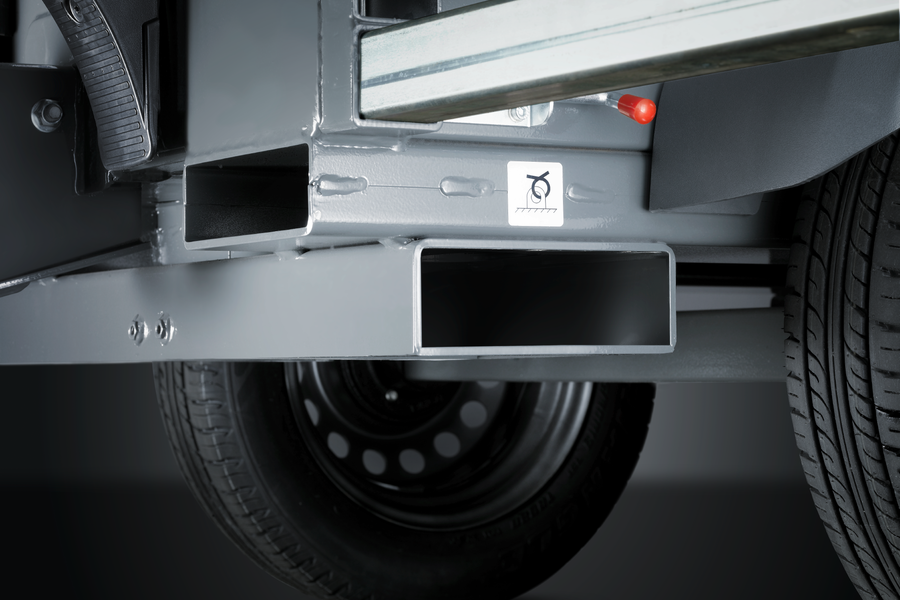

Fork lift straps

• Fork lift straps on all four sides make it easier when unloading and loading, as well as positioning on-site.

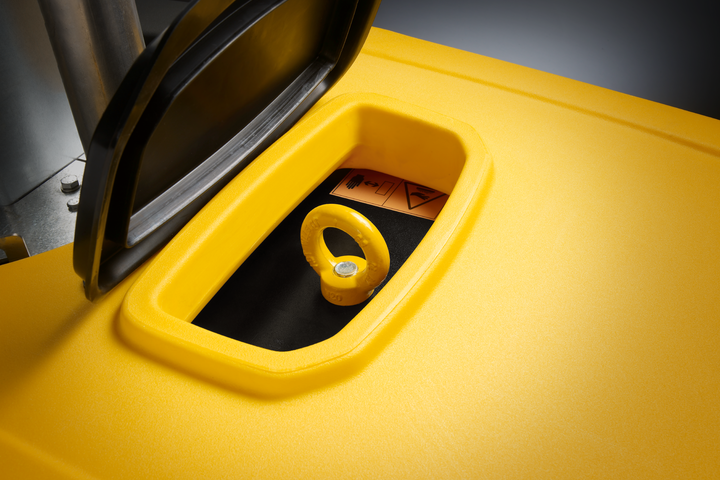

Lifting Eye

• Integrated lifting eye provides flexibility for loading, unloading, and positioning on job-site.

Stable outriggers

• Adjustable outriggers make alignment easier and stabilize the machine even on uneven ground and in strong winds.

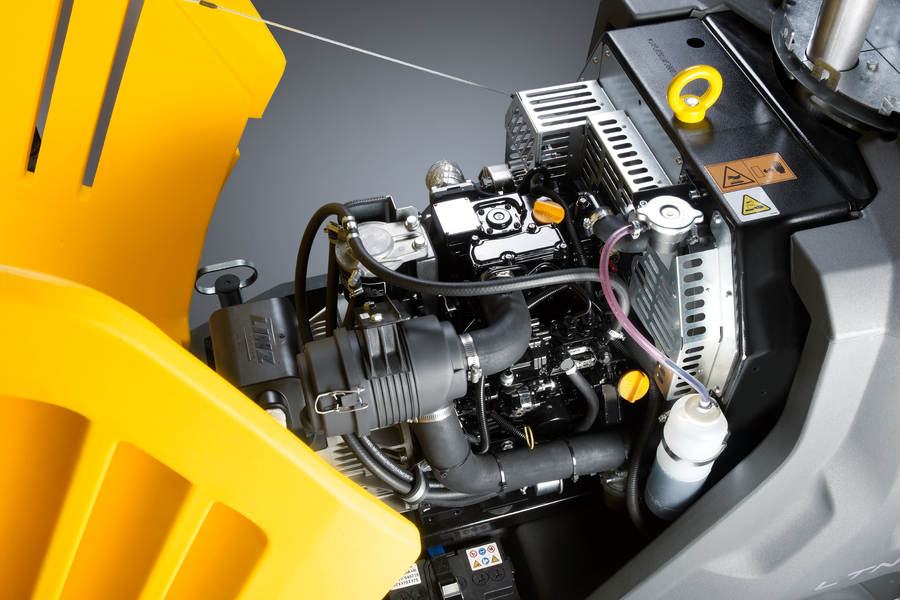

Easy maintenance access

• The hood can be swung wide open, providing generous access to all maintenance points.

Model Variations	LTN4Y
Output current	15.2 A
Phase	1 ~
Output Nominal power [S]	1.9 kVA
Aggregate continuous power 1~ (COP)	3.5 KW
Length	2,580 mm
Mastrotation	350 °
Windstabilität	110 km/h

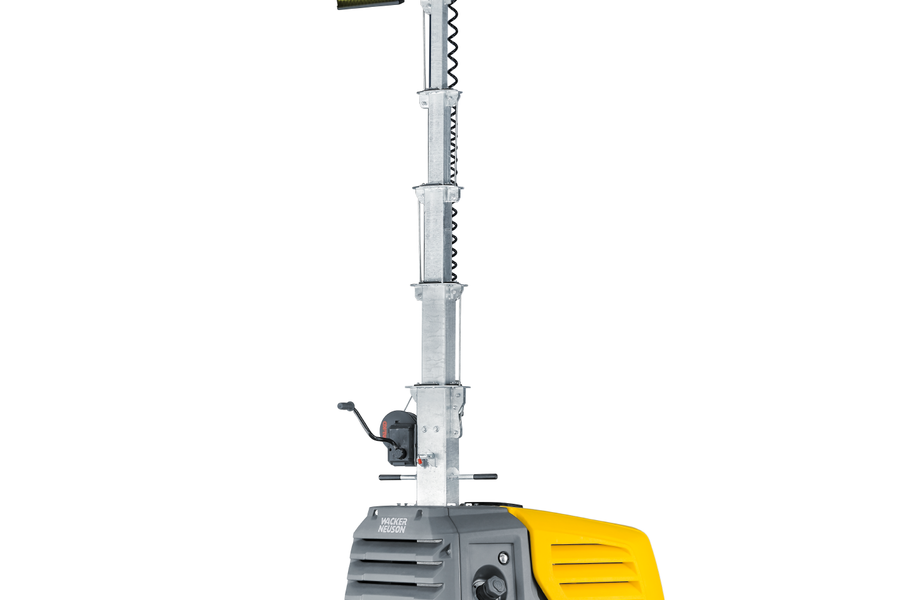

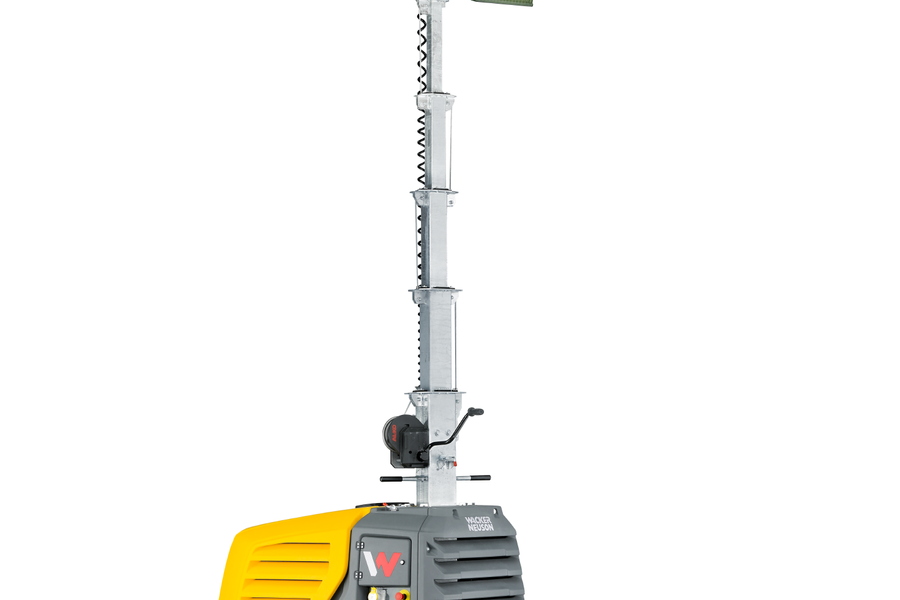

Mast-Hebe-System	Hand crank
Width	1,165 mm
Height	2,715 mm
Operating Weight (with Trailer)	665 kg
Luminous spot height max.	8,200 mm
Mast height max.	7.8 m
Generator type	ALUMEN SB
Output current 1~	15.2 A
Output voltage	230 V230 V
Output frequency	50 Hz50 Hz
Generator Manufacturer	Linz Electric
Generator specification	Brushless
Engine type	Diesel engine
Cylinder	2
Cylinder capacity	570 cm3
Fuel type	Diesel EN 590
Tank capacity	105 l
Power rating max.	6.1 KW
Engine speed (Power max.)	2,000 1/min
Standard (Power max.)	SAE J1995
Effective power	3.5 kVA5.9 KW
Nominal Engine speed	1,500 1/min
Standard (Effective power)	ISO 3046-1
Exhaust-gas limit	EU Stage V
Manufacturer	Yanmar
Engine designation	2TNV70
CO2 (NRSC)	1,172 g/KWh
Main Circuit Breaker Rating	6:00 ÖÖ
Lighting appliances	400W (LED)
Bulb power	1,600 W
Receptacle Type	CEE 3P 16A 6h 230V 50Hz
Number of Sockets	1
Fuel consumption (Lights only)	0.9 L/hr
Run Time (Lights only)	124 hrs
Degree of protection	IP44
Luminous flux	224,000 lm
Coverage at 5 lux (0.5 fc)	30,200 m2
Flächenabdeckung bei 20 Lux	7,700 m2
Flächenabdeckung bei 50 Lux	2,700 m2

LTN4Y

Lighting tower with LED lights, manually adjustable, vertical tower and diesel generator.

Item Number 5100069545
