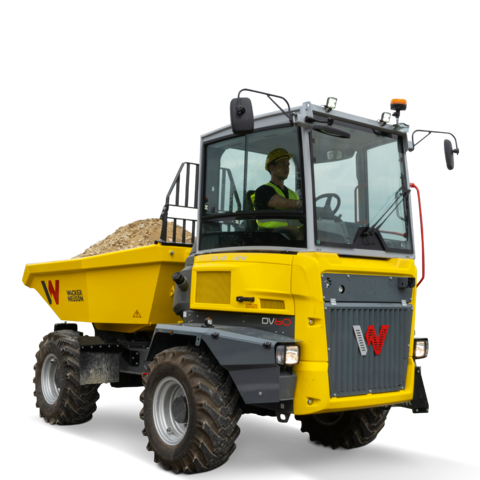

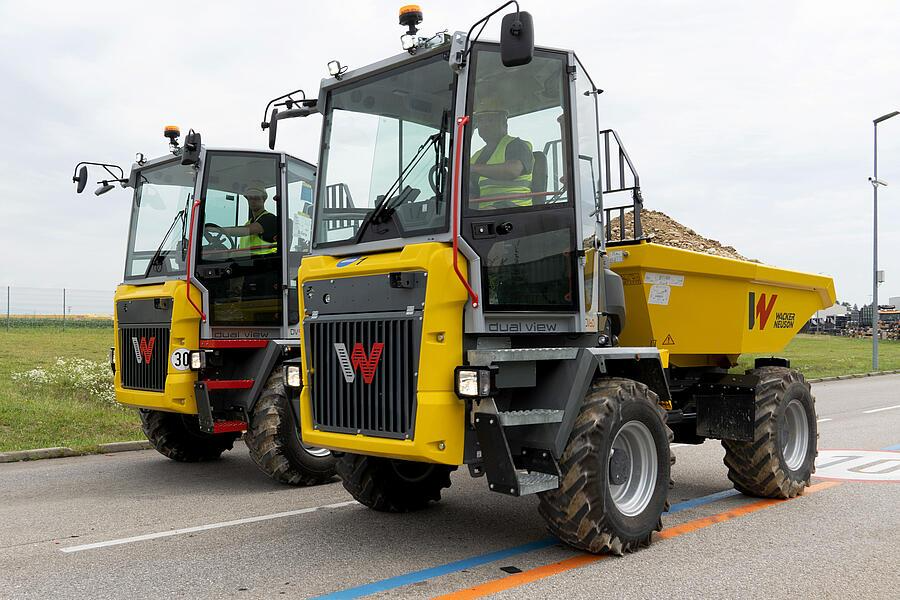

Dual View Dumper DV60: Power for more safety

More space for the legs and an exit option on both sides allow the DV60 to be used even more safely, with a payload of up to 6 tons. In the power version now with extra power under the hood. The hill-hold function and seat belt monitoring with optional start release take the safety of the machine to a new maximum and already think for the operator before it is too late. Many additional comfort features in the basic machine or as an option additionally ensure the comfort factor for the operator.

Operating weight (min.-max.) 4,220 - 4,549 kg

Payload 6,000 kg

Skip capacity heaped 3,150 l

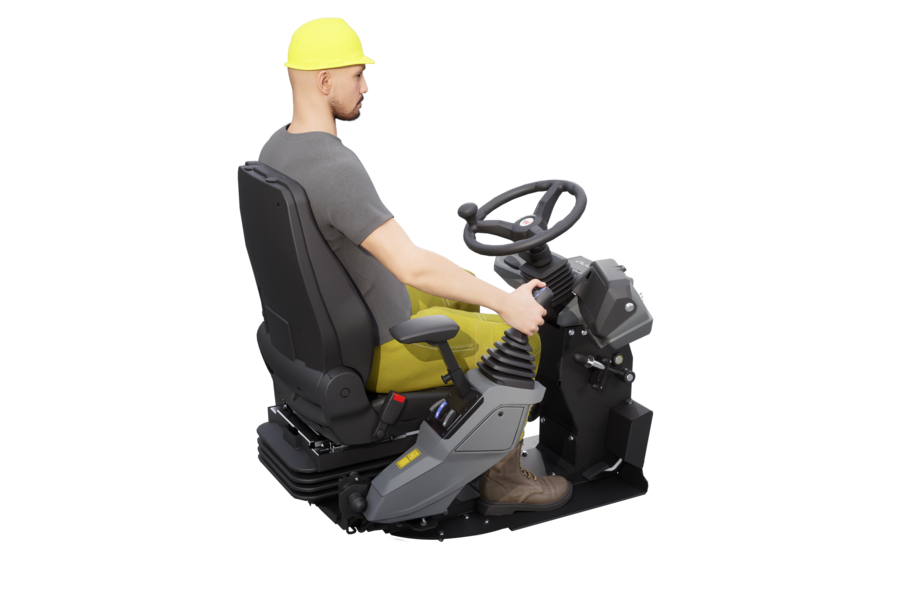

Swiveling operator's seat with plenty of legroom

• The new rotating seat offers extensive legroom and space for the operator. He can move freely and can still turn the seat while sitting, without restrictions.

Seat belt monitoring with start release

• The seat belt monitoring system signals visually and acoustically if an attempt is made to start the machine when the operator is not wearing a seat belt. The additional start release prevents start-up in this case.
• The safety during operation is increased once again and improper starting is thus prevented.

Fold-down armrest for entry and exit from both sides

• The right armrest of the control panel, including the joystick, can be folded up and down. It thus allows entry and exit from both sides, even when the seat is turned towards the skip.
• This saves valuable time for the operator, so that he does not have to turn the seat again after loading to get out.

Power version

• More power, more bite. With the larger engine, you immediately feel the increased power during all work and on the road.
• The Power version offers additional power to cope with even the most difficult terrain.

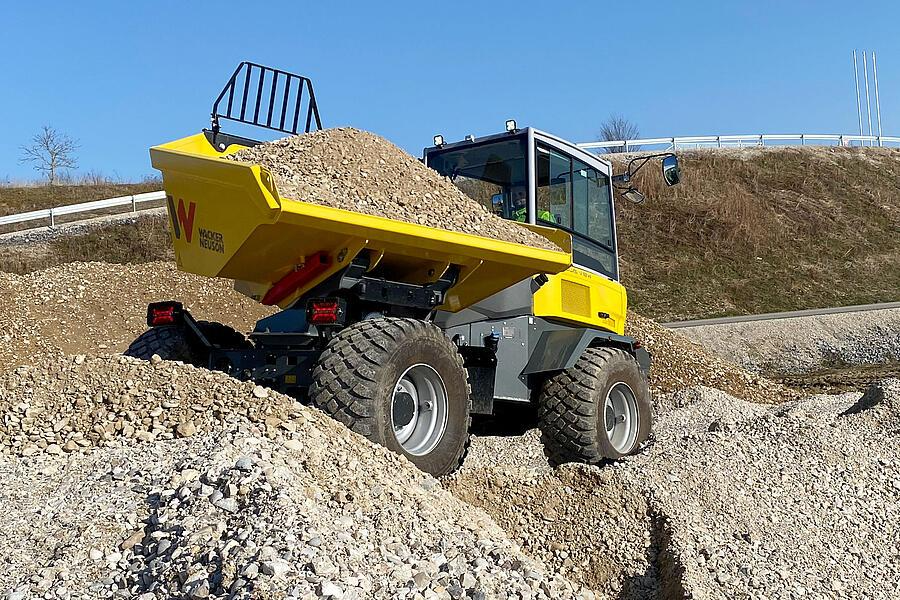

• Even on gradients in fully loaded condition, the machine has no problems maintaining its high tractive force and acceleration.

Hill-Hold function

• The integrated hill-hold function prevents the machine from rolling back when at standstill, as soon as the foot is taken off the gas pedal.
• The machine is braked automatically and secured against rolling back.

Auto-stop function

• The built-in auto-stop function switches the machine off after 5 minutes without use. This period of time can be adjusted and the operator is notified visually and acoustically before switching off.
• Electrical loads, such as headlights, are also switched off to conserve the machine's battery. Operating costs are reduced, maintenance intervals are extended and resale value increases.
• The resulting reduction in engine running time reduces exhaust emissions/CO2.

Extended maintenance intervals

• The long maintenance intervals of 500 operating hours make possible additional cost savings due to fewer service and maintenance intervals divided over the entire use.

Speed regulation system

• The speed regulation system automatically maintains the speed of the machine where possible, provided it is activated. This way, the operator doesn’t have to concentrate on his speed and can enjoy the comfort of automation.

Mechanical Details

Engine

Hydraulic

Chassis

Standard Components

General

• Ball-bearing 180° swivel seat console with automatic switching of steering, direction of travel and direction indicators
• Main seat position: well at the back, secondary seat position: well at the front
• Payload 6,000 kg
• Hydraulic front tipping body 2,700 l painted / 3,600 l heaped

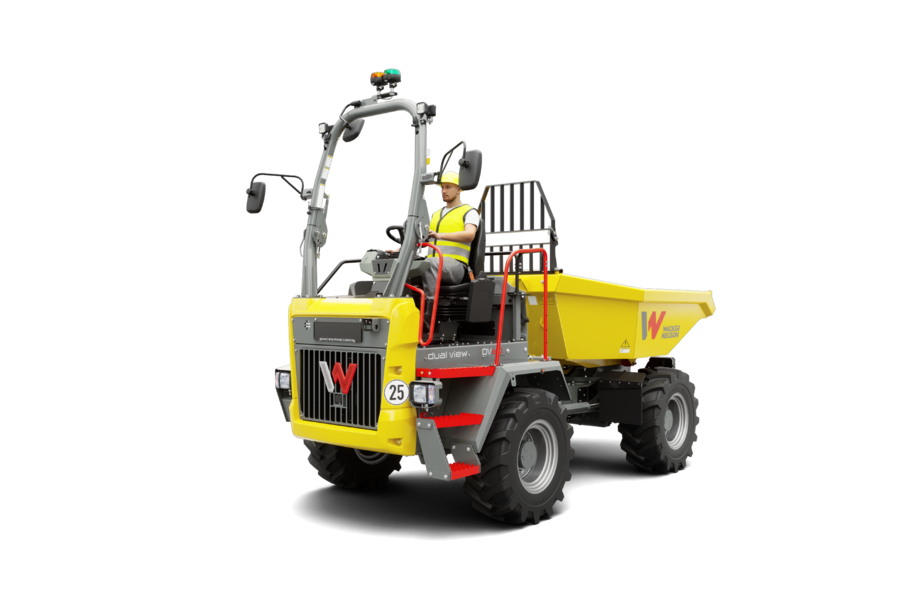

• Roll bar (ROPS)
• Maximum speed: 25 km/h(15.5 mph)
• = 25 km/h (15.5 mph) Forward speed in seat position
• = 15 km/h (9.3 mph) Reverse speed in seat position
• = 20 km/h (12.4 mph) Forward speed in adjacent seat position
• = 15 km/h (9.3 mph) Reverse speed in adjacent seat position
• Tires: 405/70-20 (Mitas, MPT-01) profile with very good traction and self-cleaning
• Rear view camera (IP69) with infrared and white LEDs
• Multifunctional 7 inch color display (IP69) for camera and machine signals (e.g. driving speed, counter for maintenance intervals)
• Lockable vandalism protection for the display
• Document box accessible from the driver's seat (A4 format, waterproof, lockable)
• Street lighting for use in the main position
• A work light in the direction of the trough
• Mirror package (left, right and front / ramp mirror)
• Road equipment (includes wheel chock and front and rear license plate holder)
• Reversing warning device, signal changes depending on the seating position
• Battery main switch and positive pole behind a lockable cover, accessible from the floor

Engine

• Water-cooled DEUTZ TD 2.9 diesel engine, 4-cylinder, 2,900 cc, turbo, engine power 55.4 kW (75.3 HP) (stage 5)
• Auto-Stop Function

Hydraulics

• Permanent four-wheel drive
• Hydrostatic automotive drive
• Hydrostatic travel drive with hydrostatic braking effect - with brake light
• Hydrostatic frame articulation steering (load sensing)
• Combined brake inching pedal, designed as a 2-circuit brake system
• Electrically operated spring-loaded parking brake

Options

Cabin & ROPS

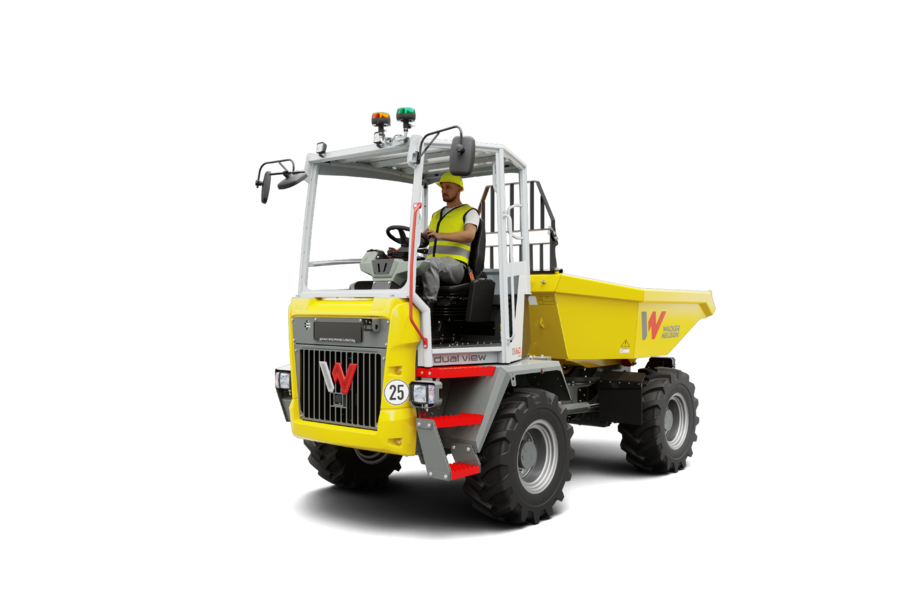

• Canopy (ROPS/FOPS Level II)
• Driver's cabin (ROPS/FOPS Level II, including powerful heating, flat and tinted glass on all sides, laminated safety glass at the front and rear, single-pane safety glass left and right, windshield wiper at the front and rear, radio preparation)
• air conditioner
• Artificial leather seat & seat contact switch
• Driver's seat heated and air-suspended
• Bluetooth radio including hands-free system and USB charging port
• Front and rear work lights (cab version only)
• LED side marker lights
• LED rotating beacon orange and green
• Seat belt monitoring including start release

Hydraulics

• Panolin HLP Synt46 (Bio)

Paint

• Special painting machine in RAL (only for yellow parts)
• Special painting machine no RAL (only for yellow parts)
• Special paint cabin/canopy/ROPS

Security

• Security 24 C (2000)
• Security 36 C (3000)
• Security 48 C (4000)
• Security 60 C (5000)

Other

• Hill hold function
• Cruise control system
• Water-cooled DEUTZ turbodiesel engine TCD 3.6, 4-cylinder, engine power 100 kW (135.9 hp) (stage 5)
• DV 30/10/15/10 km/h (Max. 30 km/h forward in main seat position, 10 km/h backward in main seat position and next seat position, 15 km/h forward in next seat position)
• DV 30/15/20/15 km/h (Max. 30 km/h forward in main seat position, 15 km/h backward in main seat position and next seat position, 20 km/h forward in next seat position)
• 6-point central lubrication system
• Ascension in signal color

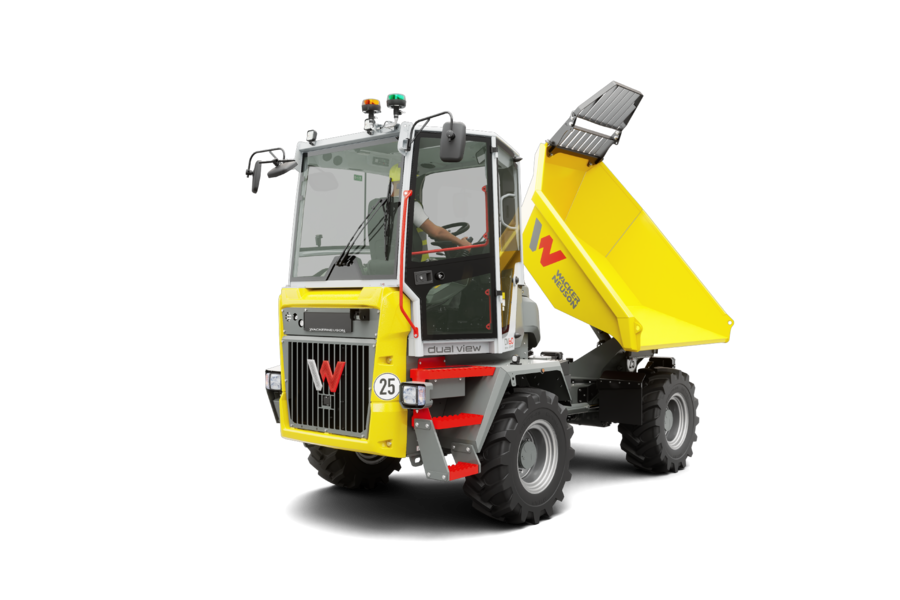

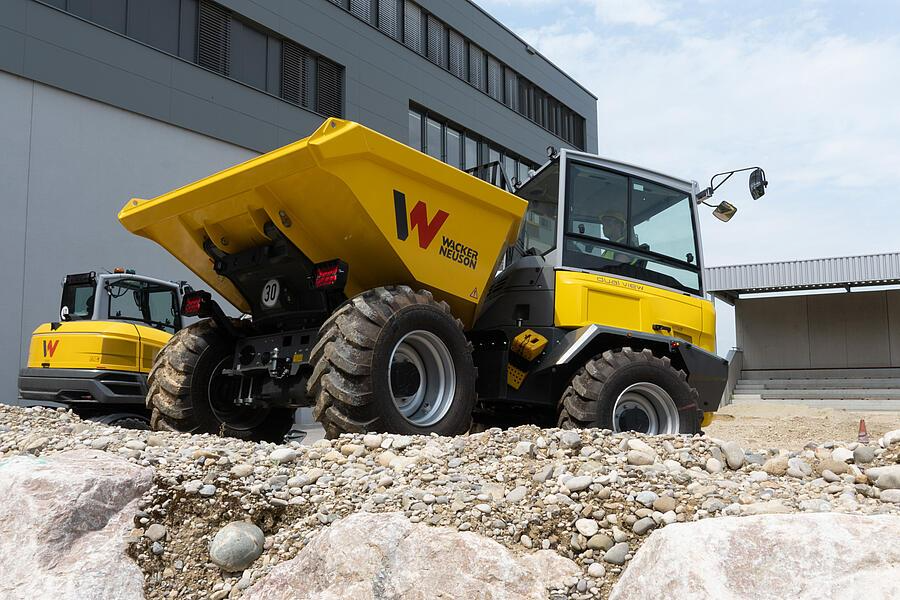

• Rotary tipping trough (2,350 l painted / 3,150 l heaped)
• trough grille
• Front and rear view camera (IP69, in addition to the standard rear view camera, mounted on bumper)
• Manufacturer confirmation
• Lawn tires 41x18LL-22.5 (high flotation ability, best solution for sand and lawn)
• All-round tires Mitas MPT-03 405/70-20 14 PR (universal profile for both on-road and off-road use)
• Towing device and socket
• EquipCare 36 Monate
• EquipCare Dual ID (only in conjunction with EquipCare)
• TÜV road approval (D)

Editions

Edition A

Basic machine
+ tilt and turn trough

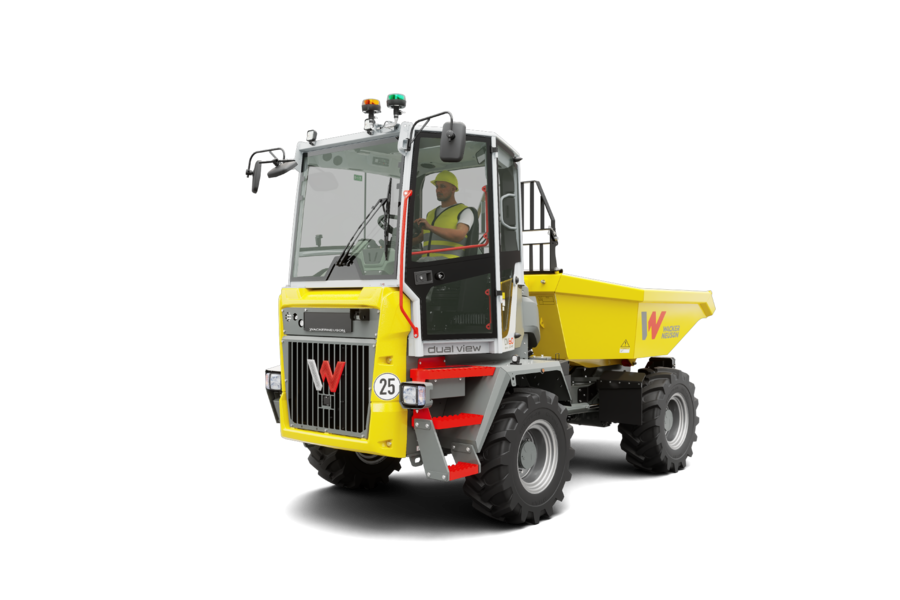

+ cabin (including powerful heating, tinted laminated safety glass at the front and rear as well as radio preparation and windshield wiper)
+ air conditioning and air-suspended, heated driver's seat
+ LED rotating beacon orange and green
+ LED work lights at the front and rear
+ trough grille
+ step in signal color
+ towing device incl. Socket
+ DV 30/10/15/10 km/h
+ 6-point central lubrication system

(Transport weight +/- 2%: 4,579 kg)

Edition B

Basic machine
+ tilt and turn trough
+ trough grille
+ step in signal color
+ towing device including socket
+ LED side marker lights
+ all-round tires

(Transport weight +/- 2%: 4,254 kg)
