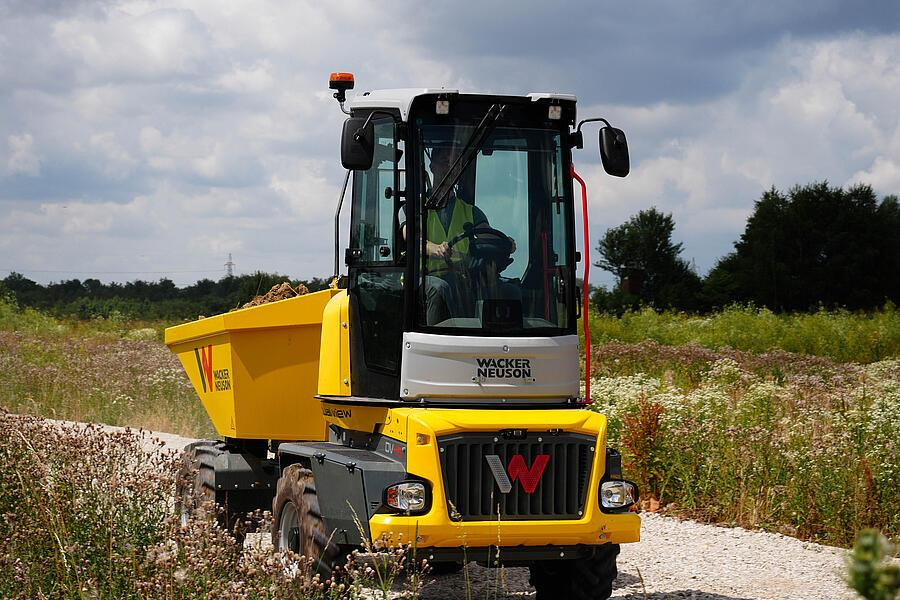

Dual View Wheel dumpers DV45: The next level of the Dual View dumper

The cabin can be rotated when driving at the press of a button on the right joystick. The optional Multi View mode therefore provides the ability to work with a cabin turned to the side in order to have an overview to the side of the machine and the skip. At the press of a button, the cabin is automatically rotated, whereby the operator can concentrate on the primary work. Additional safety features round off the optimal overall package with a maximum payload of {4,200kg} {9,259lb}. The DV45 is simultaneously characterized with the familiar high level of comfort features, the very good stability, and the hydrostatic 4-wheel drive with ECO mode.

Payload 4,200 kg

Skip capacity heaped 2,400 l

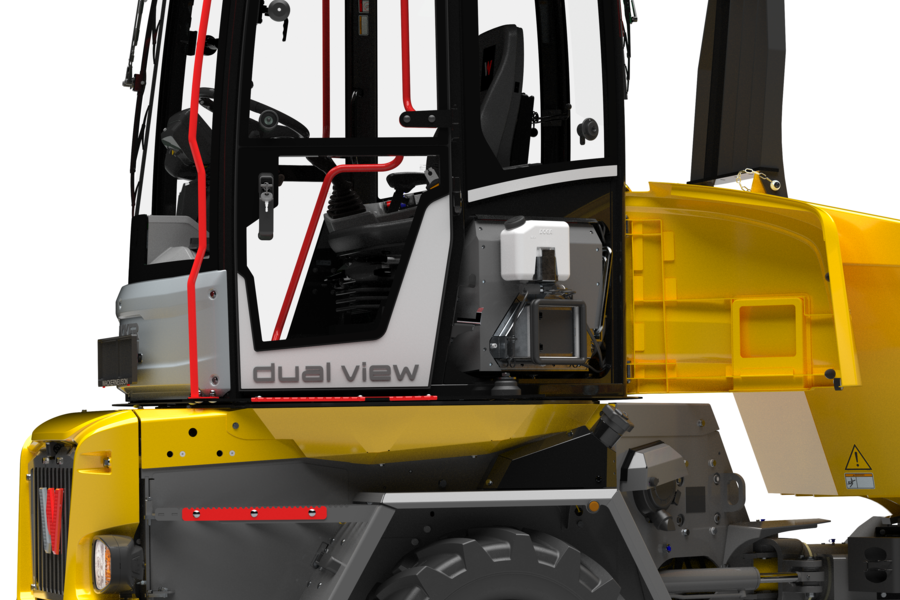

Rotating cab

• The cab, which can be rotated at the push of a button, provides a comprehensive view all around the machine and greatly increases safety for the operator and the surroundings.
• The electro-hydraulically rotating cab can also be used when turned sideways, in Multi View Mode, and can be rotated while driving. This increases the application areas of the dumper(s).
• Due to the lateral rotation of the cab, it is possible to work in a very detailed and precise manner, especially when backfilling trenches or working on obstacles, and accidents or damage can be prevented.

Multi View Mode

• In Multi View mode, the machine can also be operated with the cab turned sideways. This allows the operator to see the entire lateral work environment and empty the load accurately.
• In Multi View mode, the machine automatically reduces speed for greater safety.

Automatic skip return

• The skip can be automatically returned to the transport position at the push of a button. The machine can be operated normally during the return of the skip.
• The operator need not focus on manual return of the skip and can focus on other things, which also brings attention back to the surroundings and the operation and increases safety.

Inclination monitoring

• If the machine is tilted in an unsafe standing position or becomes unstable, the inclination monitoring intervenes and warns the operator.
• An optical and an acoustic signal display both the speed limitation with the skip tilted in an unsafe position as well as an unstable machine position. This should make it clear to the operator that he is exposed to an increased risk of accident if he does not pay attention.

Entry and exit possible on both sides

• The machine can be exited or entered both in the travel direction and against the travel direction.
• Even with the control panel turned, the operator can exit the machine using the steps installed on both sides.
• This allows the operator to enter or exit the machine directly without any problems, even if there are obstacles or in confined spaces.

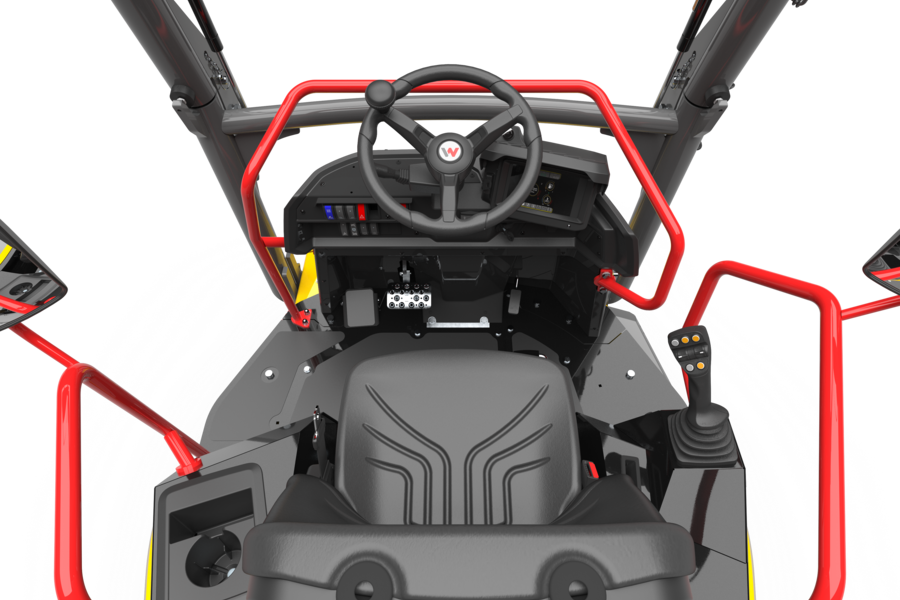

Joystick operation concept

• The joystick operation concept provides for comfortable operation.
• The modern joystick combines many functions in one handle: skip actuation, changing speed, changing travel direction.

Auto-stop function

• The built-in auto-stop function switches the machine off after 5 minutes without use. This period of time can be adjusted and the operator is notified visually and acoustically before switching off.
• Electrical loads, such as headlights, are also switched off to conserve the machine's battery. Operating costs are reduced, maintenance intervals are extended and resale value increases.
• The resulting reduction in engine running time reduces exhaust emissions/CO2.

Mechanical Details

Engine

Hydraulic

Operating Fluids

Chassis

Standard Components

General

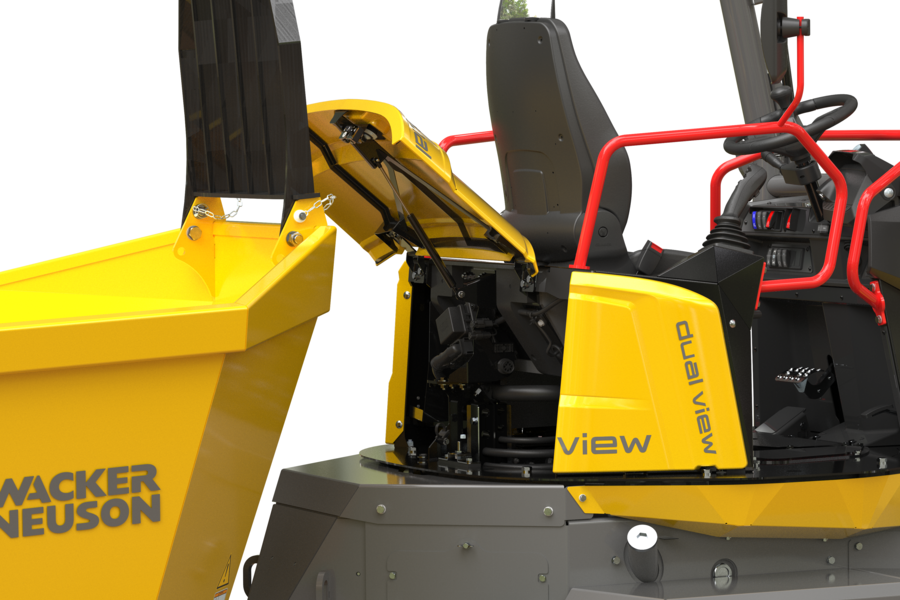

• Ball-bearing 180° rotating seat console with automatic switch-over for the steering, travel direction and travel direction indicator
• Main seat position: skip in rear, secondary seat position: skip in front
• Payload 4,200 kg

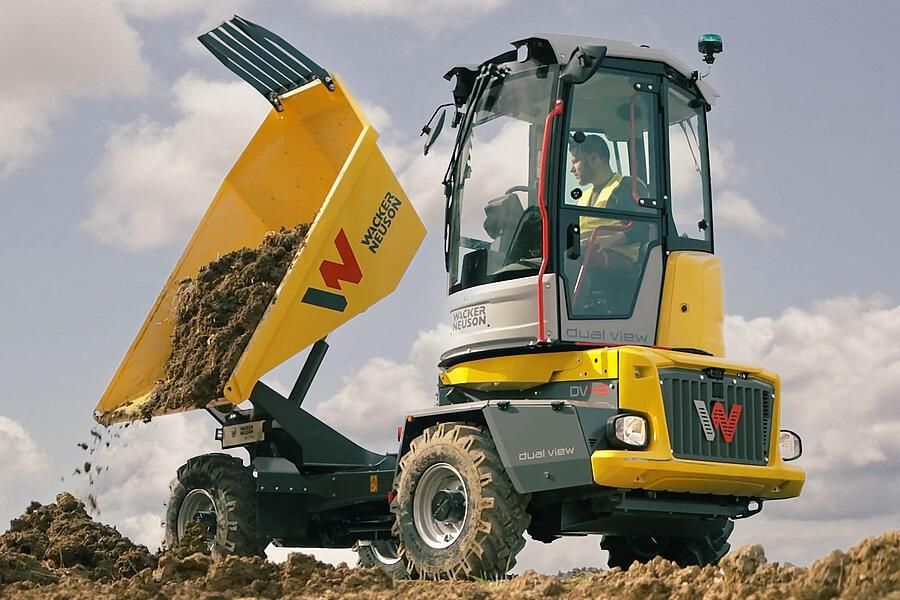

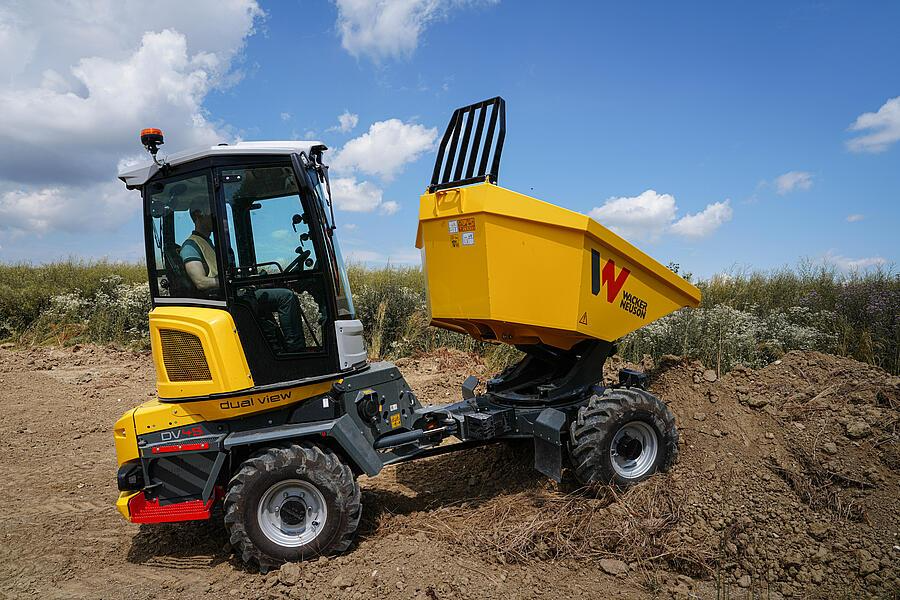

• Hydraulic swivel tip skip (1,810 L struck / 2,400 L heaped / 1,350 L water mass)
• Skip and incline monitoring of the machine
• Fold-down roll over protection system (ROPS) with gas pressure damper
• Max. speed: 25 km/h (15.5 mph)
  = 25 km/h (15.5 mph) forward speed in main seat position
  = 15 km/h (9.3 mph) reverse speed in main seat position
  = 20 km/h (12.4 mph) forward speed in secondary seat position
  = 15 km/h (9.3 mph) reverse speed in secondary seat position
• Tires: 11.5/80-15.3 (MITAS TS 05) tread with very good traction and self-cleaning
• Rear-view camera (IP69) with infrared and white LEDs, incl. integrated washing system
• Multi-functional 7-inch color display (IP69) for camera and machine signals (e.g. travel speed, counter for maintenance intervals)
• Lockable vandalism protection for the display
• Document box can be reached from the operator's seat (A4 format, watertight, lockable)
• Road lighting for use in the main position
• Two LED work lights in the skip direction
• Rear LED light
• Equipment for road traffic (contains LED rotating beacon orange, a wheel chock as well as the front and rear license bracket)
• Reverse alarm (conspicuous broadband tone), signal change depending on seat position
• Imitation leather seat incl. seat contact switch
• Seat belt monitoring and orange safety belt
• Battery main switch and positive terminal behind a lockable cover, can be reached from the ground
• Toolbox (to the right)

Engine

• Water-cooled PERKINS turbo diesel engine, 3 cylinders, 1,663 ccm, Turbo, engine output 36 kW (45.3 hp) (stage 5)

• incl. auto-stop function

Hydraulics

• Permanent all-wheel drive
• Hydrostatic automotive drive
• Hydrostatic drive system with hydrostatic brake - with brake light
• Hydrostatic articulated frame steering (load sensing)
• Combined brake-inch pedal, designed as 2-circuit brake system
• Electrically operated spring-loaded parking brake

Options

Hydraulics

• Panolin HLP Synt46 (Bio)

Paint

• Custom-made paint finish of machine in RAL (only for yellow parts)
• Custom-made paint finish of machine, no RAL (only for yellow parts)
• Special paint cab/canopy/ROPS

Security

• Security 24 C (2000)
• Security 36 C (3000)
• Security 48 C (4000)
• Security 60 C (5000)

Cabin & ROPS

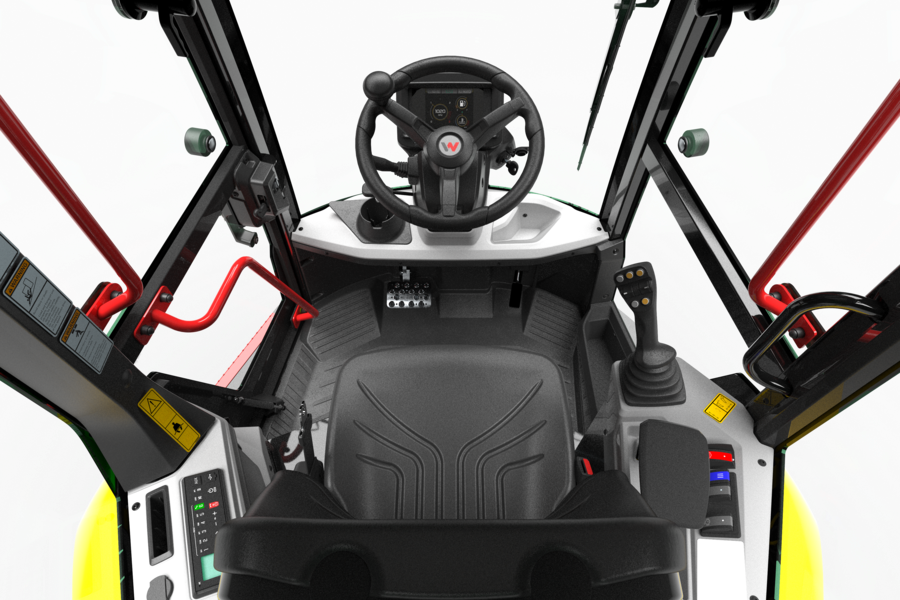

• Cab (ROPS/FOPS Level II, incl. powerful heater and air-conditioning system, flat and tinted glass on all sides, laminated safety glass front and rear, single-pane safety glass left and right, windshield wipers front and back, radio installation setup)
• Air-conditioning system
• Heated imitation leather seat & seat contact switch
• Fabric seat heated and air-cushioned
• Bluetooth radio incl. hands-free installation and USB charging connection
• Front + rear work lights (only with cabin version)
• Seat belt monitoring incl. start release

General

• Entry in high visibility color
• All-terrain tires 11.5/80-15.3 (Mitas TR 03) (universal tread with M+S label, both on roads and highways as well as in off-road application)
• DV 25/10/15/10 km/h (Max. 25 km/h forward in main seat position, 10 km/h reverse in main seat position and secondary seat position, 15 km/h forward in secondary seat position)
• DV 20/15/20/15 km/h (Max. 20 km/h forward in main seat position, 15 km/h reverse in main seat position and secondary seat position, 20 km/h forward in secondary seat position)
• EquipCare 36 months
• EquipCare Dual ID (only in conjunction with EquipCare)
• Front and rear-view camera (IP69) incl. washing system
• Speed regulating system
• Manufacturer confirmation
• Hill-hold function
• Skip guard
• Automatic skip return
• Multi View mode (driving at work speed of max. 5 km/h when the cab is rotated)
• Turf tires 33x16LL-16.1 (Galaxy Turf Special) (high flotation capability, best solution for sand and turf)
• Seat belt monitoring incl. machine start release
• TÜV road approval (Germany)
• Weather protection roof (foldable for transport)
• Towing device and socket

Editions

Edition A

Basic machine
+ Swivel tip skip
+ Cab (incl. Powerful heater, tinted laminated safety glass at the front and rear as well as radio installation setup and windshield wipers)
+ Air-conditioning system and air-cushioned, heated operator's seat
+ LED rotating beacon orange & green
+ LED work lights front & rear
+ Skip guard
+ Entry in signal color
+ Automatic skip return
+ Hill-hold function (automatic parking brake in the event of machine downtime)
+Towing device
+ Seat belt monitoring incl. machine start release
+ 25 km/h Version (DV 25/10/15/10 km/h)

Edition B

Basic machine
+ Swivel tip skip
+ Skip guard
+ Entry in signal color
+Towing device
+ All-terrain tires (MITAS TR 03)
