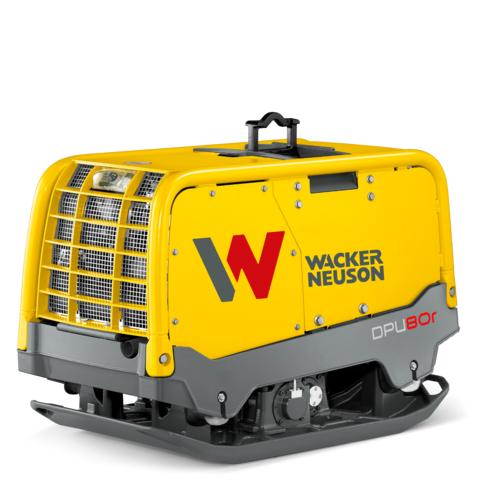

Remote-controlled vibratory plates DPUr > 700 kg: Powerful compaction

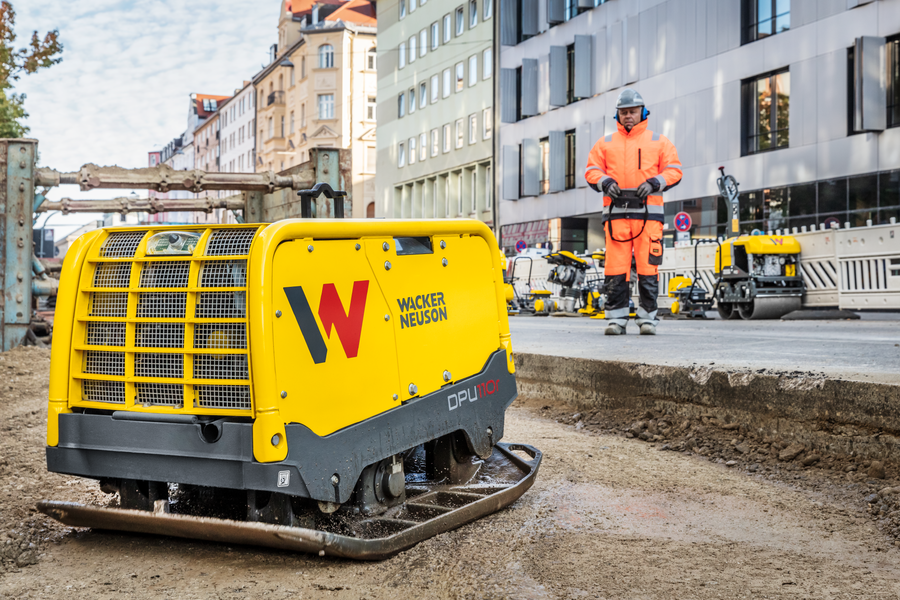

Sturdy and compact in design, the remote-controlled vibratory plates offer the same high compaction performance as the models with center pole. The convenient remote control with two joysticks allows the operator to work away from vibrations, exhaust emissions and noise pollution. The innovative control unit simultaneously controls forward travel and rotational movement allowing the plate to be steered efficiently and precisely even on curves and around obstacles.

Compact dimensions, high performance

• The machine is highly productive with the compact dimensions providing efficiency and comfortable operation.

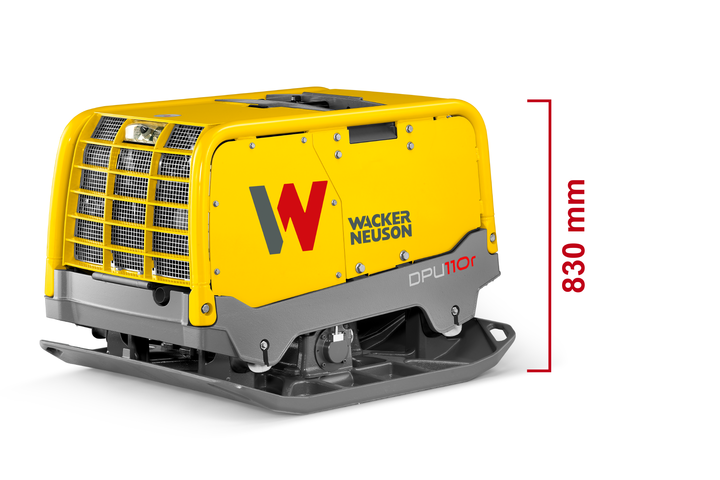

• The low machine height allows operation under lateral struts in trench shoring.
• The machine’s compact dimensions make transport easier.

Sturdy and durable

• The vibratory plate is made of heavy-duty, wear resistant materials. Due to this, it achieves a long service life. For example, the base plate is made of nodular cast iron (GJS700).
• Even after a longer operating time, the vibratory plate reaches a high resale value. Investment in this machine is thus very economical.

Variable, precise control

• The fully hydraulic, variable exciter adjustment allows the machine to be controlled very precisely. Changes in direction with simultaneous travel are possible, allowing for clean turns and a high surface performance.

Large tank, high capacity air filter

• Because of the large fuel tank, one tank is easily enough for a full 8-hour day. This means time and effort refilling are avoided during the workday.
• The high capacity of the air filter ensures long maintenance intervals. This saves time and expense.

Cost-optimized repair concept

• The multi-piece concept, consisting of a two-piece hood, protective frame and side panels, enables individual parts to be replaced very affordably if damaged.

Very good accessibility to all maintenance points

• The unit offers good accessibility to all maintenance points. This saves time and costs during maintenance.

Water-cooled engine

• The water-cooled engine offers reliable cooling even at high external temperatures.
• The machine sound level is significantly lower than that of air-cooled engines in the same class.

DPU110rLec870

Remote-control vibratory plate with diesel engine, electric starter and Compatec compaction control for the highest requirements on performance, sturdiness and operating comfort in soil compaction. Operating width 870 mm.

Item Number 5100027077

DPU110rLec970

Remote-control vibratory plate with diesel engine, electric starter and Compatec compaction control for the highest requirements on performance, sturdiness and operating comfort in soil compaction. Operating width 970 mm.

Item Number 5100027036

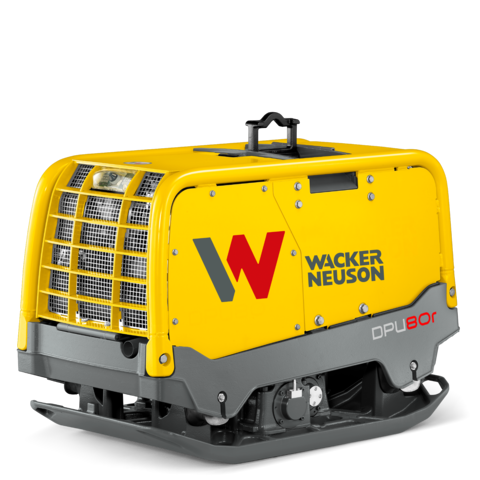

DPU80rLem770

Remote-control vibratory plate with diesel engine, electric starter and machine protection for the highest requirements on performance, sturdiness and operating comfort in soil compaction. Operating width 770 mm.

Item Number 5100024698

DPU80rLem670

Remote-control vibratory plate with diesel engine, electric starter and machine protection for the highest requirements on performance, sturdiness and operating comfort in soil compaction. Operating width 670 mm.

Item Number 5100024697

DPU80rLec770

Remote-control vibratory plate with diesel engine, electric starter and Compatec compaction control for the highest requirements on performance, sturdiness and operating comfort in soil compaction. Operating width 770 mm.

Item Number 5100027034

DPU80rLec670

Remote-control vibratory plate with diesel engine, electric starter and Compatec compaction control for the highest requirements on performance, sturdiness and operating comfort in soil compaction. Operating width 670 mm.

Item Number 5100027033

DPU110rLem970

Remote-control vibratory plate with diesel engine, electric starter and machine protection for the highest requirements on performance, sturdiness and operating comfort in soil compaction. Operating width 970 mm.

Item Number 5100024699

DPU110rLem870

Remote-control vibratory plate with diesel engine, electric starter and machine protection for the highest requirements on performance, sturdiness and operating comfort in soil compaction. Operating width 870 mm.

Item Number 5100026697
