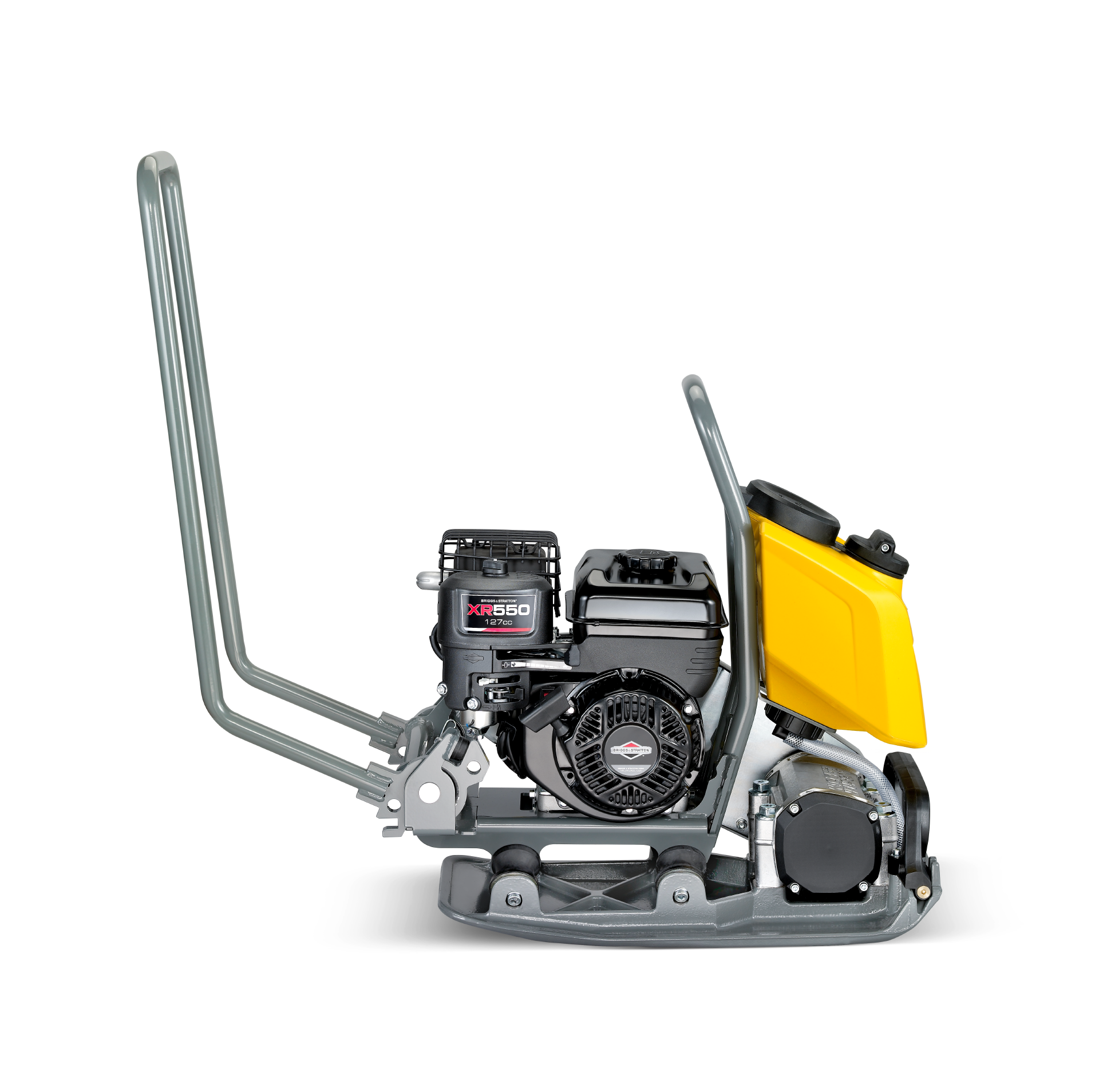

Wacker Neuson BPS Series Single-Direction Vibratory Plates BPS1030B

Wacker Neuson BPS Series Single-Direction Vibratory Plates BPS1550Bw (BPS1550Bw)

Brand : Wacker Neuson

Stock Amount : 0

Delivery Time Ready In Stock

Shipment Place Turkiye

Payment Terms % 100 T/T On Order Confirmation

Made In Germany

Min. Order Qty.1 Pcs.

Warranty1 year

Ask For Offer

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

Single-direction vibratory plates BPS: Excellent handling and maneuverability on soil and asphalt

The BPS series is distinguished by its outstanding handling capabilities. Moving and turning these vibratory plates on fresh asphalt is unsurpassed in comfort and produces clean finishes with no marks. Even clean finishes at curbs are easy to produce due to the angular side edges of the base plate. The guide handle responds precisely to steering movements while still achieving low hand-arm vibrations of less than 5 m/s², which makes long and comfortable working conditions possible.

Excellent turning ability and control with simultaneously low HAV

The guide handle responds precisely to steering movements while simultaneously reducing hand-arm vibrations to the greatest extent possible. This way, the vibratory plate can be controlled comfortably with little effort.
Turning and steering movements are transferred very easily to the machine. This makes work quick and comfortable.

Efficiency

Large water tank (8 Liter) with efficient sprinkler system

The water tank is permanently mounted on the unit and cannot be removed as is the large hinged lid with slot. This means filling the tank with water is possible even without opening the lid.
The sprinkler system offers reliable water coverage over the entire width of the base plate without wasting water. As a result, refilling is needed less often.
The water volume can be regulated as required via a large knob within easy reach.

Quality

Base plate made of nodular cast iron (GJS700)

The base plate consists of very sturdy, durable material, thus reaching a long service life.
The high grade material of the base plate contributes to producing perfect surface quality in asphalt compaction.

The actual depth of compaction can deviate from the values shown here depending on soil condition and environmental influences. In any case, checking the compaction results with suitable measuring instruments is recommended.
CALIFORNIA Proposition 65 WARNING: The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

Model Variations	BPS1550Bw
Centrifugal force	15 kN
Area capacity	750 m2/h
Gradeability	36.4 %
Length Baseplate	599 mm
Width	500 mm
Width Baseplate	500 mm
Height	663 mm
Height Cover frame	663 mm
Thickness Baseplate	9 mm
Operating weight	89.5 kg
Ground clearance	663 mm
Effective power	3.6 KW
Nominal Engine speed	3,600 1/min
HAV summation (average value)	4.1 m/s2
HAV summation (Standard)	EN 500-4

BPS1030Aw
Single-direction vibratory plate with Honda gasoline engine.
Item Number
5100058916

BPS1135A
Single-direction vibratory plate with Honda gasoline engine.
Item Number
5100059662

BPS1135Aw
Single-direction vibratory plate with Honda gasoline engine.
Item Number
5100059657

BPS1340A
Single-direction vibratory plate with Honda gasoline engine.
Item Number
5100059906

BPS1340Aw
Single-direction vibratory plate with Honda gasoline engine.
Item Number
5100059659

BPS2050A
Single-direction vibratory plate with Honda gasoline engine.
Item Number
5100061217

BPS2050Aw
Single-direction vibratory plate with Honda gasoline engine.
Item Number
5100061218

BPS1550A
Single-direction vibratory plate with Honda gasoline engine.
Item Number
5100061215

BPS1550Aw
Single-direction vibratory plate with Honda gasoline engine.
Item Number
5100061216

BPS1030B
Single-direction vibratory plate with Briggs&Stratton gasoline engine.
Item Number
5100065701

BPS1030Bw
Single-direction vibratory plate with Briggs&Stratton gasoline engine.
Item Number
5100065702

BPS1340B
Single-direction vibratory plate with Briggs&Stratton gasoline engine.
Item Number
5100065705

BPS1340Bw
Single-direction vibratory plate with Briggs&Stratton gasoline engine.
Item Number
5100065706

BPS1550B
Single-direction vibratory plate with Briggs&Stratton gasoline engine.
Item Number
5100066075

BPS1550Bw
Single-direction vibratory plate with Briggs&Stratton gasoline engine.
Item Number
5100066076

BPS2050Bw
Single-direction vibratory plate with Briggs&Stratton gasoline engine.
Item Number
5100066078

BPS2050B
Single-direction vibratory plate with Briggs&Stratton gasoline engine.
Item Number
5100066077

BPS1135Bw
Single direction vibratory plate with gasoline motor.
Item Number
5100065704

BPS1135B
Single direction vibratory plate with gasoline motor.
Item Number
5100065703

BPS1030A
Single-direction vibratory plate with Honda gasoline engine.
Item Number
5100059658
