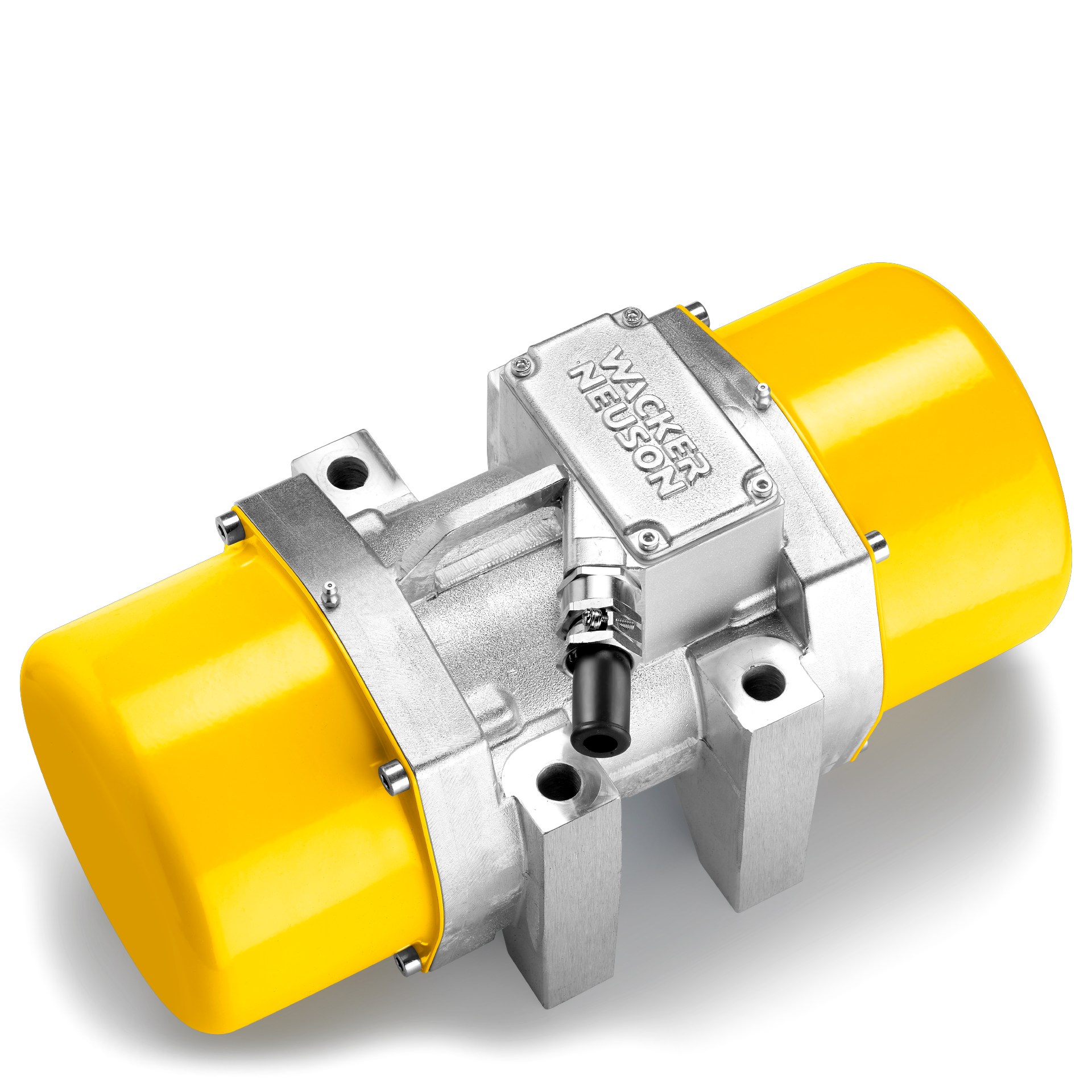

The AR75's strength is first class concrete consolidation It performs reliably and consistently even in the toughest operating conditions and 24-hour long-term application. This is due to the low vibration and heat-resistant windings of the electric motor (plastic casing, Class H up to 180°C) as well as the extremely robust special bearings. Perfect for application with precast concrete elements.

Maintenance free

The external vibrator is equipped with lifetime lubricated bearings and is completely maintenance-free.
CALIFORNIA Proposition 65 WARNING: The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

Model Variations	AR 75/6/250
Nominal current	7.5 A
Nominal voltage	250 V
Nominal frequency	200 Hz
Nominal power [P]	2.5 KW
Phase	3 ~
Centrifugal force	14 kN
Centrifugal force max.	26.56 kN
Length	330 mm
Width	227 mm
Height	218 mm
Weight	26.8 kg
Unbalanced mass/side pos1	3
Unbalanced mass/side pos2	2
Engine type	Asynchronous motor
Operating indicator	No
Adjusting frequency	No
Protection class	I / Protective earthing
Degree of protection	IP67

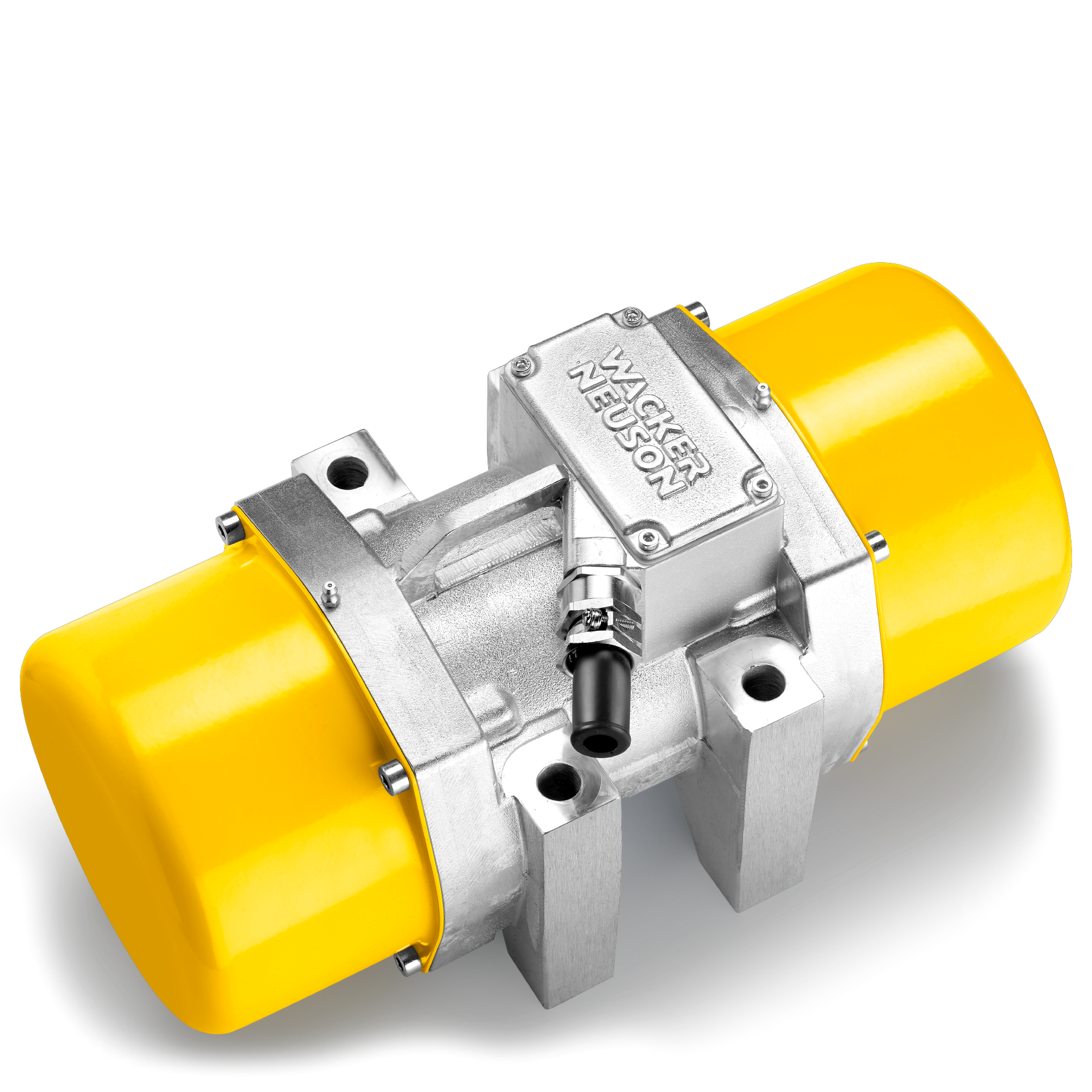

AR 75/3/230 v

External vibrator with variably adjustable voltage. Series 7, type of fastening 5, 3000 rpm.

Item Number 5000007865

AR 75/6/042

External vibrator, Series 7, type of fastening 5, 6000 rpm, protective low voltage.

Item Number 5000007794

AR 75/6/250

External vibrator, specially for precast factories with 250 V. Series 7, type of fastening 5, 6000 rpm.

Item Number 5000007797

AR 75/9/042

External vibrator, Series 7, type of fastening 5, 6000 rpm, protective low voltage.

Item Number 5000007793

AR 75/9/250

External vibrator, specially for precast factories with 250 V. Series 7, type of fastening 5, 9000 rpm.

Item Number 5000007796
