The + product
Bending capacity:
Gas pipes: Ø 3/8” to 4” (nfa 49115 - en 10255).
Locksmith’s pipes: Ø 12 à 45 mm.
Bending angle: 0° to 90°.
For medium and heavy series gas pipes.

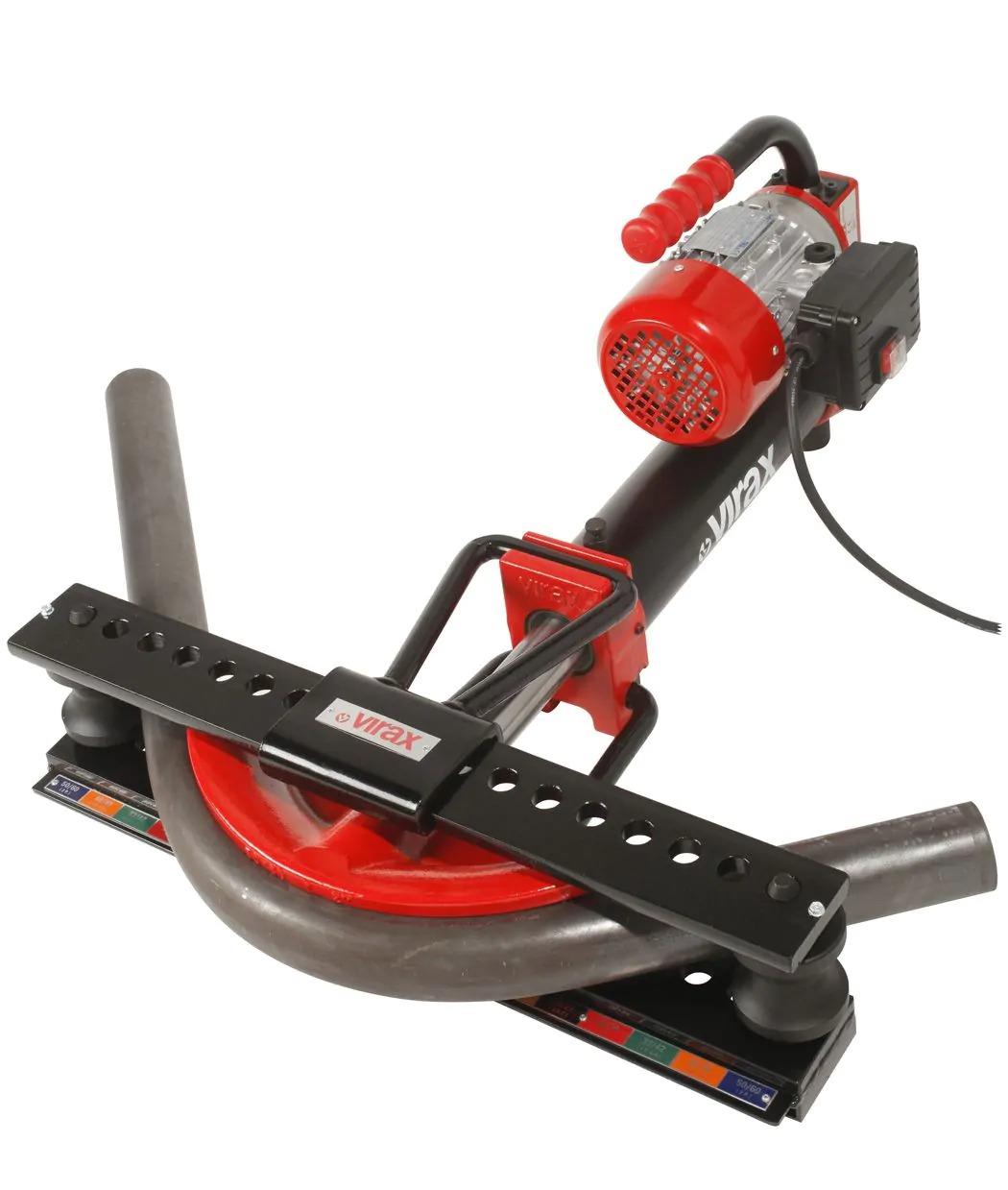

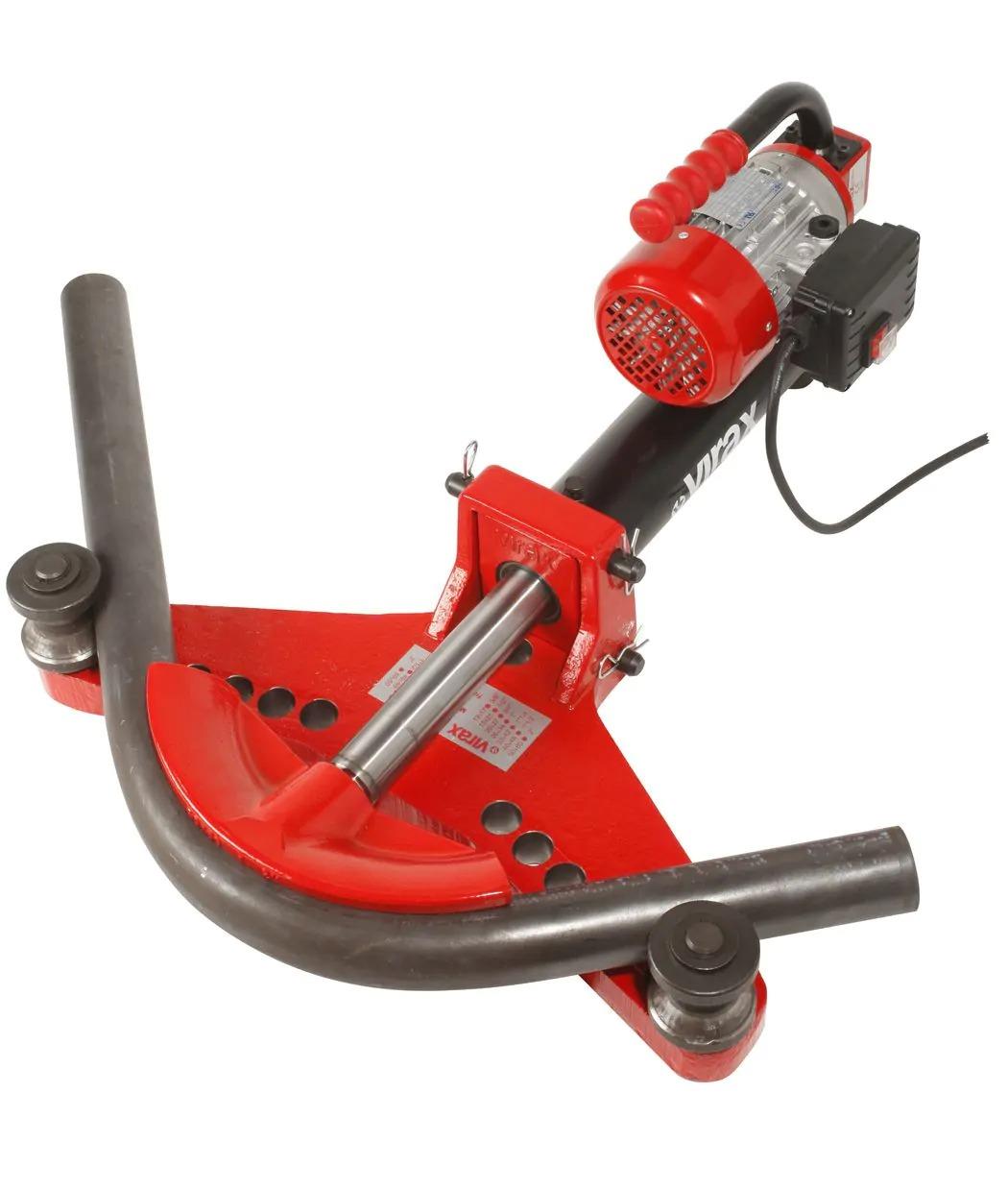

Electrical hydraulic bender for worksites or prefabrication.
Simple action circuit with spring-loaded piston return.

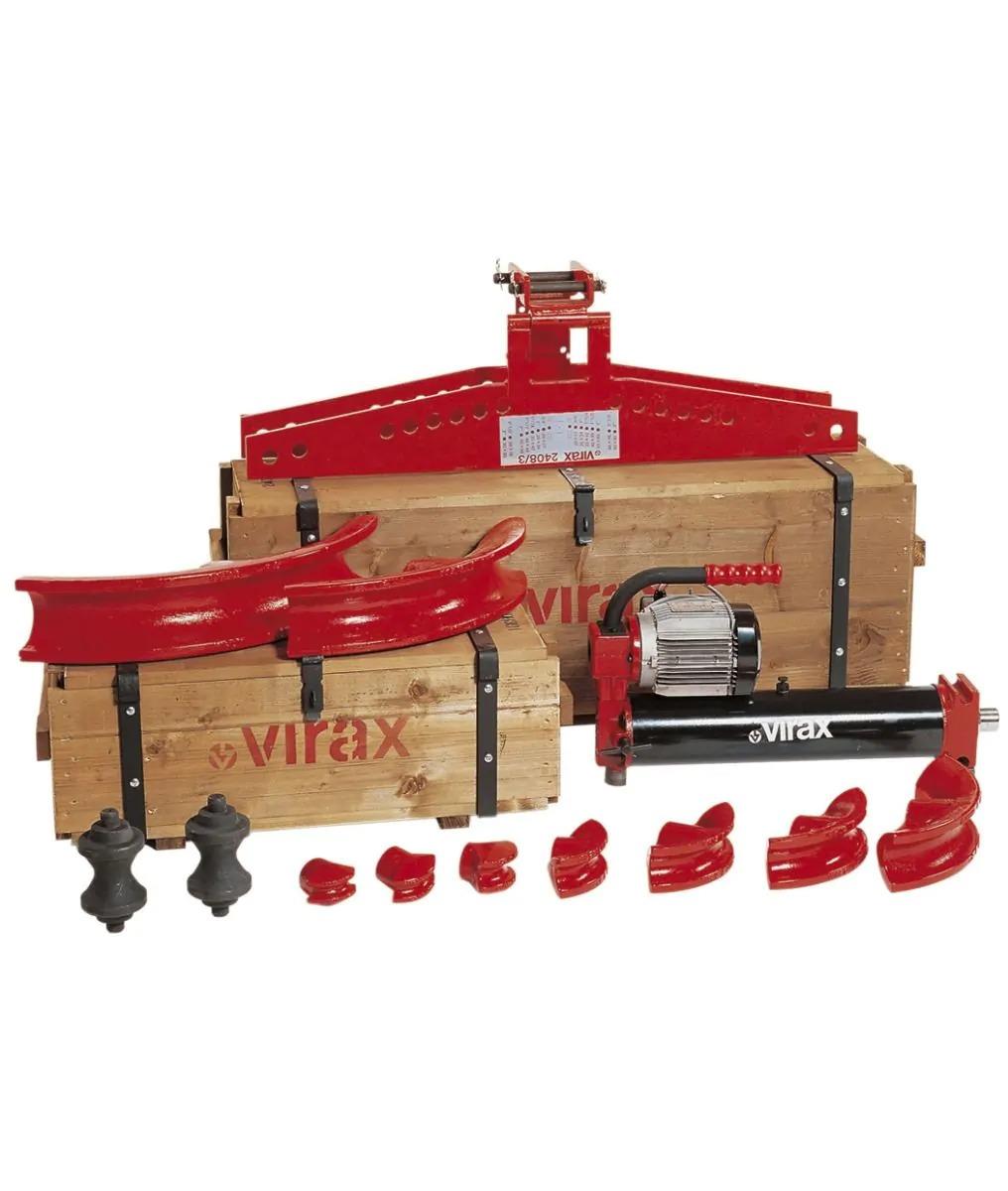

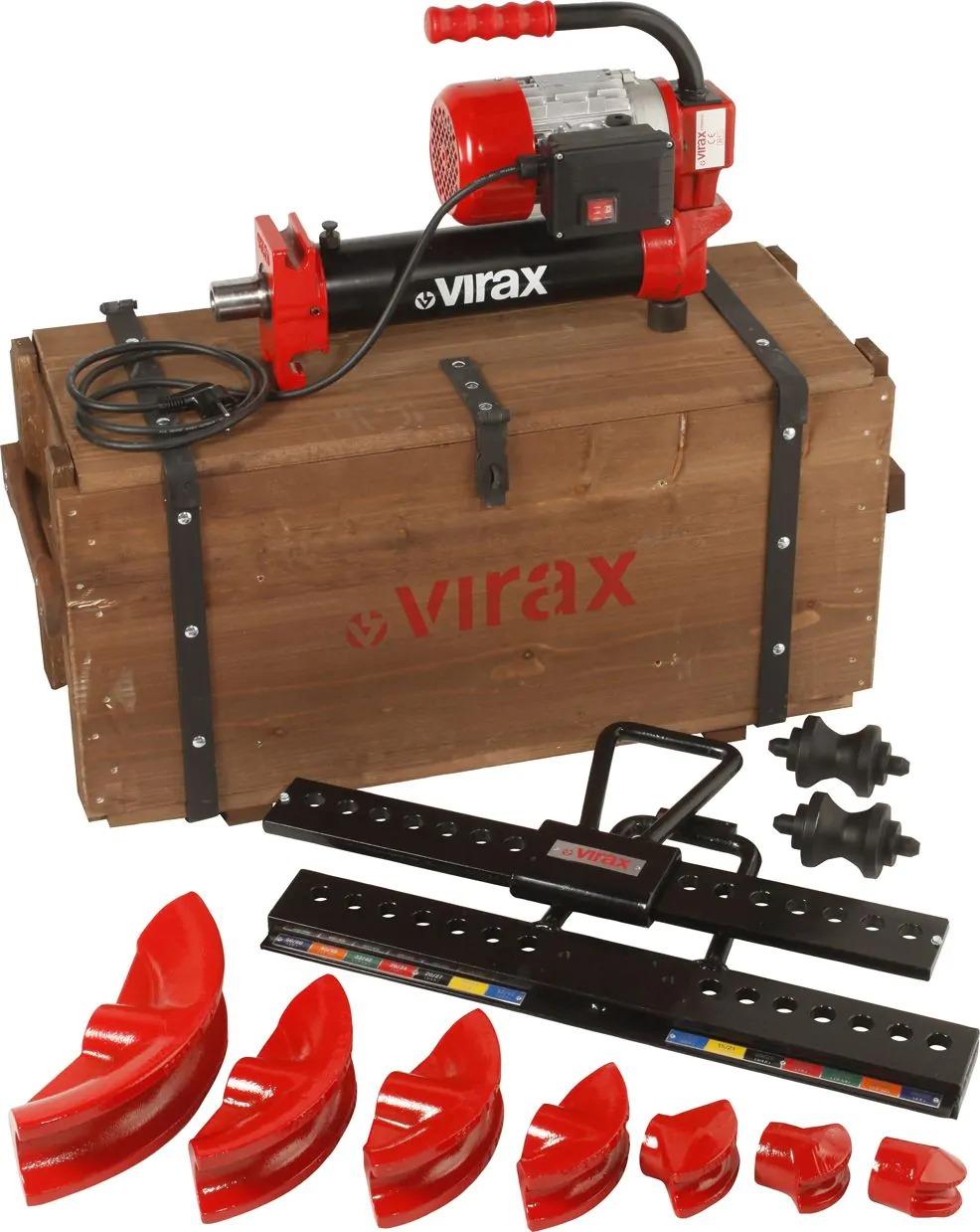

Supplied in a wooden case with the forms and accessories.
Less effort required for large batches.
Limit switch (option - ref. 240811) to reproduce identical bends.
To identify the different types of cheeks, see next pages.
Tip:
- Use Virax hydraulic ram oil for best protection.
- All necessary precautions must be taken when filling the ram to avoid foreign matter entering the reservoir as this may impair operation.
- Use horizontally.
Ref. 240851, Ref. 240852 delivered in two wooden chests
