The + product

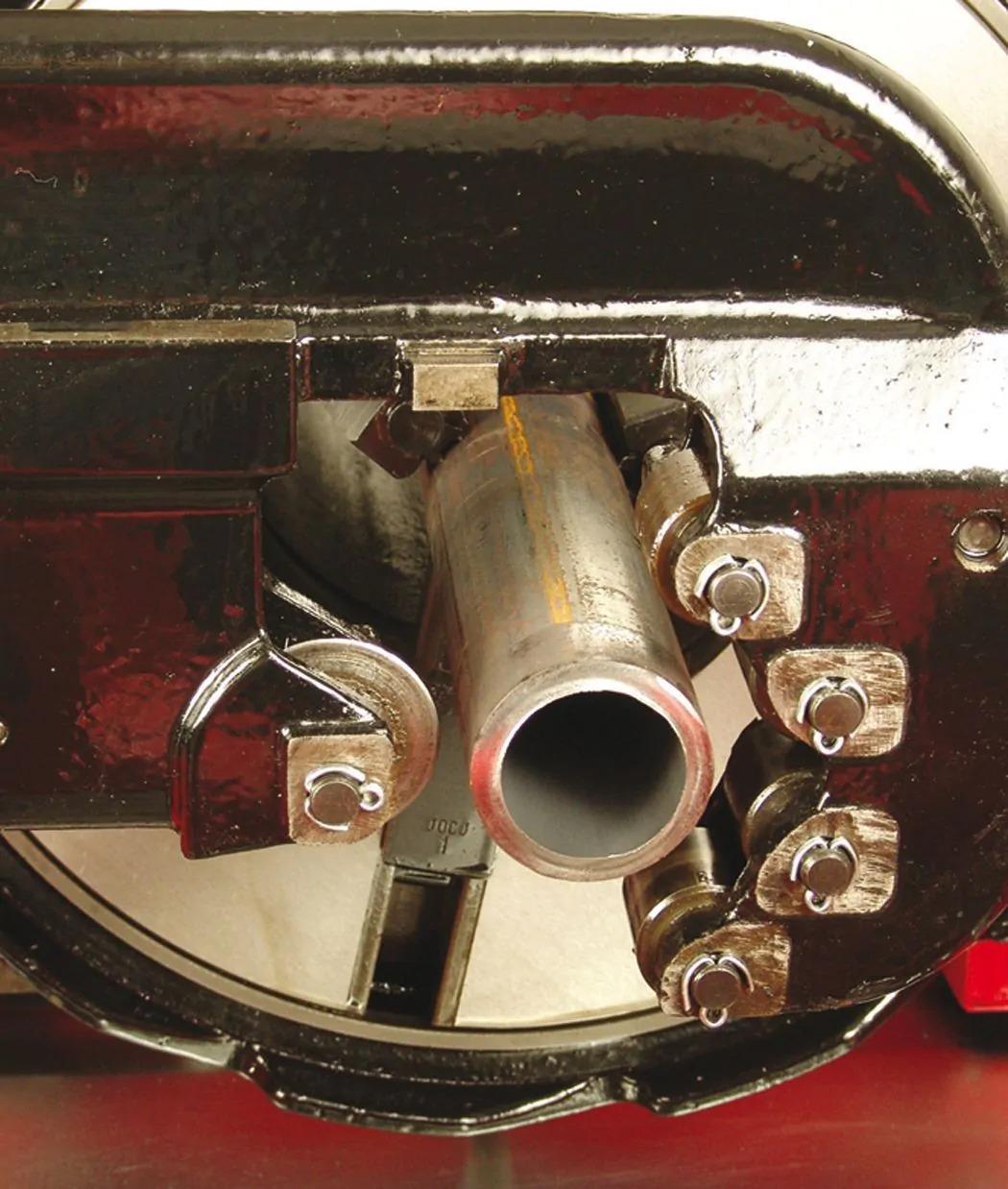

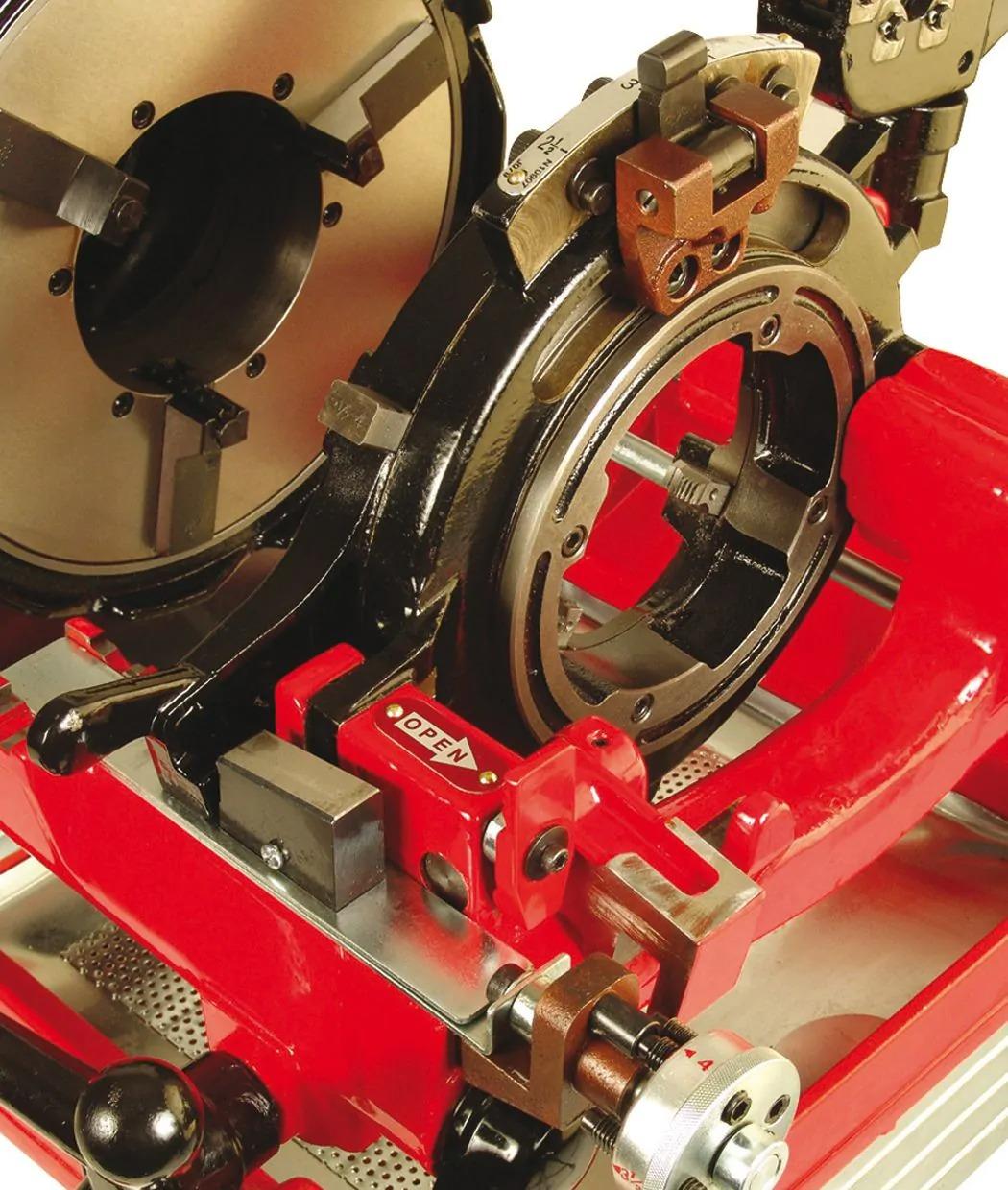

Automatic opening threading head.

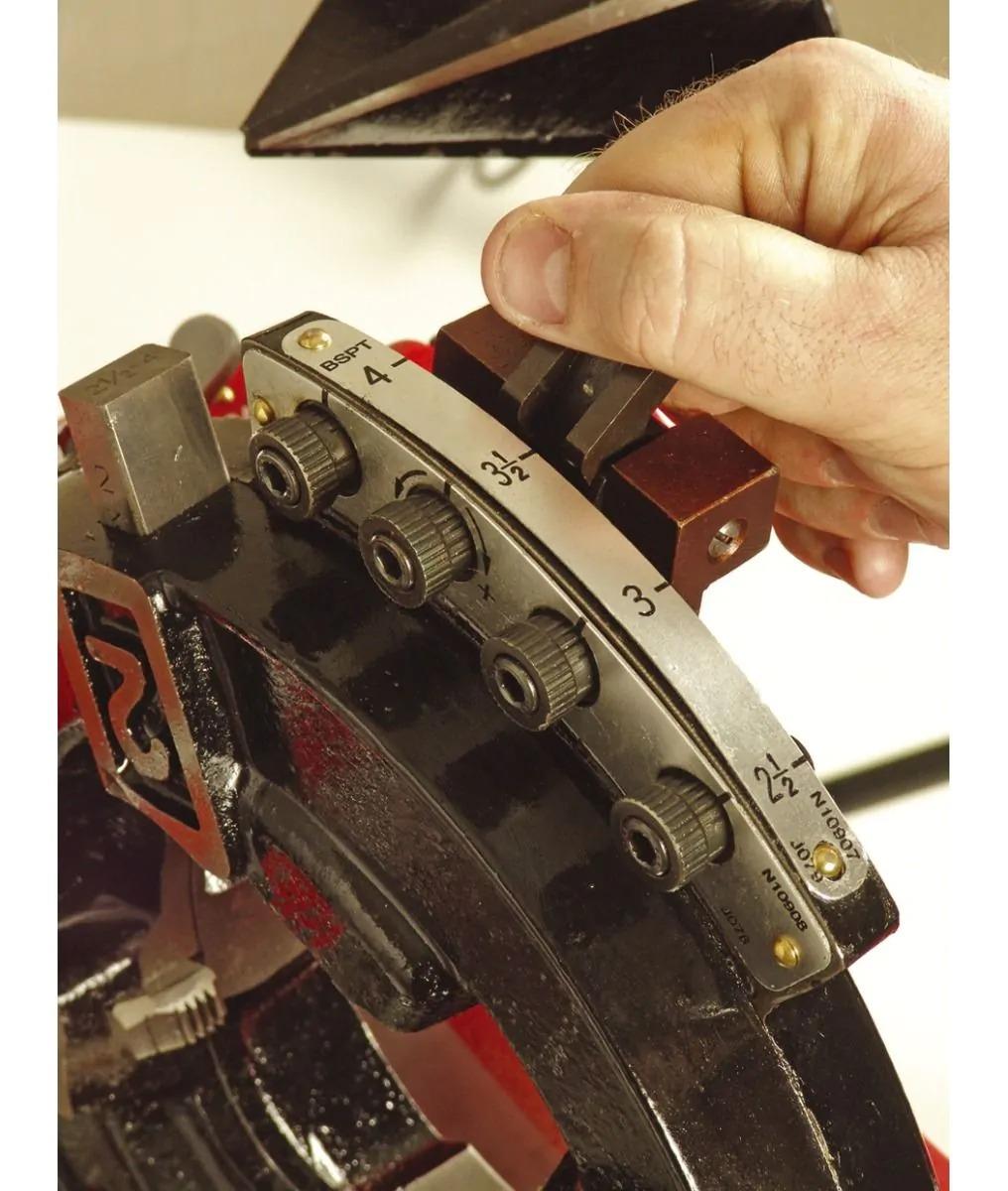

Quick, simple thread size adjustment.

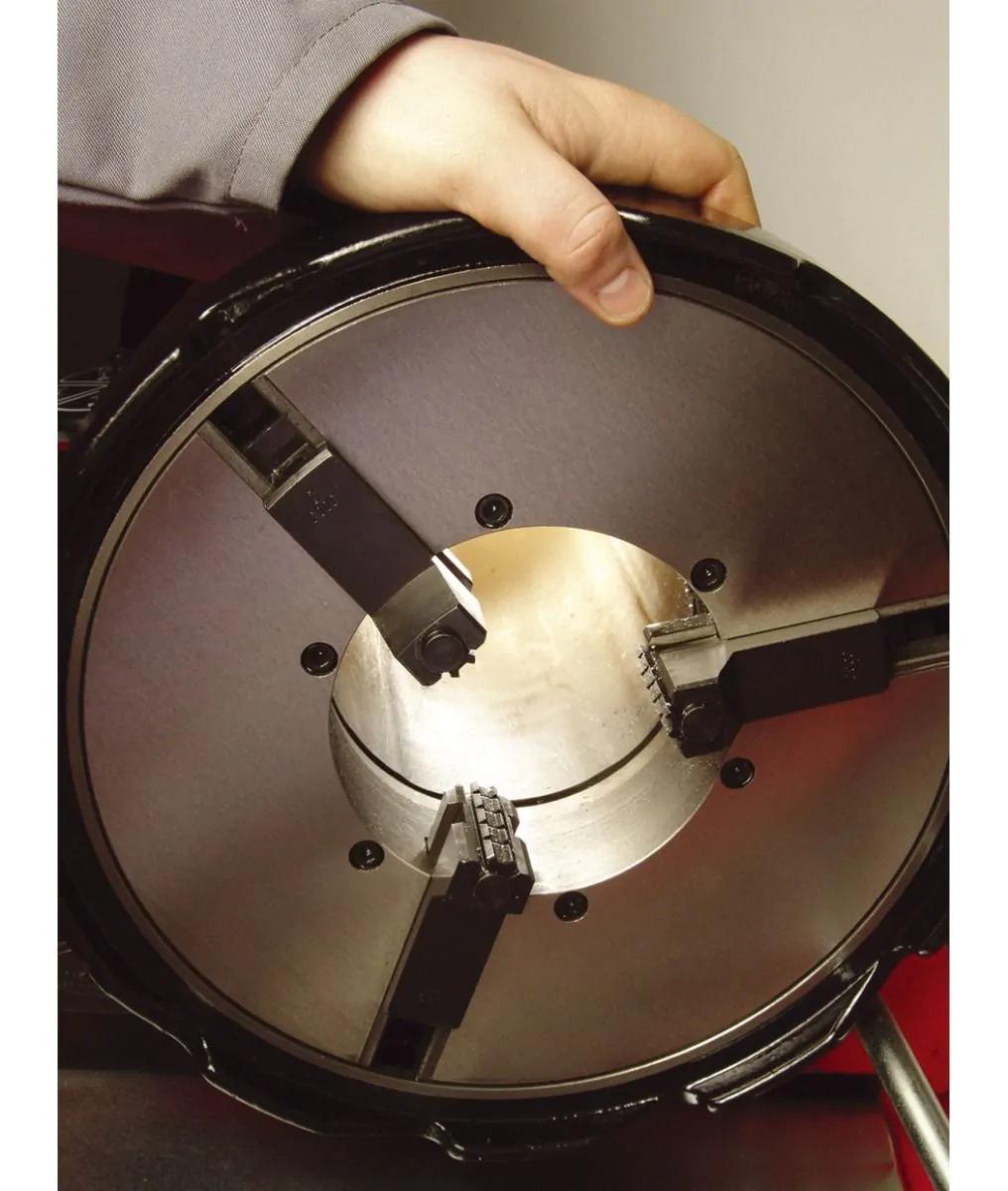

Hammer-type chuck and long jaws to rapidly, firmly and safely secure the pipe.

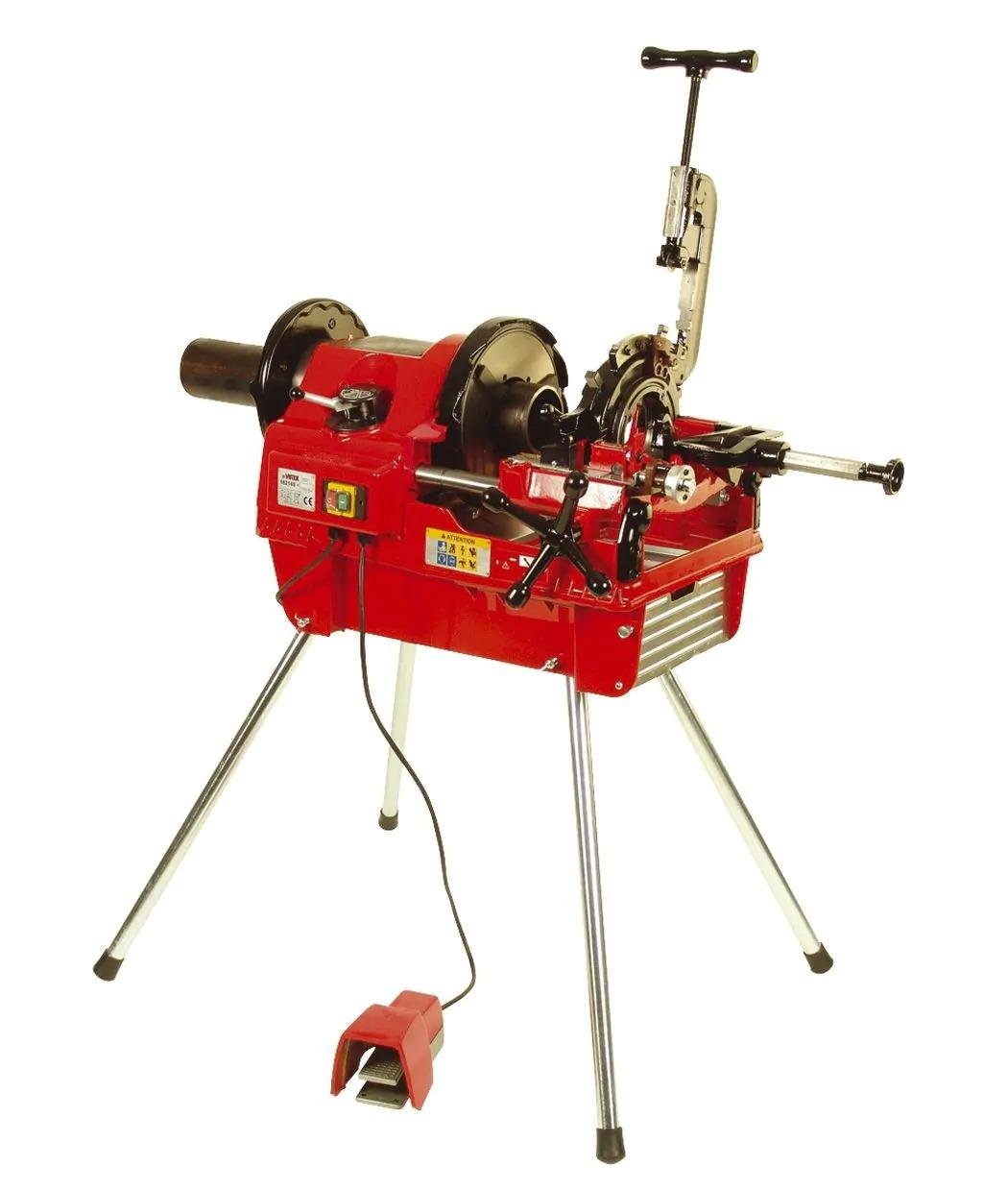

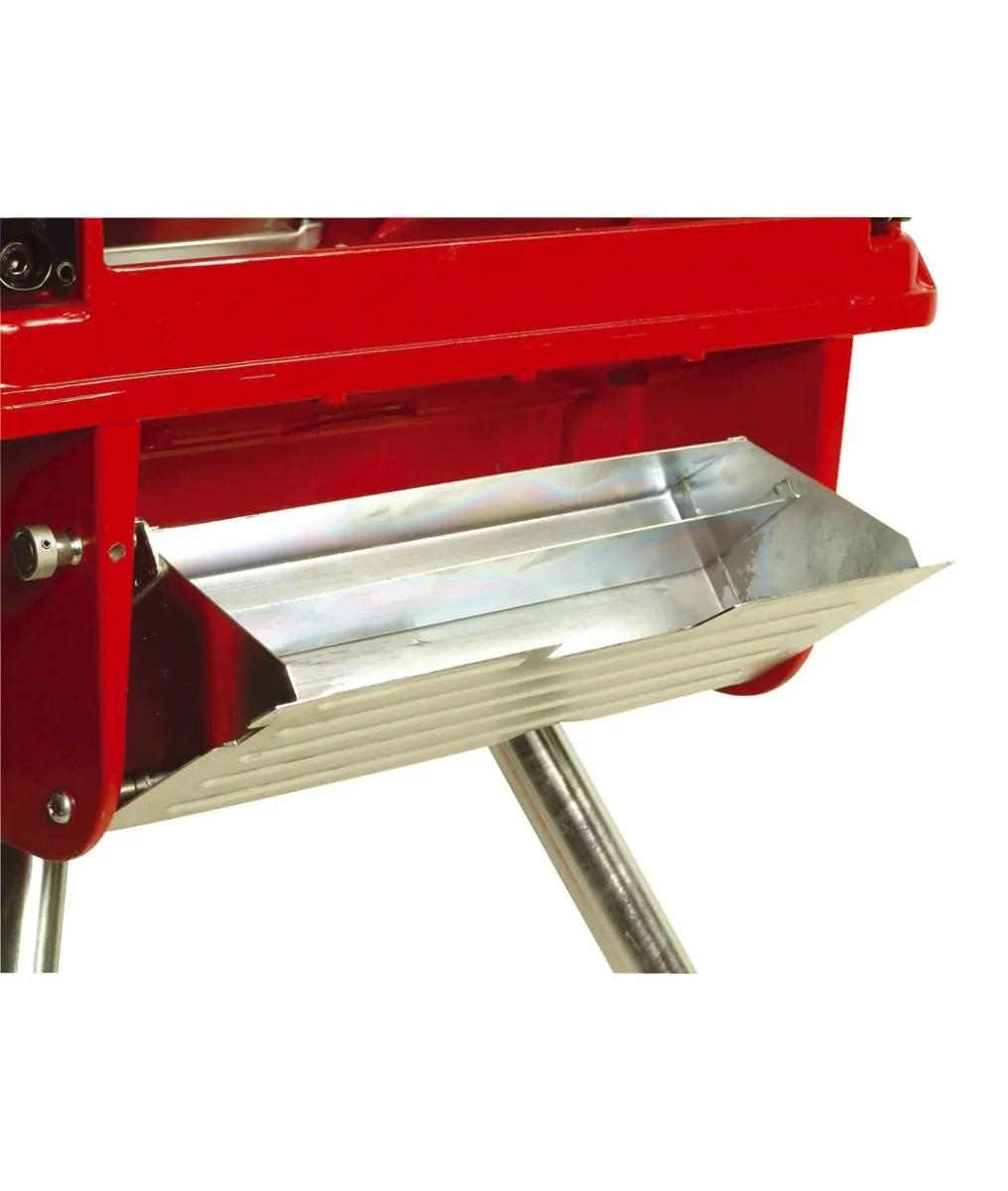

Machine producing "gas" threads with sealing as per NFE 03.004 compliant with ISO/7. For tubes complying with the EN 10255 S and EN 10255 W standards (former NFA 49115 and NFA 49145 standard medium and heavy duty series); only light series tubes are not recommended. Self-priming gear-style oil pump. Raised strainer avoids oil contamination by iron filings. Variable oil flow control. Heavy-duty dies available in HSS and standard grade steel. Slotted dies for quick and easy replacement without removing the head. 3 gears for optimum cutting and threading of each pipe diameter. Safety pedal for starting and stopping the machine. Three-blade reamer for a precision result. Special storage compartment. A machine of proven endurance, designed for high-volume applications.
Single-phase induction 230 V motor
1600
Ø": 1/2 - 3/4, 1 - 2, 2.1/2 - 4. Ø mm: 8/13 - 12/17, 26/34 - 50/60, 66/76 - 102/114
Right-hand BSPT
36/20/11
1200 x 870 x 1200
142,200
Steel: BSPT, NPT Ø 1/4" - 4". BSPP Ø 1/2" - 2". Stainless steel: BSPT, NPT Ø 1/4"- 4".
Use specially-designed dies and cutting wheels when working with zinc-coated and stainless steel.
- 1 automatic 1/2" to 2" BSPT threading head, - 1 automatic 2.1/2" to 4" BSPT threading head, - 1 set of right-hand BSPT dies 1/2" - 3/4", - 1 set of right-hand BSPT dies 1" - 2", - 1 set of right-hand BSPT dies 2.1/2" - 4", - 1 steel pipe cutting wheel, - 2 x 5 L synthetic threading oil (ref. 110605), - 4 support legs, - 1 safety pedal.
