The + product
Compact, ideal for interventions in confined environment.
Locking vice with anti-torque bar to lock the machine in rotation when threading.
Robust and light, suited to all maintenance work.

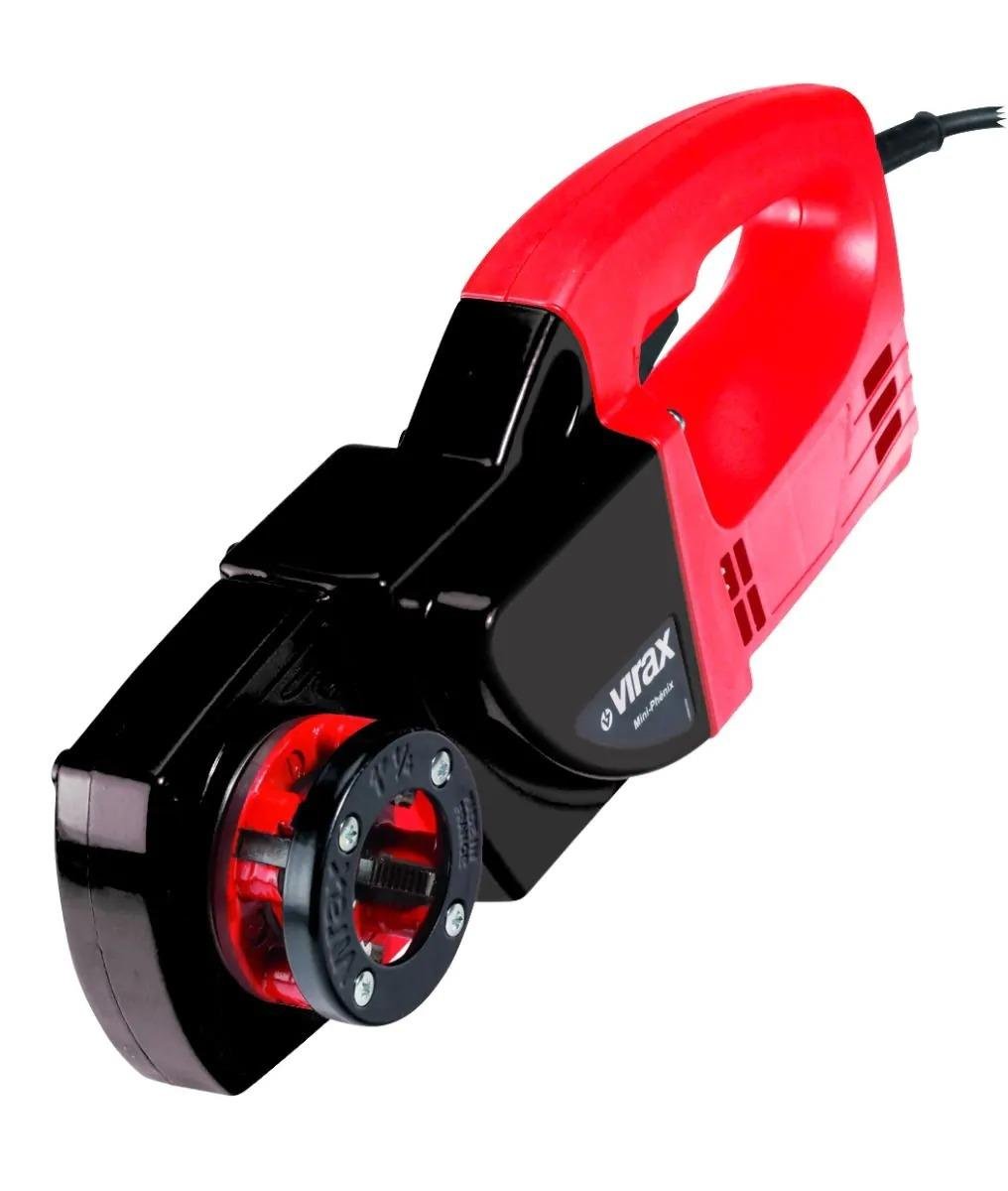

Dual rotation direction. Easy to use, selector to choose rotation direction and trigger to control rotation speed according to pressure applied. In spite of its small size, this threading machine can thread right- or left-hand BSPT, from 1/4" to 1.1/4". Feather weight for easy transport and use. Rotation speed: 20 rpm in both directions.
For tubes complying with the EN 10255 S and EN 10255 W standards (former NFA 49115 and NFA 49145 standard medium and heavy duty series); only light series tubes are not recommended.
Mini Phenix + 4 Right-hand BSPT heads: 1/2" - 3/4" - 1" - 1.1/4"
230
800W - 50/60 Hz
Threader only - 230 V
5,800
Steel: Right-hand BSPT Ø 1/4" to 1.1/4" Left-hand BSPT Ø 1/4" to 1.1/4"
Virax cutting oil (ref. 110200) should be used for smooth die operation, ensuring a good cut and a perfect thread. For NPT threading use the Phenix III portable automatic threading machine ref. 137562.
- 1 locking vice (ref. 138022). - 4 Right-hand BSPT heads: 1/2" - 3/4" - 1" - 1.1/4".
1362 - 1363 - 1364 - 1370 : Set of Dies
1362 - 1363 - 1364 : Drop Head Threaders
1375 - 1380 : Accessories - Portable Electric Threader
1106 : Synthetic Threading Oil
1101 - 1102 : Mineral Cutting Oil
