The + product
Reversible ratchet for increased manœuvrability.
Ergonomic grip.
Easy head installation and removal.
Capacity: Steel Right BSPT: Ø 1/4" to 2" Left BSPT: Ø 1/4" to 2" NPT : Ø 1/4" to 2"
Tubular steel handles. Heads can also be used on Mini Phenix / Phenix III portable electric threading machine.
For tubes complying with the EN 10255 S and EN 10255 W standards (former NFA 49115 and NFA 49145 standard medium and heavy duty series); only light series tubes are not recommended.

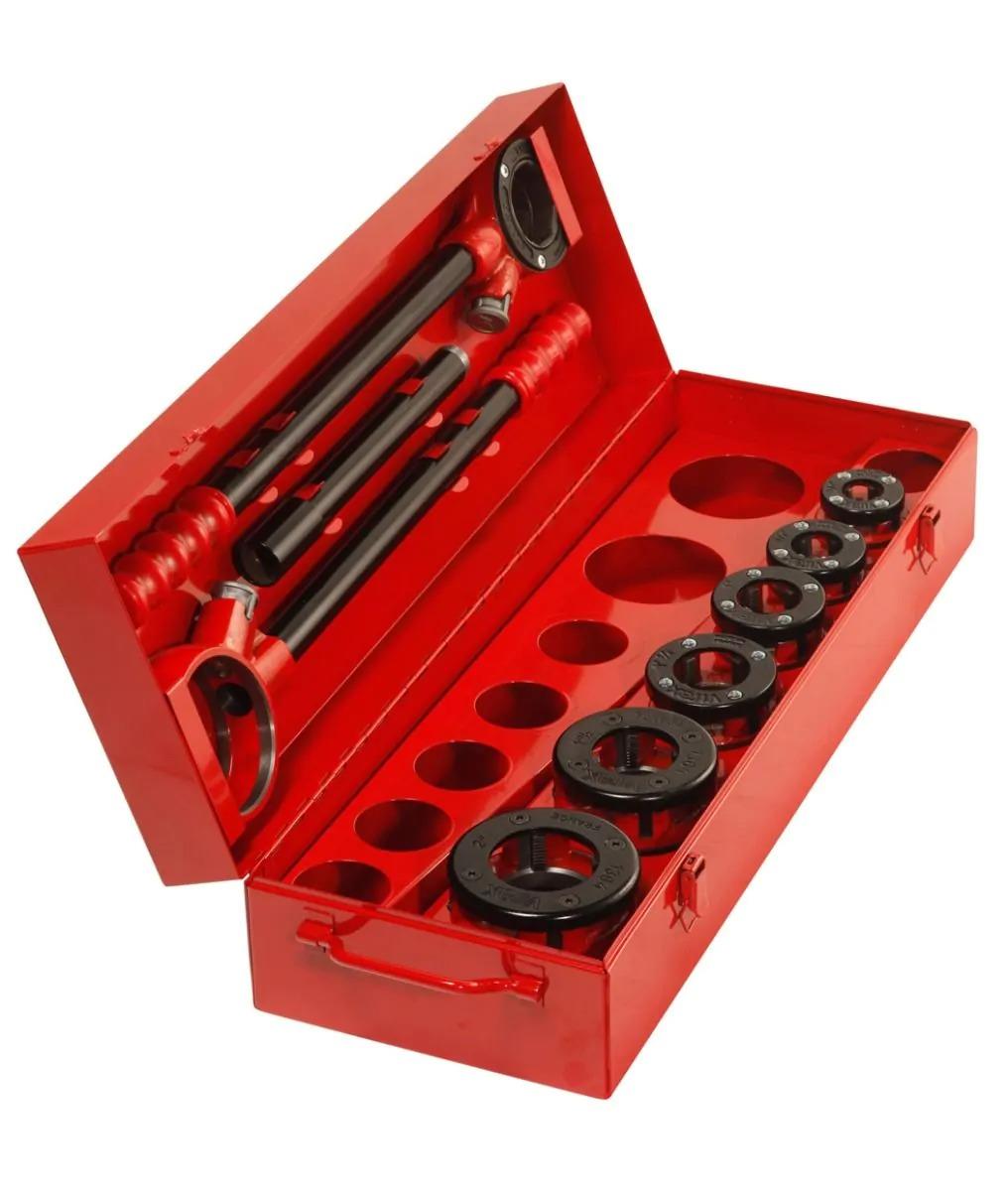

2 single ratchet housings + handle BSPT right : 1/2 - 3/4 - 1 - 1.1/4 - 1.1/2 - 2
670 x 230 x 150 mm
20,000
Single ratchet housing with 2 part handle Single ratchet housing with 3 part handle - BSPT Right 1/2 - 3/4 - 1 - 1.1/4 - 1.1/2 - 2
450 x 345 x 100 mm
17,000

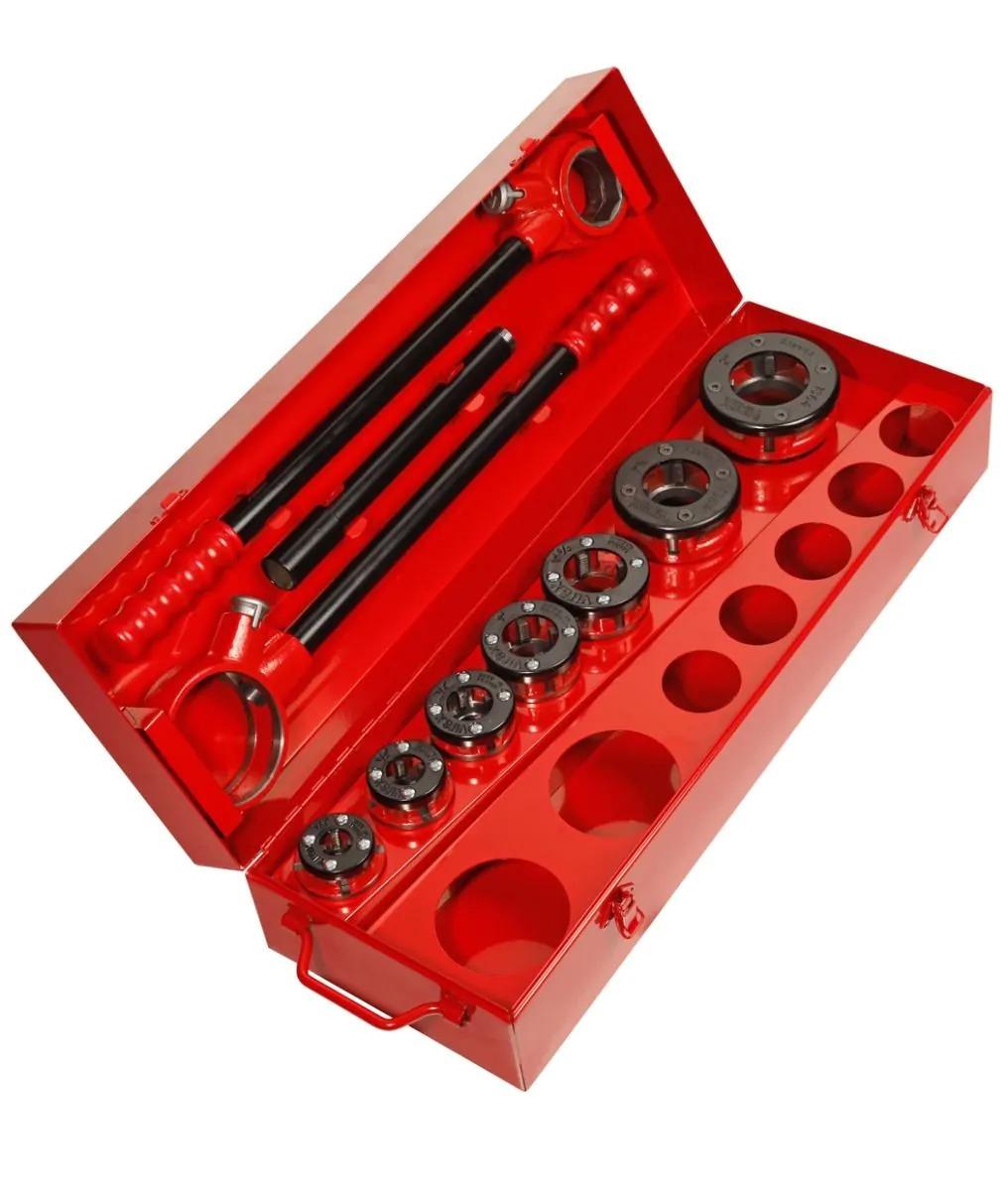

2 single ratchet housings + handle BSPT right : 3/8 -1/2 - 3/4 - 1 - 1.1/4 - 1.1/2 - 2
20,700
2 single ratchet housings + handle NPT : 1/2 - 3/4 - 1 - 1.1/4 - 1.1/2 - 2

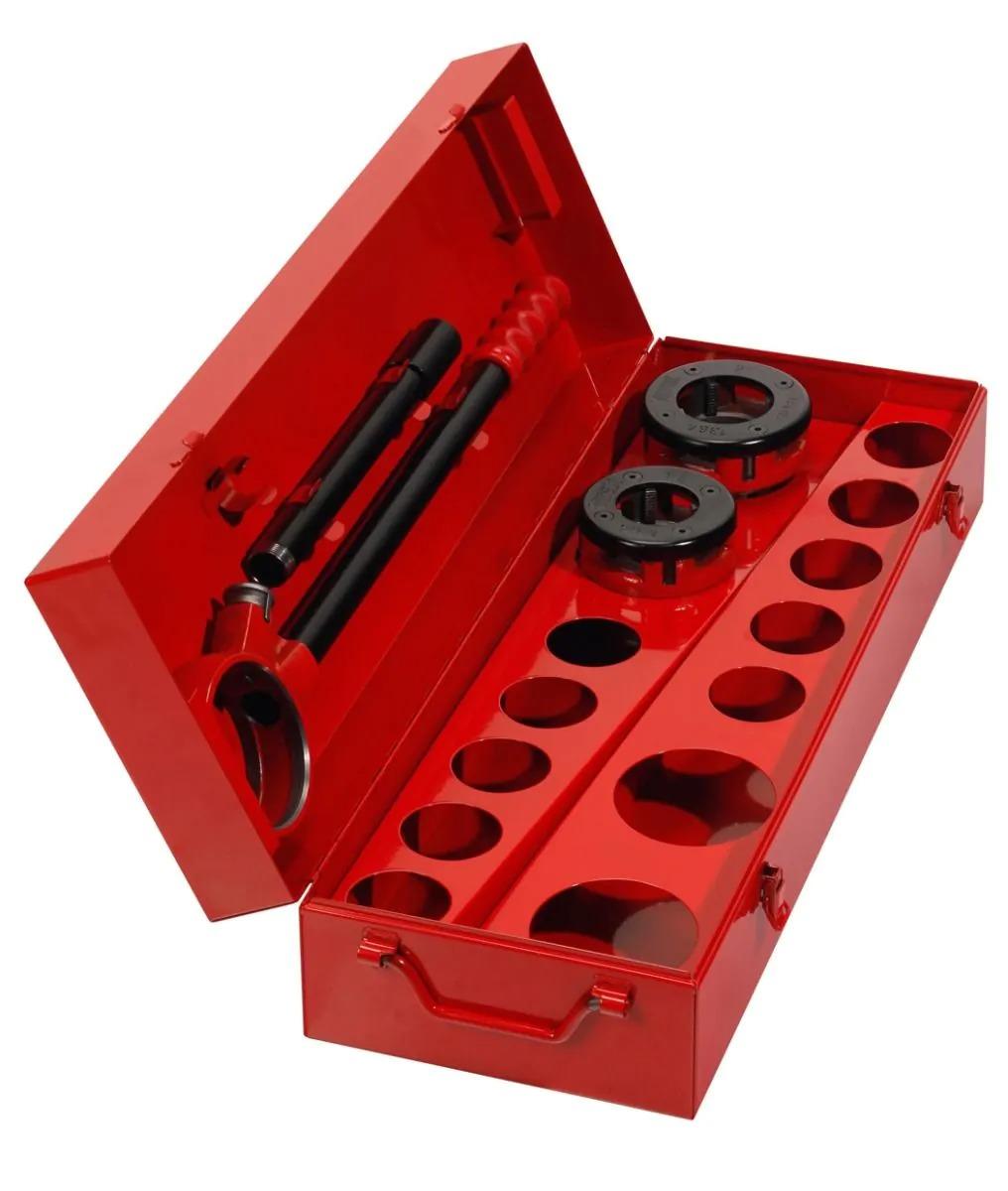

Single ratchet housing + Handle Right BSPT: 1.1/2 - 2
660 x 200 x 110 mm
12,800
1362 - 1363 - 1364 - 1370 : Set of Dies
1362 - 1363 - 1364 : Drop Head Threaders
1362 - 1363 - 1364 : Ratchet Housing for Manual Threader with Interchangeable Heads
1106 : Synthetic Threading Oil
1101 - 1102 : Mineral Cutting Oil
