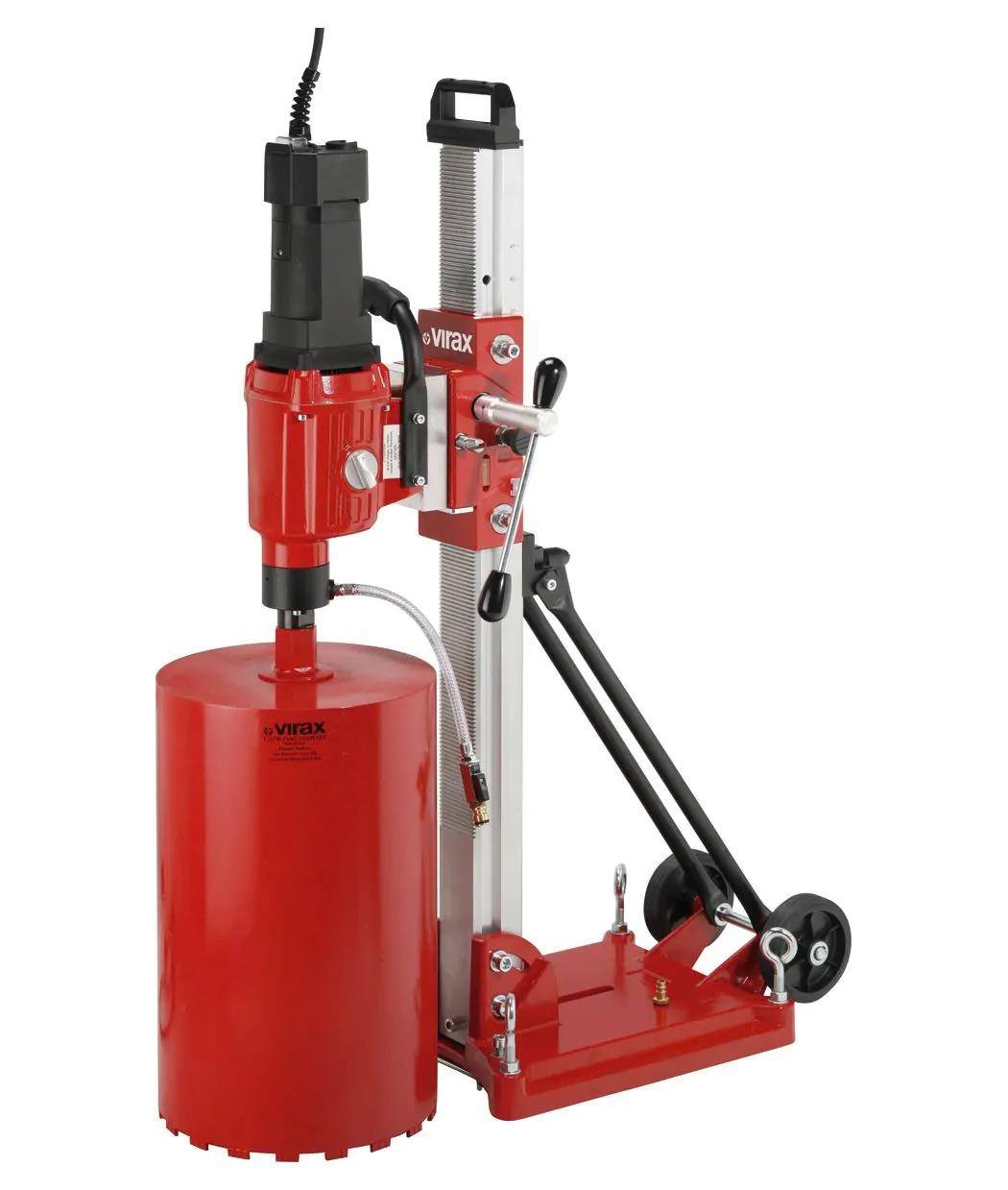

Virax 0501 Core Drilling V 350 Core Drill and Support Stand (Virax 0501-2)

Core drill:
3000 W motor with triple protection:
- Electronic (in the event of overload on the motor) with alert light in the trigger,
- Thermal (in the event of overheating),
- Mechanical (axis decoupling if the core bit locks).
Fourth protection for the motor and gears thanks to an oil pumping system that enables permanent lubrication.
3 speeds: 230/500/1030 rpm (rotation under load).
Additional handle for easy transport and assembly.
UNC connection 1.1/".
PRCD protection switch.

Support stand:

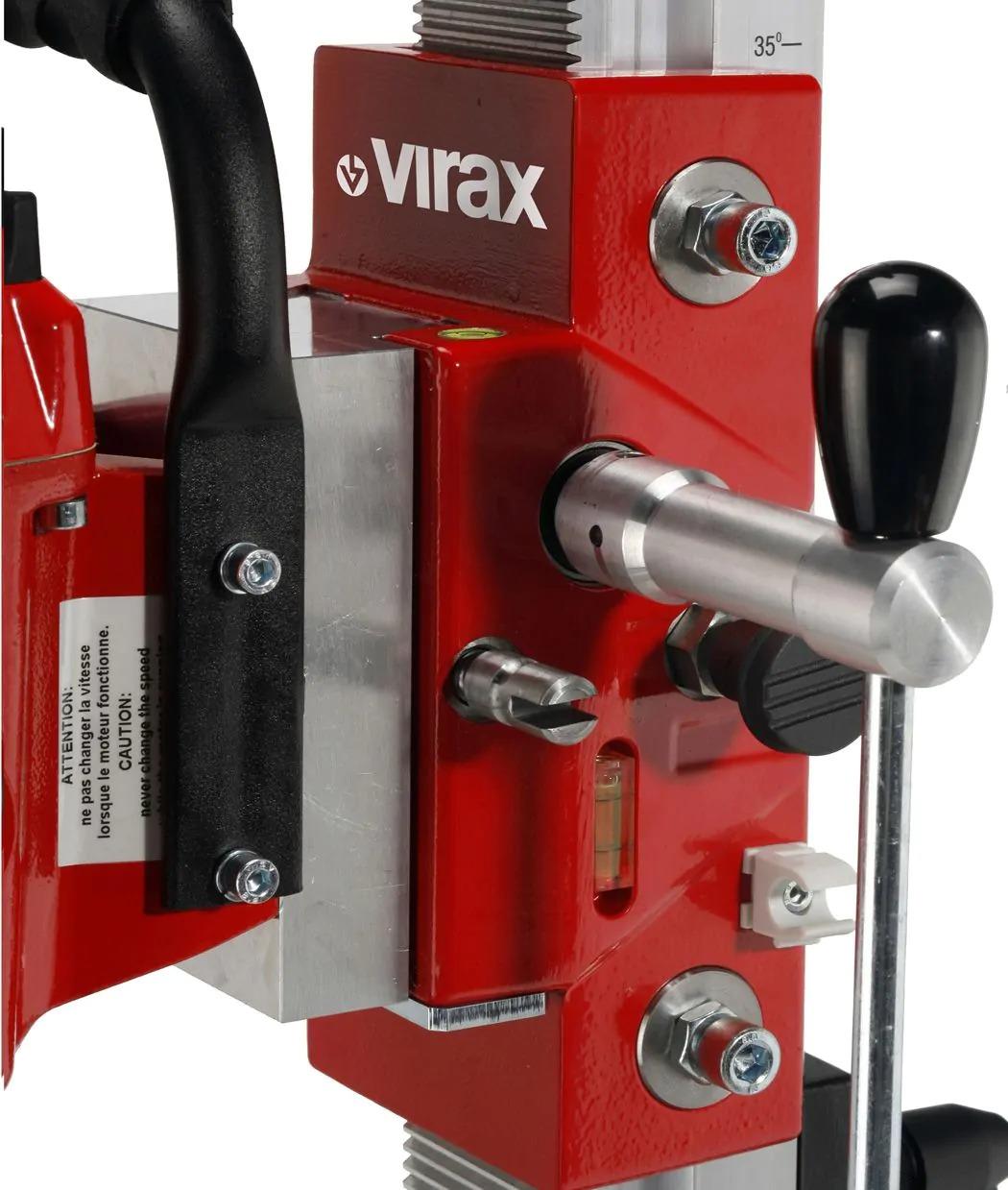

Aluminium column support stand and reinforcement bars to minimise vibration.
Drilling over the full height of the stand (scale in mm); Can be tilted from 0° to 45°.
Adjustable brake; Stop button; easy positioning of the V150+.
Practical: centring indicator and built-in level.
Maximum stability: base with 4 adjustment nuts, can be used fixed by anchor spindle or with vacuum pump
Right/left movement lever, movable without tools.
Wheels and handle to facilitate transport.
Dimensions (L x w x H) : 538 x 330 x 1110 mm.

Sku	Description	Power W	kg
050130	V 350 motor and support stand	3000	33,700
050121	V 250 / V 350 support stand	-	22,000
050136	V 350 motor	3000	11,700

More Information

Tips	The use of a water and dust vacuum (ref. 050057) is strongly recommended for dry core drilling.
Capacity	Wet drilling on support stand for reinforced concrete, abrasive materials, bricks, breeze block, etc. up to Ø 350 mm.
Supplied with	Core drill: 2 flat wrenches (SW 32 and SW 41), Sprinkler mechanism with bearing tap, Additional handle for transport and assembly. Support stand: Ready to use attachment set (anchor spindle, reusable pegs for attachment in breeze block, non reusable pegs for attachment in concrete). Delivered without core bit.
