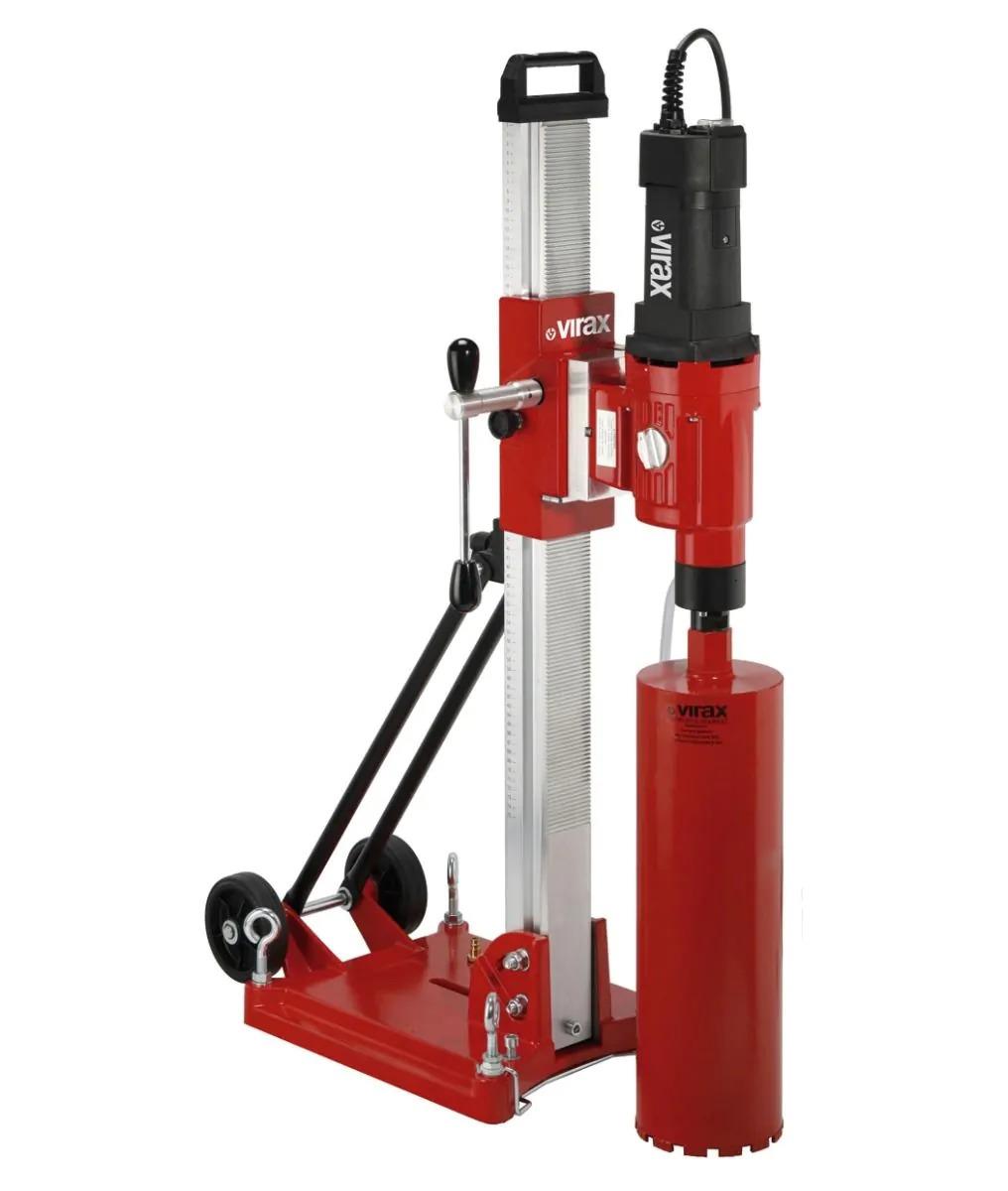

Virax 0501 Core Drilling V 250 Core Drill and Support Stand (Virax 0501-1)

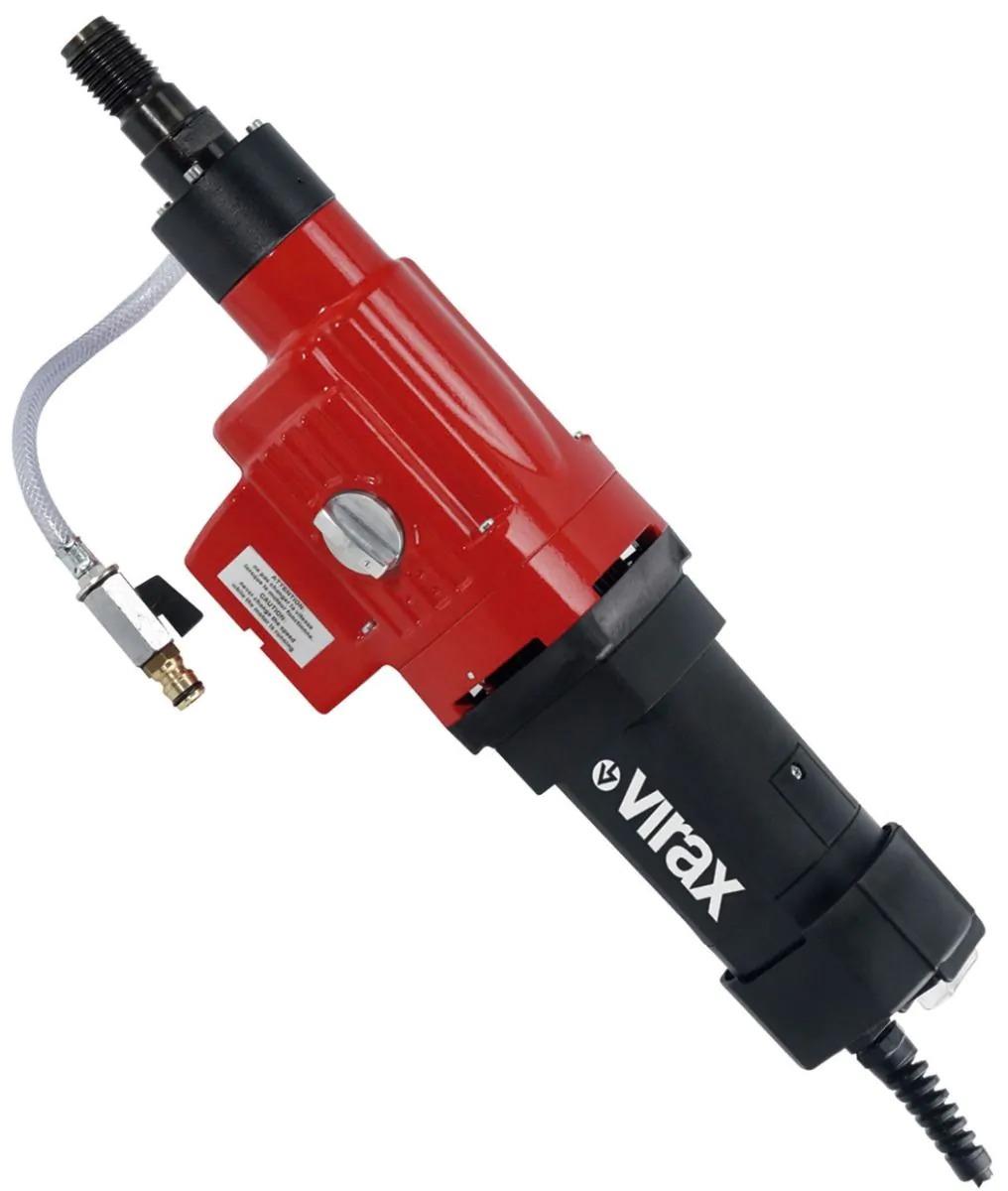

Core drill:
2500 W motor with triple protection:
. Electronic (in the event of overload on the motor) with alert light in the trigger,
- Thermal (in the event of overheating),
- Mechanical (axis decoupling if the core bit locks).
Fourth protection for the motor and gears thanks to an oil pumping system that enables permanent lubrication.
2 speeds: 360/850 rpm (rotation under load).
UNC connection 1.1/4".
PRCD protection switch.

Support stand:
Aluminium column support stand and reinforcement bars to minimise vibration.
Drilling over the full height of the stand (scale in mm); Can be tilted from 0° to 45°.
Adjustable brake; Stop button; easy positioning of the V150+.

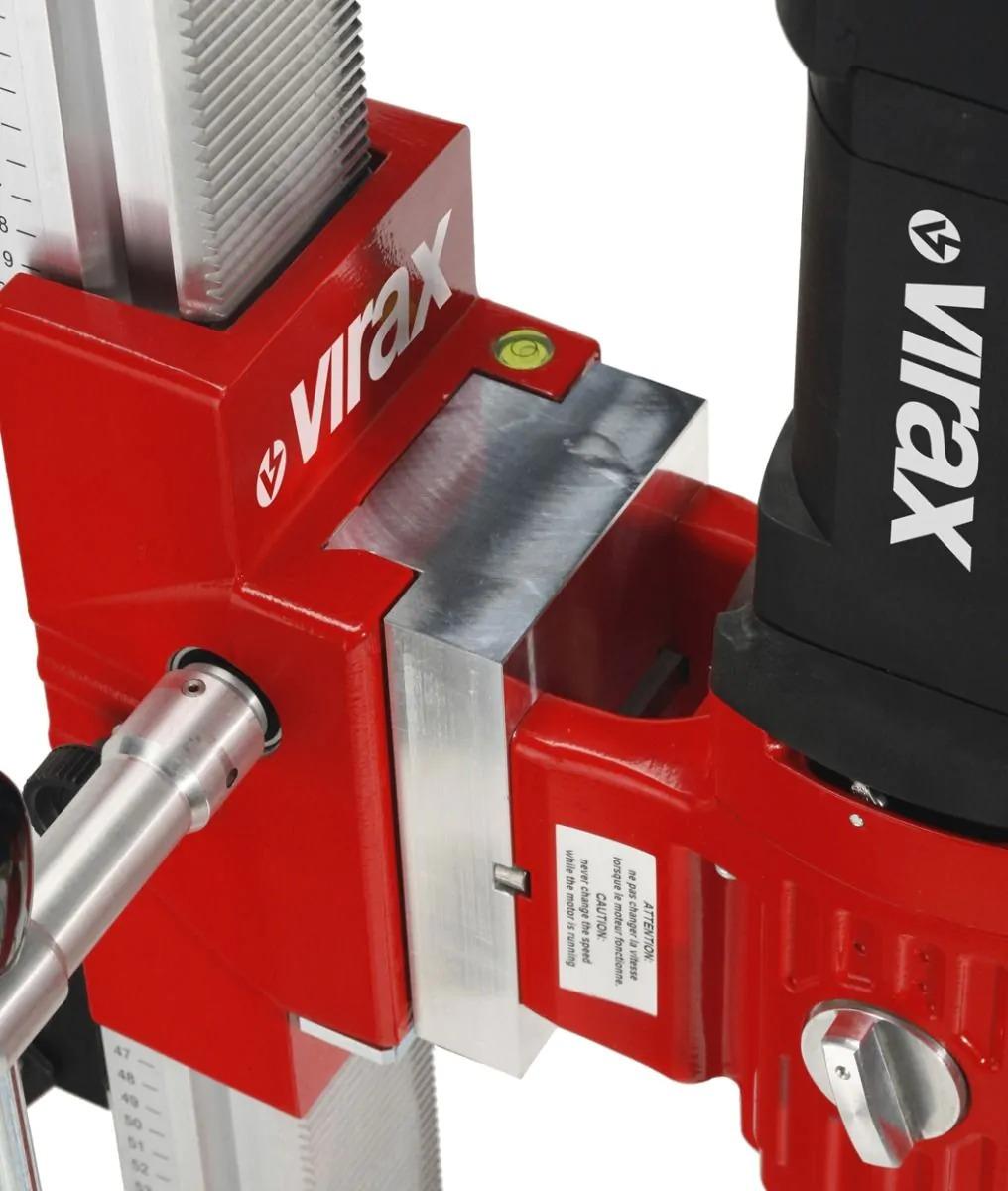

Practical: centring indicator and built-in level.
Maximum stability: base with 4 adjustment nuts, can be used fixed by anchor spindle or with vacuum pump
Right/left movement lever, movable without tools.
Wheels and handle to facilitate transport.
Dimensions (L x w x H) : 538 x 330 x 1110 mm.

Sku	Description	Power W	kg
050120	V 250 motor and support stand	2500	32,500
050121	V 250 / V 350 support stand	-	22,000
050126	V 250 motor	2500	10,500

More Information

Tips	The use of a water and dust vacuum (ref. 050057) is strongly recommended for dry core drilling.
Capacity	Wet drilling on support stand for reinforced concrete, abrasive materials, bricks, breeze block, etc. up to Ø 250 mm.
Supplied with	Core drill: 2 flat wrenches (SW 32 and SW 41), Sprinkler mechanism with bearing tap. Support stand: Ready to use attachment set (anchor spindle, reusable pegs for attachment in breeze block, non reusable pegs for attachment in concrete). Delivered without core bit.
