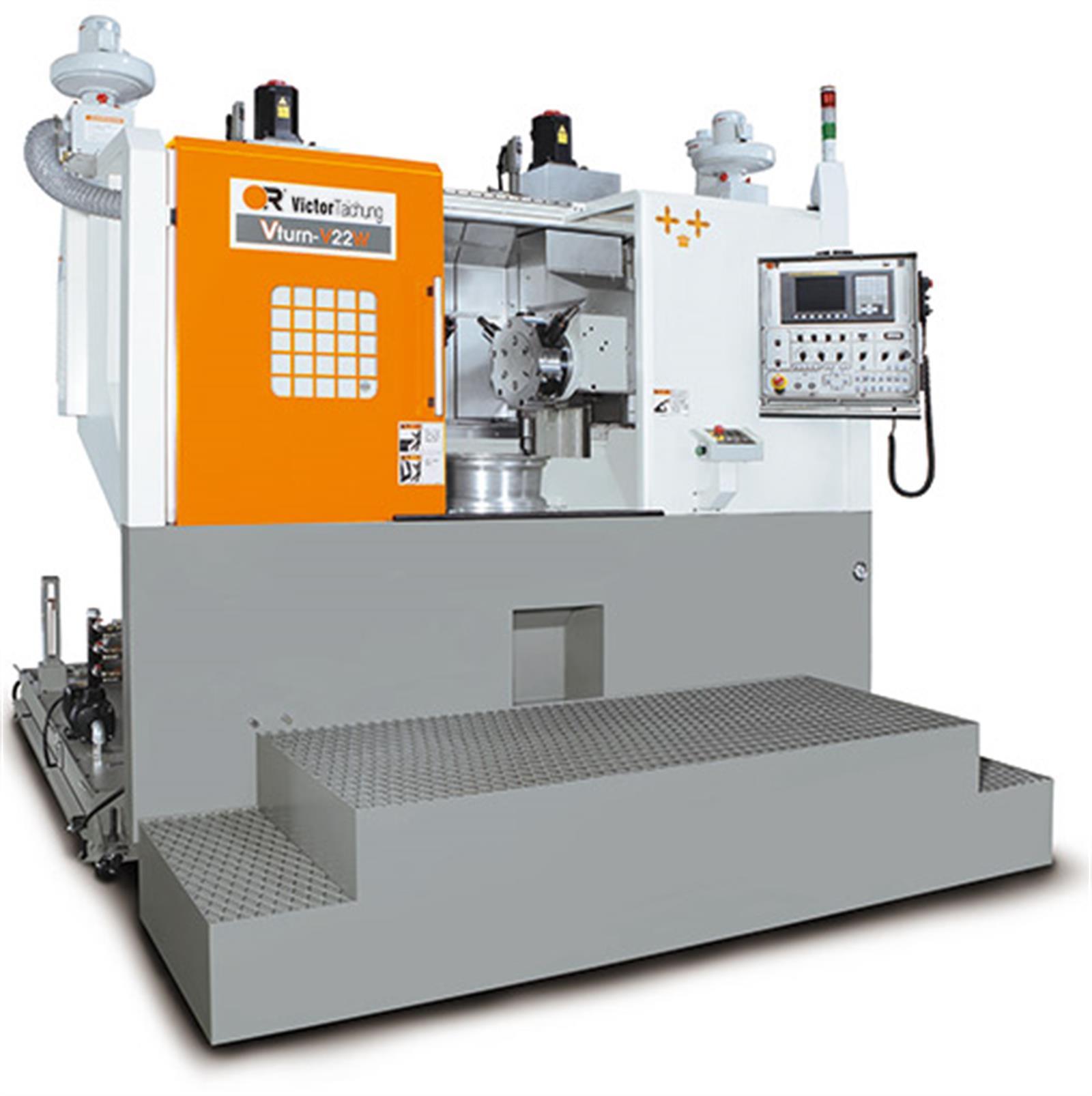

Victor Taichung Vturn-V22W (T4) Vertical Lathe for Bigger Wheel Machining (Vturn-V22W (T4))

With the increasing demand for bigger and bigger Alloy wheel manufacturing, Victor Taichung has come up with an alternative solution for easier loading/unloading wheels and further reduces the spindle idle time.
Victor Taichung Vturn-V22W/V26W lathes are built from with new innovation to provide a 4 axis vertical CNC lathe specifically designed for Alloy wheel production.

Vertical 4-axis CNC lathe.
Advanced solution for 15~22-inch or 17~24-inches wheel turning.
Two VDI turrents reduce cutting time by allowing 2 turning operations to be completed simultaneously.
Rotary ACC (optional) further avoids spindle idle time.

Oil skimmer
3 step warning light
Japanese ballscrews
Water & air gun interface
Fully enclosed guard
Tool box & hand tools
Leveling blocks
Tooling accessories
Auto door
High pressure coolant - Grundfos SPK 4-15(or MTH4-50/5)
Coolant nozzle
Special chip conveyor
Automatic lubrication
Air conditioner for electrical cabinet

Homtech 3 jaw finger chuck (specify OP.1 or OP.2)
Window on door
Built-in spindle for OP3 diamond turning
VDI turret - no extra charge, but no tool holders provided
Higher power spindle 37/45 kW (50/60 HP)
Air blow system
Oil mist remover

ITEM / MODEL	Units	Vturn-V22W (T4)
X1, X2 travel	mm (inch)	420 (16.5)
Z1, Z2 travel	mm (inch)	446 (17.6)
X1, X2 rapid feedrate	m/min (ipm)	20 (787.4)
Z1, Z2 rapid feedrate	m/min (ipm)	20 (787.4)
Maximum swing diameter	mm (inch)	750 (29.5)
for chuck with wheel
Maximum turning diameter	mm (inch)	630 (24.8)
without adjacent tools
Max. turning wheel size	inch	22.5x10.5
Spindle speed	rpm	2500
Spindle nose		A2-13
Spindle motor (Fanuc)	kW (HP)	45/55 (60/74)
X1, X2 servo-motor	kW (HP)	4 (5.4)
Z1, Z2 servo-motor	kW (HP)	5 (6.7)
Turret disc		VDI-40 (opt. VDI-50)
Number of tools		6+6
Tool to tool time	sec.	1.0
Machine dimension (incl chip conveyor, excl. stepper)	mm (inch)	3664 x 3670 x 3374
		(144 x 145 x 133)
Coolant tank	liter (gallon)	950 (250)
Controller	Fanuc	0i-TF Plus (10.4”)
Power requirement	kVA	74
Machine weight	Kg (lbs)	11000 (24200)
