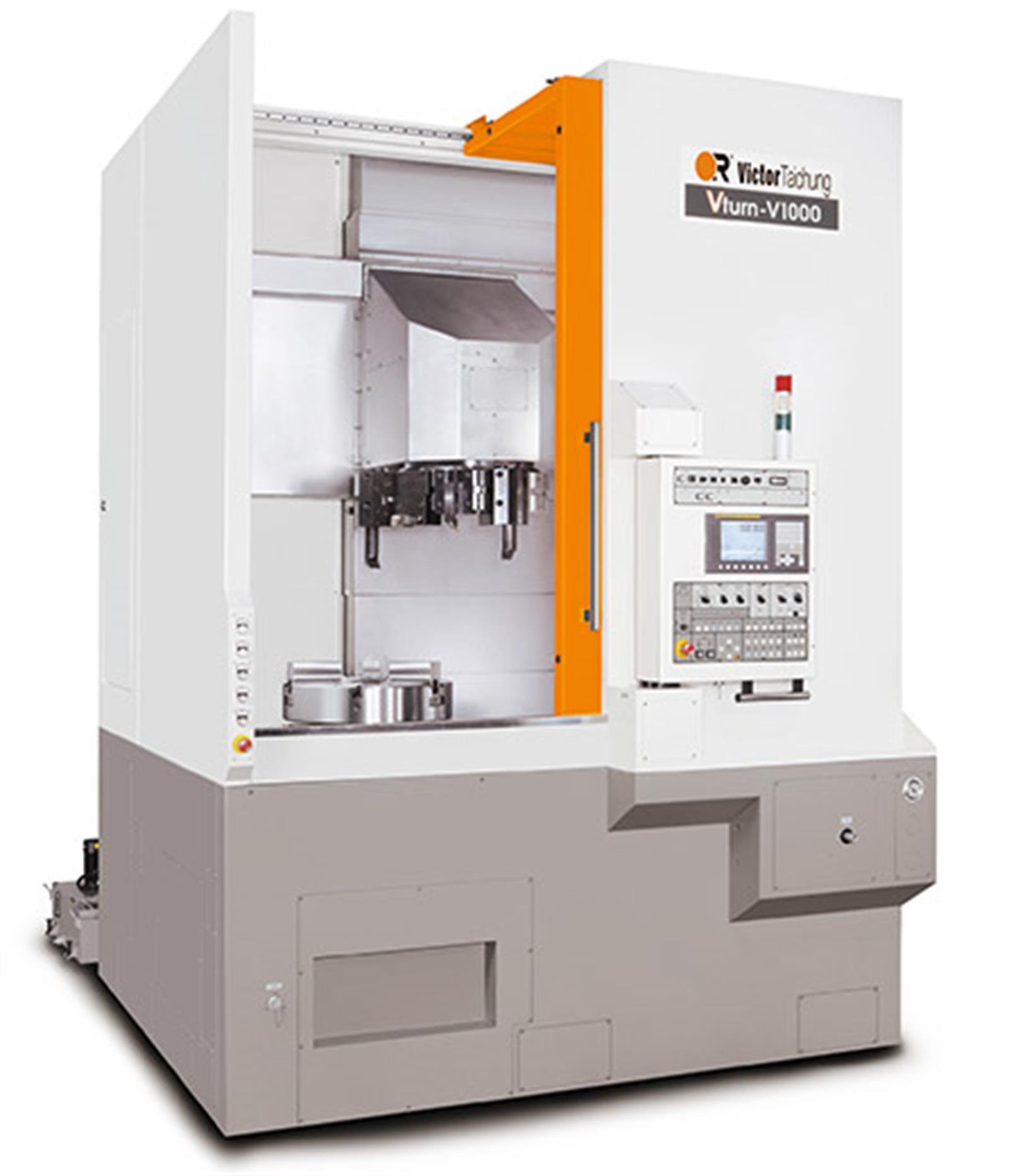

Victor Taichung Vturn-V1000 Vertical Turning Center (Vturn-V1000)

Following the success of Vturn-V760, with a swing diameter of 1100mm (43.3") and a maximum turning diameter of 1000mm (39.4"), this VTL Vturn-V1000 with its powerfull 45kw (60HP) spindle motor coupled to a 2-step gearbox provides high torque at low rpm's.

The Vturn-V1000 Vertical Turning Lathe offers a swing over bed of 1100mm with a maximum turning diameter of 1m and an overall turning length of 850mm. For manufacturers producing large parts that demand heavy cutting, the configuration of a VTL and the natural fall of swarf from the work area provides instantaneous benefits. This Vturn-V1000 Vertical Turn Machine is ideal for larger diameter components.

Solid chuck with soft jaws
Chip conveyor with cart (rear disposal)
Automatic forced lubrication
Fully enclosed splash guarding
Tool holders (exch VDI / BMT tooling)
3 step warning light
Fanuc 01-TF Plus (10.4") control
Remote MPG (handwheel) (except Vturn-V560)
Oil cooler for gearbox (Vturn-V760/V/1000)
Fanuc e-book (CD)


Bigger chucks (21" chuck/1700rpm, 24" chuck/1400rpm, 28 chuck/1200rpm, 32 chuck/1100rpm, 36" chuck/1000rpm, 40" chuck/800rpm)
Oil skimmer
Bigger spindle motor
Renishaw tool presetter (detachable) (Max. 15" chuck for VT-V560, 24 chuck for VTV760, 36 chuck for V1000)
High pressure coolant
Auto door
VDI turret fexcept Vtum-V1000)
Higher column (100mm more)
Right disposal chip conveyor (for Vturn-V760/V1000)
Higher outlet chip conveyor for Vturn-V560)
Detachable chip conveyor (to reduce the floor space when cleaning)
Fanuc manuals


Item \ model		Unit	Vturn-V1000 (CM)
Capacity	Swing over bed	mm	1100
	Swing over carriage	mm	870
	Max. turning dia.	mm	1000
	Max. turning length	mm	850 (825)
	Max. turning length	mm	885 (756)
Travel	X axis stroke	mm	500+40
	Z axis stroke	mm	850
Spindle	Max. spindle speed	rpm	1500
	Spindle base speed	rpm	96
	Spindle nose		A2-15
	Spindle bore	mm	105
	Inner bearing (front)	mm	200
	Chuck diameter	inch	24” (opt. 28”/32”/36”/40”)
	Max. part weight	kg	1250
Turret	No. of tools	no.	12
	No. of live tools (opt.)	no.	12 (BMT-85)
	Tool shank size	mm	32
	Max. boring bar dia.	mm	60 (opt. 80)
	Exchange time	sec.	1 (hydraulic)
			(0.2 servo for CM)
Feedrate	Rapid federate	m/min	X/Z = 20/20
	X axis ballscrew	mm	f50 x P8
	Z axis ballscrew	mm	f50 x P8
	JOG feedrate	mm/min	X/Z=0~1260
Motor	Spindle motor	kw	37/45
	Gearbox	kw	ZF Gearbox (STD)
	X/Z axis servo motor	kw	X:4, Z:7
	Milling motor	kw	7
Machine	Fanuc controller		0i-TD
	Coolant tank	Liter	400
	W × L × H (including chip conveyor)	mm	2510 x 4155 x 3546
	Power requirement	kVA	83 (90 for CM)
	Net weight	kg	16000
