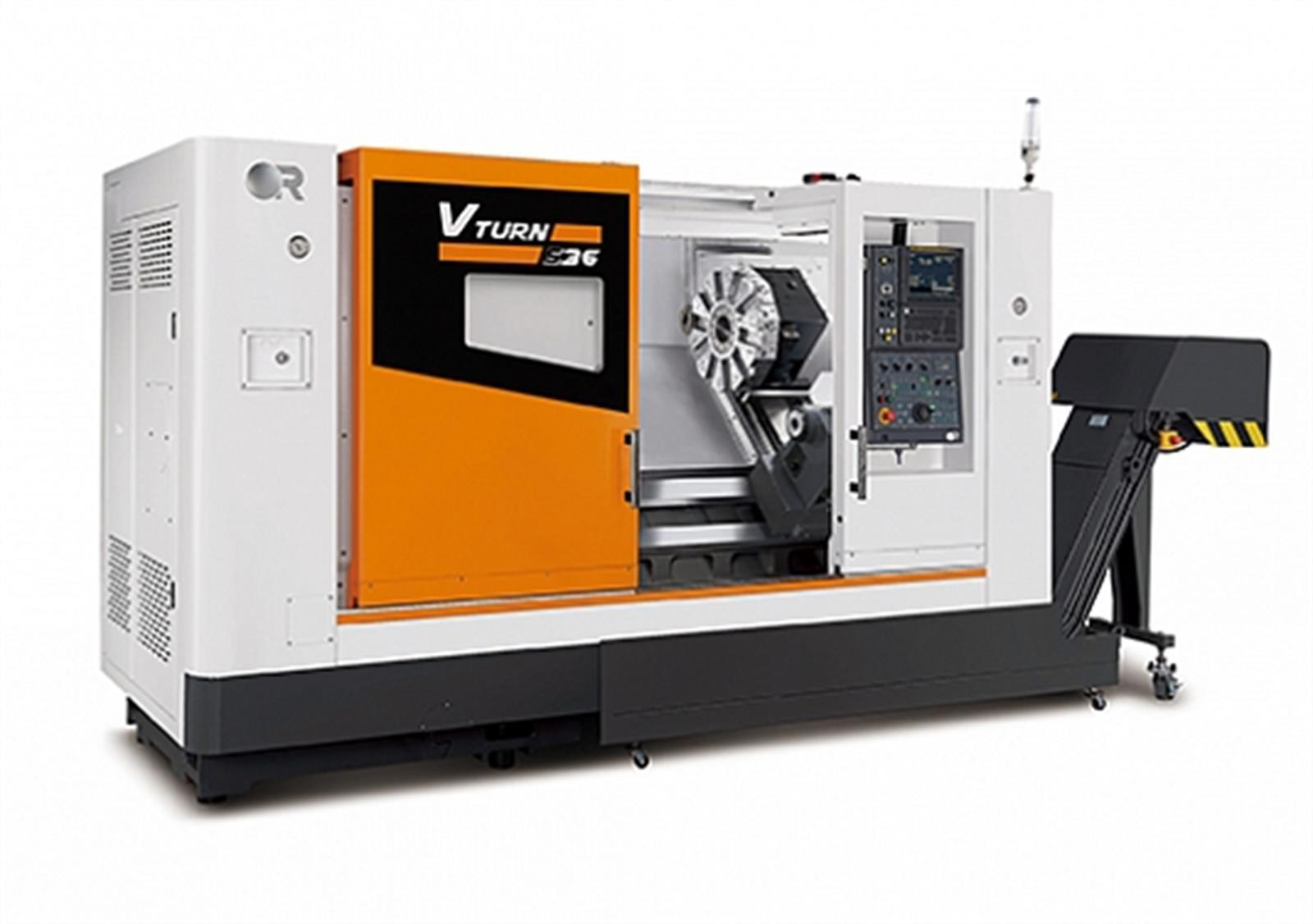

Victor Taichung Vturn-S36/85 (CM) Horizontal Turning Lathes

Victor Taichung Vturn-S36/125 (CM) Horizontal Turning Lathes (Vturn-S36/125 (CM))

Brand : Victor Taichung

Stock Amount : 0

Est. Delivery Time60-75 Days After Order

Shipment Place Turkiye

Payment Terms% 30 T/T On Order Confirmation, % 70 T/T Before Shipment

Made InTaiwan

Min. Order Qty.1 Pcs.

Warranty1 Year

Ask For Offer

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

Lathes

Horizontal Turning Lathes

A2-11 spindle with 2-step gearbox
One piece 45° slant bed
Large swing diameter 680 mm
12" Power chuck / 2500 rpm
Z-axis travel:
850mm (Vturn-S36/85)
1250 mm (Vturn-S35/125)
High thrust force 1582 kgf
High rapid feed 18/20 m/min (X/Z)
C-axis available with higher power spindle motor

Fanuc Oi-TF Plus (10.4") with Manual Guide i
Hydraulic chuck with soft jaws
Programmable tailstock
Chip conveyor (rear disposal for VT-S20/40)
Fully enclosed splash guarding
Hand wheel
Tool holders (for standard turret only)
Coolant flush on Z-axis cover
3 step warning light

Manual tool presetter
Auto tool presetter
Parts catcher (N.A. for VT-S36)
KITAGAWA power chuck
Air conditioner for electrical cabinet (Panel cooler)
Higher pressure coolants
Bar feeder interface
Air blow
Oil skimmer
Oil mist collector
Auto door
Hard jaws
Tailstock center
Transformer
C-axis
Bar stopper

MODEL			Vturn-S36/125 (CM)
Capacity	Swing over bed dia.	mm	Ø780
	Standard turning dia.	mm	Ø480 (Ø452)
	Maximum turning dia.	mm	Ø580 (Ø580)
	Swing over carriage dia.	mm	Ø600
	Between centers	mm	898
	Bar capacity (Hole thru draw bar)	mm	Ø97 (opt.117.5)
AXIS FEEDS	X axis travel	mm	290+30 (270+50)
	Z axis travel	mm	855
	Rapid feed - X / Z axis	m/min	18 / 20
	Feed motor - X / Z axis	kW	3 / 4 (4 / 4)
	JOG feed	mm/min	X/Z: 0~1260
	Ball screw dia x pitch	mm	Ø36×P6 (X), Ø50×P8 (Z)
Spindle	Spindle speed	rpm	2500 (opt. 2000)
	Spindle nose (chuck)	inch	A2-11 (12")
	Spindle motor power (cont./30min/25%)	kW	22 / 26 / 35 (30 / 37 / 45)
	Spindle bearing inside dia.	mm	Ø160
	Spindle bore	mm	105 (opt. 135)
	Spindle taper		1/20
Turret	No. of tools (live)		10 (12 servo)
	Tool shank size	mm	□32
	Max. boring bar dia.	mm	Ø50 (BMT-75)
	Exchange time (T-T)	sec	0.9 (1.36) - adjacent
	Exchange time (T-T)	sec	1.78 (1.8) - opposite
	Milling speed	rpm	3000
	Milling motor	kW	7
Tailstock	Tailstock quill dia.	mm	Ø110
	Quill stroke	mm	100
	Quill taper		MT #5 (opt. MT#4)
Accuracy	Positioning accuracy (bi-directional)	mm	0.01
Accuracy	Repeatability	mm	±0.004
Machine	NC controller	Fanuc	0i-TF Plus (10.4")
	Coolant tank capacity	L	550
	Coolant tank capacity	L	600
	Power requirement	kVA	38 (46)
	Machine dimension LxWxH	mm	5475 (5755) x 2029 x 2253
	(with chip conveyor)	mm	5475 (5755) x 2029 x 2253
	Net weight	kgs	9850 (9950)
