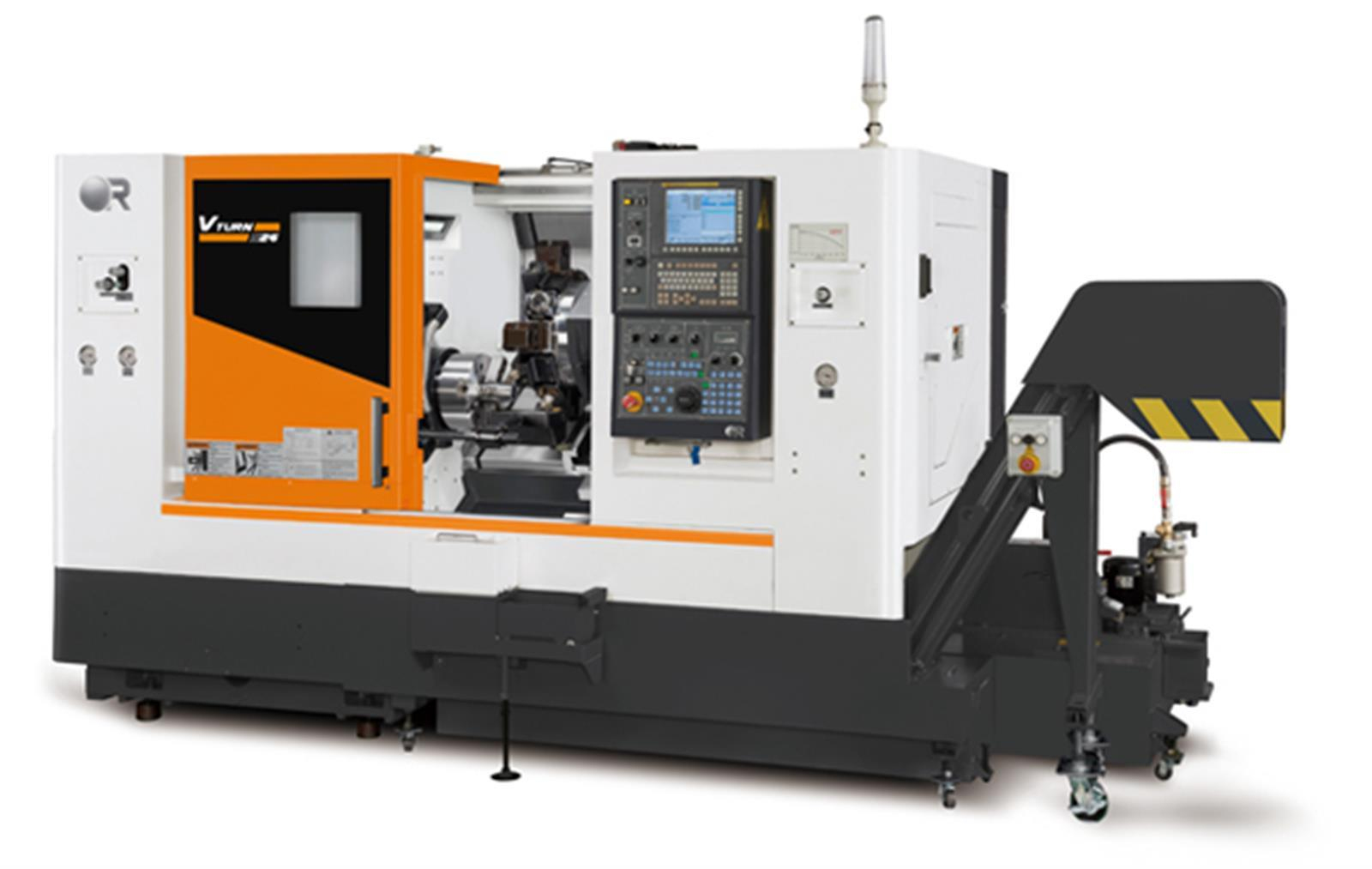

Victor Taichung Vturn-S26/110 (CM) Horizontal Turning Lathes (Vturn-S26/110 (CM))

Despite its nimble and productive performance, the new Vturn-S26 offers a massive spindle output of 22kW with 574Nm which permits heavy duty cutting under the most challenging conditions and materials. The Vturn–S26 has a swing of 600mm compared to the 520mm on previous Vturn-26HD models and this increases the maximum turning diameter from 410 to 430mm.

The Vturn–S26 has a swing of 600mm compared to the 520mm on previous Vturn-26HD models and this increases the maximum turning diameter from 410 to 430mm.

One piece 30° slant bed
Z-axis travel 610/1090 mm
10” Power chuck
Z-axis travel 610 mm
High thrust force 1441 Nm
High rapid feed 18/24 m/min (X/Z)
C-axis available

Fanuc Oi-TF Plus (10.4") with Manual Guide i
Hydraulic chuck with soft jaws
Programmable tailstock
Chip conveyor (rear disposal for VT-S20/40)
Fully enclosed splash guarding
Hand wheel
Tool holders (for standard turret only)
Coolant flush on Z-axis cover
3 step warning light

Manual tool presetter
Auto tool presetter
Parts catcher (N.A. for VT-S36)
KITAGAWA power chuck
Air conditioner for electrical cabinet (Panel cooler)
Higher pressure coolants
Bar feeder interface
Air blow
Oil skimmer
Oil mist collector
Auto door
Hard jaws
Tailstock center
Transformer
C-axis
Bar stopper

MODEL			Vturn-S26/110 (CM)
Capacity	Swing over bed dia.	mm	Ø600
	Standard turning dia.	mm	Ø350 (Ø285)
	Maximum turning dia.	mm	Ø430 (Ø420)
	Swing over carriage dia.	mm	Ø480
	Between centers	mm	1130
	Bar capacity (Hole thru draw bar)	mm	Ø75 (opt.77, 91)
AXIS FEEDS	X axis travel	mm	215+25 (210+30)
	Z axis travel	mm	1100
	Rapid feed - X / Z axis	m/min	18 / 24
	Feed motor - X / Z axis	kW	3 / 4
	JOG feed	mm/min	X/Z: 0~1260
	Ball screw dia x pitch	mm	Ø32×P6 (X), Ø40×P8 (Z)
Spindle	Spindle speed	rpm	3500 (opt. 2500)
	Spindle nose (chuck)	inch	A2-8 (10”)
	Spindle motor power (cont./30min/25%)	kW	15 / 18.5 / 22
			(opt. 18.5 / 22 / 26)
	Spindle bearing inside dia.	mm	Ø130
	Spindle bore	mm	87
	Spindle taper		1/20
Turret	No. of tools (live)		10 (12) servo
	Tool shank size	mm	□25
	Max. boring bar dia.	mm	Ø50 (BMT-65)
	Exchange time (T-T)	sec	0.8 (0.81) - adjacent
			1.0 (1,25) - opposite
	Milling speed	rpm	4000 (opt. 6000)
	Milling motor	kW	4.5
Tailstock	Tailstock quill dia.	mm	Ø110
	Quill stroke	mm	100
	Quill taper		MT #5 (opt. MT#4)
Machine	NC controller	Fanuc	0i-TF (8.4”)
	Coolant tank capacity	L	380
	Power requirement	kVA	27 (29)
	Machine dimension LxWxH	mm	4673 x 1848 x 1819
	(with chip conveyor)
	Net weight	kgs	6250 (6350)
