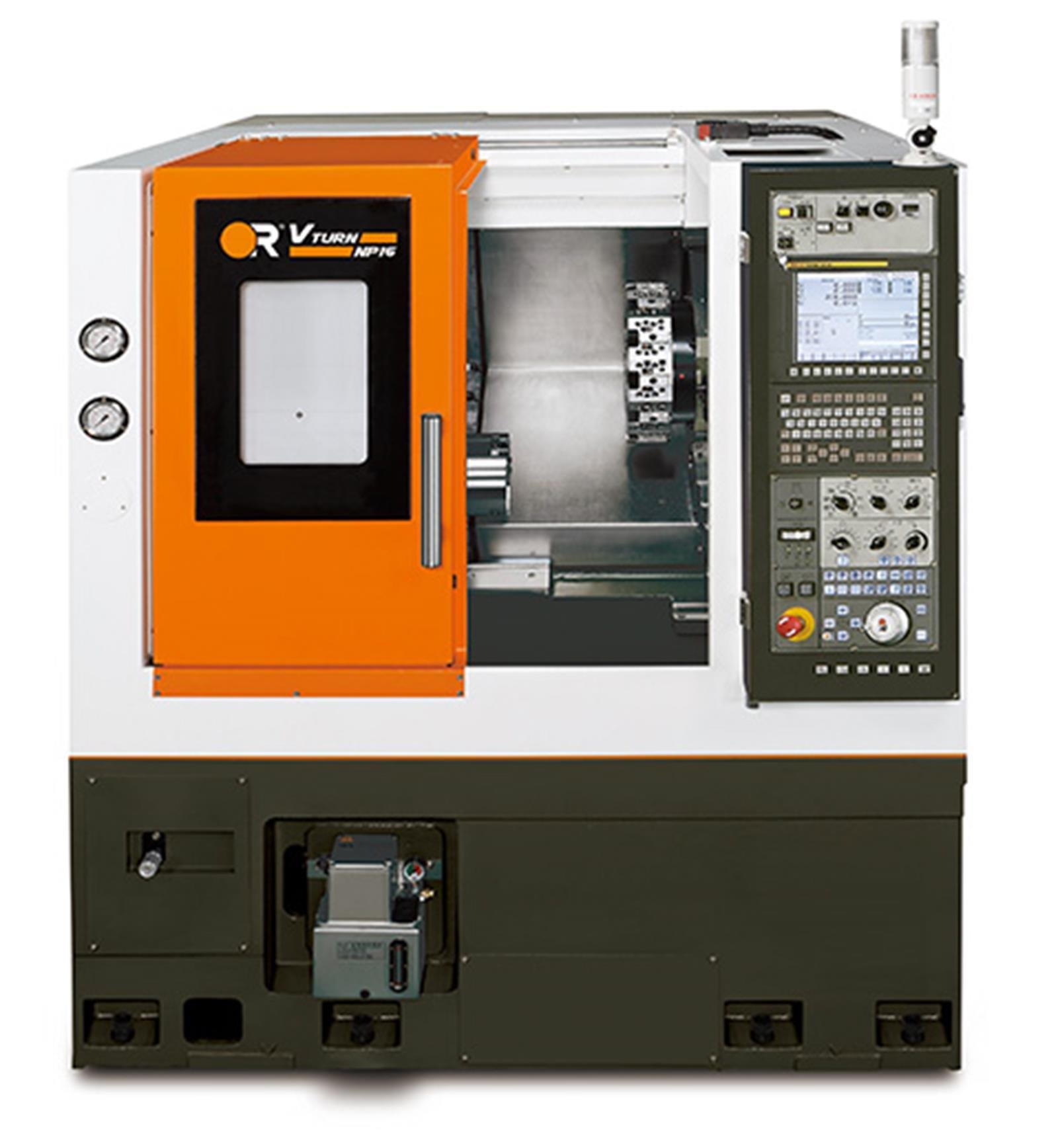

Victor Taichung Vturn-NP20 (CM) Narrow Lathe Machine (Vturn-NP20 (CM))

Machine width 1.5/1.93 meters (NP16/NP20)
Turning length 250/400 mm (NP16/NP20)
Rapid feeds 30/30 m/min
Roller guideways
Servo turret
One-piece slant bed
Rear/Right chip disposal
Ready for unmanned operations

Fanuc O-TF Plus (10.4") with Manual Guide i
Hydraulic chuck with soft jaws
Chip conveyor (rear disposal)
Fully enclosed splash guarding
Tool holders (only for standard turret)
Coolant flush on Z-axis cover
3 step warning light

Manual tailstock with power quill
Chip conveyor (right disposal)
Manual tool presetter
Auto tool presetter
Parts catcher (swing type)
KITAGAWAⓇ power chuck
Air conditioner for electrical cabinet (Panel cooler)
Higher pressure coolants
Bar feeder interface
Air blow
Oil skimmer
Oil mist collector
Hard jaws
Tailstock center
Auto door
Small spindle bore (042 mm, 6000 rpm)
Large spindle bore (006 mm, 4000 rpm)
G-axis
Robol system

ITEM \ MODEL		Unit	Vturn-NP20 (CM)
CAPACITY	Swing over bed dia.	mm	Ø650
	Standard turning dia.	mm	Ø206 (Ø234)
	Maximum turning dia.	mm	Ø320 (Ø260)
	Swing over carriage dia.	mm	Ø365
	Between centers	mm	520
	Bar capacity (Hole thru draw bar)	mm	Ø52
AXIS FEEDS	X axis travel	mm	20+160 (50+130)
	Z axis travel	mm	400
	Rapid feed - X / Z axis	m/min	30 / 30
	Feed motor - X / Z axis	kW	1.8 / 1.8
	JOG feed	mm/min	X/Z: 0~1260
	Ball screw dia x pitch	mm	Ø25×P10 (X)
			Ø40×P10 (Z)
	Guideway width - X / Z axis	mm	35 / 35
SPINDLE	Spindle speed	rpm	4200 (opt. 6000)
	Spindle nose (chuck)	inch	A2-6 (8”)
	Spindle motor power	kW	7.5 / 11 / 15
	(cont./30min/15%)		(opt.11/15/18.5)
	Spindle bearing inside dia.	mm	Ø100
	Spindle taper	-	1/20
TURRET	No. of tools (live)	-	12 (12)
	Tool shank size	mm	□25
	Max. boring bar dia.	mm	Ø40 (BMT-55)
	Exchange time (T-T)	sec	0.9 (opposite)
	Milling speed	rpm	4000 (opt. 6000)
	Milling motor	kW	2.2
TAILSTOCK (Optional)	Tailstock quill dia.	mm	Ø75
	Quill stroke	mm	80
	Quill taper	-	M.T. #4
MACHINE	NC controller	Fanuc	0i-TF (10.4”)
	Coolant tank capacity	L.	240
	Power requirement	kVA	16.6 (17.3)
	Machine dimension LxWxH	mm	1930 x 2257 x 1890
	(with chip conveyor)
	Net weight	kgs	4000 (4370)
