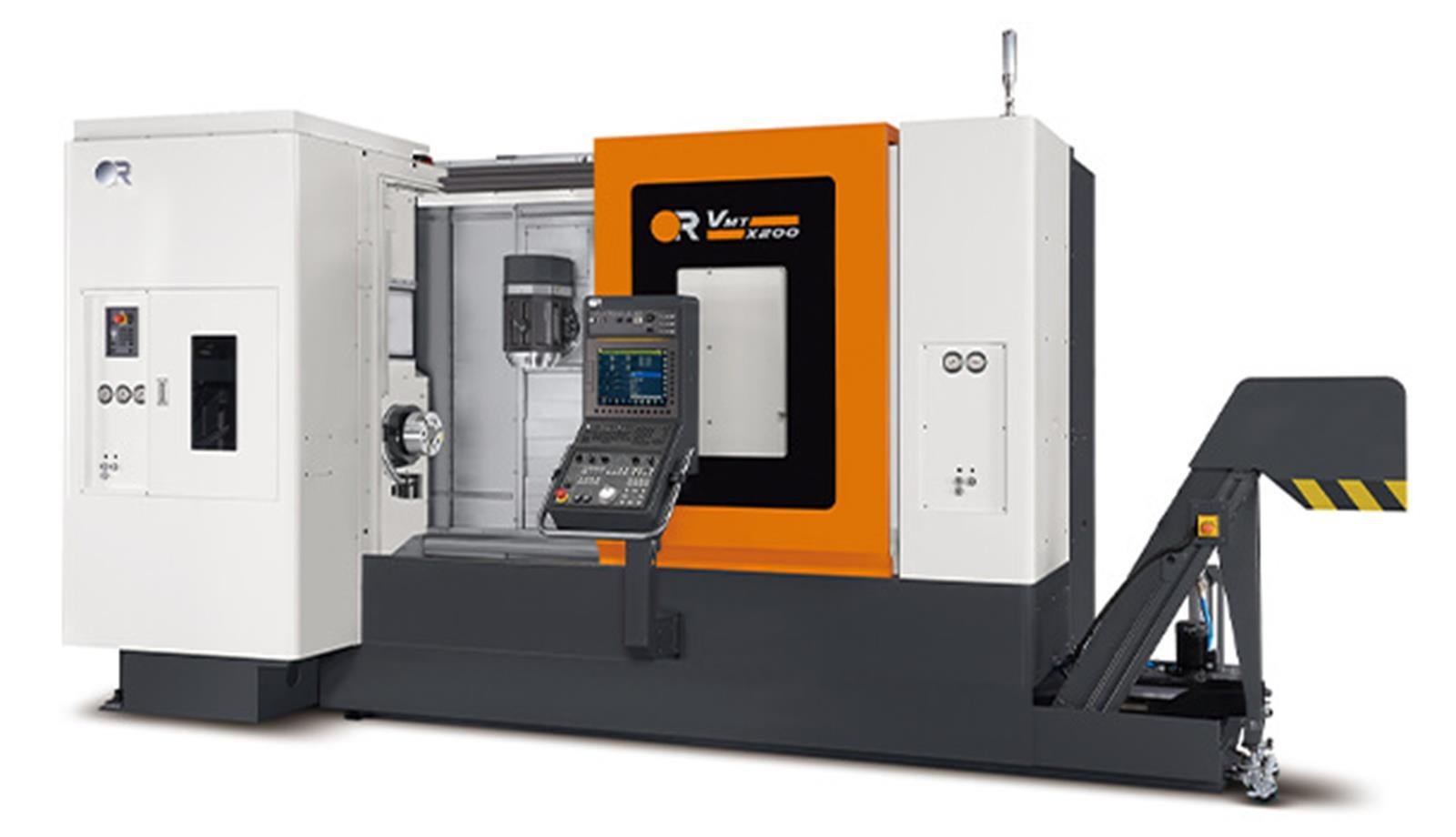

Victor Taichung VMT-X260 Multi-Tasking Turning Center (VMT-X260)

Turning & Milling in one set-up
Y-axis travel 260 mm (10.2")
Max. turning dimension Ø500 x 1075 mm
Turning spindle 4200 rpm / 15 KW with 8” chuck for Vmt-X200, or 3500 rpm / 22 kW with 10” chuck for Vmt-X260
Milling spindle 12000 rpm / 22 kW
with HSK-T63 / A63 tooling
ATC-40 tools

Fanuc 0i-TF PLUS (15", type 0) control with iHMI + AICC + MGI
Hydraulic chuck with soft jaws
Chip conveyor with cart
Automatic Tool Presetter (Renishaw®) for milling spindle
Coolant flush to the bottom of Z-axis covers by Walrus pump TPHK 4T4-4 (4 bars/60Hz)
Coolant ring around milling spindle with high pressure coolant (4 bars/60Hz)  by Walrus® pump TPHK 4T4-4)
Coolants through milling spindle (7 bars/60Hz) for high pressure turning
Digital tailstock
LHL (Lube Hybrid Lubrication) system
Spindle oil cooler
Fully enclosed splash guarding
Hand-wheel (Pulse generator)
3 step warning light
Handy air gun

2nd spindle (right spindle)
KITAGAWA® hydraulic chuck
Hard jaws
Coolant Through Spindle (CTS)
Steady rest
High pressure coolants
Bar feeder interface
Robotic parts catcher
Hand-wheel (remote MPG)
Air blow system
Auto door
Fanuc manuals
Oil skimmer (not required because of LHL lube system.)
Fanuc 31i-B5 Plus control for 5-axis simultaneous machining
Test bar for accuracy calibration
Coolant gun

Items		Unit	VMT-X260
Capacity	Swing over bed	mm	660
	Between centers	mm	1376
	Max. turning length	mm	1075
	Max. turning diameter	mm	500 (tool length 70mm)
Travels	X1-axis (upper tool spindle)	mm	635 (+510/-125)
	Z1-axis (upper tool spindle)	mm	1170 (95+1075)
	Y-axis (upper tool spindle only)	mm	260 (±130)
	B-axis	deg	240 (-30~+210)
	E-axis (tailstock / sub-spindle)	mm	1080
Axis feed	X1/Z1/Y/E/B-axis feed	m/min	36/36/36/24/(30rpm)
	X1/Z1/Y/E/B axis motor power	kW	5.5 / 7 / 4 / 2.5 / 3
	Ball screw dia. x pitch	mm	X1: 40 x P10,
			Z1/Y/E: 40 x P12
Main spindle	1st spindle nose (chuck)	inch	A2-8 (10”)
	1st spindle speed	rpm	3500
	1st spindle motor power (cont./30 min/15%)	kW	15/22/- (high winding)
	Spindle bore	mm	86
	Bearing inside diameter	mm	130
	Bar capacity	mm	75 (opt. 77)
Subspindle (optional)	2nd spindle nose (chuck)	inch	A2-6 (8”)
	2nd spindle speed	rpm	4000
	2nd spindle motor power (cont./30 min/15%)	kW	15/18.5/22 (high winding)
	Spindle bore	mm	76
	Bearing inside diameter	mm	110
	Bar capacity	mm	66
Upper milling  spindle (B-axis milling head)	Turret type	rpm	Milling head with ATC
	Continuous indexing resolution:	deg.	0.001 (by roller gear)
	Max. speed	rpm	12000
	Milling motor power (cont./30min/25%)	kW	15/18.5/22 (high winding)
ATC & tool magazine	Tool specification	-	HSK-T63
	Tool capacity	-	40 (opt. 48, 60)
	Tool selection	-	Fixed tool pot number
	Max. tool diameter (w/t adjacent tool)	mm	90 (125)
	Max. tool length	mm	300
	Max. tool weight	kg	7
	Tool exchange time	sec	3.3 (T-T), 7.5 (C-C)
Tailstock	Quill diameter	mm	NA (digital)
	Quill stroke	mm	NA (digital)
	Quill taper		MT-5 (live)
Machine	Controller	Fanuc	0i-TF Plus (15”, type 0)
	Tank capacity	L.	300
	Floor requirement (incl. chip conveyor)	mm	5437 x 3034 x 2906
	Power requirement	kVA	74
	Net weight	kg	12500
