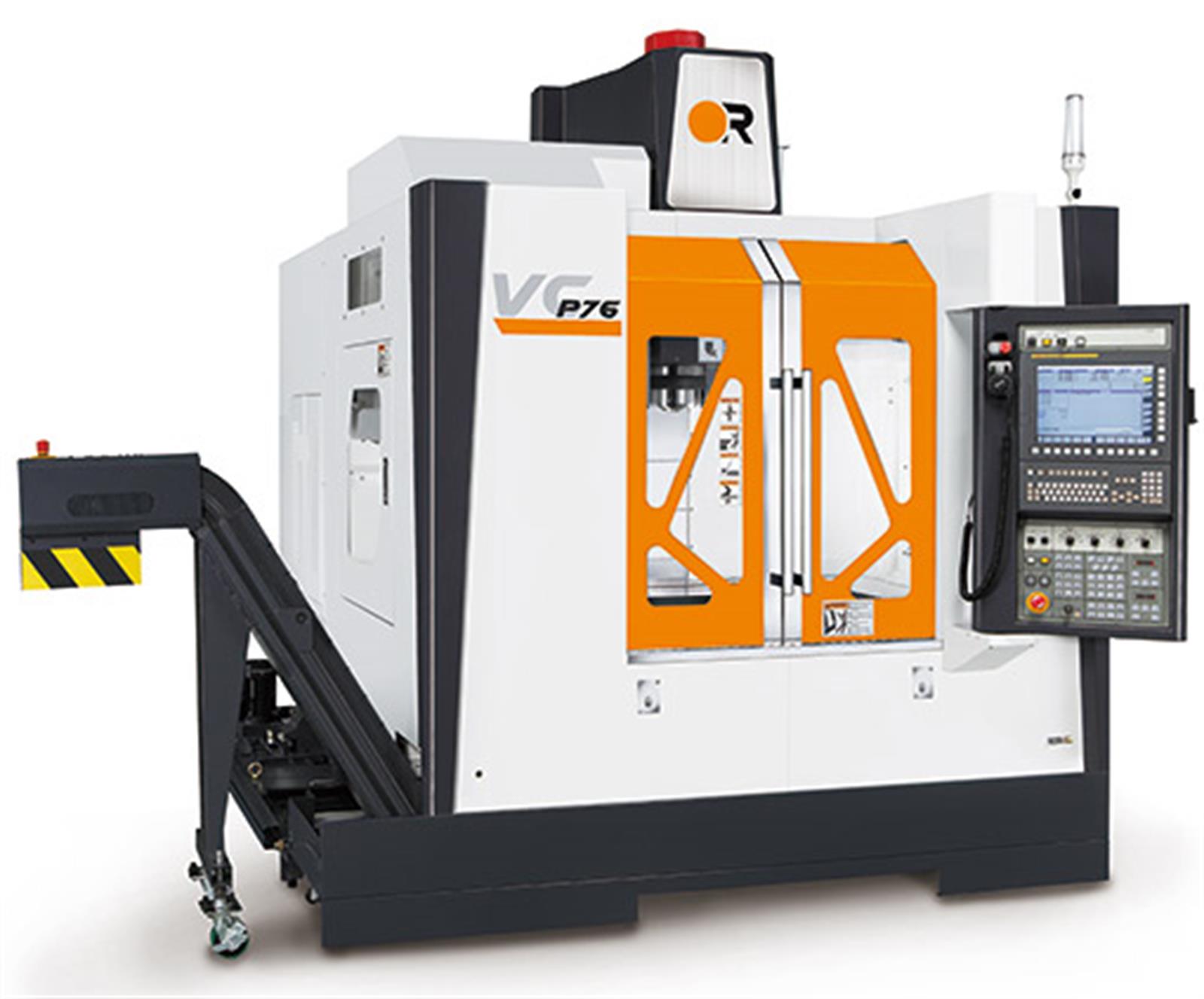

Victor Taichung Vcenter-P76 Vertical Machining Centers (Vcenter-P76)

X-travel 760/1060/1360 mm for Vc-P76/P106/P136
High rapid feeds 48/48/32 m/min (P76/P106)
12000rpm spindle output 18.5 KW(S3)
BBT-40 / 30 tools
Roller guideways
Bottom guarding flush (P106 only)
Screw chip removers
Electrical counterbalance

Auto Pallet Changer System
APC mechanism seated on ground for high rigidity
Pallet dimension 720mm x 400mm
Pallet exchange time: 15 seconds (Incl. air sealing detection time)
Control panel at right side for easy operation
Linear scales and 4th axis can be installedAs a world-famous machining center manufactory, continuous improvement and innovation have been our main business goals. We maintain close cooperation with global partners to provide high performance vertical machining centers with the latest technology to meet different processing needs. If you have any questions, please feel free to contact the Victor Taichung team.

Fully enclosed splash guard
Fanuc Oi-MF Plus (10.4") control
Spindle oil cooler
Screw-type chip remover (left disposal)
Bottom guarding flushing coolants (VC- P106/P136)
Rigid tapping
Remote MPG
Hand tools and toolbox
T nuts for table slot
3-step warning light
Auto power off
Leveling pads

Air conditioner for electric cabinet
Chip conveyor
Coolant through spindle (CTS)
40 tool magazine
Auto tool length measurement
Auto part measuring
Stop block for special tools
4th/5th axis interface
Auto door
Oil skimmer
Air gun
Coolant gun
15000 rpm spindle (DCS)
Linear scales
Rotary tables
Higher column with extended Z-axis travel 760mm (for Vc-P106)
Victor Spindle Compensator (TSC) for thermal displacement


Item		Units	Vcenter-P76
			Vcenter-P76APC
Travel	X axis travel	mm	760
	Y axis travel	mm	500
	Z axis travel	mm	510
Distance	Spindle center to column	mm	565
	Spindle nose to table surface	mm	120 ~ 630
Table	Table work area	mm	840 x 500
	Dimension of T-slot	mm	4 x 18 x 100
	Max. table load	kg	500
Spindle	Spindle taper		BBT-40
	Spindle motor - cont/60%/25% (Fanuc)	kW	11/15/18.5 (w/t CTS)
			7.5/11/15 (for CTS)
	Spindle motor – cont/40%/25%/10% (Heidenhain)	kW	11/16.5/20/28
	Spindle speed	rpm	12000 (opt. 15000)
Feed rate	Rapid feed rate  - X/Y/Z (Fanuc)	m/min	48 / 48 / 32
	Rapid feed rate  - X/Y/Z (Heidenhain)	m/min	48 / 48 / 32
	Axis acceleration – X/Y/Z	m/sec2	0.7G / 0.7G / 0.5G
	Axis feed motor  - X/Y/Z (Fanuc)	kW	3 / 3 / 3
	Axis feed motor  - X/Y/Z (Heidenhain)	kW	4.5 / 4.5 / 5.4
	Cutting feedrate by table	m/min	20
	X/Y/Z ballscrew (dia. x pitch)	mm	40 x P16 (X)
			40 x P16 (Y/Z)
	Linear guide width (X/Y/Z)	mm	30 / 35 / 45
Tools	Max. tool length	mm	300
	Max. tool weight	kg	7
	Magazine capacity		30 (opt. 40)
	Max. tool diameter	mm	75 (150)
	(without adjacent tools)
	Tool exchange time	sec.	1.8 (T-T), 4.3 (C-C)
	Pull stud angle	deg.	15 (JIS 40P)
	Tool selection method		Random
Machine	Power requirement	kVA	23 (excl. CTS)
	Min/Max. air pressure	kg/cm2	5.5 ~ 6.5
	Coolant tank capacity	L.	260
	Std. NC controller (Fanuc)		0i-MF (10.4”)
	Opt. NC controller (Heidenhain)		TNC-620 (15”)
	Floor space requirement	mm	2818 x 2719
	Max. machine height	mm	2731
	Machine weight	kg	5500
