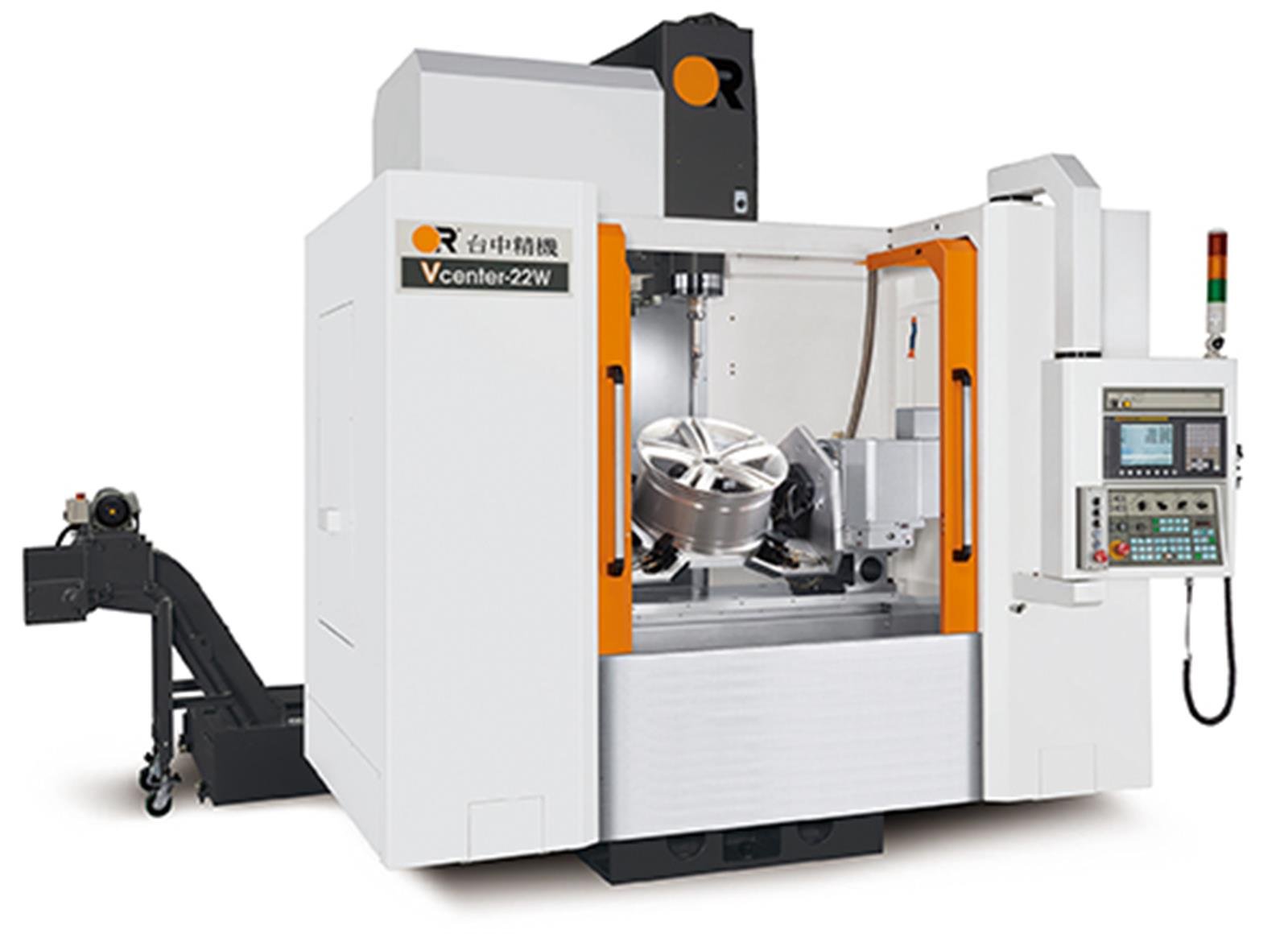

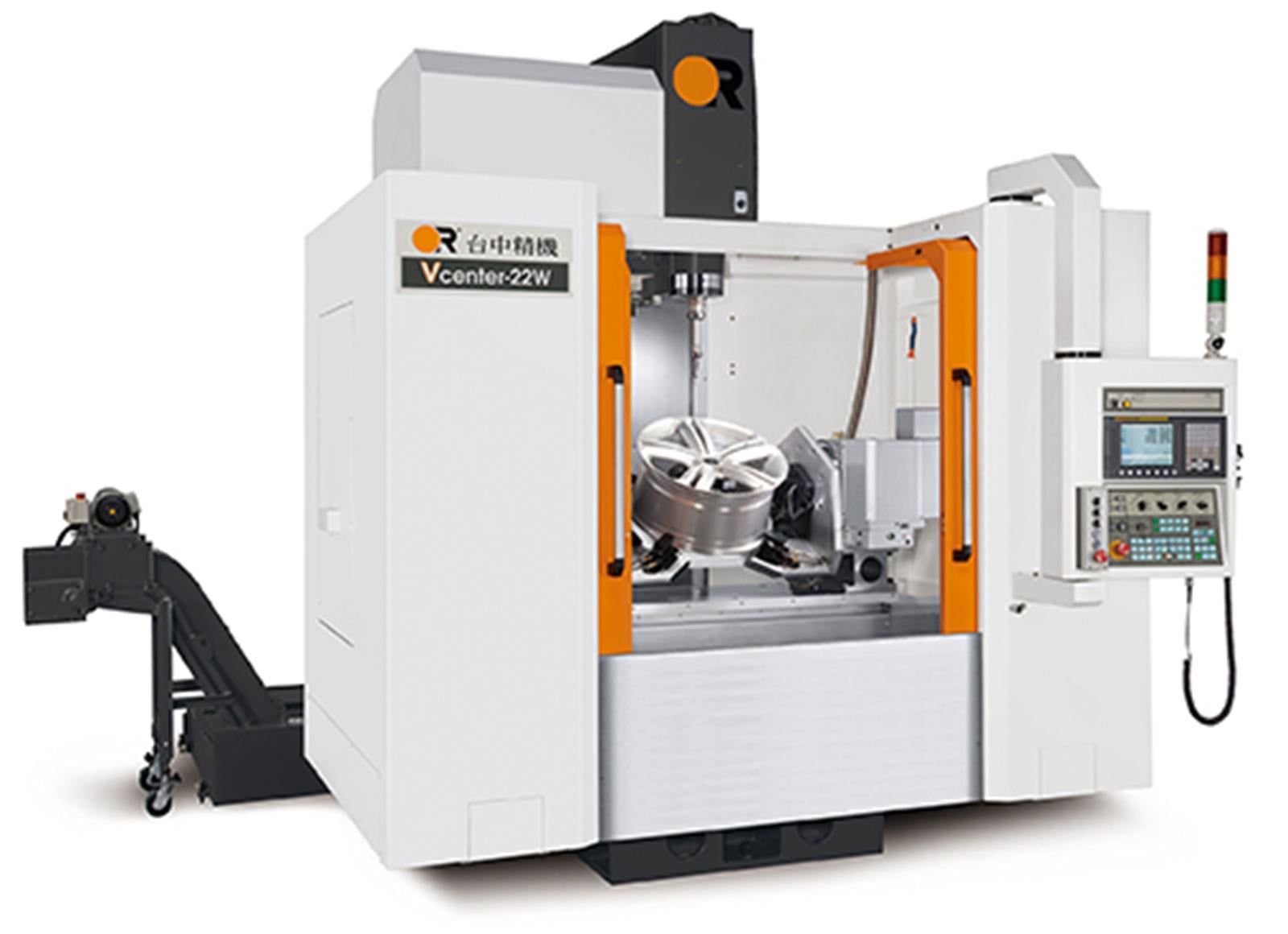

Victor Taichung Vcenter-22W CNC Vertical Wheel Machining Center (Vcenter-22W)

Brand : Victor Taichung

Stock Amount : 0

Est. Delivery Time60-75 Days After Order

Shipment Place Turkiye

Payment Terms% 30 T/T On Order Confirmation, % 70 T/T Before Shipment

Made InTaiwan

Min. Order Qty.1 Pcs.

Warranty1 Year

Ask For Offer

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

Lathes

Vertical Lathe for Bigger Wheel Machining

Vertical 4-axis machining center with rotary table and drillingfixture.
Flipping over wheel size up to 22" x11.5J or 24" x10J for rear boring on valve hole and TPMS hole.
Ram and arm type ATC for quick tool changeover time.
Four screw chip removers minimize chip build-up.

Fully enclosed guarding
Rigid tapping
Remote MPG (handwheel)
Air blow (with M-code)
Leveling pads
Oil skimmer
4th axis interface
Rotary table with drilling fixture

Chip conveyor
Auto door
Air conditioner for electrical cabinet(outside)
High pressure coolants
Coolant through spindle (CTS)
Tool length measurement
Part measuring
Oil mist collector
Without drilling fixture
Without rotary table

ITEM	Units	Vcenter-22W
X axis travel	mm (inch)	850 (33.46)
Y axis travel	mm (inch)	600 (29.59)
Z axis travel	mm (inch)	610 (24.02)
Spindle nose to table	mm (inch)	188~802 (7.4~31.57)
Spindle center to column	mm (inch)	735 (28.93)
Wheel range (incl. rear boring)	inch	22 x 11.5J (or 24 x 10J)
Spindle motor (cont./30min/10min)	kW (HP)	11/15/18.5 (15/20/25)
Rotary table (A-axis)	deg	360 (22" x 11.5J)
Spindle speed	rpm	8000
X/Y/Z axis rapid feedrate	m/min (IPM)	48/48/32 (1890/1890/1260)
A axis feed rate	rpm	11
X/Y/Z/A axis feed motor	kW (HP)	3/3/3/3 (4/4/4/4)
Cutting feedrate by table	m/min (ipm)	10 (393)
Max. tool length	mm (inch)	350 (13.8)
Max. tool weight	Kg (lbs)	7 (15.47)
Max. tool diameter [without adjacent tools]	mm (inch)	80[125] (3.15[4.92])
Tool exchange time	sec	2.0 (T-T), 4.3 (C-C)
Pull stud angle	deg.	15 (JIS 40P)
Magazine capacity		16 (disk)
Coolant tank	Liter (gallon)	580 (153.2)
Power requirement	kVA	33
Controller	Fanuc	0i-MF (Type 1)
Machine dimension (incl. chip conveyor and stepper)	mm (inch)	4178 x 3800 x 3210
Machine dimension (incl. chip conveyor and stepper)	mm (inch)	(164.48 x 149.6 x 126.38)
Machine weight	Kg (lbs)	7450 (16390)
